Soft Hose Filling and Sealing Machine (B. GFN- 502 )
B. GFN-502 Inner-heating filling and sealing machine for tube/hose/pipe/tuboApplicationB. GFN-502 Inner-heating filling and sealing machine is widely used for filling, sealing and batch No. Printing of products packaged by aluminum tubes in cosmetics, toothpastes, medical ointments, food, shoe polis......
Send Inquiry
Product Description

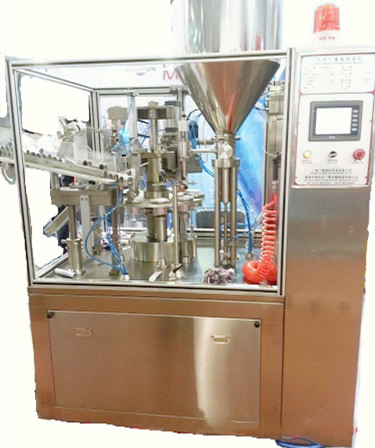

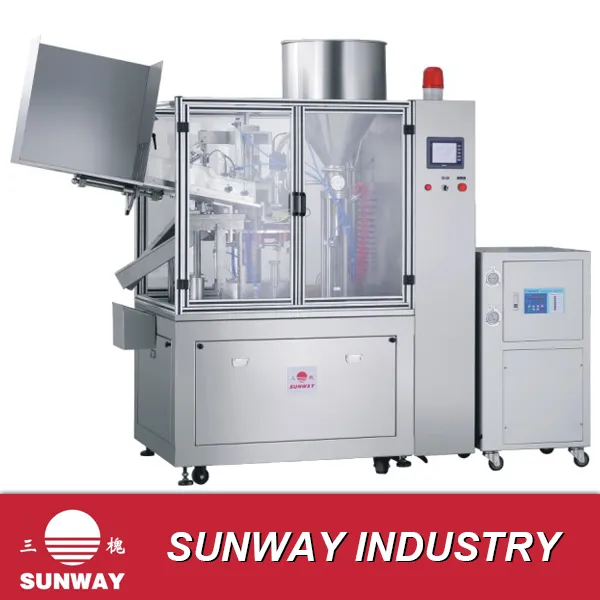

B. GFN-502 Inner-heating filling and sealing machine for tube/hose/pipe/tubo
Application
B. GFN-502 Inner-heating filling and sealing machine is widely used for filling, sealing and batch No. Printing of products packaged by aluminum tubes in cosmetics, toothpastes, medical ointments, food, shoe polishes, adhesives, etc. According to customer requirements, the machine can realize dual-use filling of liquid and ointment materials through special design and special filling device. The machine can be used independently and can also form a production flow line with other requirement such as the automatic packaging machine and etc.
Features
1. The main driving adopts full mechanical structure with stable running, low noise, and convenient operation and maintenance.
2. Equipped with automatic tube dropping box, automatic tube feeding, double-head filling, automatic color code aligning, automatic tube discharging
3. Hot air inner heating, hot air heating from tube inner wall, no damage to tube surface tissues, beautiful sealing, especially suitable for sealing full-plastic packaging tubes
4. Automatically adjusted filling volume, no filling in case of no tube, PLC control, electrical buttons operation
5. Equipped with organic glass dust cover
6. Irregular shape sealing(optional)
7. Wire drawing preventing or leakage preventing filling head(optional)
8. Storage barrel liquid level control and alarming system, automatic feeding(optional)
9. Provided with mixing storage barrel(optional)
10. Provided with heating storage barrel(optional)
Main Technical Parameters
Application
B. GFN-502 Inner-heating filling and sealing machine is widely used for filling, sealing and batch No. Printing of products packaged by aluminum tubes in cosmetics, toothpastes, medical ointments, food, shoe polishes, adhesives, etc. According to customer requirements, the machine can realize dual-use filling of liquid and ointment materials through special design and special filling device. The machine can be used independently and can also form a production flow line with other requirement such as the automatic packaging machine and etc.
Features
1. The main driving adopts full mechanical structure with stable running, low noise, and convenient operation and maintenance.
2. Equipped with automatic tube dropping box, automatic tube feeding, double-head filling, automatic color code aligning, automatic tube discharging
3. Hot air inner heating, hot air heating from tube inner wall, no damage to tube surface tissues, beautiful sealing, especially suitable for sealing full-plastic packaging tubes
4. Automatically adjusted filling volume, no filling in case of no tube, PLC control, electrical buttons operation
5. Equipped with organic glass dust cover
6. Irregular shape sealing(optional)
7. Wire drawing preventing or leakage preventing filling head(optional)
8. Storage barrel liquid level control and alarming system, automatic feeding(optional)
9. Provided with mixing storage barrel(optional)
10. Provided with heating storage barrel(optional)
Main Technical Parameters
| Type | B.GFN-502 | ||
| Power Supply | 380(220)V/50Hz | ||
| Power | 5.5 kw | ||
| Air consumption | 0.6-0.8 MPa | ||
| Filling Volume | 15-60ml | 60-120ml | 120-200ml |
| Volume Precision | ±3% | ±2% | ±1% |
| Max. Production Capacity | 20-50 pcs/min | ||
| Tube Size | 16-50MM | ||
| Dimension(L*W*H) | 2200*930*2200MM | ||
| Weight | 650KG | ||
