Carbonated Beverage Filling Machine Used for Soda Water Plant Production Line
Desktop Full Automatic Liquid Oil Perfume E-liquid Eye-Drop Filling MachineProduct DescriptionThis machine is a desktop four-nozzles automatic magnetic pump filling machine,which cooperates with the conveyor belt to achieve automatic bottle detection,filling, and bottle separation functions. The mai......
Send Inquiry
Product Description
Desktop Full Automatic Liquid Oil Perfume E-liquid Eye-Drop Filling Machine
Product Description
Product parameters
Parameters
Application
It is applicable for packing the liquid like hairdressing water, It is especially suitable for the filling of oil, washing liquid, acid and alkali liquid, and corrosive liquid lotion, soy sauce, agricultural chemicals, wine .
Product Description

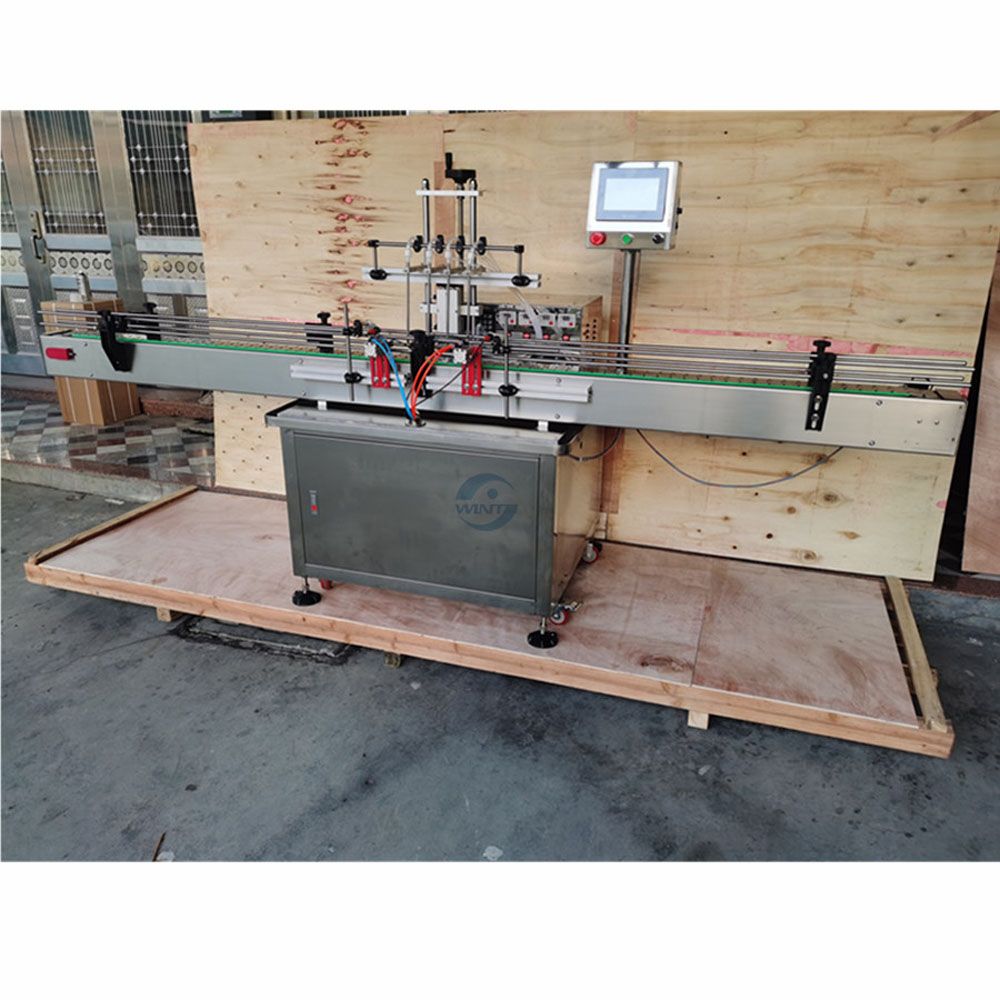

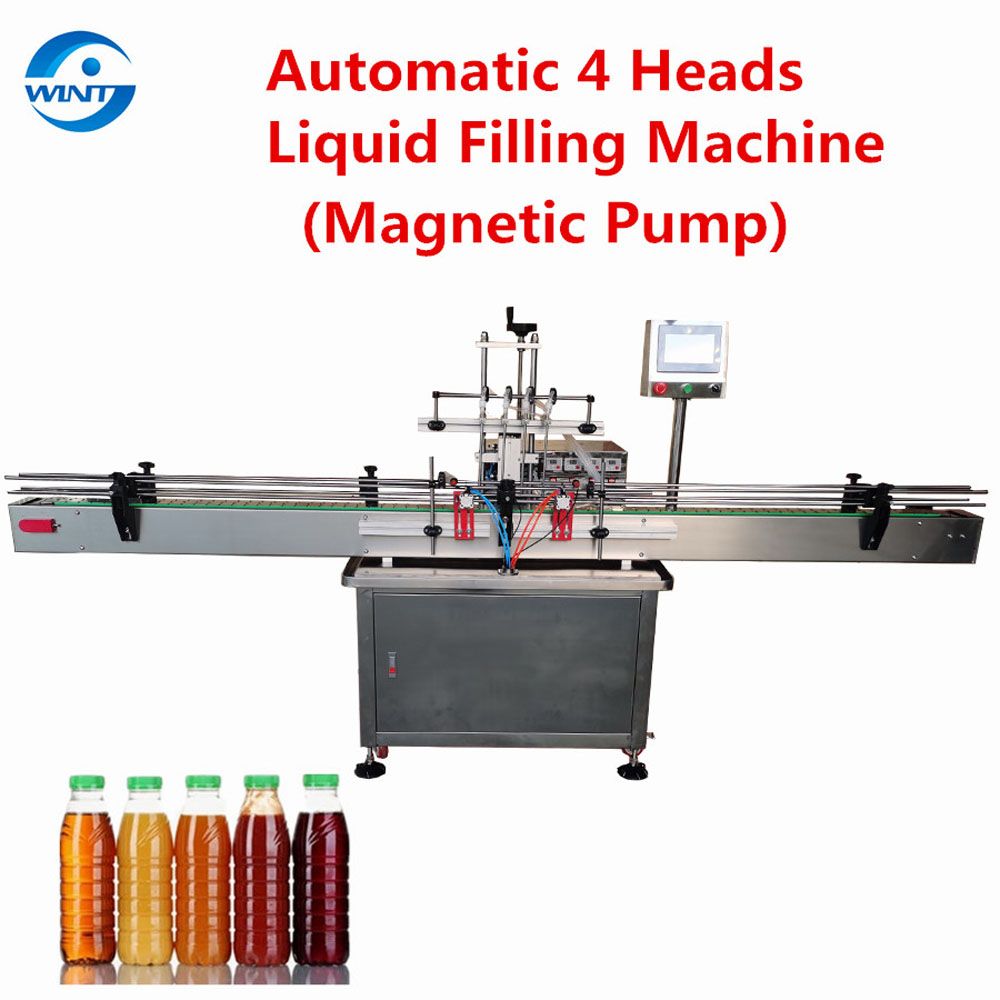

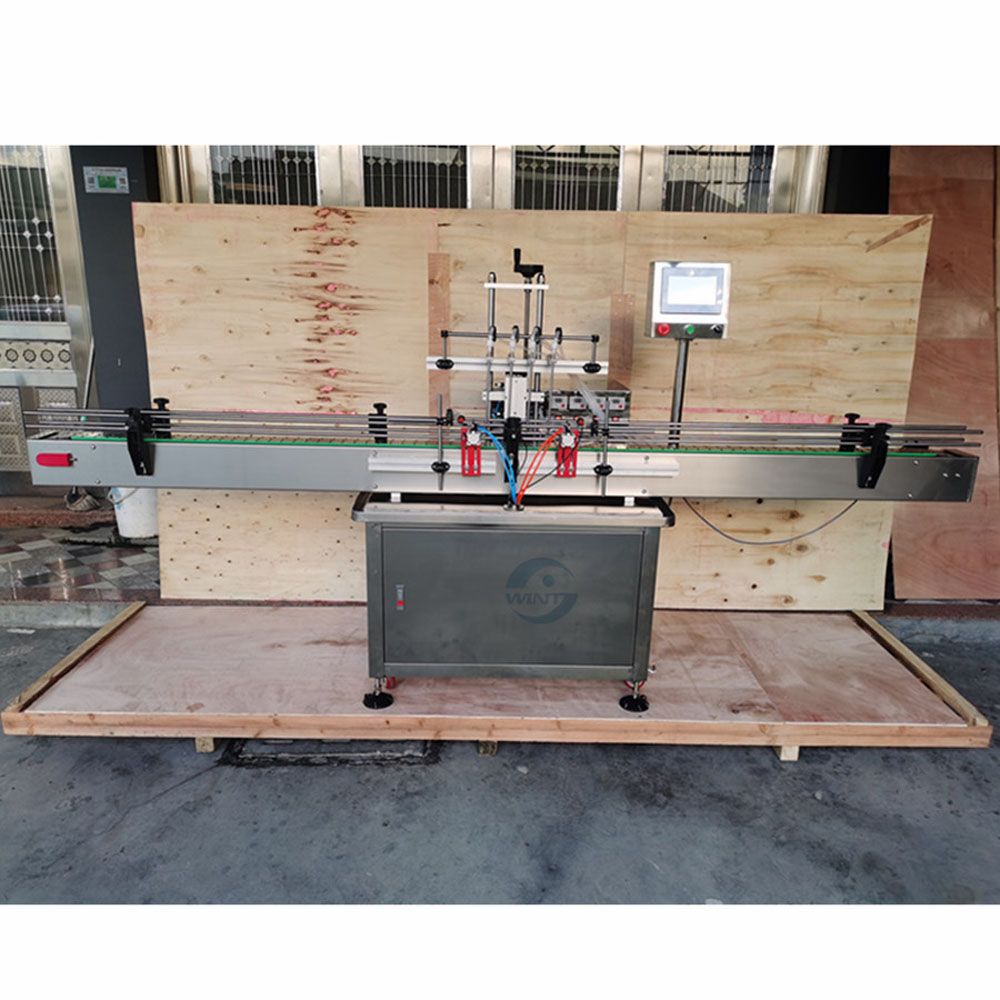

This machine is a desktop four-nozzles automatic magnetic pump filling machine,which cooperates with the conveyor belt to achieve automatic bottle detection,filling, and bottle separation functions. The main structure of the machine is divided into PLC integrated machine control module, power supply module, and filling drive modules, conveying components, four magnetic pump components,relay components, solenoid valve components and pneumatic control components, photoelectric sensor components, etc. A new type of filling equipment that uses high-precision miniature magnetic pump and motor speed and pump working time to determine the filling volume. The pump head is made of 316L, which is resistant to acid and alkali and corrosion; it is widely applicable,and almost all flowing liquids can be filled. It is especially suitable for the filling of oil, washing liquid, acid and alkali liquid, and corrosive liquid. Its compact structure, high filling accuracy and automation degree, convenient operation,suitable for batch production of various dosage products filling. It can meet the filling capacity requirements of 5ml-4500ml and is suitable for bottle filling of various specifications. It is a reliable and durable filling equipment. The pump
head and gear adopt original imported materials, use the high-definition touch screen PLC program as the control system, and cooperate with multiple sets of motor speed control templates and relays for independent control. The electrical components are produced by well-known domestic manufacturers, with stable and reliable performance and long service life; The magnetic pump head is driven by magnetic force, There is no shaft connection between the pump head and the motor. There is no need to worry about the shaft seal damage and leakage or the pump load is too high and the motor is burned out; use the filling drive board program to control the start and brake, and the filling time is accurate to 0.01
second. So as to ensure the filling accuracy, and the filling flow can be adjusted;the machine has complete functions and can be equipped with assembly line operations
Product parameters
Parameters
| Power suplly | 110V 220V 50HZ/60HZ |
| Rate Power: | 500W |
| Filling Range: | 5ml - 500ml |
| Filling Speed | 20-40Bottles/min |
| Bottle Height Range | 50-300mm |
| Filling Accuracy: | ±1% |
| Max. Flow rate | 4.5L/min |
| Operation | HMI |
| Cooling type | Fan |
| Counter | Automatic Counting |
| Filling Nozzles | 4 |
| Hose Suction Distance | 3M |
| Power Off Memory | yes |
| Machine Dimension | 3000*800*1650mm |
| Machine Weight | 200kg |
Application
It is applicable for packing the liquid like hairdressing water, It is especially suitable for the filling of oil, washing liquid, acid and alkali liquid, and corrosive liquid lotion, soy sauce, agricultural chemicals, wine .
