Popular Around The World Bag on Valve Aerosol Filling Machine for Filling Corrosive Products
Machine Description:This bag on valve filling machine is designed in one working table. It has 1 gas filling & crimping head, and 2 liquid filling heads. The raw material will be filled into the inside bag of the can, and it is entirely separated from can body, which prevents the trouble of the ......
Send Inquiry
Product Description

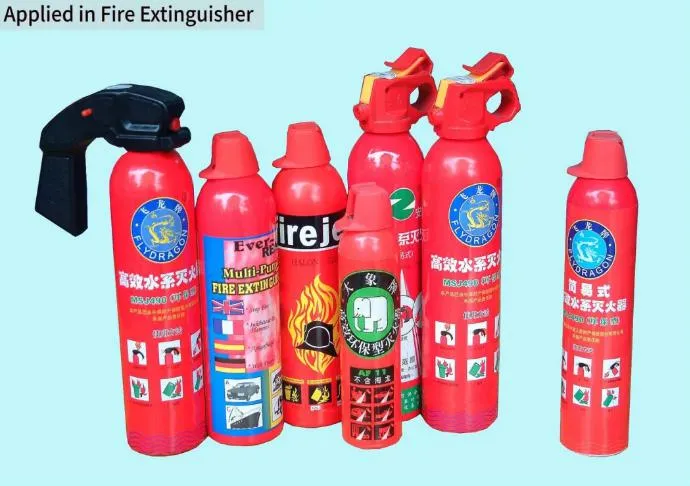

This bag on valve filling machine is designed in one working table. It has 1 gas filling & crimping head, and 2 liquid filling heads. The raw material will be filled into the inside bag of the can, and it is entirely separated from can body, which prevents the trouble of the can leakage due to raw material corrosion. It is widely used for pharmaceutical, personal-care, fire fighting and daily chemicals. It is usually used for filling water-based aerosols, disinfect, fire extinguishing agent, pepper spray, shave foam, cosmetic spray, photocatalyst with BOV packages.
Features & Advantages:

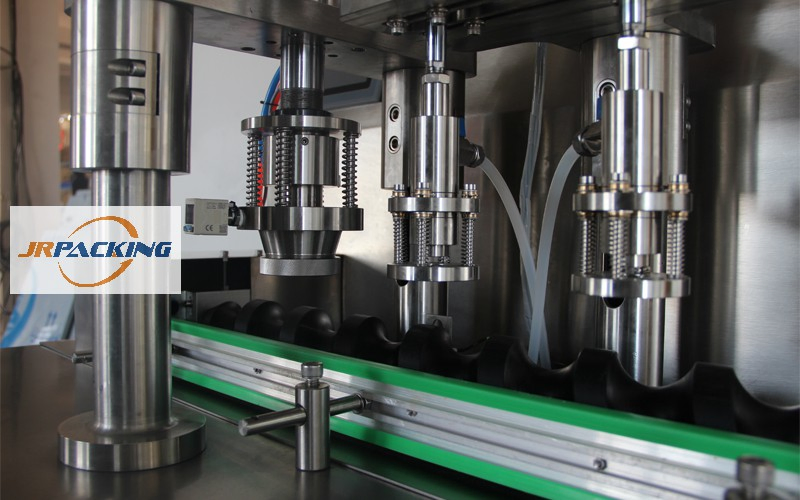

1.2 separate liquid filling systems, can fill 2 different formulations, or one set of system as backup

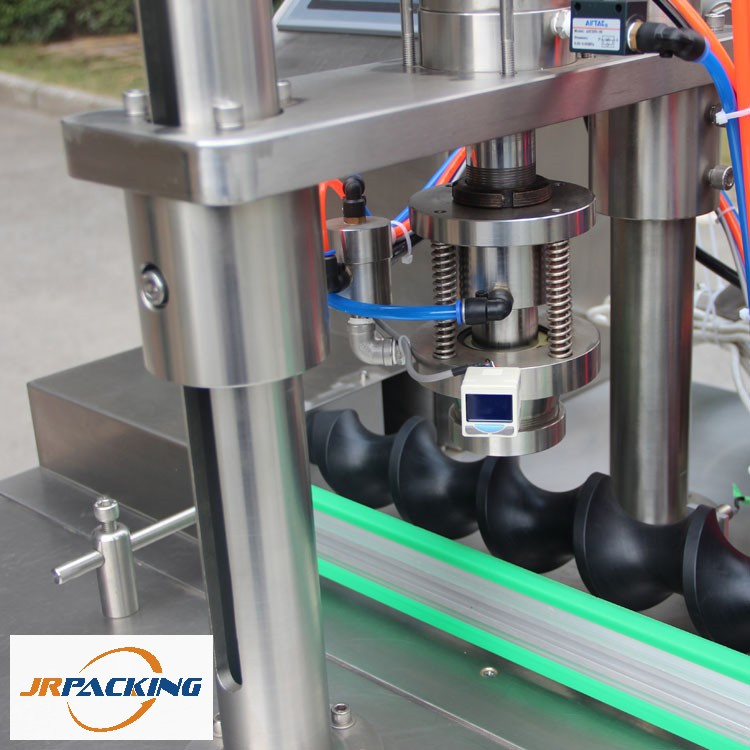

2. Gantry frame structure dramatically stabilizes the gas filling & crimping head, ensures 100% crimping qualification
3. PLC system with a touch screen display to intelligently operate the machine
4. Screw drive system to automatically move the cans, saving labor work and improving efficiency
5.Filling gas pressure real-time detecting system to display the filled gas pressure,allowing operator to observe directly and conveniently
6. Crimping shut down automatically if no gas pressure, avoiding unqualified products and saving package cost
7. No liquid content remains in the valve cup after filling finished
8. Hygiene Silicone pipe used especially for food and
pharmacy products
9. Acrylic safety shield attached to liquid filling head, protecting operator from risk
10. Liquid filling volume and gas filling volume adjustable

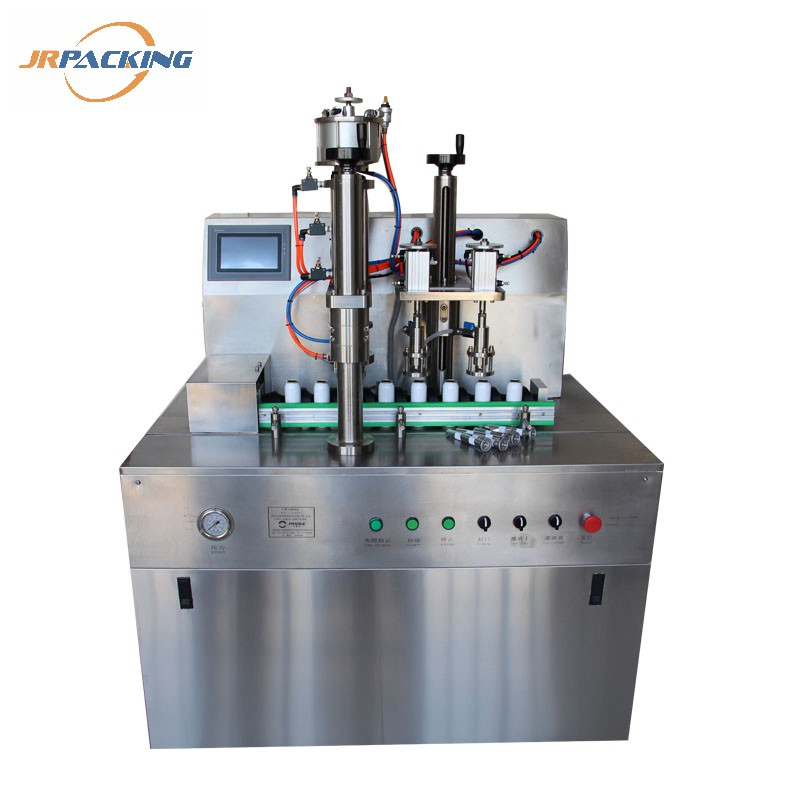

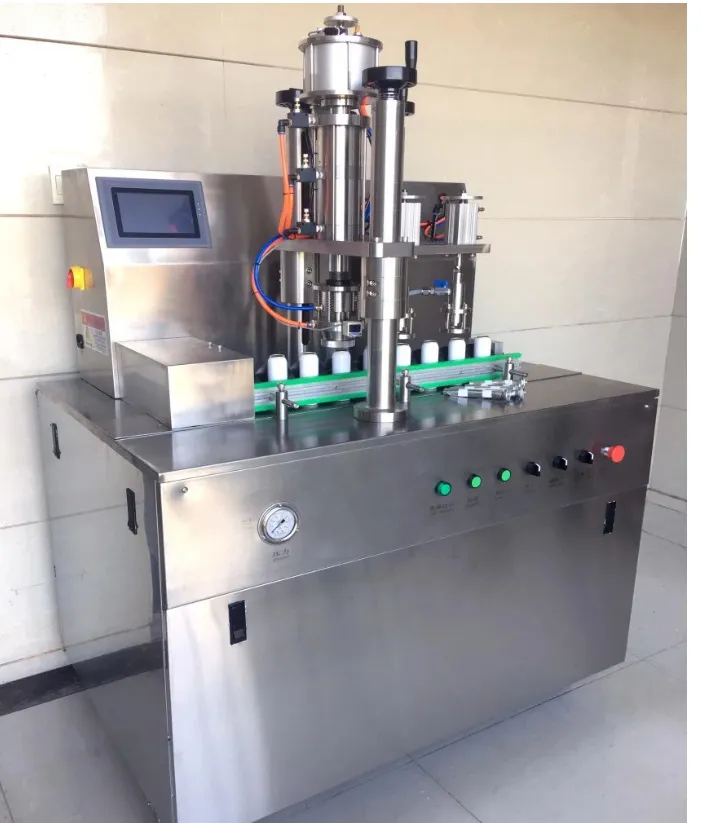

Main picture:

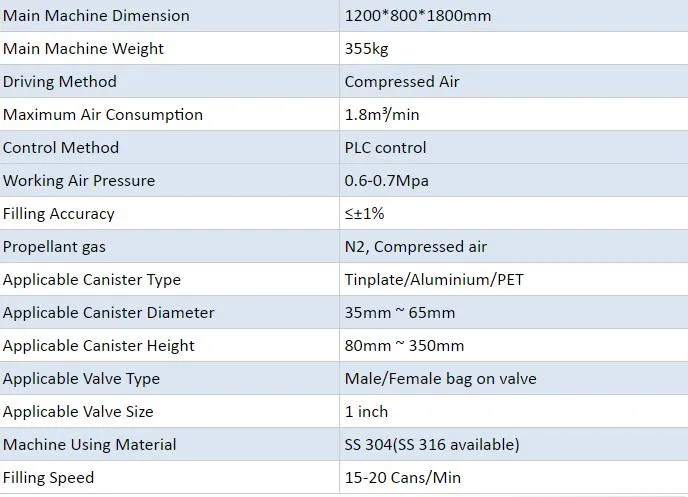

Specification:

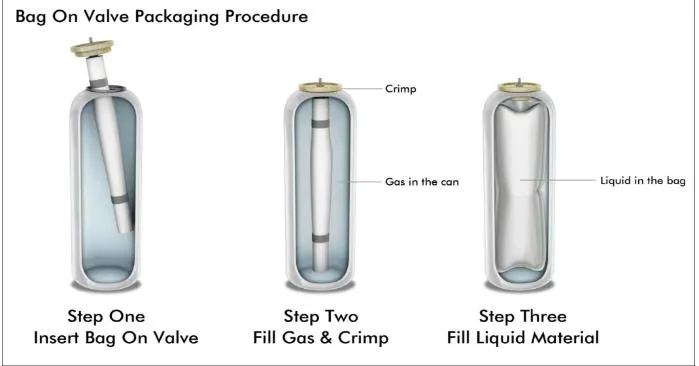

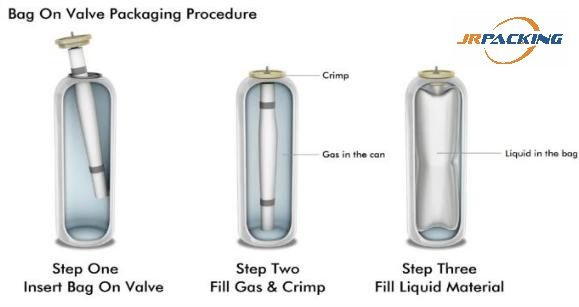

Filling Process :
Why use Bag-On-Valve BOV Aerosol Filling Equipment to fill ?
The finished aerosol product with bag on valve technology has better spray effect, mainly reflected in the wider spray range, the spray molecular weight is more even and finer, and it is easier to be absorbed.No Limited Substances.
The gas and the material in the traditional aerosol spray technology must be mixed, so the choice of the substances is limited. The gas and substances in the bag on valve packaging technology are separated, there would be no limit for the used material.
Better Safety.
The most commonly used gas in traditional aerosol spray packaging is propane, which is very easy to explosive in high temperature or high pressure environment. Therefore, the traditional aerosol spray packing can not be taken on the plane. The gas in the bag on valve package is usually nitrogen or compressed air, these kind of gases are safe.
More Environmentally Friendly.
The gas and material of the bag on valve package are separated. The material is filled into an vacuum bag, but the compressed air is filled between the bag and the cans. The compressed air squeeze the bag to spray the material, thereby avoiding pollution caused by direct contact. The whole filling process are finished in the aseptic workshop, and the whole process guarantees aseptic operation.
Applications:
1. Cosmetics:Deodorants, lotions, shower gels, shaving gels, shaving foam, facial Moisture spray, sunshine protection Spray
2. Medical: Nasal spray, asthma spray, freeze spray for injury
3. Food: Cooking oils spray, flavor sprays, food supplement spray
Company Introduction :
JRPACKING founded in 1995, located in Wuhan, China. We are specializes in design and manufacturing Aerosol Filling Machine, Liquid Filling Machine and Paste Filling Machine, these filling machines are widely used in the pharmaceutical, chemical, foodstuff, agricultural chemical and cosmetic industries.
We offer solutions that match exactly the customers' needs during the various links of filling equipment. Relying on science and technology for development, and providing customers with high-tech product is our constant pursuit.We warmly welcome all friends to cooperate with us and create splendid future with us.
We have been in aerosol filling field for more than 20 years, many customers had beneficial from our professional service. With expending products line and increasing productivity by using our aerosol filling machines, all of our customers not only improved their annual sales volume, but also improved their brand effect in their sales marketing.
Our factory has passed the certification of ISO9001 and CE certification standard of EU. All of our products are salable in many countries and regions, such as Asia, Europe, America and Africa etc. JRPACKING has earned abroad reputation with the immediate and perfect day and night after-service provided by senior engineers.
In the past two decades, we have devoted ourselves to research and development of aerosol filling machines. We did a lot of improvements of design and production. There are 8 patents for AEROSOL FILLING MACHINE. All of the aerosol filling machines are operated by pneumatic, no electricity, safe for operators.Our advantage:
Our customers:
Our Certificates:
RAQ
Q1:Are you a factory or trading company?
A1:We are a factory specialized in R&D of aerosol filling machine over 15 years.
Q2:Where is your factory location? How can I visit there?
A2:Our factory is located in Wuhan,China. You could visit us by air to Wuhan Tianhe Airport or by high speed train to Wuhan railway station, then we will pick you up to our factory.
Q3:How does your factory do regarding quality control?
A3:Quality is priority. People from Jrpacking are always attach great importance to quality controlling from the beginning to the end. We support to inspect machine before shipment. Our factory has gained ISO authentication.
Q4:What`s the guarantee if we purchase from you?
A4: All the equipment ordered from us will provide one year quarantee from the delivery date. If there is any wearing part be broken within the warranty and isn't caused by improperly operation then we would offer then new parts for free.
Q5:How about the after service?
A5:We could send our engineer to install or fix the machine locally in due course but customer need to pay the round air tickets cost and arrange the hotel accommodation for our engineer.
