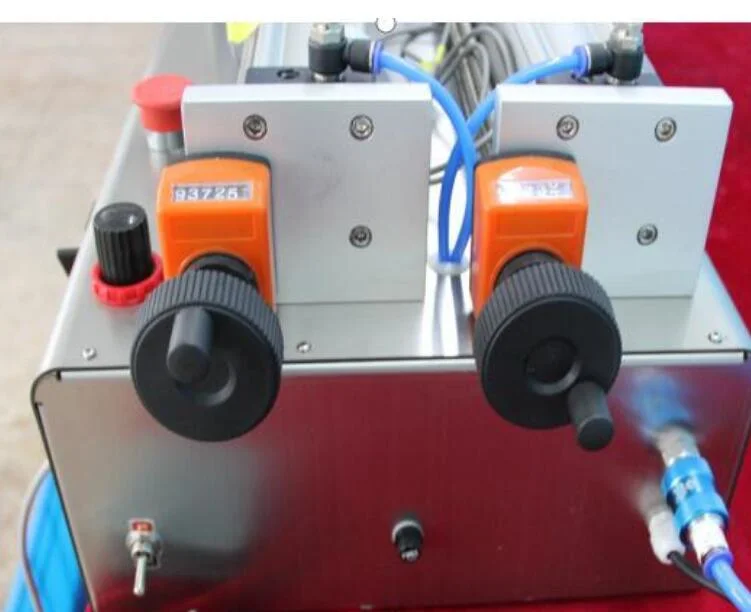

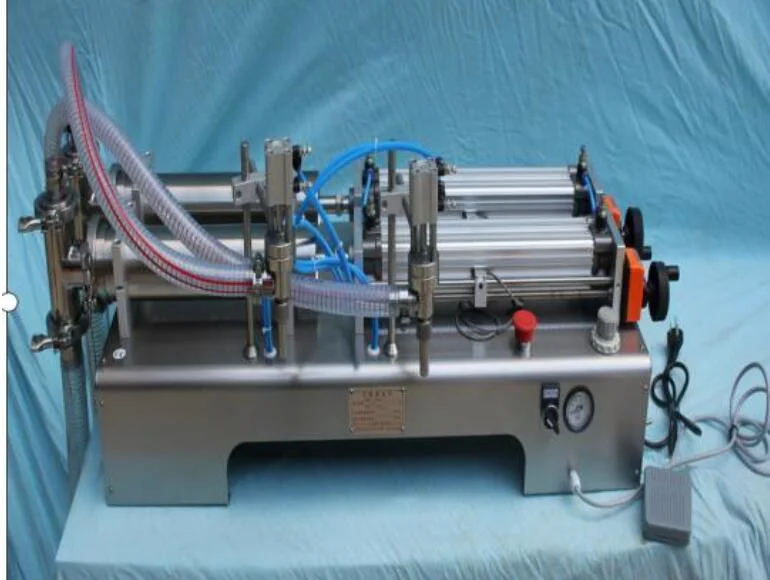

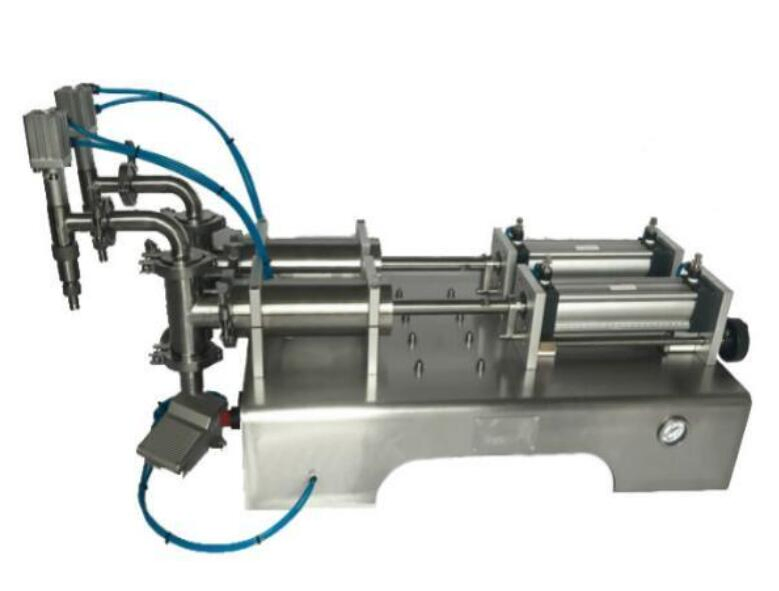

Manual Liquid Filling Machine
Product description:Description:1.Pneumatic type,use air compressor.2.Suit to fill liquid and high thick product.Such as water,shampoo,tooth paste,honey,butter etc.3.Widely used in food and cosmetic factory.The speed is around 35 bottles/min.Also depend on worker working speed.4.Its own manual and a......
Send Inquiry
Product Description
Product description:
Description:
1.Pneumatic type,use air compressor.
2.Suit to fill liquid and high thick product.Such as water,shampoo,tooth paste,honey,butter etc.
3.Widely used in food and cosmetic factory.The speed is around 35 bottles/min.Also depend on worker working speed.
4.Its own manual and auto function.The machine easy to take apart and clean.
5.It seal very good by sealing ring.wont cause material leakage.
6.Volumetic pump,so filling volume adjutable and controllable.

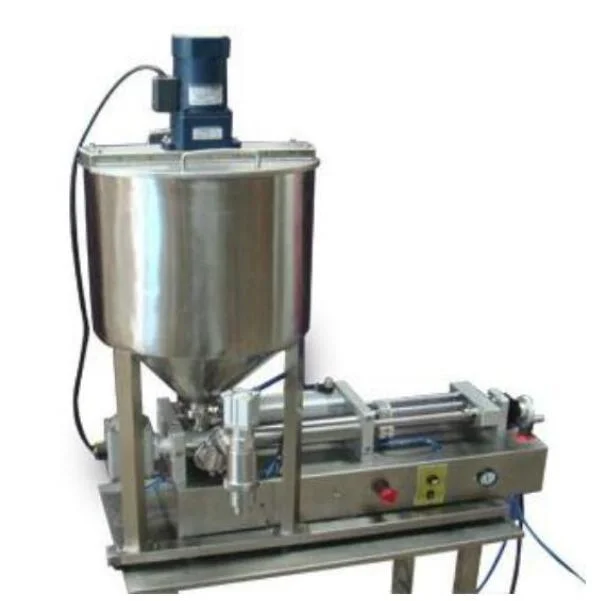

7.Also can add mixer and heating device on the machine according to different customer request.
8.Our engineer design different types for different filling range.It will fill more accurate and exact the right volume.
Technical specifications:
Description:
1.Pneumatic type,use air compressor.
2.Suit to fill liquid and high thick product.Such as water,shampoo,tooth paste,honey,butter etc.
3.Widely used in food and cosmetic factory.The speed is around 35 bottles/min.Also depend on worker working speed.
4.Its own manual and auto function.The machine easy to take apart and clean.
5.It seal very good by sealing ring.wont cause material leakage.
6.Volumetic pump,so filling volume adjutable and controllable.
7.Also can add mixer and heating device on the machine according to different customer request.
8.Our engineer design different types for different filling range.It will fill more accurate and exact the right volume.
Technical specifications:
| Items | -06 | 12 | -S-25 | -S-50 | -S-1000 | |
| Filling Range | 5-60ml | 10-125ml | 25-250ml | 50-500ml | 100-1000ml | 1000ml-5000ml |
| Air | 4-6kg/cm2 | 4-6kg/cm2 | 5-8kg/cm2 | 5-8kg/cm2 | 5-8kg/cm2 | 5-8kg/cm2 |
| Capacity | 0-30bottles/min | |||||
| Accuracy | 0.5% | |||||
| Voltage | AC220V 50/60Hz | |||||
| Power | 10W | |||||
| Net weight | 18.2kg | 20.1kg | 25.8kg | 30.5kg | 37kg | 40Kg |
| Gross weight | 21kg | 23kg | 29.7kg | 34.5kg | 41.5kg | 50Kg |
| Size | 844*290*731 | 911*290*731 | 1089*340*811 | 1180*340*828 | 1180*340*828 | 1200*340*828 |
