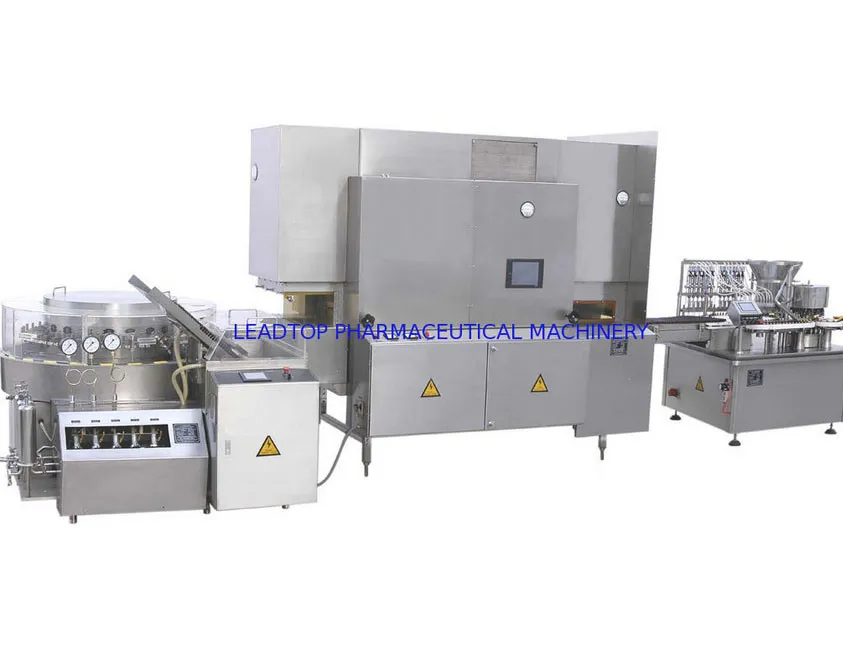

Liquid Bottle Filling Machine Line with Oral Liquid Bottle Ultrasonic Washing
Liquid Boffle Filling Machine Line with Oral Liquid Bottle Ultrasonic Washing, Infrared Drying And Filling Capping Quick Details: Capacity: 12,000-24,000bottles per hour Filling Volume: 5-30ml Using Field: Oral Liquid, Syrup, Water, etc. Production Line Consist: Ultrasonic Washing Machi......
Send Inquiry
Product Description
Liquid Boffle Filling Machine Line with Oral Liquid Bottle Ultrasonic Washing, Infrared Drying And Filling Capping
Quick Details:
Capacity: 12,000-24,000bottles per hour
Filling Volume: 5-30ml
Using Field: Oral Liquid, Syrup, Water, etc.
Production Line Consist: Ultrasonic Washing Machine, Infrared Drying Tunnel, Filling and Capping Machine
Description:
This line is made up of model Vertical ultrasonic washing machine, Infrared drying and sterilizing machine, filling and capping machine, which is divided into washing area, drying and sterilizing area, and filling and sealing area. The complete line can manufacture singly and combine with other machine and can complete the following procedures: watering, ultrasonic washing, clamping bottle with manipulator, turning, flushing water, air charging, preheating drying and sterilizing, cooling, filling, cap arranging, cap-feeding, and capping.
Application:
Pharmaceutical: Oral Liquid, Syrup, Homoeo,etc
Food: Oral Water, energy Drink, etc.
Specification:
System model | LTKGX5/20/A | LTKGX5/20/B | LTKGX5/20/C |
| Component parts cleaner | LTCX/40 | LTCX /60 | LTCX /80 |
| Drier | LTPG420/27 | LTPG 620/43 | LTPG900/68 |
| Filling&Capping machine | LTKG12/12 | LTKG12/12A | LTKG16/24 |
| Productive Capacity(btls/m) | 12000 | 18000 | 24000 |
| Specifications | 5-25ml | 5-25ml | 5-30ml |
| Electric power(kw) | 43/actual consumption 28 voltage AC 380V 50Hz | 61/actual consumption 30 voltage AC 380V 50Hz | 92/actual consumption 40 voltage AC 380V 50Hz |
| Total weight(kg) | 5000 | 6000 | 6500 |
| Overall dimension(L*W*H) | 7400*2500*2400mm | 8200*2500*1800mm | 8600*2500*1800mm |
