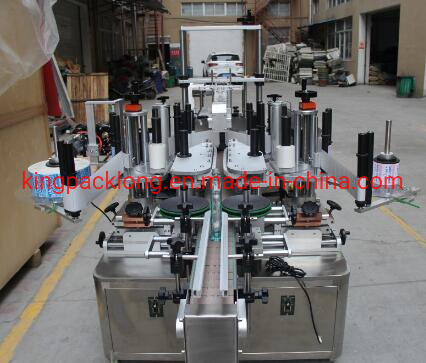

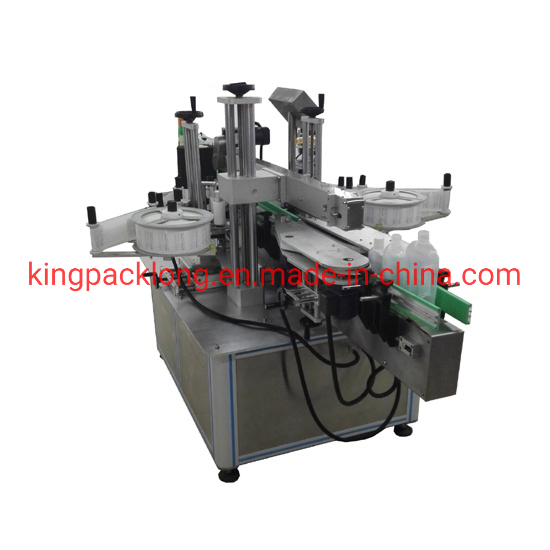

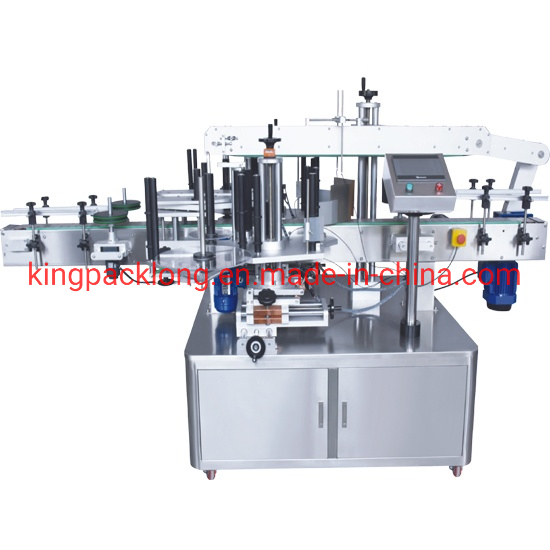

Kp -160 Automatic Flat Labeling Machine for Flat Bottle

Product Description

I,Basic useFor flat bottles, round bottles, square bottles of single and double side labeling, such as shampoo flat bottles,
oil flat bottles, hand sanitizer double side labeling round bottles, two with stickers, double standard to improve
production efficiency, widely used in daily chemical, cosmetics, petrochemical, pharmaceutical and other industries.

II,Application
For label: self-adhesive labels, self-adhesive film, electronic supervision code, bar code, etc.
Applicable products: Requires the side plane, side sweeping surface, the circumferential surface attached label.
Industry: Widely used in cosmetics, daily chemical, electronics, pharmaceutical, metal, plastics and other industries.
Application: Shampoo flat bottle labeling, flat bottle labeling oil, shampoo bottle labeling, etc.

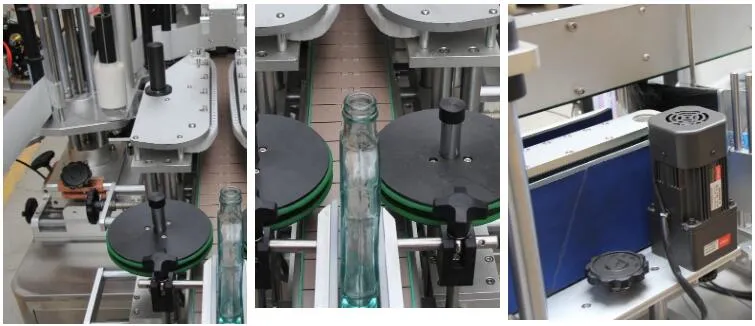

III,Working Process
* Core Working principle: The sensor detects the product passes the signal returned to the labeling control system,
control system in place and attached to the product label sent upon labeling position, the product flows through the
overlying standard device label attached covered on the product, a label attached action is completed.

* Procedure: put the product (which can be accessed line) -> Product delivery -> Products minutes away ->
Labeling (device automatically) -> collect the labeling products.

Technical parameters

Model	LT-600
Machine size	L2800W1650H1500
Output speed	60-350PCS/min (size and length of the label depends on the specific circumstances)
Height Label Object	30-350mm
Thickly Label Object	20-120mm
Label Hight	15-200
Label length	25-300
Pastes the sign precision	±1mm(Except for the error of the label and label itself)
Roll inside diameter	76mm
Roll outside diameter	350mm
Power supply	220V 50/60HZ 3.5KW
Printer with air	5kg/cm^2
Weight	450KG
