Isobaric Filling Beer Making Machine Glass Bottle Beer Bottle Production Line
Product Description Automatic 3 in 1 Glass Bottle Beer Filling MachineGlass Bottle Beer Filling Machine:This beer filling machinery is suitable for beer product, it is consist of filler capper or aluminum lid sealer, and sometimespeople also use one stage washer.The machine for glass bottle integrat......
Send Inquiry
Product Description
Product Description

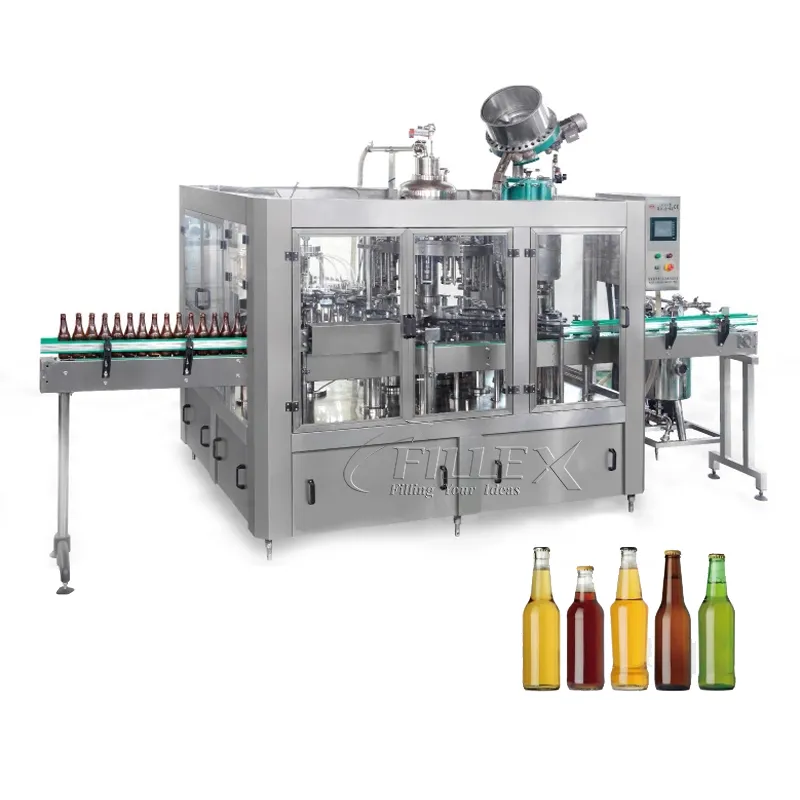

Automatic 3 in 1 Glass Bottle Beer Filling Machine
Glass Bottle Beer Filling Machine:
This beer filling machinery is suitable for beer product, it is consist of filler capper or aluminum lid sealer, and sometimes
people also use one stage washer.
The machine for glass bottle integrates the function of rinsing, filling and capping together. Based on advanced technology overseas, and designed according to filling processing demands of beer.
Working Principle of Beer Bottling Machine Glass Bottle Beer Filling Machine:

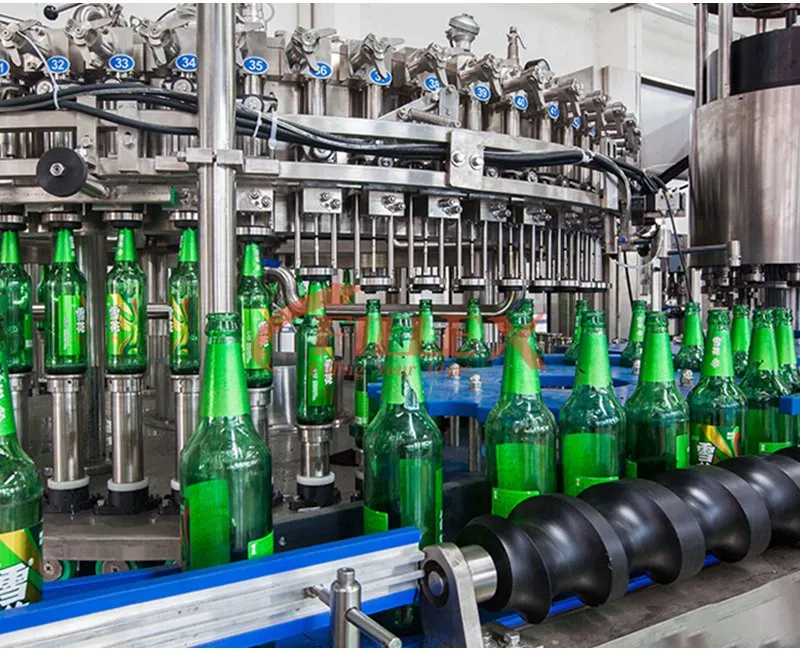

The bottle enters into the filling part of 3-in-1 machine through screw by convey chain. The filling valve acted by the cam can realize up and down. the filling valve opens and begins filling when it moves down and touches the bottleneck, the filling valve move up and leave the bottleneck when it finishes filling, the full bottle is transferred to the capping part through hold neck transition poking wheel. The guard plate holds bottle upright not rotating. The screw capping headkeeps in revolution and autorotation. It can finish a whole capping course including catching, pressing, screwing, discharging through the action of the cam. The full bottle is transferred to bottle outlet conveyor to the next process through poking wheel.
Automatic 3 in 1 Beer Bottling Machine Glass Bottle Beer Filling Machine | |
Applicable Products: | Beer, Cola, Soft Drinks, Gas Soda, etc. |
Suitable Container: | Glass Bottle Beer Filling Line |
Filling Mode: | Double Vacuum Filling |
Production Capacity: | 2000 bottles/hour - 20000 bottles/hour |
Features of Beer Bottling Machine Glass Bottle Beer Filling Machine:
1 - All parts contacting with beverages adopt top grade stainless steels whose surfaces are polished till smooth for easy rinsing. The sealing materials are EPDM rubber.
2 - Adopt PLC as center control, make use of pressure transmitter and electromagnetism pneumatic valve to measure liquid level, keep balance of filling pressure to insure stable liquid level.
3 - Adopt new type filling valves which are especially designed for plastic bottles. The returned air and the liquid in filling tank are insulated to insure cleanliness of the filled beverages.
4 - Adopt advanced magnet clutches for capping with adjustable torsional moment to insure capping safely and reliably.
Product Paramenters4 - Adopt advanced magnet clutches for capping with adjustable torsional moment to insure capping safely and reliably.
Automatic 3 in 1 Glass Bottle Beer Filling Machine | ||||
Model: | BCGF16-16-5 | BCGF24-24-8 | BCGF32-32-12 | BCGF40-40-12 |
Capacity: 640ml | 3000BPH | 6000BPH | 8000BPH | 10000BPH |
Bottle shape: | Roud or Square | |||
Glass bottle: (mm) | (Bottle Diameter): φ 50-. φ 110mm (Height): 150-340mm | |||
Cap: | Crown Cap | |||
Filling precision: | ≤ ± 5mm | |||
Filling pressure: (Mpa) | 0.15-0.35 | 0.15-0.35 | 0.15-0.35 | 0.15-0.35 |
Rinsing pressure: (Mpa) | 0.2-0.25 | 0.2-0.25 | 0.2-0.25 | 0.2-0.25 |
Filling volume: (L) | 3.5 | 4 | 6 | 8 |
Overall size: (mm) | 2450*1800*2350 | 2780*2200*2350 | 3600*2650*2350 | 3800*2950*2400 |
Weight: (kg) | 3500 | 4500 | 5500 | 6500 |
Details Images

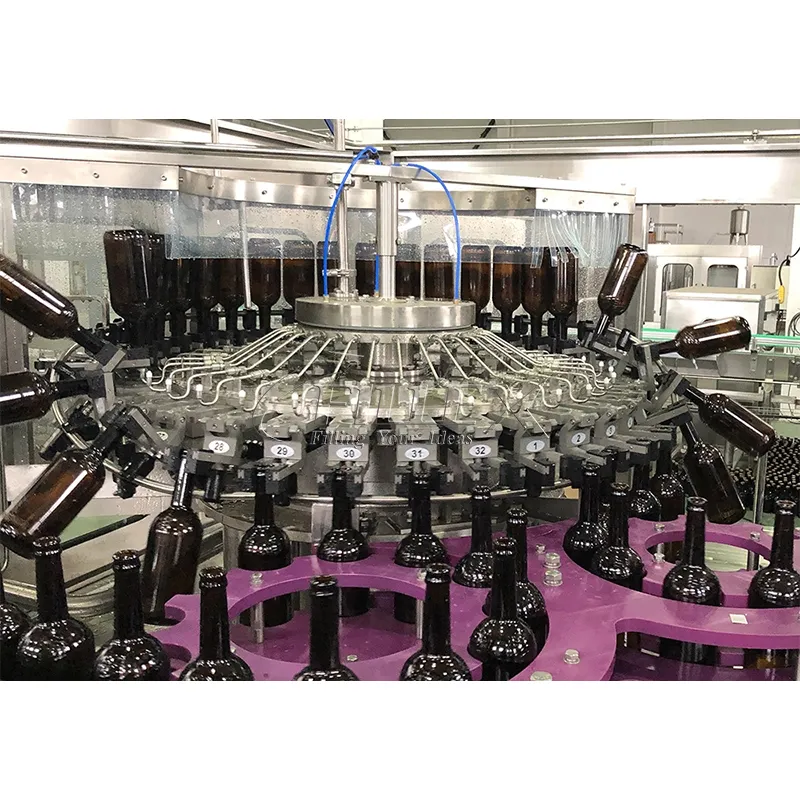

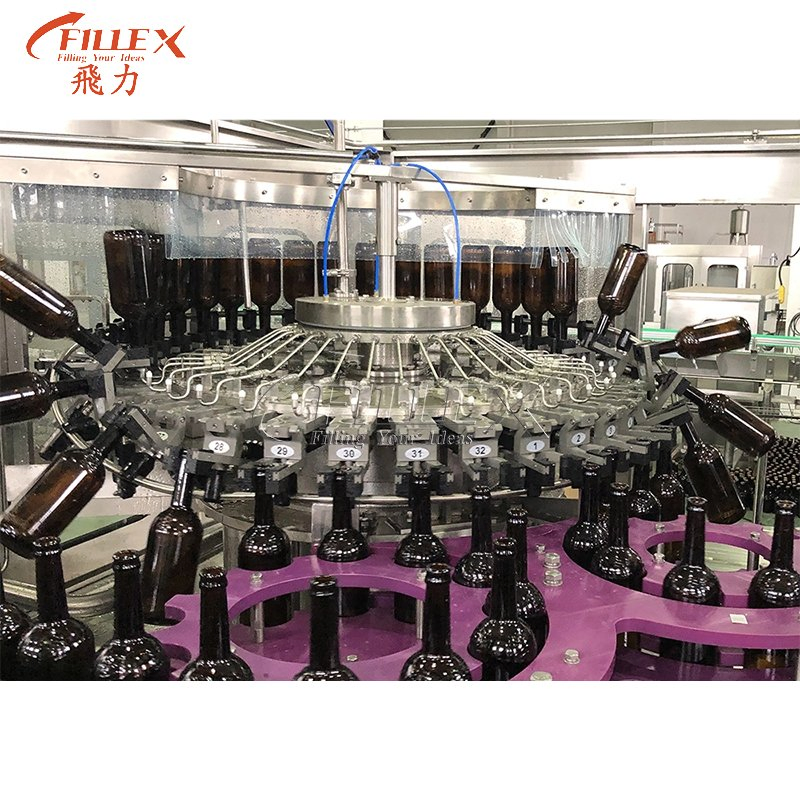

Input Bottle Part Rinsing Part Conveyor Wheel Part
Screw bottle feeding, The rinsing contact part and The material is super-corrosion
the suitable bottle is 250ml-2000ml. out cover adopts the stainless steel. stainless steel, the wheel has block bottle protect device.

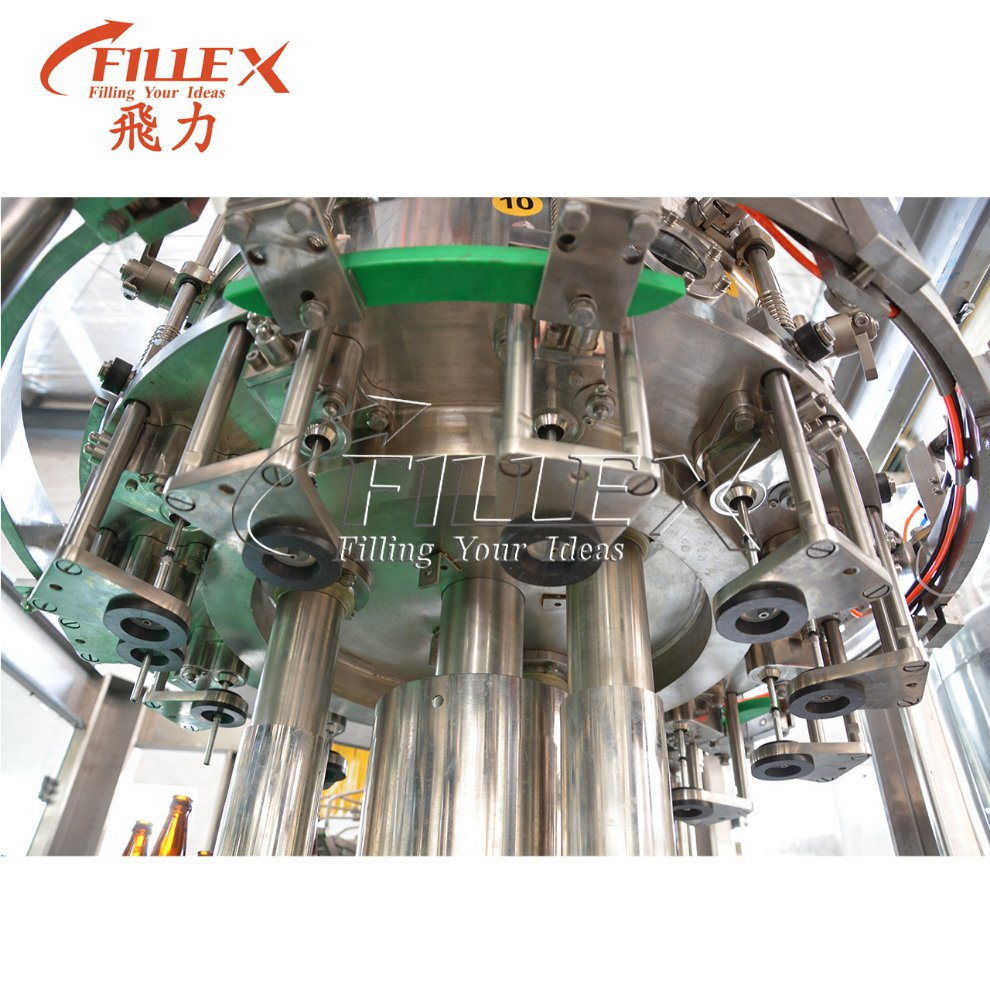

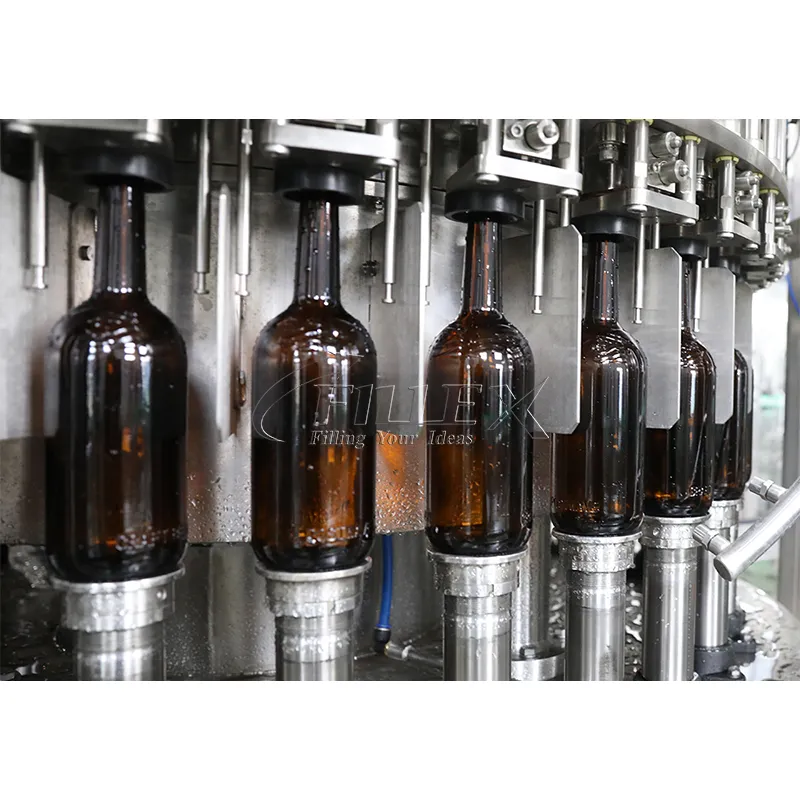

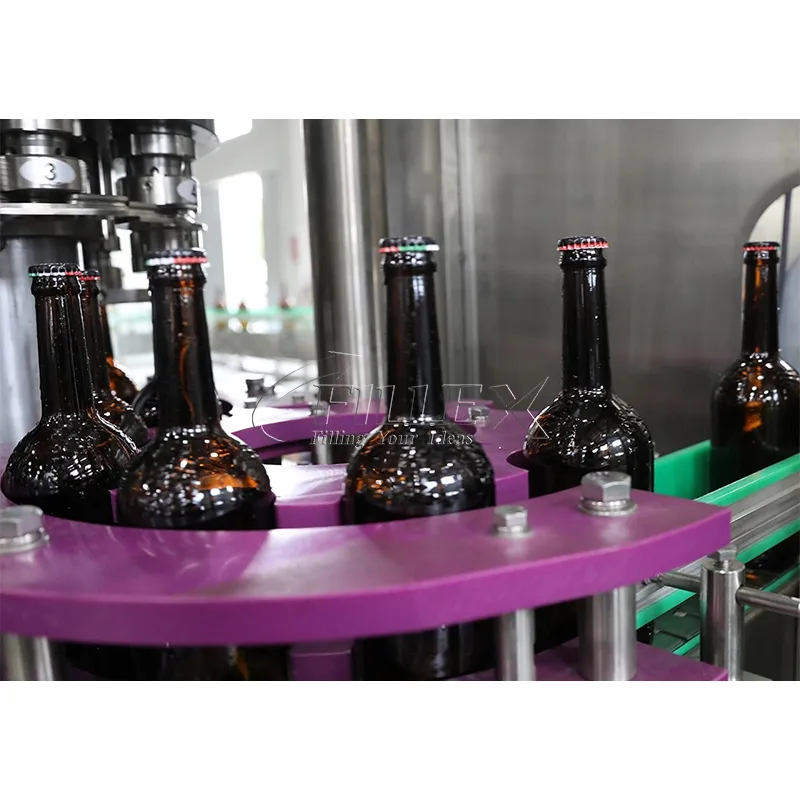

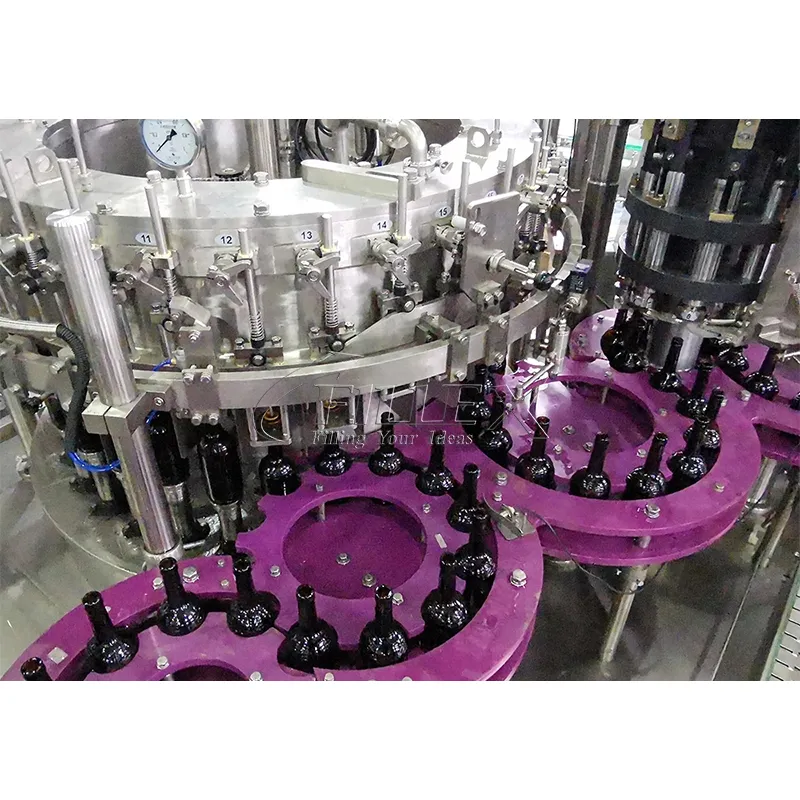

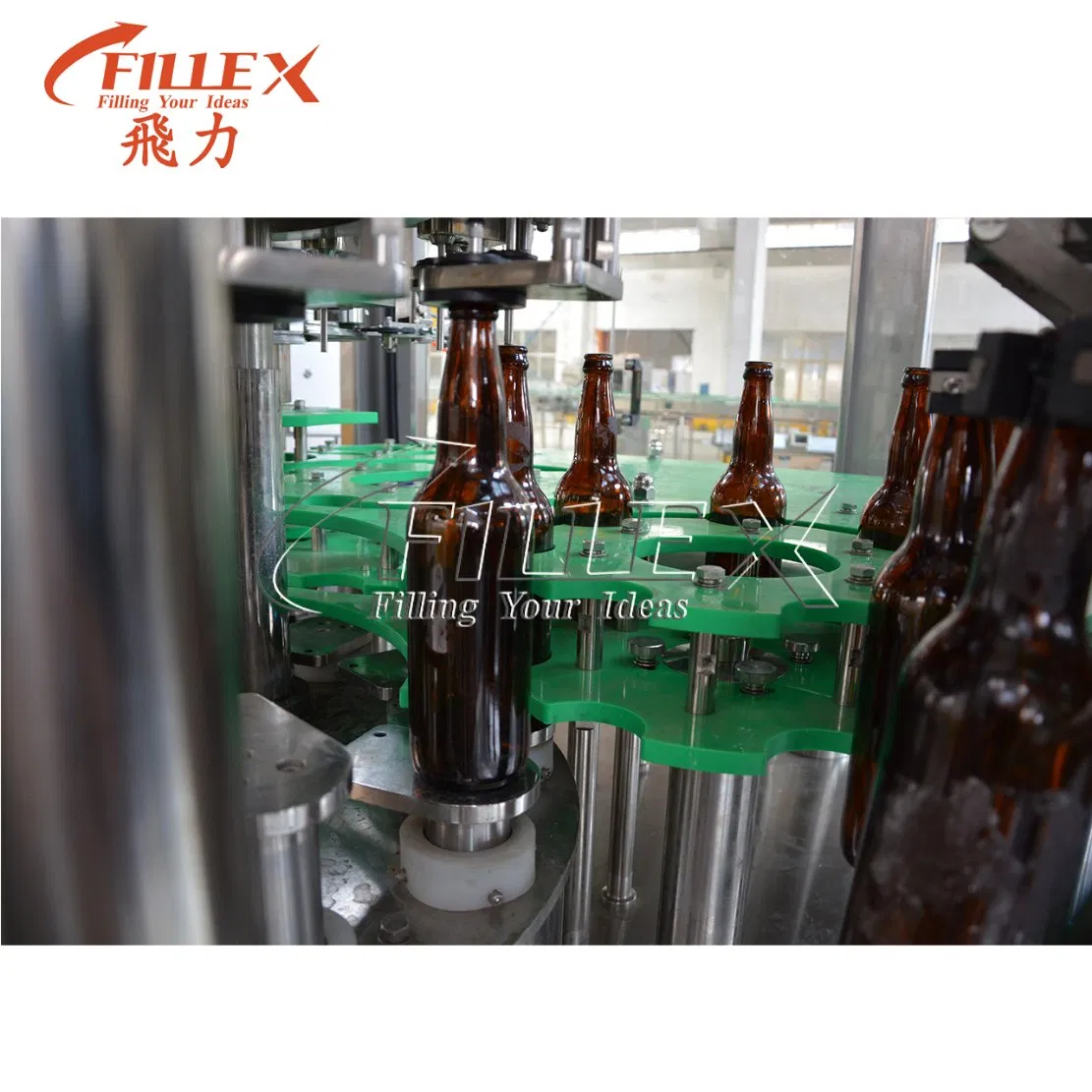

Filling Part Crown Cap Capping Part Output Bottle Star Sheel Part
Filling valve uses isobaric mechanical Screw cap heads have novel structure, Nylon wheel and conveyor belt
short valve, with two times vacuum and screw cap pressure is adjustable. cooperate output the bottle.
CO2 displacement.
1. Touch screen: | Mitsubishi |
2. PLC program controller: | Mitsubishi |
3. Inverter: | Mitsubishi |
4. Photoelectrical controller: | Omron |
5. Proximity switch: | Omron |
6. Other electrical component: | Schneider |
7. Pneumatic component: | Airtac |
8. Water pump: | Nanfang |
9. Main motor: | Siemens/ABB |
10. Bearing: | Harbin |
Company Profile
Packing&Shipping
FAQ
Q1: Are you a trading company or a manufacturer?
A1: We have our own factory for many years,can give u best service.
Q2: What's your guarantee if we buy your machines?
A2: We offer you high quality machines with 1 year guarantee and free spare parts for 1 year. Meanwhile our engineers have rich experience and have gone to more than 50 countries for installation and commissioning.
Q3: When can I get my machine after I paid?
A3: We will deliver the machines on time as the date we agreed both side.
Q4: How can I install my machine when it arrives?
A4: Our engineer will go to your side as soon as you get your machines ready for testing and teaching your technicians how to run the machines.
Q5: What's the delivery time?
A5: 30-45 days after the T/T deposit or L/C.
Q6: Do you provide customized service?
A6: We can design the machines according to your requirements (material, power, filling type, container and etc), at the same time we will give you professional suggestion by many years industrial experience.
