Hzpk Hzgf400 Size 4 Filler 400 Capsule Filling Machine
1. More than 10 years manufacture in packing machine2. 10 years alibaba supplier3. 100% QC inspection before shipment4. 12 months warranty5. Product Certificated by CEApplication:It is suitable the process and production for small-amount homemade capsule, Like for small factory, pharmacy, sample roo......
Send Inquiry
Product Description
1. More than 10 years manufacture in packing machine
2. 10 years alibaba supplier
3. 100% QC inspection before shipment
4. 12 months warranty
5. Product Certificated by CE
Application:
It is suitable the process and production for small-amount homemade capsule, Like for small factory, pharmacy, sample room, lab, department of pharmaceutical preparation in hospital, family and so on.
Operation instruction:

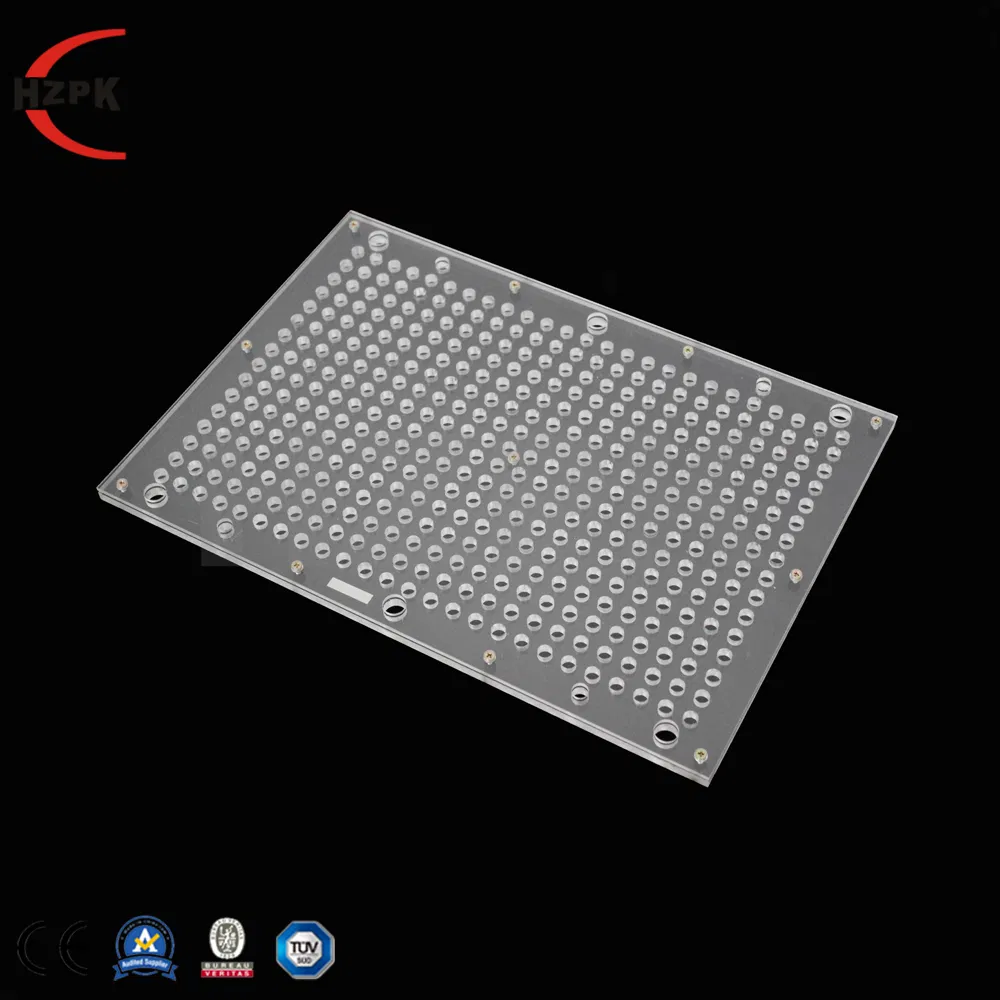

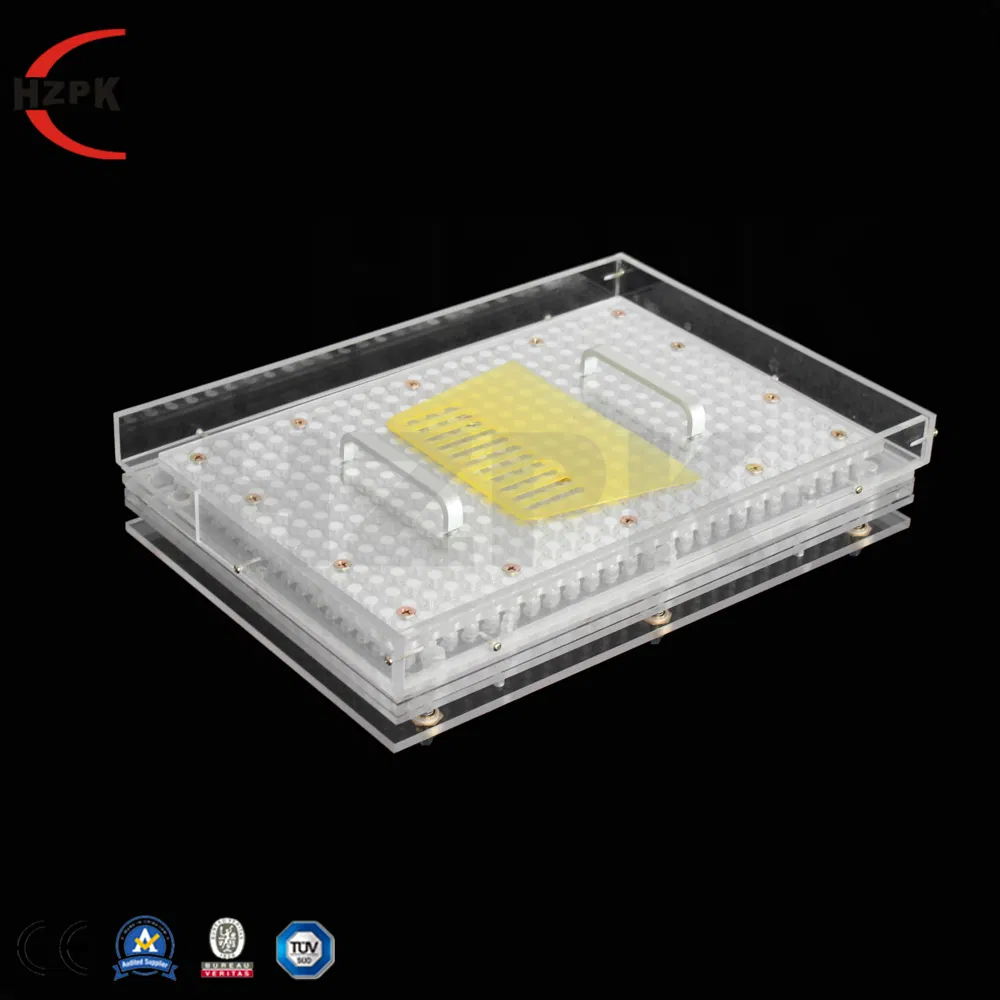

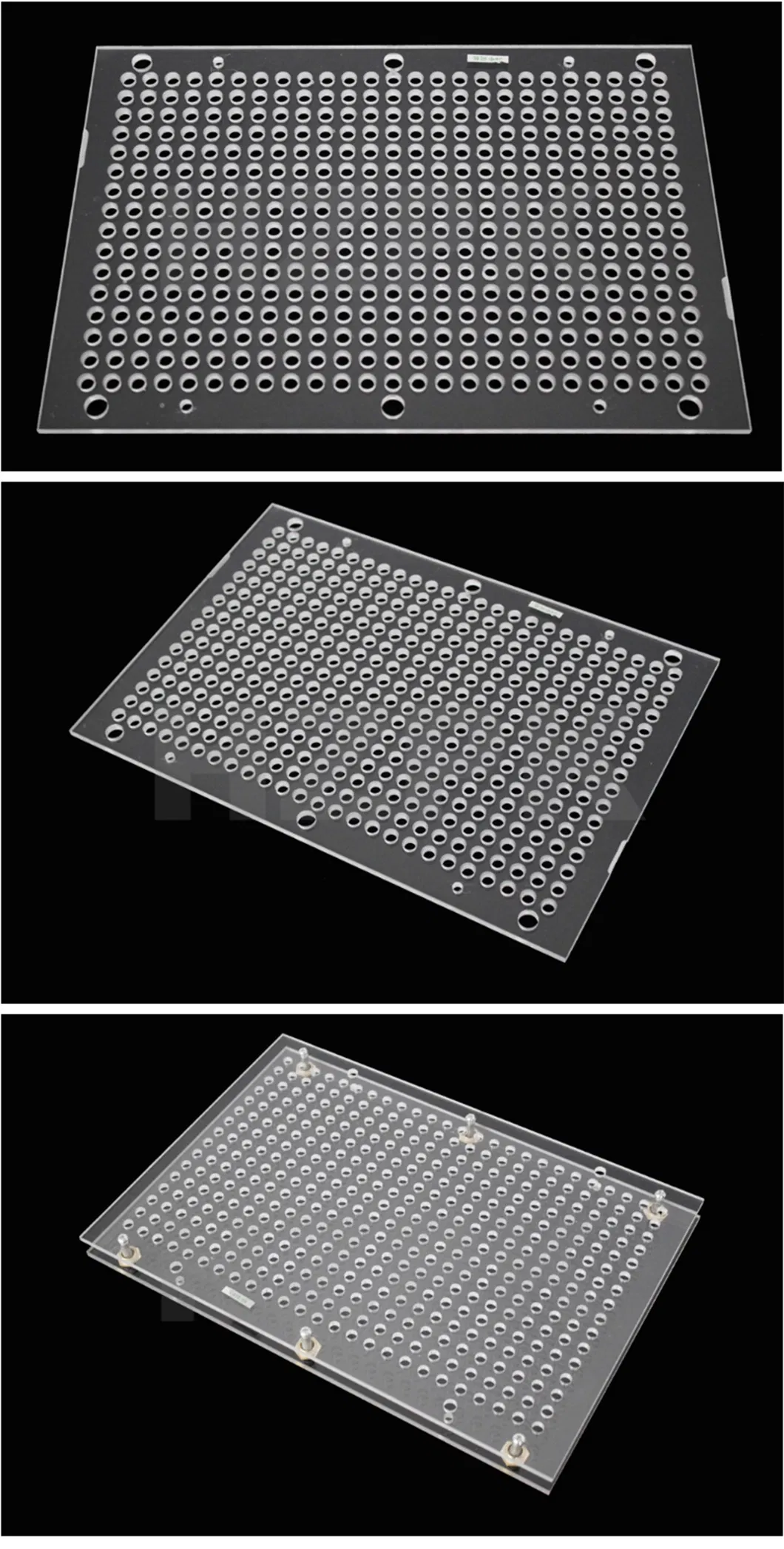

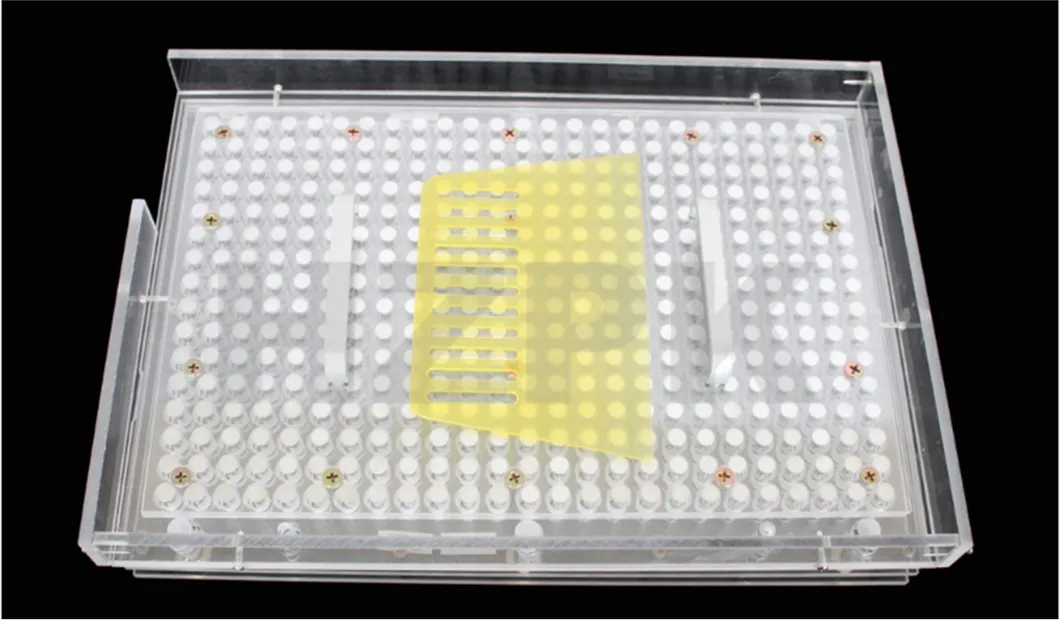

1.The capsule filling machine includes 6 parts: Body Plate, Alignment Plate, Cap Plate, Middle Plate , Powder Spreader, Powder Pressing Plate.

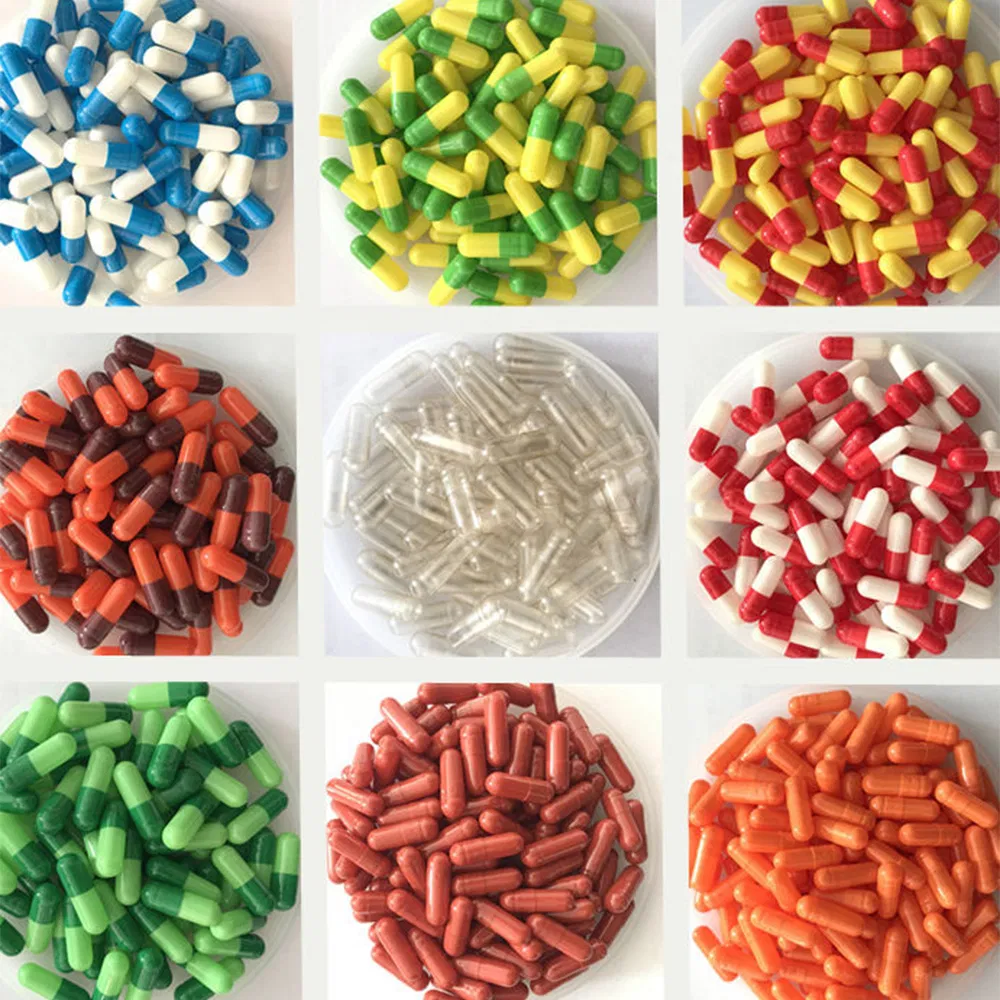

2.The capsule includes 2 parts: the capsule body, (the long one, filled with powder), the capsule cap (the short one, no powder)
3.Take the Cap Plate. Place it on a clean, dry surface.
4. Place the Alignment Plate on top of the Cap Plate, fix it correctly in place.
5. Pour capsule caps into the Alignment Plate and, using a circular motion; gently shake the caps into the holes. While doing this, cover the gap in the wall of the alignment plate with one hand to avoid spilling the tops.
6. When the holes are filled with the caps, pour out the excess caps.
7. Now take the Body Plate. Fix the Alignment Plate to the Body Plate.
8. Pour bottoms into the Alignment Plate and shake as before to fill the holes. Pour off excess bottoms
9. Pour a scoop of powder filler onto the Body Plate and use the spreader to fill the bottoms.
10. Take the filled Cap Plate and place the Middle Plate on top .
11. Turn the Cap Plate / Middle Plate over and fix to the Body Plate.

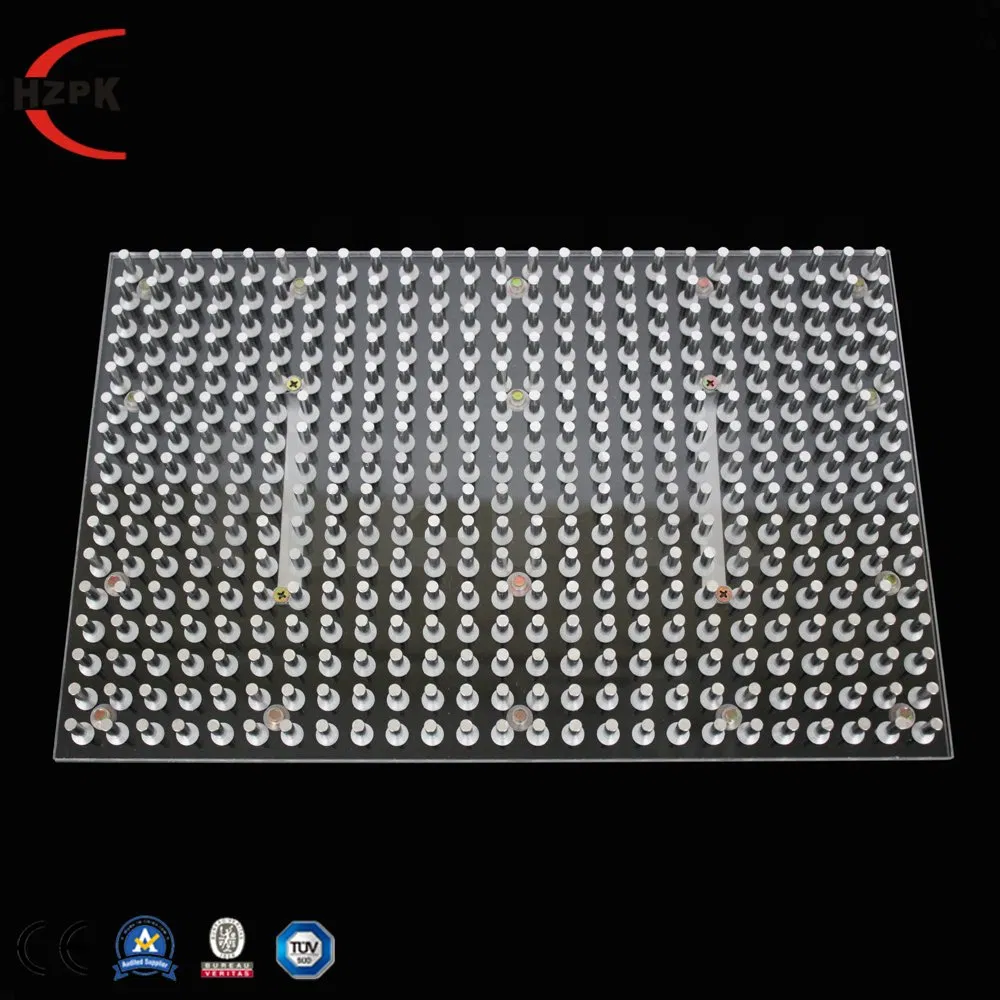

12. Using hands and equal pressure press down once to fit both parts of the capsule together.
Optional Number of Holes:
100 (holes): 10x10
187 (holes): 11X17
209 (holes): 11X19
400 (holes): 16X25
Capsule Size Option: 00#, 0#, 1#, 2#, 3#, 4#
Parameter:
| Name | Manual Capsule Filler |
| Production Capacity | 400 pcs/time |
| Control Mode | Manual |
| Material | Organic glass |
| Cavity | 16 x 25 holes |
| Suitable for Capsule | 000#, 00# 0#, 1#, 2#, 3#, 4#, 5# |
Q: Are you a factory or a trading company?
A: We are factory manufacturing packaging machines and weprovide perfect OEM and after-sale service.
Q: Can you send me the video to show how the machine works?
A: Certainly, we have made video of every machine and uploaded them to Youtube.
Q: How can I know your machine works well?
A: Before delivery, we shall test the machine working condition for you.
Q: How can I know your machine is designed for my product?
A: You can send us samples of your product and we test it on machine.
Q: How can I pay my order?
A: We accept T/T, L/C paying methods. For those orders less than 500USD, we accept Trade Assurance to pay.
Q: Do you have a CE certificate?
A: For every model of machine, it has a CE certificate.
