Product Description

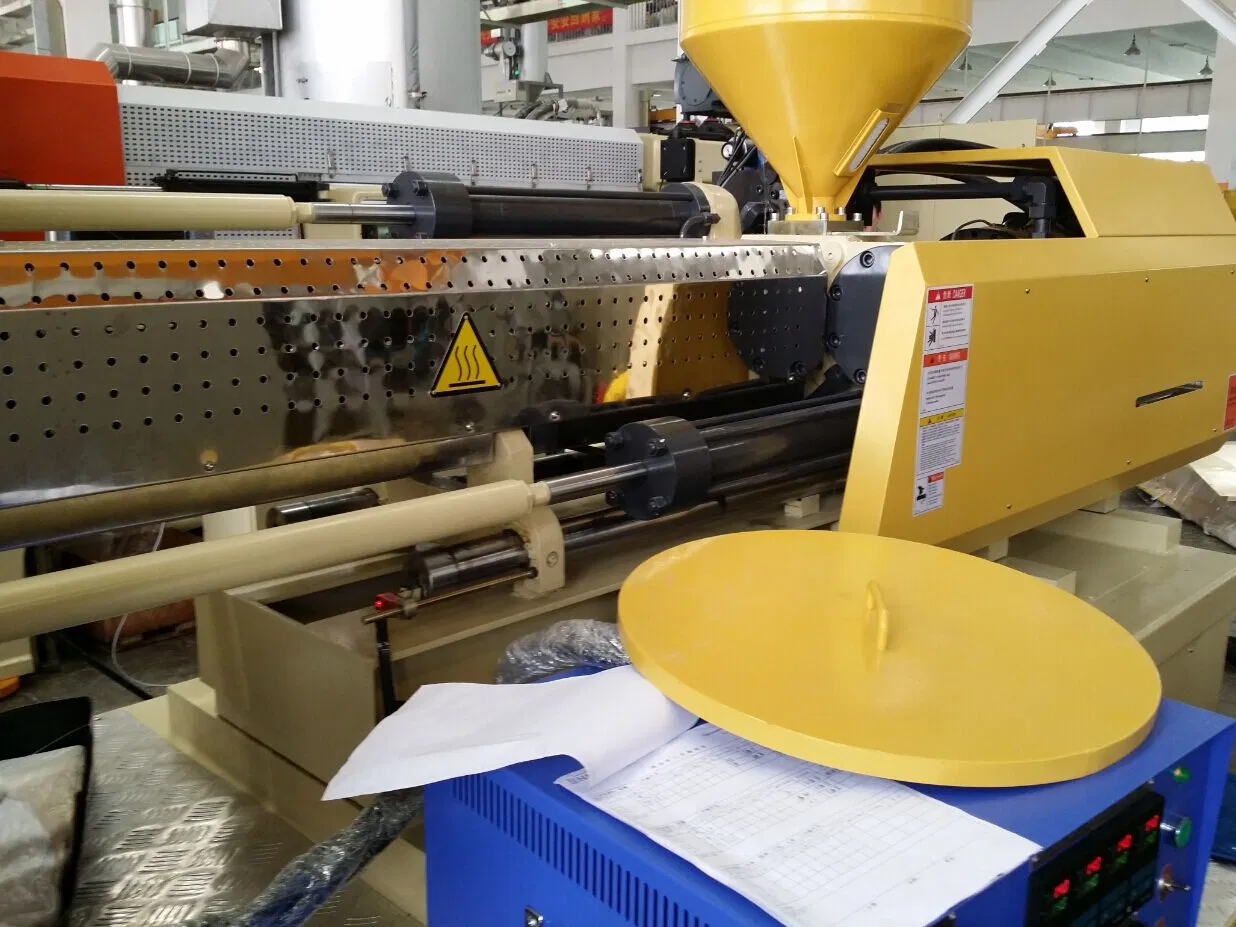

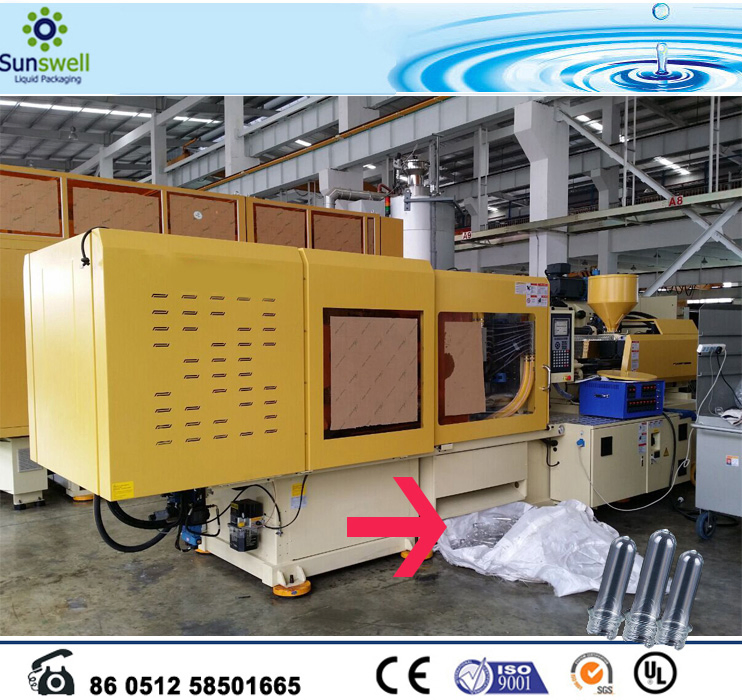

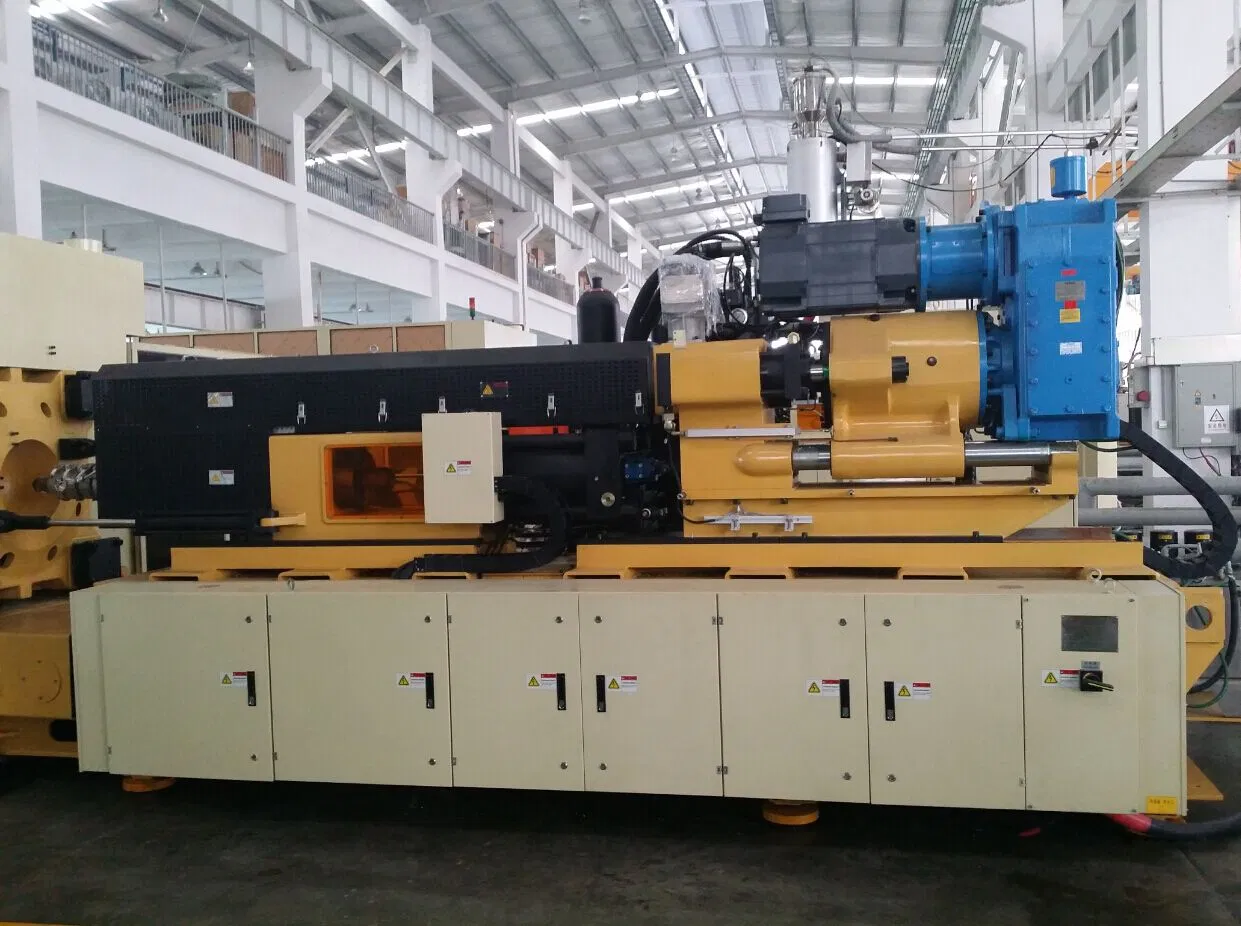

Plastic Preform Injection Mould Machine

     This model of fully automatic rotary blow molding machinery is specially designed for high speed based on absorbing all international latest technology, it is mainly used in producing pure water bottle and carbonated soft drink bottle. With reasonable construct, less area taking, less utility consumption, stable capacity, it meets national food safety requirements.

Main advantages

        This machine is operated by TFT touch screen, several languages can be selected, and it is easy to operate with some multi-layer menu. Speed, technical data are displayed in the screen, so it is very easy to operate.
Special design of two steps blowing system, the pressure figure in the mould is scouted timely, so it can supply figure for operator to adjust. It will be helpful to the stability of bottle size.
Heating device adopted nine sections infrared to adjust the temperature, preheating area and adjusting area can be controlled according different technical requirements. To make sure the stability of techniques, the temperature is scouted all day.
The heating temperature can be adjusted according different perform and bottle size, you just need to input settled figure when you change different performs.
Equipped with automatic perform unscramble and elevator.


Main Mechanical Part
Material: aluminum alloy, carbon iron, stainless steel, alloy steel.
Bearing: import from Japan and Germany. Self-lubricating grease bearing from Igus.
High-pressure air valve: Norgren (Switzerland), Lucifer Parker (Switzerland), SMC (Japan), Seitz (Switzerland)
High-pressure vent muffle: Automuffler (USA)
Control pneumatic cylinder: Festo (Germany), Norgren (Switzerland), Lucifer Parker (Switzerland), SMC (Japan).

TYPE	ITEM	BX-600	BX-1500	BX-2500	BX-5000
CONTAINER	Number of cavity	1	1	1	1
	Theoretical output	1200-1400pcs/hr	1000-1300 pcs/hr	800-1200 pcs/hr	500-700 pcs/hr
	Max.container volume	0.6L	1.5L	2.5L	5L
	Max.neck diameter	65mm	80mm	90mm	120mm
	Max.container diameter	80mm	105mm	115mm	200mm
	Max.container height	260mm	330mm	350mm	350mm
ELECTRICAL SYSTEM	Number of lamp	12pcs(1500w/pcs)	16 pcs(1500w/pcs)	16 pcs(1500w/pcs)	24pcs
	Max.heating power	18kw	24kw	24kw	36kw
	Installation power	18.5kw	24.5kw	24.5kw	40kw
	Actual power consumption	8-12kw	10-12kw	12-14kw	16-20kw
AIR SYSTEM	Operatating pressure	7kg/c	7kg/c	7kg/c	7kg/c
	Low pressure consuming	800Ltr/min	900 Ltr/min	900 Ltr/min	1200 Ltr/min
	Blowing pressure	≤40kg/c	≤40kg/c	≤40kg/c	≤40kg/c
	High pressure consuming	1200-1600Ltr/min	1200-1600Ltr/min	1200-1600Ltr/min	2000-2500Ltr/min
WATER CHILLER	Operating pressure	5-6 kg/c	5-6 kg/c	5-6 kg/c	5-6 kg/c
	Temperature	10	10	10	10
	Consuming	3600kcal/hr	3600kcal/hr	3600kcal/hr	5600kcal/hr
	Flow rater	20Ltr/min	20Ltr/min	20Ltr/min	30Ltr/min
MACHINE	Machine dimension	2.2×1.5×1.8(m)	2.4×1.6×1.8(m)	2.5×1.7×1.8(m)	2.2×1.8×1.7(m)
MACHINE	Machine weight	1.3T	1.5T	1.7T	2.8T

Any more questions, pls feel free to contact us at any time!
