Product Description

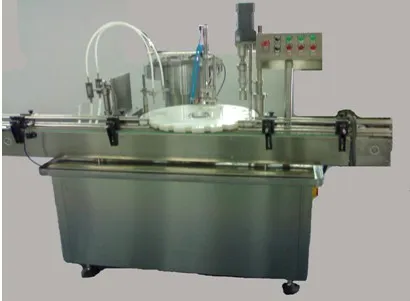

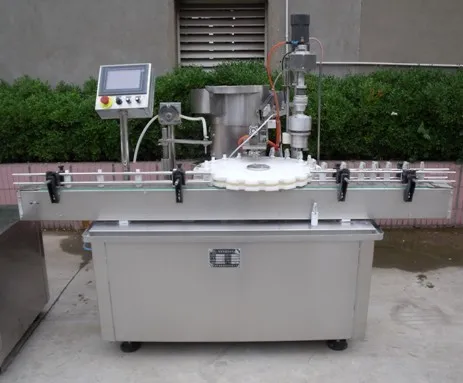

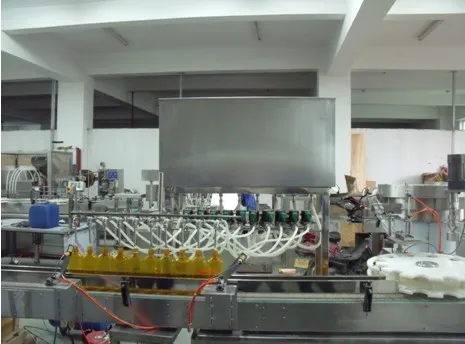

Fully-automatic detergent filling machine / hand sanitizer filling machine
1. Application:
This production line is suitable for filling and capping semi-liquid products without or with small particles:such as sweet chili sauce, beef paste, bean sauce, mushroom sauce, tomato sauce, peanut butter, jam,honey, sauce, shrimp paste, shampoo, body wash, liquid detergent, dishwashing liquid, etc.
2. Performance feature:
1)Adopts plunger type metering pump filling, high precision; The structure of pump adopts fast disassembly institutions, easy to clean and disinfect. 2. PLC control system , color touch screen display. 3. This machine has function of no bottle no filling and automatic counting. 4. The filling nozzle was equipped with drip-proof device . 5. W hen filling liquid, the filling nozzle dive into the bottom of bottle, rising slowly , it can effectively prevent bubbles. 6. Machine body and the parts contact ing liquid are made of stainless steel, full compliance with GMP standard.
3. Main Technical parameters
1. Application:
This production line is suitable for filling and capping semi-liquid products without or with small particles:such as sweet chili sauce, beef paste, bean sauce, mushroom sauce, tomato sauce, peanut butter, jam,honey, sauce, shrimp paste, shampoo, body wash, liquid detergent, dishwashing liquid, etc.
2. Performance feature:
1)Adopts plunger type metering pump filling, high precision; The structure of pump adopts fast disassembly institutions, easy to clean and disinfect. 2. PLC control system , color touch screen display. 3. This machine has function of no bottle no filling and automatic counting. 4. The filling nozzle was equipped with drip-proof device . 5. W hen filling liquid, the filling nozzle dive into the bottom of bottle, rising slowly , it can effectively prevent bubbles. 6. Machine body and the parts contact ing liquid are made of stainless steel, full compliance with GMP standard.
3. Main Technical parameters
Model | KY-JG4 | KY-JG6 | KY-JG8 |
Filling head number | 4 | 6 | 8 |
Filling volume | 50-1000ml | 50-1000ml | 50-1000ml |
Capacity | 10-40bottles/min | 20-60 bottles/min | 20-75bottles/min |
Filling accurancy | ≤±1% | ≤ ±1% | ≤±1% |
Pass rate | ≥98% | ≥98% | ≥98% |
Power supply | 1Ph.220V,50/60Hz | 1 Ph. AC220V, 50/60Hz | 1Ph.220V,50/60Hz |
Total power | 5.0kw | 6.5 KW | 8.0kw |
Net weight | 750kg | 800kg | 850kg |
Dimension | 2200x1500x1900mm | 2400x1500x1900mm | 2400x1500x1900mm |
4. Famous brand electrical part
|
| |
Inverter | Mitsubishi | Japan |
Air Switch | Schneider | France |
Contactor | Schneider | France |
Relay | Omron | Japan |
OFA | Autonics | Korea |
Bearing | IGUS | Germany |
CAM indexer | Shangdong | na |
Turntable | Plastic POM | Japan |
Cylinder | AIRTAC | Taiwan |
Touch screen | Siemens | Germany |
PLC | Siemens | Germany |
Servo motor | Delta | Taiwan |
5. Final filling bottles sample:

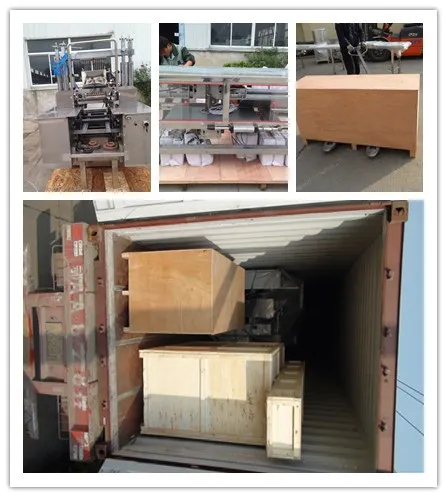

6. Shipping & Packaging:
