Good Quality Fruit Juice Bottle Filling Machine with Ce

Product Description

Good Quality Fruit Juice Bottle Filling Machine With CE

Introduction

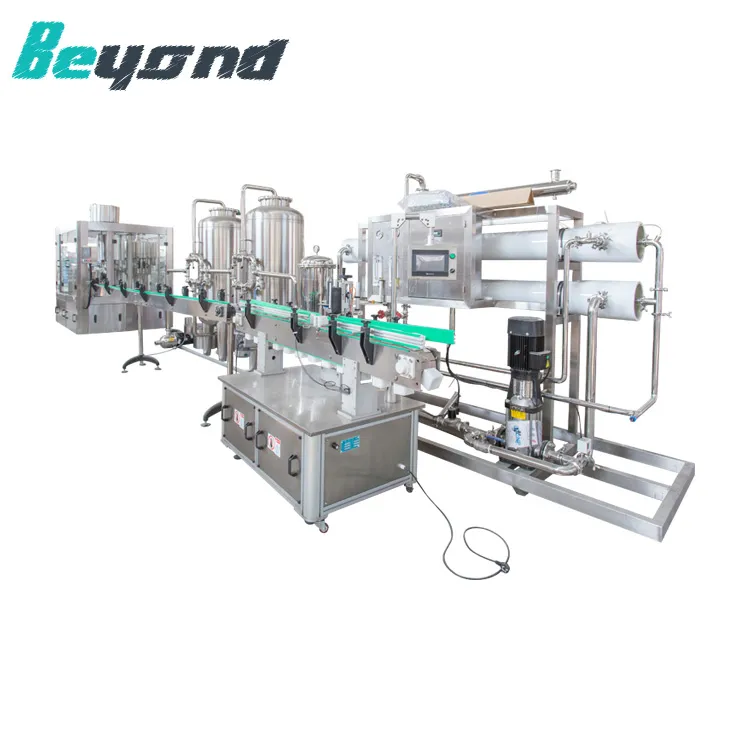

1. RXGF series fully automatic rinsing, filling and rotary capping combined machine. Whose main technique was imported from Italy, can realize to asepsis filling. Because it equipped with constant temperature controlling system.

2. It can apply to fill hot frult juice. Tea and other beveerage into thermal proof PET bottle by changing few parts.

3. The complete set of machine is more advanced in technique, smaller in space occupied, more compact in structure.

4. It is suitable for normal temperature filling or hot filling PET bottled no gas contained beverages (Mineral water, purified water, distilled water, fruit juie, tea and so on).

5. As well as washing, filling and sealing other liquid, such as vinegar, It achieves 1990"s international advanced level, It is the best choice of taking place of imported one.

Features
(1) Filling valve adopts high precision mechanical filling valve, with the character of no bottle no vacuum pumping.
(2) This machine has lubrication system in order to lubricated regularly in time.

(3) Wine jar and capping head are driven by electricity to fit different sizes of bottles.

(4) The material height in the tank is controlled by electric probe to assure the precise liquid level.

Model	CY12-12-6R	CY16-16-6R	CY18-18-6R	CY24-24-8R	CY32-32-8R	CY40-40-10R
Production capability (bph)(500ml)	3000	4000	5000	8000-10000	10000-12000	13000-15000
Applicable bottle type	Bottle diameter(50-100mm) height(150-320mm) volume(330-1500ml)
Applicable cap shape	Plastic screw cap
Gas source pressure(Mpa)	0.6
Gas consumption(m 3 /min)	0.2	0.2	0.4	0.4	0.5	0.55
Total power (kw)	4.6	4.6	5.4	6.4	8.07	9.56
Total weight (kg)	2500	3200	3800	5200	6500	8000
Dimension(L/W/H)(mm)	2350/1700/ 2150	2600/1830/ 2030	2830/2030/ 2030	3220/2300/ 2600	3450/2510/ 2710	3800/2800/ 2710

Service Term
1. Installation
The initial installation is not included with the professional member. All installation with our team must be scheduled at least 4 weeks in advance before actual trip taken. All necessary connectivity must be ready prior the service being scheduled.

While our professional member arrives at the site for a completed and final installation, two days training course will be provide to the customer for operation and maintenance procedure. The initial installation is provided within 5 working days . The actual installation days many vary, based on different machine mode and packing lines. Each day of working hour consist at 8 working hours. Any additional day will be charge according to our service fee listed below.

When initial installation is being called for our professional member required, the surcharge will be made advance by the purchase at US$80/person/day plus all travel expenses. Travel expenses include documentation fees visa charge); local and destination transportation charges air, train, ferry, bus, taxi or any means of transportation required to arrive to/from destination); accommodation (minimum of 3 star hotel facility) and 3 daily hot meals.

2. Translator
If translator is required and can't be provided by purchaser then we will provide a translator for same charge as initial installation stipulated above. All communicate with our engineer should be in Chinese. Any translation provide by us will be based between English and Chinese only. Purchaser is responsible for the translation between local language and English.

Commercial Terms
1. Warranty
All parts are under two Year Warranty with defects from manufacturer. Any other defect caused by human error, mishandling, wear-and tear & any foreseeable conditions will not be covered by this warranty. All electronic parts and component can be guaranteed by original part's manufacturer or our company.

2. Payment
30% of the total contract amount is to be T/T into assigned account at the period of 5 working days after the Purchase contract is signed.
70% of the balance must to be made via T/T of the remainder balance amount of the purchase contract before the ordered equipment is to be delivered 10 working days prior of the shipment.
We also accept L/C payment, 30% down payment, and 70% L/C at sight
