China 500ml Full Automatic 3 In1 Mini Small Scale Bottle Mineral Pure Drinking Water Filling Machine Price
China 500ML Full Automatic 3 in1 mini small scale bottle mineral pure drinking water filling machine priceThe machine is mainly used in the beverage filling operations. The three functions of bottle wash, fill and seal are composed in one body of the machine. The whole process is automatic. The mach......
Send Inquiry
Product Description

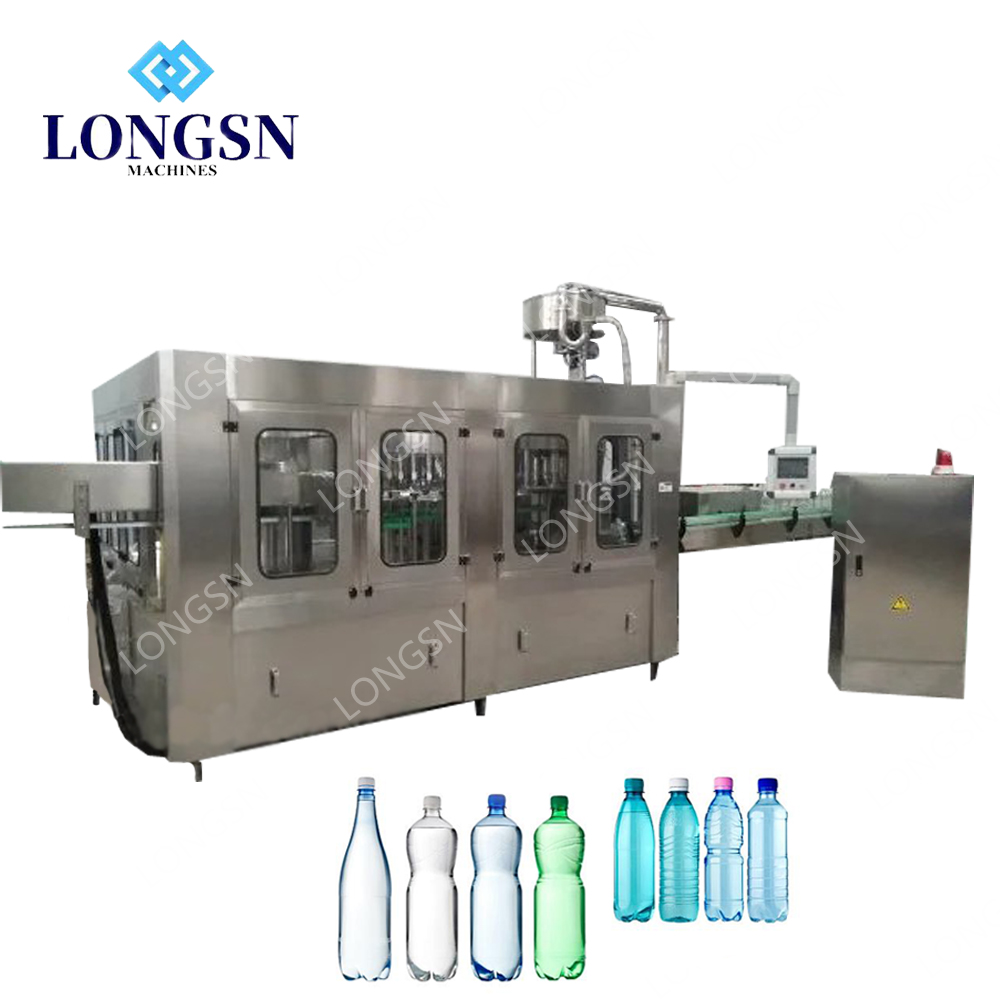

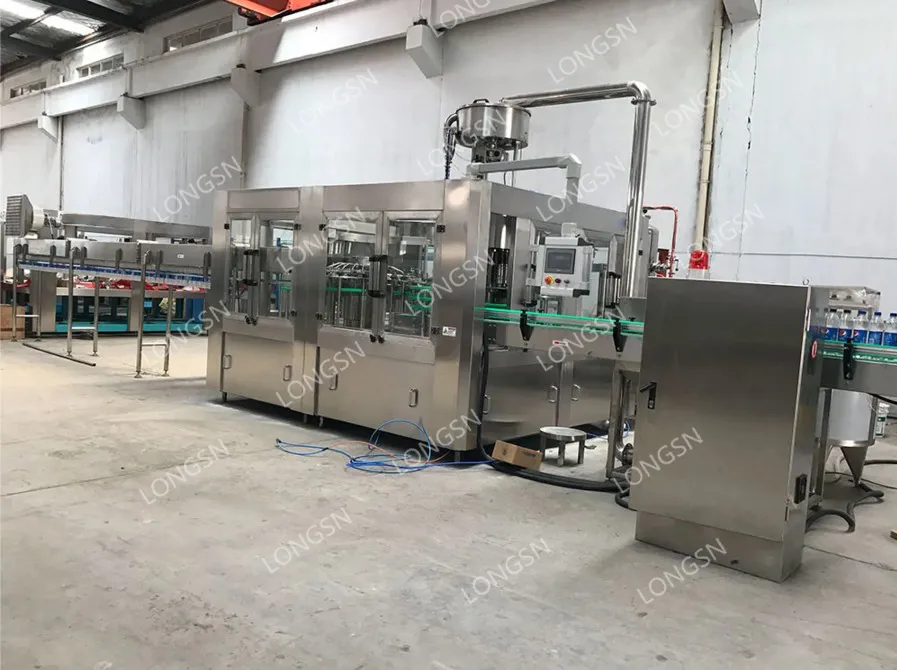

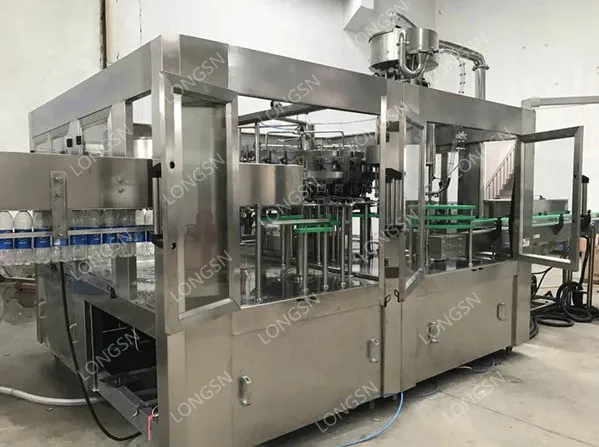

The machine is mainly used in the beverage filling operations. The three functions of bottle wash, fill and seal are composed in one body of the machine. The whole process is automatic. The machine is used in filling juices, mineral water and purified water in bottles made of polyester and plastics. The machine can also be used in hot filling if being installed with temperature controlling device. The handle of the machine can be freely and conveniently turned to adjust the machine to fill various types of bottles.
Water Filling Machine Key Features:
1. Integrate Bottling Rinsing, Filling and Capping into one.
2. Including bottle infeed air conveyor, tri-bloc Rinser-Filler-Capper and outfeed conveyor and Cap elevator.
3. All parts that contact the bottle and liquid are made of stainless steel or food grade plastic material
4. Infeed timing screw, indexing star wheel and guider are made from noise-reducing and low-wear plastic.
5. The sturdy base is supported by four feet and is made with stainless steel sheathing secured to the tubular frame.
6. All drive train components located inside machine base to be protected from aggressive environment, extended life, clean and unobstructed cabinet surface.
7. Bottles are rinsed internally and externally, No bottle, No Rinsing.
8. Precise and Accurate GRAVITY filling valves give even filling in all bottles at the same level, No bottle, No filling.
9. Magnetic capping head eliminates over-tightening of caps, No bottle, No capping.
10. PLC control and friendly touch screen HMI interface.
11. Adjustable speed by inverter.
12. Fast and easy changeover to various bottle sizes.
13. Unique design bottle neck suspend system makes bottle move smoothly.
14. Easy to operate, clean and maintain.
Technique parameter:
| Model | LFD8-8-3 | LFD14-12-5 | LFD18-18-6 | LFD24-24-8 | LFD32-32-10 | LFD40-40-12 | LFD50-50-12 |
| Washing No | 8 | 12 | 18 | 24 | 32 | 40 | 50 |
| Filling No | 8 | 12 | 18 | 24 | 32 | 40 | 50 |
| Capping No | 3 | 6 | 6 | 8 | 10 | 12 | 12 |
| Capacity(500ml)BPH | 2000 | 4000 | 7000-8000 | 10000-12000 | 12000-15000 | 15000-18000 | 20000-25000 |
| Power(KW) | 2 | 3.5 | 4 | 4.8 | 7.6 | 8.3 | 9.5 |
| User Ambient Conditions | Temperature:10~40ºC;Humidity:No dew | ||||||
| User Electrical Supply Specification | Voltage:220V,380V,3phase;Frequency:50HZ/60HZ or your requirement | ||||||
| Polyester bottle standard(mm) | bottle diameter φ50-110 ; bottle height 150-340mm | ||||||
| Suitable cap shape | Plastic screw cap | ||||||

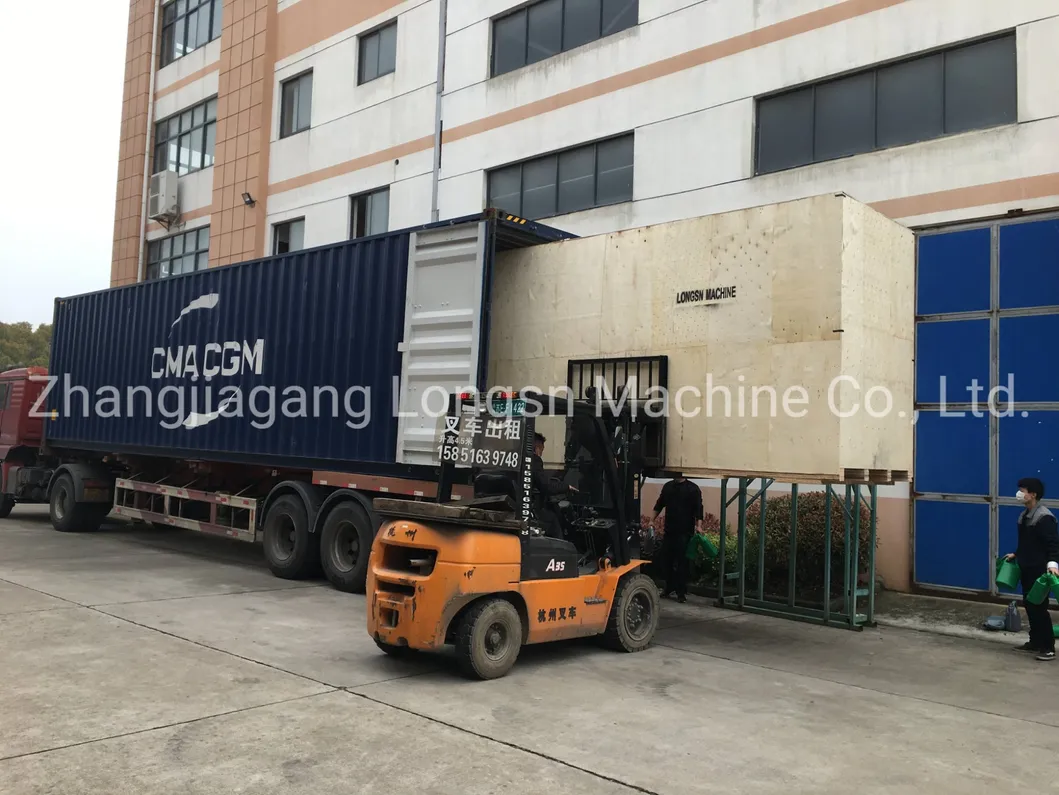

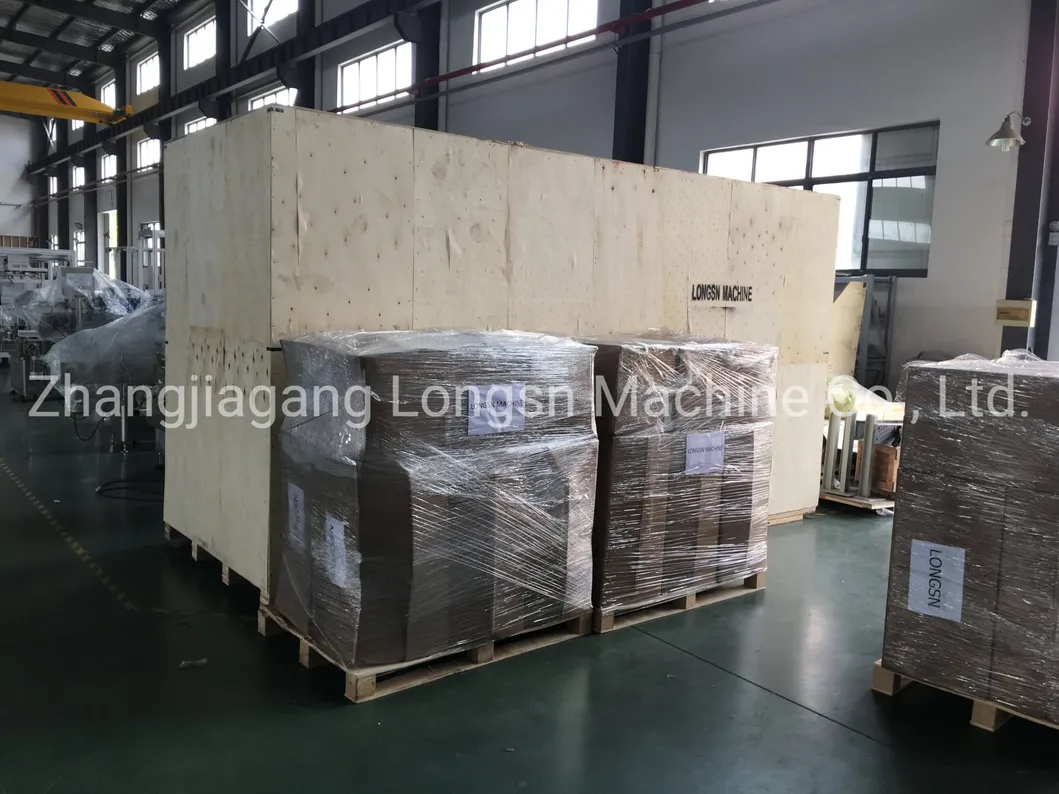

Packing and Shipping :

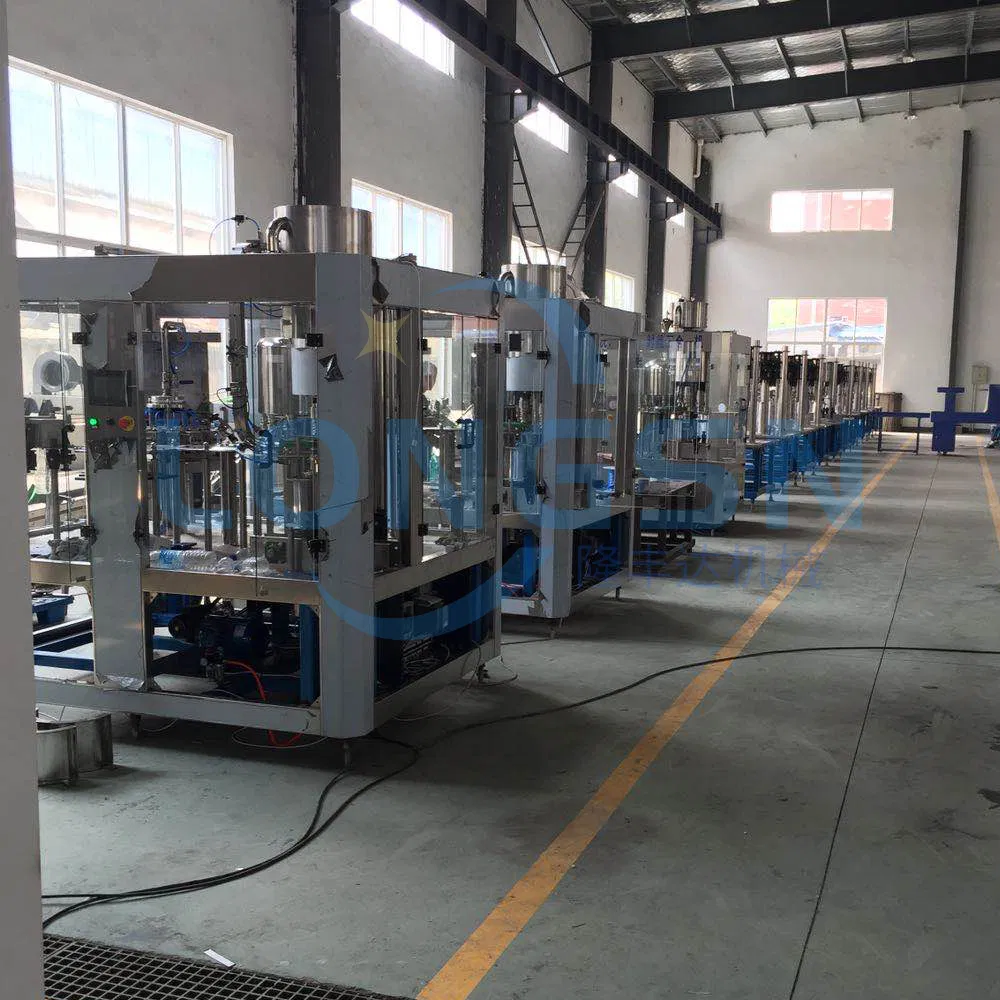

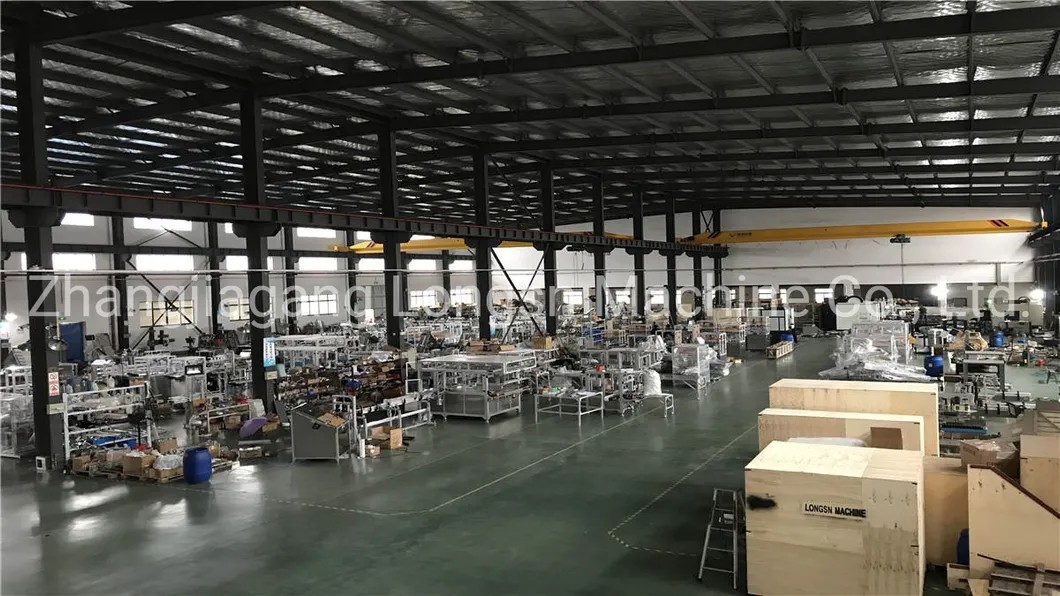

Factory:
Our Service:
Before the order:
We will make detailed solution for you based on your requirments.
We will send you videos of our products to know more about our machines.
If you are willing to visit our factory,we will pick you up at a nearby airport/station.
After the order:
We will start to produce machines and update the progress.
Our engineer will draw the layout for you.
After-sales service:
Arrange our engineer to your factory to install machines if you need,train your employee until they can operate machines well.
Provide you 2 years warranty with spare parts 2 year free.
24 hours for engineer response (all services part 5days in customer hand by Intl' courier)

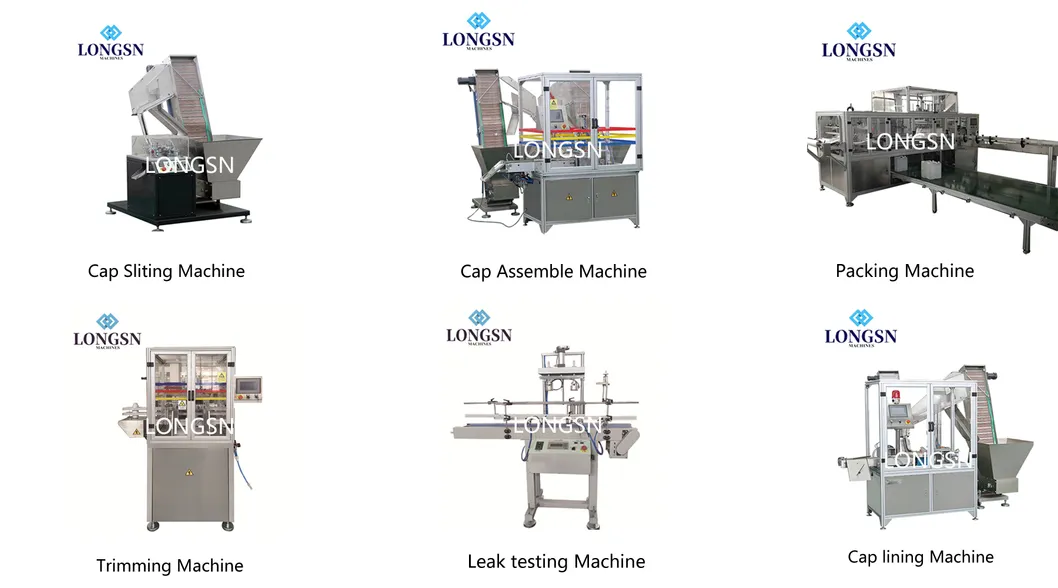

Related products:
