Automatic Zipper Pouch Beef Jerky Rotary Packaging Machinery with Elevator
Product descriptionModelMR8-200RGFunction·Pouch Fill/Sealing Machine·Spout Pouch Packaging MachineCapacity(PPM)30~60bags/min(the speed depends on type of products)25~45bags/min (for zipper pouch)Pouch SizeWidth(mm): 80~210Length(mm): 100~300Filling Volume10-1500g(Depend on type......
Send Inquiry
Product Description
Product description
| Model | MR8-200RG |
| Function | ·Pouch Fill/Sealing Machine ·Spout Pouch Packaging Machine |
| Capacity(PPM) | 30~60bags/min(the speed depends on type of products) 25~45bags/min (for zipper pouch) |
| Pouch Size | Width(mm): 80~210 Length(mm): 100~300 |
| Filling Volume | 10-1500g(Depend on type of products) |
| Filling Product | ·Solid ·Granule |
| Package Accuracy | Error≤±1 |
| Total power | 2.5KW(220V/380V,3PH,50HZ) |
| Demension | 1460*2500*1440mm(L*W*H) |
| Weight | 2275KGS |
| Compress air requirement | ≥0.8m³/min supply by user |
| Application | Solid: puffed food, grain, capsule, peatnut, green bean, cake, candy, cooked food, brown sugar, pickles Granule: nuts, seeds, granulated sugar, etc. |
| Features | 8 stations; wash down; retortable |
| Notes | with weigher, overheadwork platform, z-elevator bulk feeder serve both standard and spout pouch |
Application
Solid: candy, puffed food, pickles, peanut, green bean, pistachio, brown sugar, cake, daily commodities, cooked food, etc.
Granule: grain, nuts, granular drug, capsule, seed, condiment, granulated sugar, chicken essence, melon seeds, etc.
| Features and Characteristics |

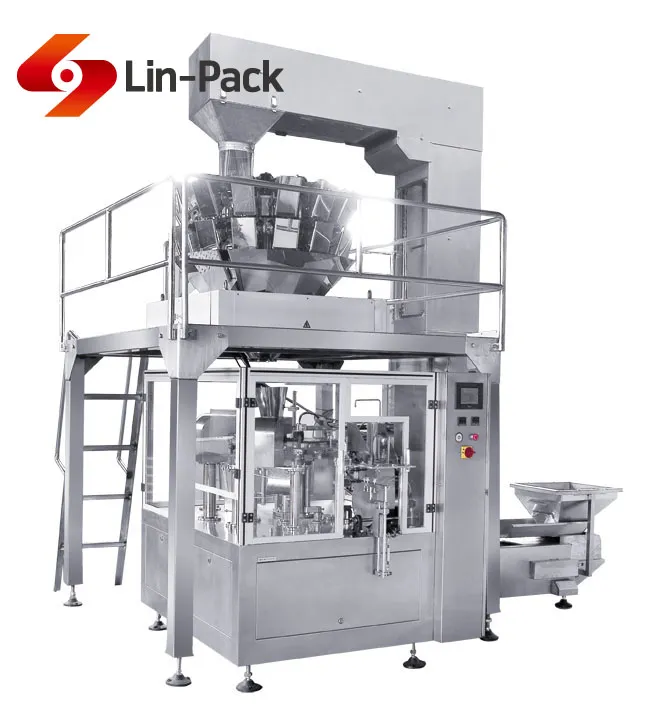

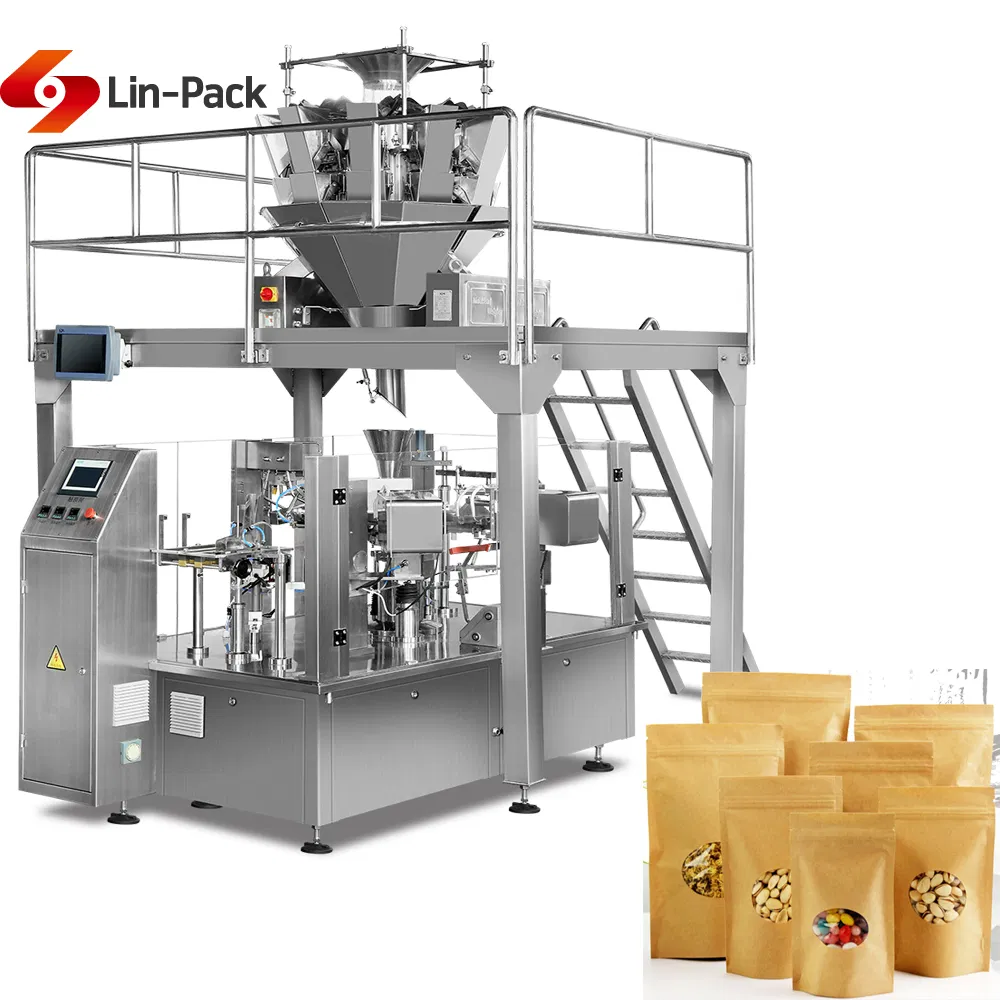

| 1. The packaging system consists of a rotary packing machine, a work platform, a weighing machine, and a z-bucket elevator. |
| 2. Speedy packing, stable performance |
| 3. Waterproof system makes cleaning easier. Color touch screen display, easy to operate |
| 4. Provide an innovative solution at a reasonable cost |
| 5. The machine adopts premade perfect-pattern pouch, with high-quality sealing |

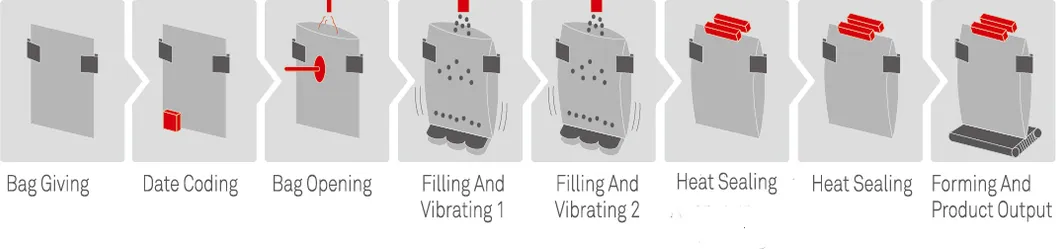

Work Process

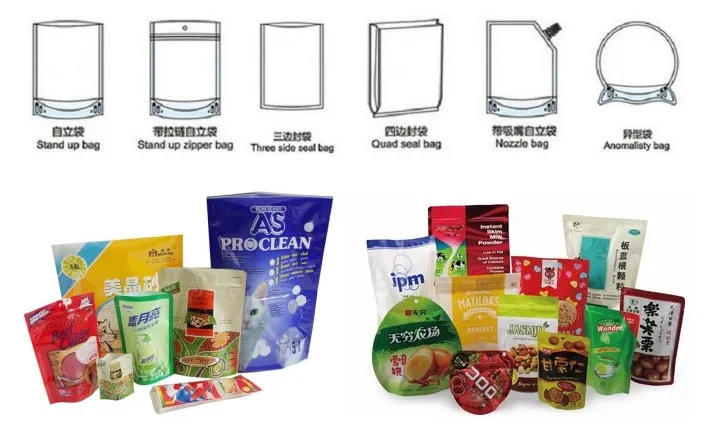

Pouch Type

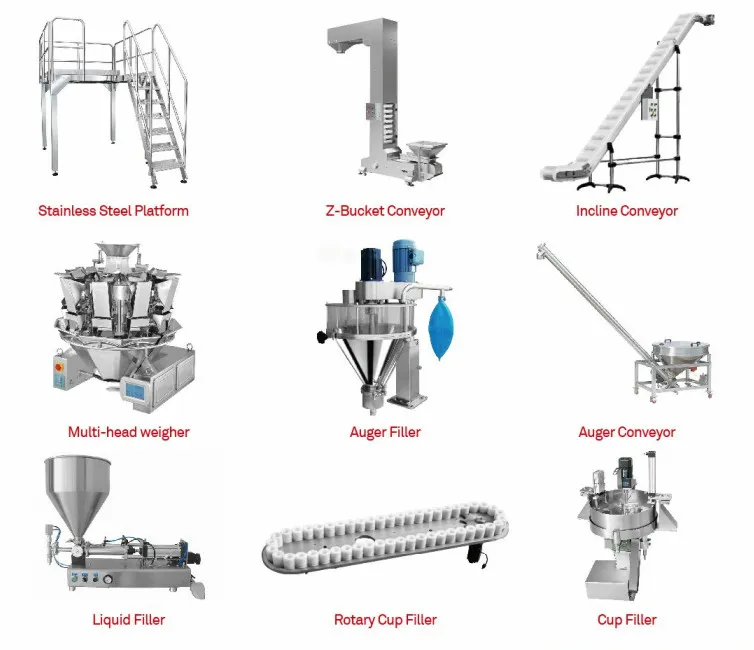

Optional Equipment
| material weighing filling machines, work platform, weight checker, material elevator, finished product conveyor, metal detector |
Standard Equipment
| 1. date printer 2. PLC control system 3. pouch opening devices 4. vibrator 5. cylinder 6. magnetic valve 7. temperature controller 8. vacuum pump 9. frequency convertor 10. output system |
Associated Equipment
If you have any questions, pls feel free to contact me.
