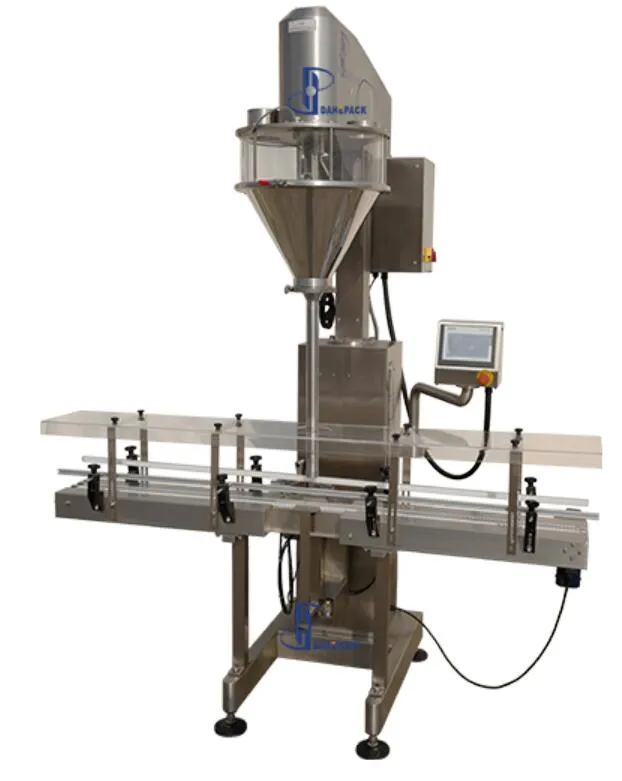

Automatic Weigh- Fill Auger Filling Machine
Filling Machine, Packing Machine, Packaging Machine. Introductions: This is a automatic linear gravimetric Filling Machine ,designed to dose different kinds of powder into different shape and size rigid containers: Bottles, Cans or Jars ect.Dual speed weigh-fill:High speed bulk fill and slow s......
Send Inquiry
Product Description
Filling Machine, Packing Machine, Packaging Machine.
Introductions:
This is a automatic linear gravimetric Filling Machine ,designed to dose different kinds of powder into different shape and size rigid containers: Bottles, Cans or Jars ect.Dual speed weigh-fill:High speed bulk fill and slow speed top-up fill.Featured with stable performance ,high accuracy and good reliability but lower speed than normal volumetric filling system. Ideally for inconsistent density high value powder and high accuracy required application.
Specifications:
| Model | DH-Q1-DT |
| Control System | PLC and full color HMI |
| Dosing Mode | Dual Speed Weigh-Fill (High Speed Bulk fill ,slow speed top-up) |
| Hopper Volume | 56L |
| Filling Weight Range | 100G-10KGS(With different size dosing auger tools) |
| Filling Accuracy | 100-1000g <+/-2g >1000g +/-0.2% |
| Filling Rate | 4-8Units/min |
| Total Power | 3.2KW |
| Power Supply | 3P 208-415V 50/60HZ |
| Air Consumption | 4-6Bars |
| Total Weight | 450KGS |
| Overall Size | 3000*970*2300MM |

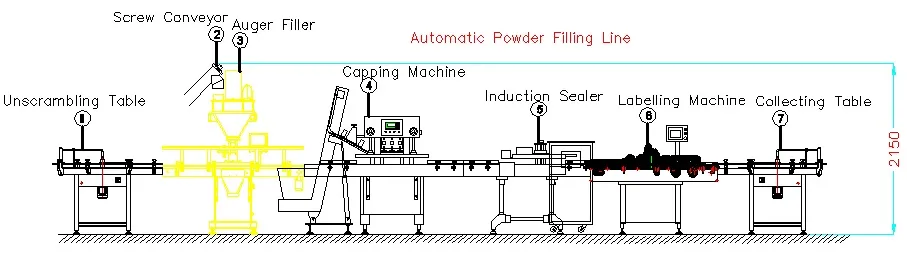

| Optional: Screw conveyor, Unscrambling Table, Collecting Table, Capping Machine, Labelling Machine etc | |
