Product Description
Simple Instruction:
Demineralize Machine includes Two main treatment Parts. ( Main Flow processing, please see as below picture)
Pre-water treatment machine: Raw water is pumped by Raw water pump into following filter: Mechanical Filter, Active Carbon Filter, Resin Filter (Optional).
RO system: It includes Precision Filter, High Pressure Pump, and Double RO Membrane.
Main Technical Data:
Model | WP-500D | WP-1000D | WP-2000D | WP-3000D |
Capacity | 500L/H | 1000L/H | 2000L/H | 3000L/H |
Power supply | AC220V / AC380V / 415V±5% 50HZ / 60HZ (customized) | |||
RO stage | According to client's demands | |||
Desalt rate | 99% | |||
Operation pressure | 0.7-1.5Mpa | |||
PH of raw water | 2-11 | |||
Conductivity of raw water | 1000US/CM | |||
Standard | BP/UP/FDA etc | |||
RO Water Purification Equipment Parts List:
| NO. | Item | Size | Material | Q | Remark |
| 1 | Raw water pump | 40 | 316 horizontal pump | 1 | Grundfos |
| 2 | Mechanical filter | WTG-400 Φ400×1600 | 316 stainless steel | 1 | |
| Filter material | Quartz sand | 200 | |||
| 3 | activated carbon filter | WTH-400 Φ400×1600 | 316 stainless steel | 1 | |
| Filter material | Shell active carbon | 50 | |||
| 4 | Softener | WTR-400 Φ400×1600 | 316 stainless steel | 1 | |
| resin | 001*7 | 100 | |||
| Salt tank | PE | 100L | 1 | ||
| 5 | Security filter | WTM220-20'' | 316 stainless steel | 1 | |
| Filter material | Φ65×500 | PP | 5 | 5um melt spout filter cartridge | |
| 6 | RO device | 0.5T/h | Assembling unit | 1 | Open-down auto washing |
| Ball Valve | SS316L | 51 | |||
| High pressure pump 1&2 | CDLF2-150 | Stainless steel vertical pump | 1 | Grundfos | |
| RO membrane | ULP21-4040 | Composite membrane | 7 | DOW USA | |
| Membrane shell | WT4040-1 | 316 stainless steel | 4 | ||
| Oil charge pressure gage | YIN-60 | 316 stainless steel | 2 | ||
| Flow meter | LZM-252 | Organic glass | 2 | ||
| Auto flushometer | 2W-25 | copper | 1 | ||
| Pressure flow regulating valve | CF-DN25 | 1 | |||
| Recover flow regulating valve | Φ25 | 1 | |||
| Washing case | 40L | 1 | |||
| Stainless steel support | 304 stainless steel | 1 | |||
| 7 | Breath filter | WTF-6 | 1 | Match 0.22um filter element | |
| Preparation device | Fast open manway | Level control switch | |||
| 8 | Pure water pump | 316 stainless steel | 1 | Grundfos, Danmark | |
| 9 | Project pipe fitting | UPVC | 1 | ||
| 10 | Electric control | ||||
| Control cabinet | 400×500 | 304 stainless steel | 1 | 304 stainless steel | |
| PLC | 1 | Siemens, German | |||
| Touch Scree | 1 | Siemens German | |||
| Liquid level switch | SL-MH21 | 3 | Schneider, French | ||
| High-low pressure switch | ACO-3W | 2 | Omron, Japan | ||
| Conductivity meter | CM-230 | 1 | Shanghai, China | ||
| Electrical apparatus element | 1 | Omron, Japan | |||
| Electric wire | 1 | Omron, Japan | |||

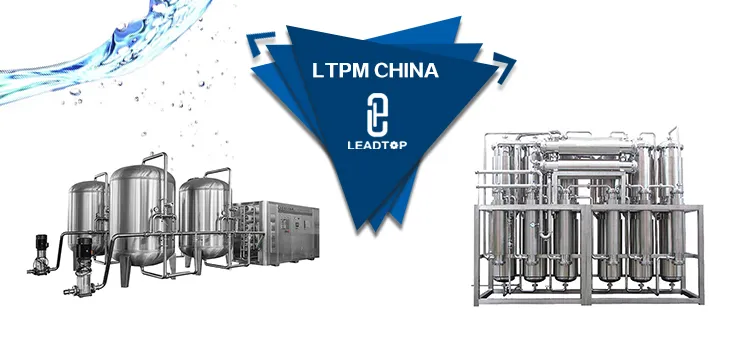

Machine Photo:
Q: What price terms you offer?
A: We can offer FOB, FCA, CFR, CIF, EXW and other price terms based on your request.
Q: What payment terms you take?
A: TT, LC, other terms are also workable.
Q: Will you help with installation and stuff training?
A: Yes, we can send our engineers to your place to guide the installation and train your workers if you need, but the buyer should bear our technician's round tickets, accomodation, food and subsidiary USD100/day.
Q: How can I visit your factory?
A: Our factory is located in Ruian city Zhejiang Province. Just let us know your scheduel in advance and we will arrange everything for you!
Any other doubts about our machine, please feel easy to contact with us.
