              Automatic Plastic Bottle Blowing Bottling Pet Bottled Beverage Pure Mineral Drinking Water Washing Filling Capping 3-in-1 Machine
              • Automatic Plastic Bottle Blowing Bottling Pet Bottled Beverage Pure Mineral Drinking Water Washing Filling Capping 3-in-1 MachineAutomatic Plastic Bottle Blowing Bottling Pet Bottled Beverage Pure Mineral Drinking Water Washing Filling Capping 3-in-1 Machine
              • Automatic Plastic Bottle Blowing Bottling Pet Bottled Beverage Pure Mineral Drinking Water Washing Filling Capping 3-in-1 MachineAutomatic Plastic Bottle Blowing Bottling Pet Bottled Beverage Pure Mineral Drinking Water Washing Filling Capping 3-in-1 Machine
              • Automatic Plastic Bottle Blowing Bottling Pet Bottled Beverage Pure Mineral Drinking Water Washing Filling Capping 3-in-1 MachineAutomatic Plastic Bottle Blowing Bottling Pet Bottled Beverage Pure Mineral Drinking Water Washing Filling Capping 3-in-1 Machine
              • Automatic Plastic Bottle Blowing Bottling Pet Bottled Beverage Pure Mineral Drinking Water Washing Filling Capping 3-in-1 MachineAutomatic Plastic Bottle Blowing Bottling Pet Bottled Beverage Pure Mineral Drinking Water Washing Filling Capping 3-in-1 Machine

              Automatic Plastic Bottle Blowing Bottling Pet Bottled Beverage Pure Mineral Drinking Water Washing Filling Capping 3-in-1 Machine

              Automatic Plastic Bottle Blowing Bottling Pet Bottled Beverage Pure Mineral Drinking Water Washing Filling Capping 3-in-1 MachineGeneral description:bottle water filling machine3-in-1 filling machine, combined with rinsing, filling and capping. It is innovated and designed in the requirement of stil......

              Send Inquiry

              Product Description

              Automatic Plastic Bottle Blowing Bottling Pet Bottled Beverage Pure Mineral Drinking Water Washing Filling Capping 3-in-1 Machine

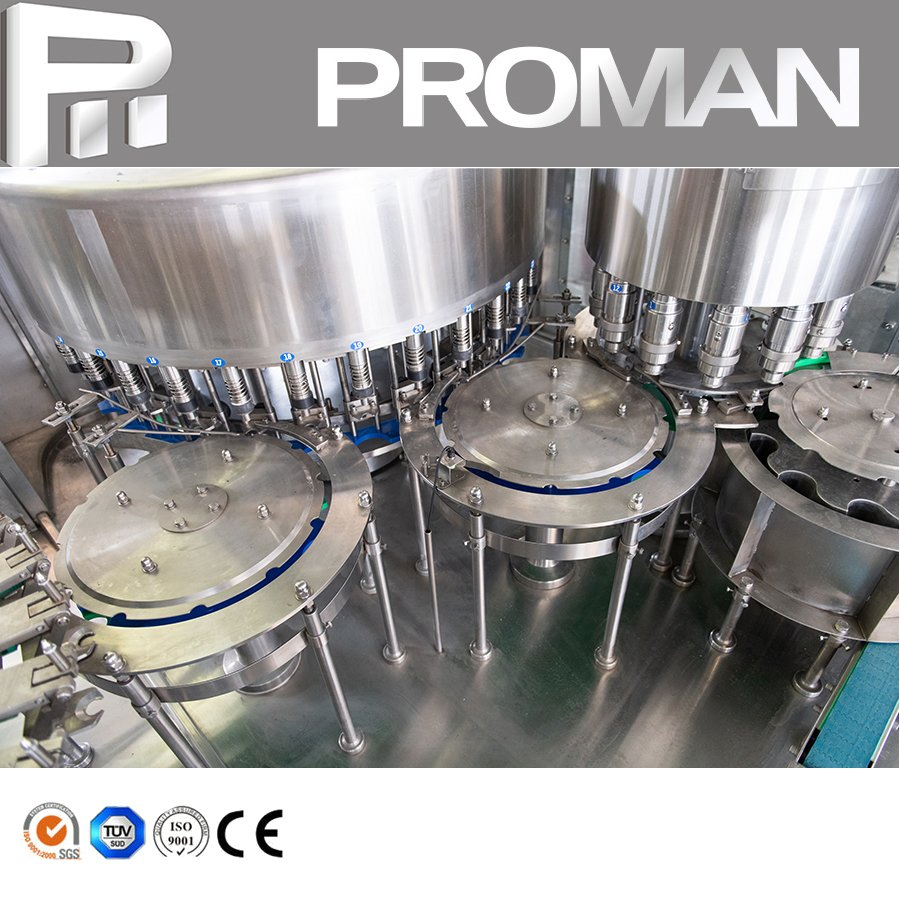

              Automatic Plastic Bottle Blowing Bottling Pet Bottled Beverage Pure Mineral Drinking Water Washing Filling Capping 3-in-1 MachineGeneral description:bottle water filling machine

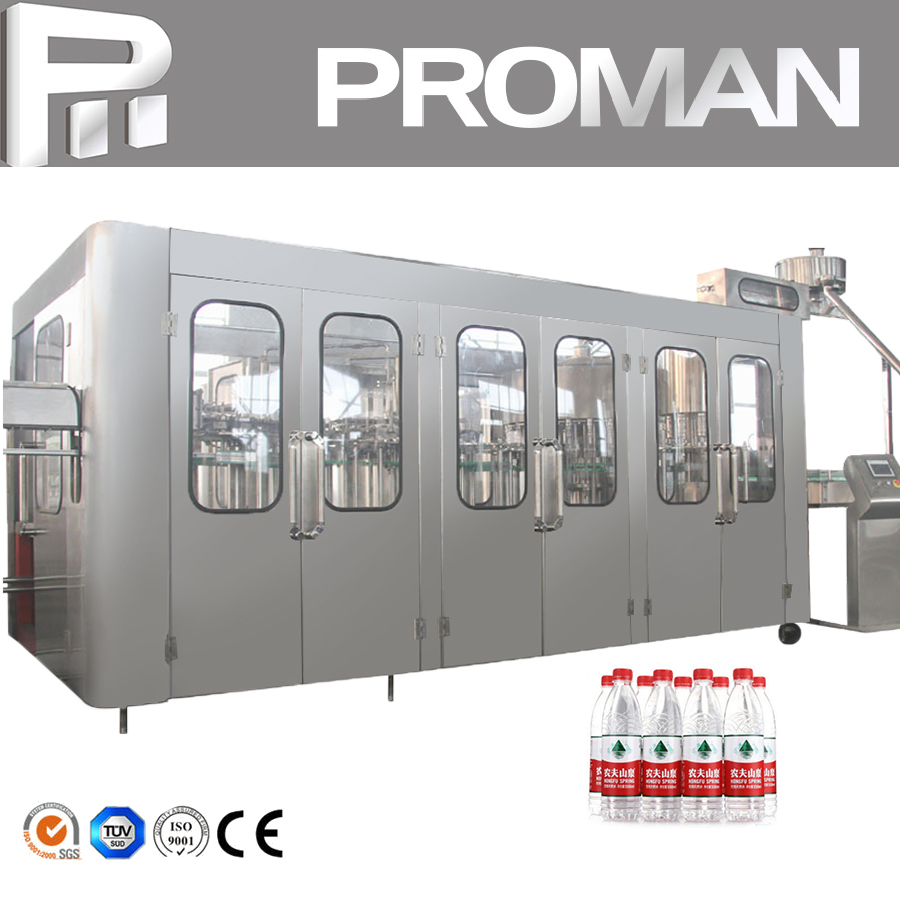

              3-in-1 filling machine, combined with rinsing, filling and capping. It is innovated and designed in the requirement of still pure water and mineral water, on the bases of introducing, digesting and absorbing advanced technology from Germany and Italy.

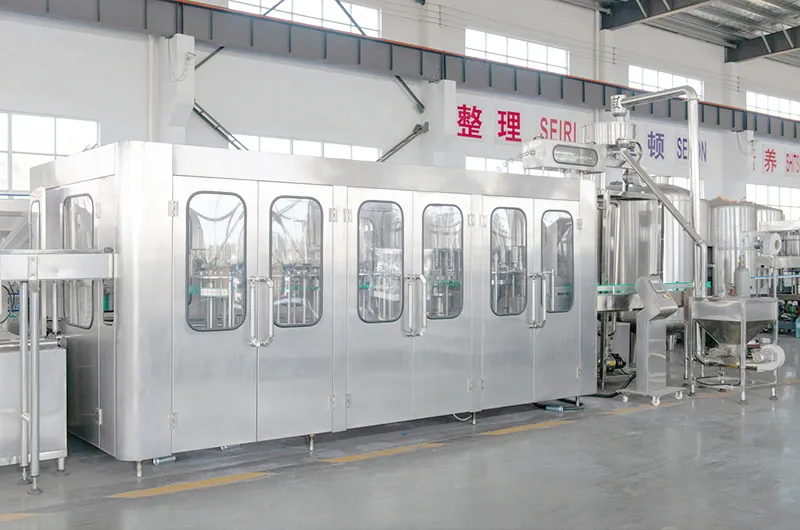

              CGF series bottle water filling machine water filling machine line is used to filling mineral water or purified water into PET bottle from 200ml-2000ml.
              Glass bottle can also used. It just need to change the conveyor parts.
              Different models can satisfy various requirement of output from 2000B/H to 24000B/H.
              The whole process is automatic ,suitable for PET bottle ,plastic bottle filling mineral water and pure water.
              Filling way using the gravity or micro pressure filling ,make the speed faster and more stable,so compared with the same model our machine output is higher and more efficient.
              The machine adopts advanced Mitsubishi programmable controller(PLC) to control the machine adopts advanced automatically, interworking with inverter with inverter running more stable and reliable the photoelectric sensor detect all part running state with high degree of automation, easoperation.
              filling machine
              Automatic Plastic Bottle Blowing Bottling Pet Bottled Beverage Pure Mineral Drinking Water Washing Filling Capping 3-in-1 Machine              Technical Parameter:
              2021 High Quality Water Filling Machine    water filling line
              ModelCGF14-12-4CGF16-16-5CGF18-18-6CGF24-24-8CGF32-32-10CGF40-40-12
              Capacity(500ML)4000BPH6000BPH8000BPH12000BPH15000BPH18000BPH
              Washing Heads141618243240
              Filling Heads121618243240
              Capping Heads45681012
              Suitable BottlePET Bottle ,Plastic Bottle
              Diameter of bottleDiameter: 55-110 MM
              Height Of Bottle150-310MM
              Suitable CapPlastic Screw Cap
              Weight1500kg2000kg4000kg4500kg6000kg7800kg
              Main Motor Power1.2kw1.5kw3kw3kw3kw5.5kw

              Automatic Plastic Bottle Blowing Bottling Pet Bottled Beverage Pure Mineral Drinking Water Washing Filling Capping 3-in-1 MachineAutomatic Plastic Bottle Blowing Bottling Pet Bottled Beverage Pure Mineral Drinking Water Washing Filling Capping 3-in-1 Machine

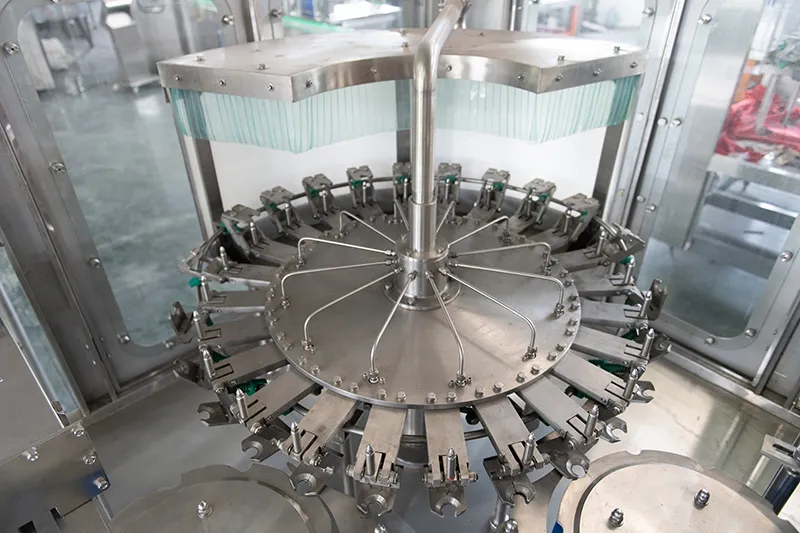

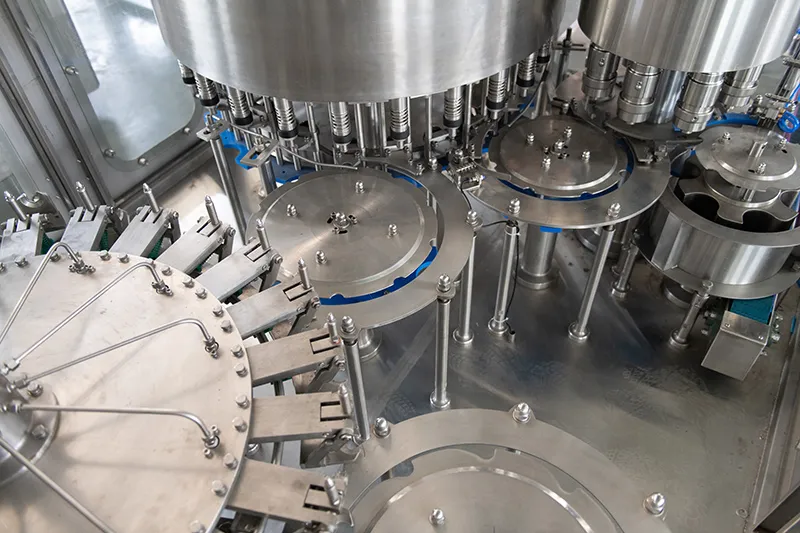

              Washing Head:
              - Into bottle way is air conveyor direct connection with bottle dial.
              - All 304/316 stainless steel rinse heads, water spray style inject design, more save water consumption and more clean.
              - 304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing.
              - 304/316 stainless steel washing pump make the machine more durable.
              Automatic Plastic Bottle Blowing Bottling Pet Bottled Beverage Pure Mineral Drinking Water Washing Filling Capping 3-in-1 Machine

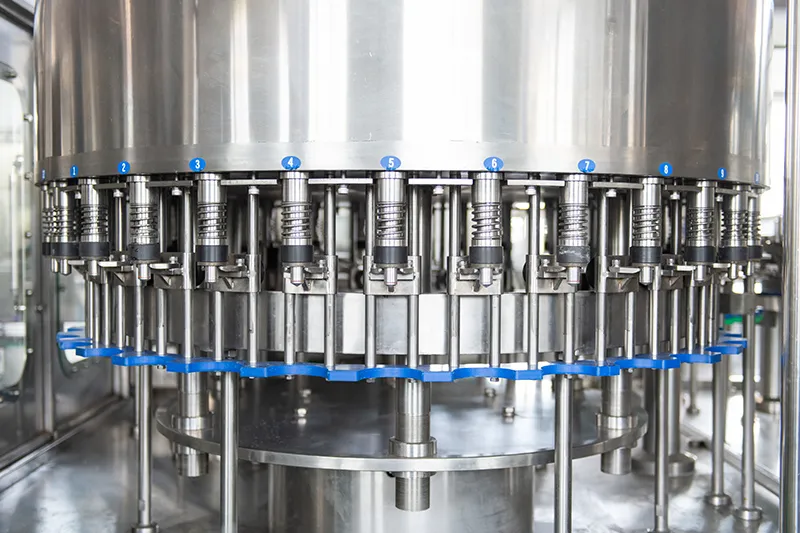

              Filling Head:
              - 304/316 Stainless steel high precision filling nozzle
              - Filling volume adjustable in fine rank, same liquid level after filling
              - All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
              - 304/316 stainless steel filling pump
              - Efficient spray nozzle rinse thoroughly and save water for flushing
              Automatic Plastic Bottle Blowing Bottling Pet Bottled Beverage Pure Mineral Drinking Water Washing Filling Capping 3-in-1 Machine

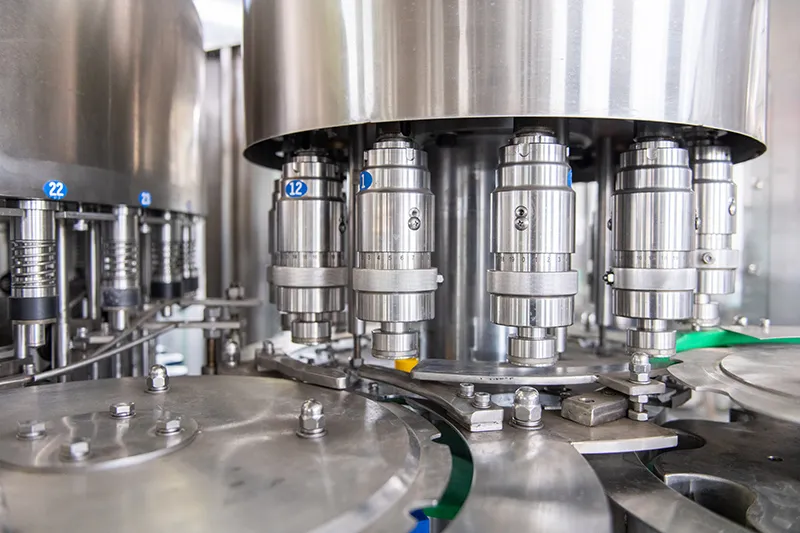

              Capping Head:
              - Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
              - All 304/316 stainless steel construction
              - No bottle no capping
              - Automatic stop when lack of bottle
              - Capping effect is stable and reliable, Defective rate ≤0.2%

              Advantages:
              1. Washing , Filling ,Capping ,finish by the one machine---------Save much space and more sanitary.
              2. Application of advanced bottle conveying technology - bottle neck clamping and bottle suspending technology----------Convenient to change different bottles .
              3. Advanced programmable PLC and touch screen--------Easy to operate.
              4. All electronic components and pneumatic elements-------From famous international enterprises.
              5. All spare parts that may touch with water ------- From high-quality stainless steel.
              water bottle filling machine

              Automatic Plastic Bottle Blowing Bottling Pet Bottled Beverage Pure Mineral Drinking Water Washing Filling Capping 3-in-1 MachineAutomatic Plastic Bottle Blowing Bottling Pet Bottled Beverage Pure Mineral Drinking Water Washing Filling Capping 3-in-1 MachineOur Team:
              Automatic Plastic Bottle Blowing Bottling Pet Bottled Beverage Pure Mineral Drinking Water Washing Filling Capping 3-in-1 MachineOur Packing:

              Automatic Plastic Bottle Blowing Bottling Pet Bottled Beverage Pure Mineral Drinking Water Washing Filling Capping 3-in-1 MachineAutomatic Plastic Bottle Blowing Bottling Pet Bottled Beverage Pure Mineral Drinking Water Washing Filling Capping 3-in-1 MachineCertifications

              Automatic Plastic Bottle Blowing Bottling Pet Bottled Beverage Pure Mineral Drinking Water Washing Filling Capping 3-in-1 Machine

              1.How to tell us your enquiry? You can contact us by email, phone call, fax, Instant Messenger (Trademanager, WhatsApp, Skype) and let us know your requirement.

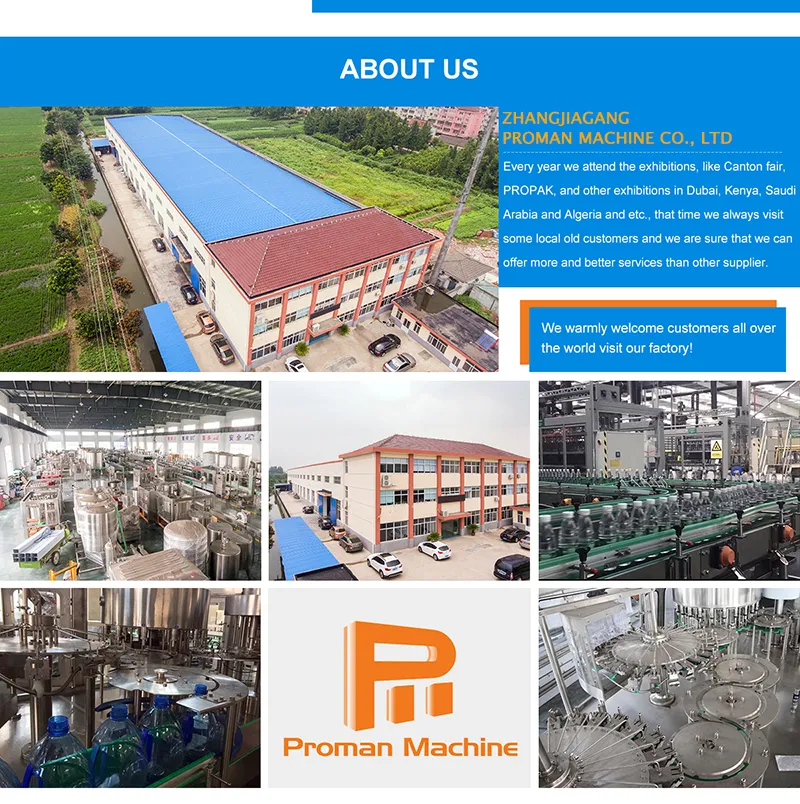

              2.Where is your factory? Our Factory is located in Zhangjiagang City, it is very near to Shanghai and Wuxi (airplame and train both available). If you arrive at Shanghai or Wuxi, we can pick you up to visit our factory.



              3. Do you have any technical supports with your Water Filling Machine? Yes, We have a professional team of engineers who owned many installation, debug and training experiences abroad, are available to service machinery overseas.



              4.What's your guarantee or the warranty of the quality if we buy your machines? We offer you high quality machines with 1 year guarantee and supply life-long technical support.
              We Warmly Welcome Customers All Over The World To Our Company If You Have Interests In Our Products. Please Contact Us If You Have Any Problems.
