Automatic Lubricant Urea Filling Machine
Product description:weighing scale filling line-separate type Item model W02FOverall size and quality 12000L×1560W×1910H 1900kgAir consumption quantity 0.7Mpa VN=1500L/min connect mouth diameter3/8Water consumption quantity no drive ......
Send Inquiry
Product Description
Product description:
weighing scale filling line-separate type
(5)small barrel conveyor 0.75KW
(6)small mouth auto cap un-scrambler 0.75KW
(7)small mouth barrel auto capping 0.5KW
(8)other 0.12KW
Container supply department manually put barrels, automatic chain transport, fixed position to send barrels, a group of 4 barrels.
Weighing and filling position 4: the head is loaded and filled at the same time. In order to ensure the filling accuracy, filling can be done at fast and slow speed.
Material contact department is 304 material, using tetrafluoride material sealing pad, the liquid into the pump mode (liquid pump
Customer matching).
Third working position the Third working position automatically covers the upper part
Manually place the lid in a centralized way into the lid compartment (20-30 caps can be stacked at one time, which can expand the external storage cover).
The vacuum suction cup rotates to lift and remove the cover, and then slides along the slide path to the cover hanging station to wait for the cover hanging and the conveyor
Send the filled drum to the cover hanging station, hang the outer cover to the mouth of the drum, and send it to the next cover pressing station;
Cover with automatic cover alarm device.
The drum gland of the fourth working position will gradually press the outer cover placed at the barrel mouth into the barrel mouth through the combination of bevel plane drop of sticks, with adjustable height and speed.
Fifth working position The outer cover of the automatic lidding and screwing cover is uniformly sent out in a certain direction by the centrifugal force generated by the vibration plate, and slides to the cover taking station through the slide path.
Remove the cover driven by the cylinder and send the outer cover to the head of the screw cap. The conveyor will send the filled bucket to the screw cap station, and position it through the positioning device and wait for the screw cap.
Remove the cover and reset the cover after the screw cap goes down for the first time. Press the outer cover to the barrel mouth after the screw cap goes down for the second time. The screw cap motor turns the screw cap and reset after delay.
.
7. 1) the maximum filling speed depends on the nature of the liquid, the filling volume, the shape of the container, the capping conditions, etc
Change, please note.
2) the container
< 1 > containers should have good stacking, strength and toughness, no distortion.
< 2 > the outer cover should have good stacking type, strength and toughness, and the edge is linear without distortion.
< 3 > in order to ensure no impact on capping, the edge of the barrel mouth should be neat, no thin phenomenon.
source oil piston servo filling machine
Oil piston filling capping separate type
The NP-VF automatic piston filling machine is extremely flexible filler, is capable of filling accurately and rapidly any viscosity or thick liquids, and also can filling thin liquid ,such as water.
Product delivery from your bulk tank to the pistons can be configured with a buffer tank utilizing a level-sensing float, a manifold with direct draw, or recirculation methods.
The NPACK automatic piston filling machine is manufactured with a 304 SS frame and is capable of supporting 1 to 20 fill nozzles. PLC Controls, touch screen, food grade contact parts, stainless steel and anodized aluminum construction, plus many more features come standard.
NPACK automatic piston filling machine are designed to add efficiency to any production line used in the cosmetic, food industry, specialty chemical, pharmaceutical, and personal care industries. Additional options are available for sanitary, hazardous, flammable and corrosive environments
Raw Material:
304 Stainless steel construction,
the liquid contact parts are 316L stainless steel
All contact parts can be Teflon, Vinton and hoses per your requirements.
Adapt world famous Components Brand such as Siemens, Schneider, and Panasonic
Advantage:
Linear type is adjustable for many different types of bottles
Easy to maintain, no special tools are required.
No bottle, no filling, automatic PLC control
blocked Filling nozzles are anti drops, silk, and auto cut viscous liquid
Accurate filling volume, within ±0.5-1% and a total bottle counter.
Special seals or hoses are adapted if the liquid are corrosive.
Diving nozzles for bottom up filling of foaming products if need
Bottle mouth can be located.
More functions for option:
Manifold and Tank Upgrades
Servo-driven Pistons, and filling Volume adjust by touch screen
Polycarbonate Safety Guarding
Special electrical requirements
Additional remote E-stops
Sanitary, hazardous, flammable and corrosive environment construction
Technical parameters
Applications
From thin liquid to viscosity liquid
Detail information
Other Features

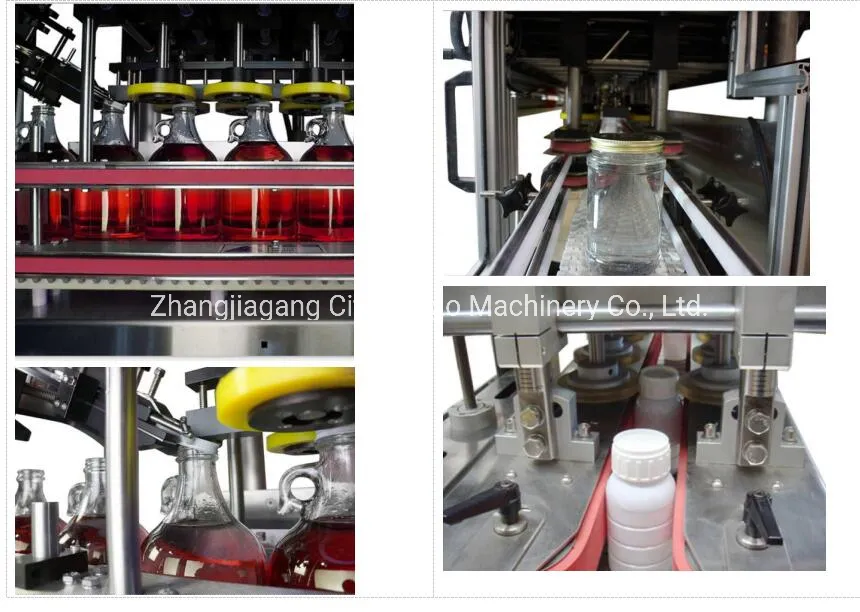

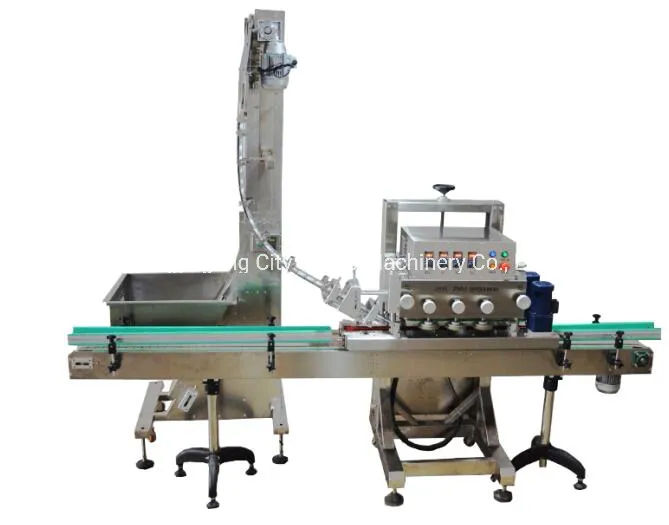

NP-LC Full automatic Linear Spindle capping machine
It is flexible, durable and works with most containers and caps including flat caps, sport caps, metal lids and many others. It's built on a heavy duty, tig welded, stainless steel frame with anodized aluminum plate construction to provide durability in almost any packaging environment. The modular design lets you start with just a cap tightener and easily add capabilities when you need them.
Features:
Rotary type
Features of oil filling machine:
Equipped with a bottle mouth localizer to make the oil filling machine suitable for different shapes of bottles including irregular bottles "No drip" filling nozzle can assure that dripping and stringing will not happen. This oil filling machine has functions of"no bottle no fill", "malfunction check and malfunction scan automatically", "security alarm system for abnormal liquid level".The parts are connected with clamps, which makes the oil filling machine easy and quick to disassemble & assemble and clean.The series of oil filling machine has compact, reasonable configuration and nice, simple appearance.
Technical Parameter of oil filling machine:
Finished product for edile oil filling machine

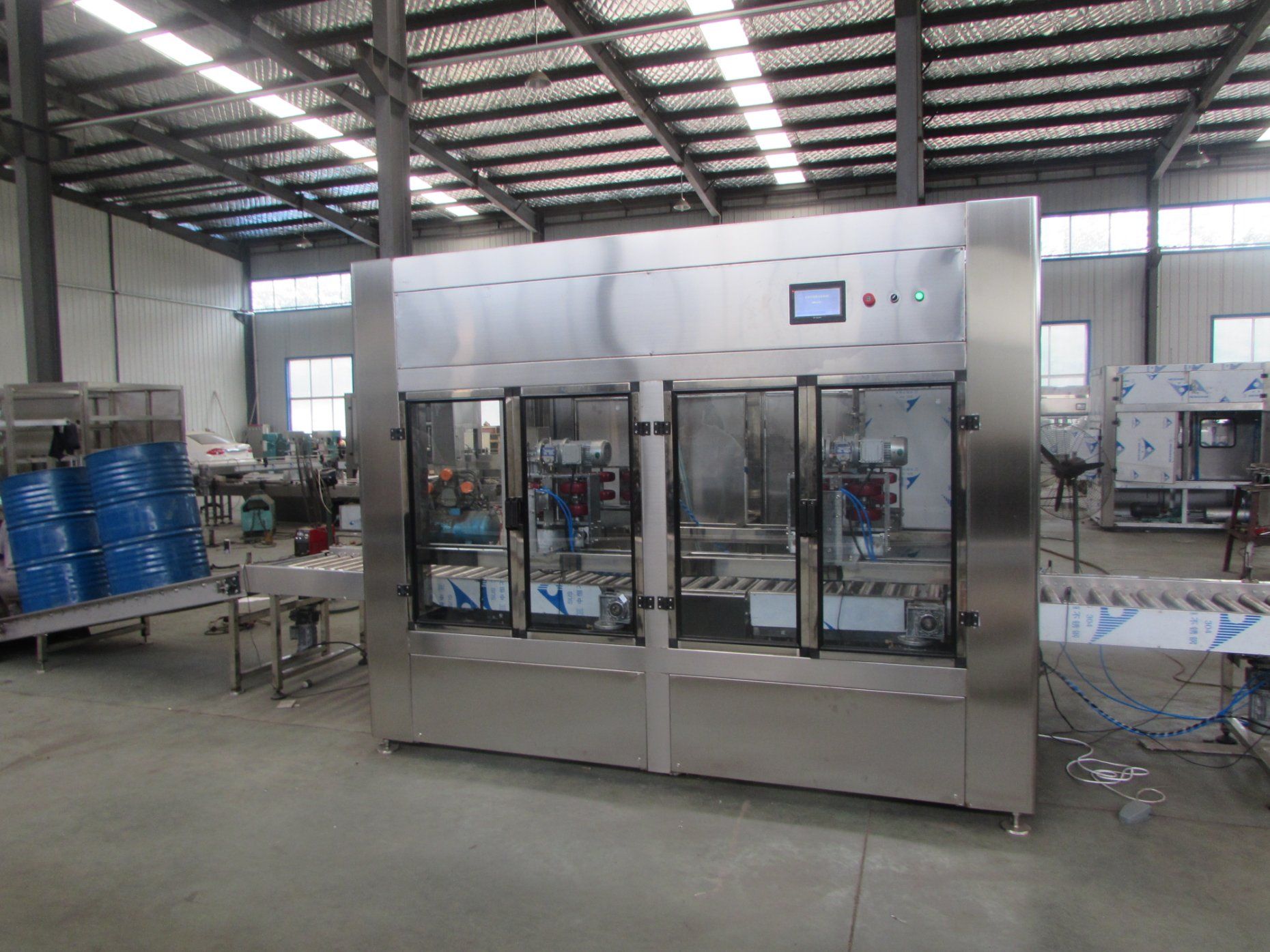

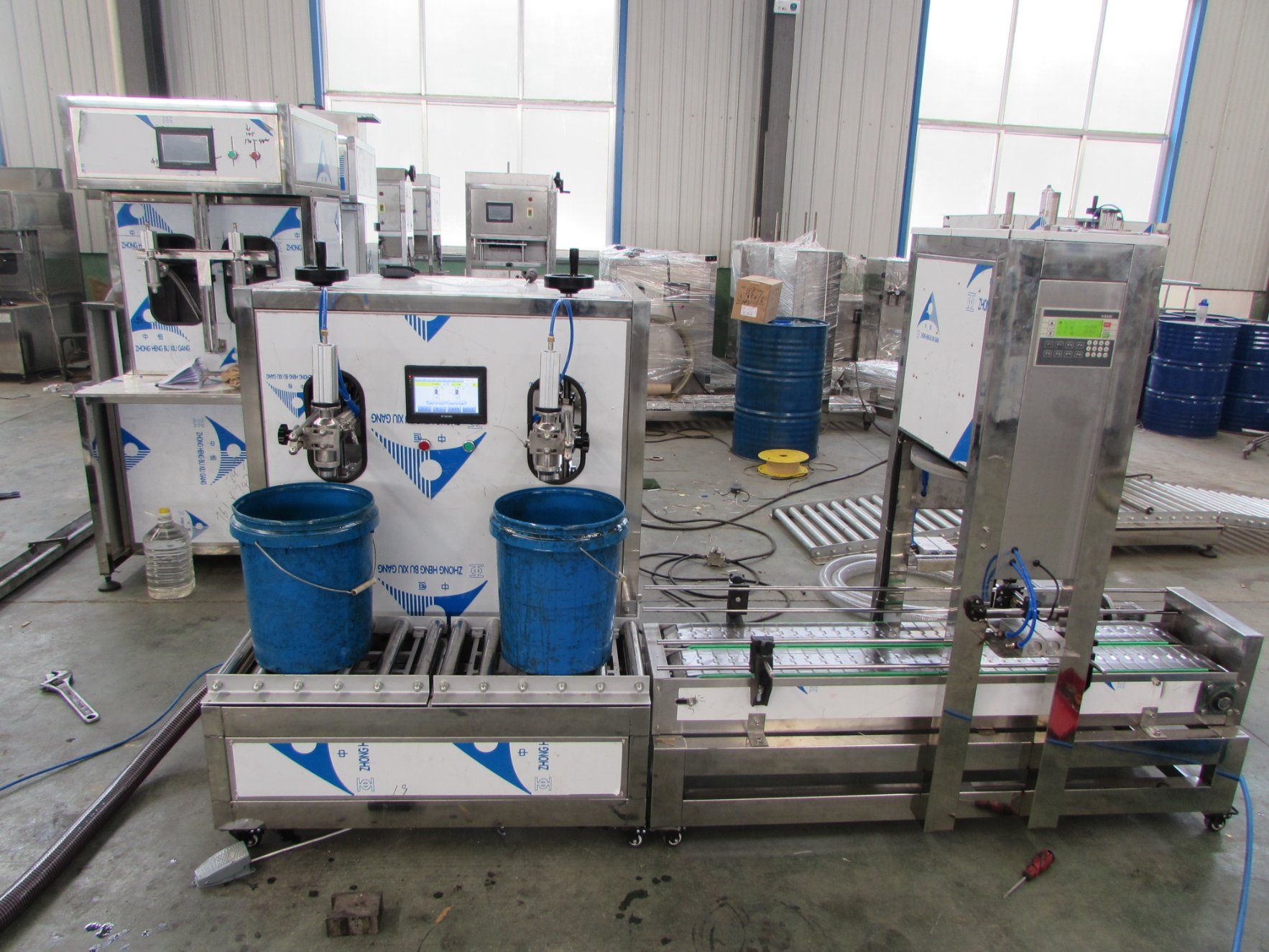

Factory photo:
Term and condition:
1. Payment
30% deposit against the contract by T/T should be paid before the order;
70% balance should be paid off by T/T after inspection before delivery;
2. Delivery time
60 days after received the down payment;
3. Training
Against the requests of the Buyer, the Seller's technician could train the Buyer's operators in the Buyer's factory in the periods of installing & adjusting;
4. Installation and adjustment
The Buyer should make a reservation in advance before delivery of the machines;
The Buyer should pay for the engineer's visa application cost, round air tickets, food & board before his departure; And pay USD 80/day to engineer.
5. Guarantee
one year
Competitive Advantages
Well and High Quality Control ,
Prompt Delivery ,long term testing before delivery
improve new technology all time
Customer's Design and Logo are Welcome ,
Competitive Prices ,
Earth-friendly Products ,
In a Variety of Design ,
Small Order Acceptable ,
ODM Accepted ,
OEM Accepted .
High quality: international brand electricity and good material
Our machines are using world famous brand component.
MITSUBISH PLC variable-frequency governor and OMRON optical switch form Japan.
SCHNEIDER electrical appliance components from France and Germany.
LG air switch,contactor and circuit breaker from South Korea.
SEMIKRON control thyristors from Germany.
BOURNS potentiometer from America.
Professional After Sale Service
Our engineer will be on site to guide installation and debugging , we also provide free staff training. Further more,Our After Sale service department offering 24 hours 7days service ,we will quickly respond you once you have any question when using our machines.
Long history of the Company
Our company is famous for its finest quality and enjoys a long-standing reputation at home and abroad. Having a long history of more than two decades,great experience accumulated in such a long time making us on the top list of Chinese company.
For more:
phone:+8613739169728
Facebook:tangomachine
weighing scale filling line-separate type
- Item model W02F
- Overall size and quality 12000L×1560W×1910H 1900kg
- Air consumption quantity 0.7Mpa VN=1500L/min connect mouth diameter3/8″
- Water consumption quantity no
- drive single-phase,220V, amount:4.02KW
- enter barrel conveyor 0.75KW
- 6head weighing machine 0.65KW
- wide mouth cap loader conveyor 0.75KW
(5)small barrel conveyor 0.75KW
(6)small mouth auto cap un-scrambler 0.75KW
(7)small mouth barrel auto capping 0.5KW
(8)other 0.12KW
- Machine specification
Container supply department manually put barrels, automatic chain transport, fixed position to send barrels, a group of 4 barrels.
Weighing and filling position 4: the head is loaded and filled at the same time. In order to ensure the filling accuracy, filling can be done at fast and slow speed.
Material contact department is 304 material, using tetrafluoride material sealing pad, the liquid into the pump mode (liquid pump
Customer matching).
Third working position the Third working position automatically covers the upper part
Manually place the lid in a centralized way into the lid compartment (20-30 caps can be stacked at one time, which can expand the external storage cover).
The vacuum suction cup rotates to lift and remove the cover, and then slides along the slide path to the cover hanging station to wait for the cover hanging and the conveyor
Send the filled drum to the cover hanging station, hang the outer cover to the mouth of the drum, and send it to the next cover pressing station;
Cover with automatic cover alarm device.
The drum gland of the fourth working position will gradually press the outer cover placed at the barrel mouth into the barrel mouth through the combination of bevel plane drop of sticks, with adjustable height and speed.
Fifth working position The outer cover of the automatic lidding and screwing cover is uniformly sent out in a certain direction by the centrifugal force generated by the vibration plate, and slides to the cover taking station through the slide path.
Remove the cover driven by the cylinder and send the outer cover to the head of the screw cap. The conveyor will send the filled bucket to the screw cap station, and position it through the positioning device and wait for the screw cap.
Remove the cover and reset the cover after the screw cap goes down for the first time. Press the outer cover to the barrel mouth after the screw cap goes down for the second time. The screw cap motor turns the screw cap and reset after delay.
.
7. 1) the maximum filling speed depends on the nature of the liquid, the filling volume, the shape of the container, the capping conditions, etc
Change, please note.
2) the container
< 1 > containers should have good stacking, strength and toughness, no distortion.
< 2 > the outer cover should have good stacking type, strength and toughness, and the edge is linear without distortion.
< 3 > in order to ensure no impact on capping, the edge of the barrel mouth should be neat, no thin phenomenon.
source oil piston servo filling machine
Oil piston filling capping separate type
The NP-VF automatic piston filling machine is extremely flexible filler, is capable of filling accurately and rapidly any viscosity or thick liquids, and also can filling thin liquid ,such as water.
Product delivery from your bulk tank to the pistons can be configured with a buffer tank utilizing a level-sensing float, a manifold with direct draw, or recirculation methods.
The NPACK automatic piston filling machine is manufactured with a 304 SS frame and is capable of supporting 1 to 20 fill nozzles. PLC Controls, touch screen, food grade contact parts, stainless steel and anodized aluminum construction, plus many more features come standard.
NPACK automatic piston filling machine are designed to add efficiency to any production line used in the cosmetic, food industry, specialty chemical, pharmaceutical, and personal care industries. Additional options are available for sanitary, hazardous, flammable and corrosive environments
Raw Material:
304 Stainless steel construction,
the liquid contact parts are 316L stainless steel
All contact parts can be Teflon, Vinton and hoses per your requirements.
Adapt world famous Components Brand such as Siemens, Schneider, and Panasonic
Advantage:
Linear type is adjustable for many different types of bottles
Easy to maintain, no special tools are required.
No bottle, no filling, automatic PLC control
blocked Filling nozzles are anti drops, silk, and auto cut viscous liquid
Accurate filling volume, within ±0.5-1% and a total bottle counter.
Special seals or hoses are adapted if the liquid are corrosive.
Diving nozzles for bottom up filling of foaming products if need
Bottle mouth can be located.
More functions for option:
Manifold and Tank Upgrades
Servo-driven Pistons, and filling Volume adjust by touch screen
Polycarbonate Safety Guarding
Special electrical requirements
Additional remote E-stops
Sanitary, hazardous, flammable and corrosive environment construction
Technical parameters
| Nozzles | 2 | 4 | 6 | 8 | 10 | 12 |
| Volume | 30ml-200ml 100ml-1000ml 250ml-2500ml 500ml-3000ml 1000ml-5000ml | |||||
| Capacity (bottle/hour) | 800-1000 | 1500-1800 | 1800-2500 | 2500-3000 | 3000-3600 | 3600-4200 |
| Air consumption (M3/min | 1.2 | 1.2 | 1.2 | 1.2 | 1.4 | 1.4 |
| Filling Precision | 0.5% | 0.5% | 0.5% | 0.5% | 0.5% | 0.5% |
| Power | 220V 50HZ/60HZ Single Phase , 380V 50HZ/60HZ Three Phase | |||||
From thin liquid to viscosity liquid
Detail information
- Diving Nozzles: The nozzles will dive into the bottom of the bottles
- Filling when nozzles rising: The nozzles will fill the bottles when the nozzles rising.
- Three steps filling: Different filling volume can be set individually for lower part, middle part and upper part.
Other Features
- 304 Stainless steel construction , and the liquid contact parts are 316L stainless steel
- Schneider PLC and touch screen control
- Servo motor Driven, one servo motor drive one piston, high speed and high accuracy.
- Accurate filling volume, within ±0.2 for 1000ML
- No bottle ,no fill, automatic warning on errors
- The filling blocked nozzles are anti drops, silk, and auto cut viscous liquid
- Easy to maintain, no special tools are required.
- Diving nozzles for bottom up filling of foaming products if need
- Bottle mouth can be located if need
| No. | Pneumatic drive | Servo motor driven |
| 1 | Use pneumatic air cylinder to drive the piston | Use the servo motor to drive the piston |
| 2 | Adjust the filling volume by hand rotary a general screw | Adjust the filling volume automatically, only need to put the filling volume into the touch screen |
| 3 | Accuracy +1% for 1000ML | Accuracy+0.2% for 1000ML |
| Servo motor Filling machine | ||||
| No. | Name | Brand | Model | Original |
| 1 | Servo motor | Schneider | BCH1303N12A1C 1.5KW | France |
| 2 | Reducer | After | ATF1205-15 | China |
| 3 | Conveyor belt motor | ZhenYu | YZ2-8024 | China |
| 4 | Servo drivers | Schneider | LXM 23DU15M3X | France |
| 5 | PLC | Schneider | TM218LDALCODR4PHN | France |
| 6 | Touch screen | Schneider | HMZGXU3500 | France |
| 7 | Frequency converter | Schneider | ATV12H075M2 | France |
| 8 | Checking bottle sensor | OPTEX | BRF-N | Japan |
| 9 | pneumatic element | Air Tac | Taiwan | |
| 12 | low-voltage apparatus | Schneider | France | |
| 13 | proximity switch | ROKO | SC1204-N | Taiwan |
| 15 | lead screw | TBI | Taiwan | |
It is flexible, durable and works with most containers and caps including flat caps, sport caps, metal lids and many others. It's built on a heavy duty, tig welded, stainless steel frame with anodized aluminum plate construction to provide durability in almost any packaging environment. The modular design lets you start with just a cap tightener and easily add capabilities when you need them.
Features:
- Power height adjustment
- Comprehensive universal cap chute and escapement
- Hand-wheel operated
- Gripper Belt height and width adjustment
- Variable speed AC motors 4, 6 or 8
- Spindle Wheels Spindle Wheel adjustment knobs, with lock nut hand wheel
- No change parts required for a wide range of containers
- Sanitary 304 stainless steel drive shafts and adjustment support shafts
- Timing belt power transmission for Spindle Wheels
- Bottom screw changeover on Spindle Wheels
- 1/2" aluminum mounting plates and 1/2" hard coat anodized supports on Cap Feed Chute
- Designed for easy integration with most conveyor configurations (sold separately )
- Intrinsically Safe
- Removable dual gripper belts
- Trigger spray cap rails
- Special electrical requirements
| Name/Model | NP-LC RJ-LC Automatic linear spindle capping machine | |
| Capacity | 0-200/(,) 0-200b/min (Subject to bottle and cap) | |
| Cap Diameter | Φ20-120mm | |
| Bottle Height | 40-460mm | |
| Demensions | 1060*896*1620mm | |
| /Voltage | AC220V 50/60Hz | |
| /Power | 1600W | |
| /weight | 500KG | |
| Cap Feeding System | Elevator Feeder | Vibrator Feeding |
Rotary type
Features of oil filling machine:
Equipped with a bottle mouth localizer to make the oil filling machine suitable for different shapes of bottles including irregular bottles "No drip" filling nozzle can assure that dripping and stringing will not happen. This oil filling machine has functions of"no bottle no fill", "malfunction check and malfunction scan automatically", "security alarm system for abnormal liquid level".The parts are connected with clamps, which makes the oil filling machine easy and quick to disassemble & assemble and clean.The series of oil filling machine has compact, reasonable configuration and nice, simple appearance.
Technical Parameter of oil filling machine:
| Filling Type | Model | Capacity(BPH) | Bottle Size | Power |
| Gravity Type Filling Machine | -12-5F | 3000 | Round &Square PET bottle,0.3-2.5L bottle,30mm bottle neck | 1.5 |
| -16-5F | 5000 | 2.2 | ||
| 24-8F | 7500 | 3 | ||
| 32-8F | 10000 | 3 | ||
| 12-5F | 1000 | Round &Square,3-6L bottle | 1.5 | |
| 20-5F | 1500 | 2.2 | ||
| 32-6F | 2500 | 3 | ||
| Weight Type Filling Machine | 12-5C | 3,500 | Round &Square PET bottle, .3-2.5L bottle,30mm bottle beck | 1.5 |
| 16-5C | 5,500 | 2.2 | ||
| -24-8C | 8,000 | 3 | ||
| 32-8C | 11,000 | 3 | ||
| 12-5C | 1,200 | Round &Square, PET bottle, 3-6L bottle | 1.5 | |
| 20-5C | 1,800 | 2.2 | ||
| 32-6C | 2,800 | 3 | ||
| Plunger Type Filling Machine | 12-5Z | 4100 | Round&Square PET bottle, 0.3-1L bottle | 1.5 |
| 16-5Z | 5500 | 2.2 | ||
| 24-8Z | 8250 | 3 | ||
| 32-8Z | 11000 | 3 |
Finished product for edile oil filling machine
Factory photo:
Term and condition:
1. Payment
30% deposit against the contract by T/T should be paid before the order;
70% balance should be paid off by T/T after inspection before delivery;
2. Delivery time
60 days after received the down payment;
3. Training
Against the requests of the Buyer, the Seller's technician could train the Buyer's operators in the Buyer's factory in the periods of installing & adjusting;
4. Installation and adjustment
The Buyer should make a reservation in advance before delivery of the machines;
The Buyer should pay for the engineer's visa application cost, round air tickets, food & board before his departure; And pay USD 80/day to engineer.
5. Guarantee
one year
Competitive Advantages
Well and High Quality Control ,
Prompt Delivery ,long term testing before delivery
improve new technology all time
Customer's Design and Logo are Welcome ,
Competitive Prices ,
Earth-friendly Products ,
In a Variety of Design ,
Small Order Acceptable ,
ODM Accepted ,
OEM Accepted .
High quality: international brand electricity and good material
Our machines are using world famous brand component.
MITSUBISH PLC variable-frequency governor and OMRON optical switch form Japan.
SCHNEIDER electrical appliance components from France and Germany.
LG air switch,contactor and circuit breaker from South Korea.
SEMIKRON control thyristors from Germany.
BOURNS potentiometer from America.
Professional After Sale Service
Our engineer will be on site to guide installation and debugging , we also provide free staff training. Further more,Our After Sale service department offering 24 hours 7days service ,we will quickly respond you once you have any question when using our machines.
Long history of the Company
Our company is famous for its finest quality and enjoys a long-standing reputation at home and abroad. Having a long history of more than two decades,great experience accumulated in such a long time making us on the top list of Chinese company.
For more:
phone:+8613739169728
Facebook:tangomachine
Related Category
Send Inquiry
Please Feel free to give your inquiry in the form below. We will reply you in 24 hours.
