Automatic Bottling Machine 10ml 30ml 50ml 100ml Glass Dropper Essential Oil Fine Mist Spray Bottle Filling Machine
Part I : Turn TableBottle Inlet Machine ZH-1 1. This machine applies to foodstuff, pharmacy, cosmetic, chemical and pesticide industries.2. Suitable diameter of bottles: 40mm~100mm3. It utilizes stepless speed regulation technology.Major CharacteristicsThe template of this machine adopts stepless sp......
Send Inquiry
Product Description

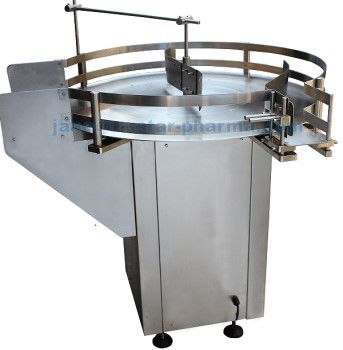

Part I : Turn Table
Bottle Inlet Machine ZH-1
1. This machine applies to foodstuff, pharmacy, cosmetic, chemical and pesticide industries.
2. Suitable diameter of bottles: Ф40mm~Ф100mm
3. It utilizes stepless speed regulation technology.
Major Characteristics
The template of this machine adopts stepless speed adjust foe slew, make all the bottles enter into conveyer belt in order under the rotary tangential force, less labor, boost production efficiency.
This machine can be used after electrified. Easing operating, it can be widely used for glass bottles, plastic bottles and polyester bottles for pharmaceutical, agrochemical, food, chemical etc. it is a good choice for small, medium, large factory.
Main Performance Parameter:
1.Machine dimension (L×W×H) : 1700mm×1300mm×1350mm
2.Weight of machine : 300kg
3.Suitable diameter of bottles : Ф40mm~Ф100mm
4.Diameter of turntable : Ф600-1000mm
5.Power supply : AC 220V; 50Hz
6.Power : 1.5kw
7.Production capacity : 60~120bottles/minute

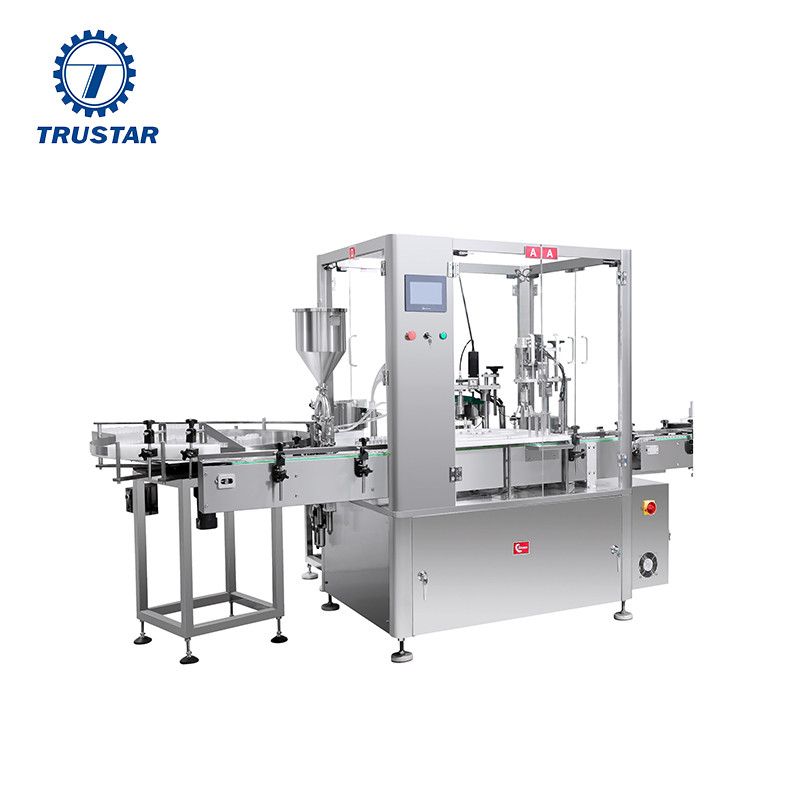

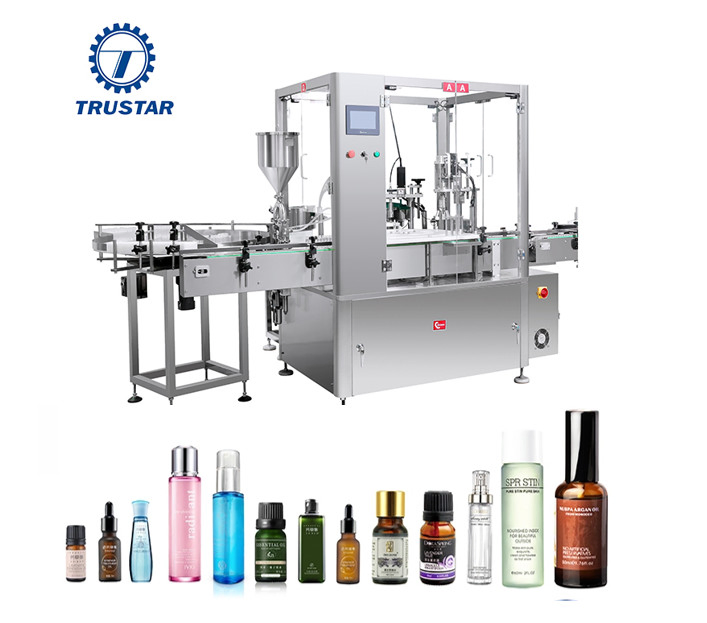

Part II: ZHS-50 Spray Filling and Capping Machine
Equipment Introduction:
This fully automatic liquid filling and capping machine is my company's adaptation to market demand. It is mainly used for glass and plastic bottles such as round, square or shaped bottles, and introduces new products developed by foreign advanced technology. The machine adopts plunger type metering pump or peristaltic pump to perform filling, and is set with automatic upper cover, automatic screw cap, machine electrical integration, economical and practical, small footprint, widely used in pharmaceutical, pesticide, chemical, food, cosmetics Liquid packaging for other industries.
PLC control system, frequency control, high degree of automation. It is easy to adjust the loading capacity, and can adjust the filling amount of all metering pumps at one time, and can also make slight adjustments for each metering pump; the operation is simple and the adjustment is rapid. Filling needles are designed with anti-drip devices. When filled, they are submerged into the bottom of the bottle and slowly risen to prevent foaming. The whole machine is designed according to GMP requirements.
Operation principle:
The equipment is divided into bottle transport, automatic filling, automatic management nozzle cover, swing arm cover, servo screw cap and other operations.
1. Into the bottle: The bottles to be filled are placed manually into the conveyor belt.
2. Detection: The photoelectric sensor detects whether there is an empty bottle on the main turntable. The detection signal is sent to the control computer to control the bottle filling, no bottle filling.
3. Filling: If a bottle is detected in front, the PLC controls the filling nozzle to rise into the bottle for quantitative filling.
4. Sprinkler cover: detect whether there is a bottle, swing arm type cover pre-rotation cover.
5. Screw cap: The servo motor controls the torque and speed to ensure that the cover is tight and the tightness is consistent
6. Out of the bottle: Finally, the bottle that has been screwed is out of the conveyor belt.
Technical Parameters:
Filling capacity: 10-100ml
Production capacity: 30-50 bottles/minute
Filling accuracy: ≥99%
Finished cap yield: ≥99%
Equipment power: 220V / 50Hz
Equipment power: 1.5KW
Equipment size: 2000*1500*1900mm

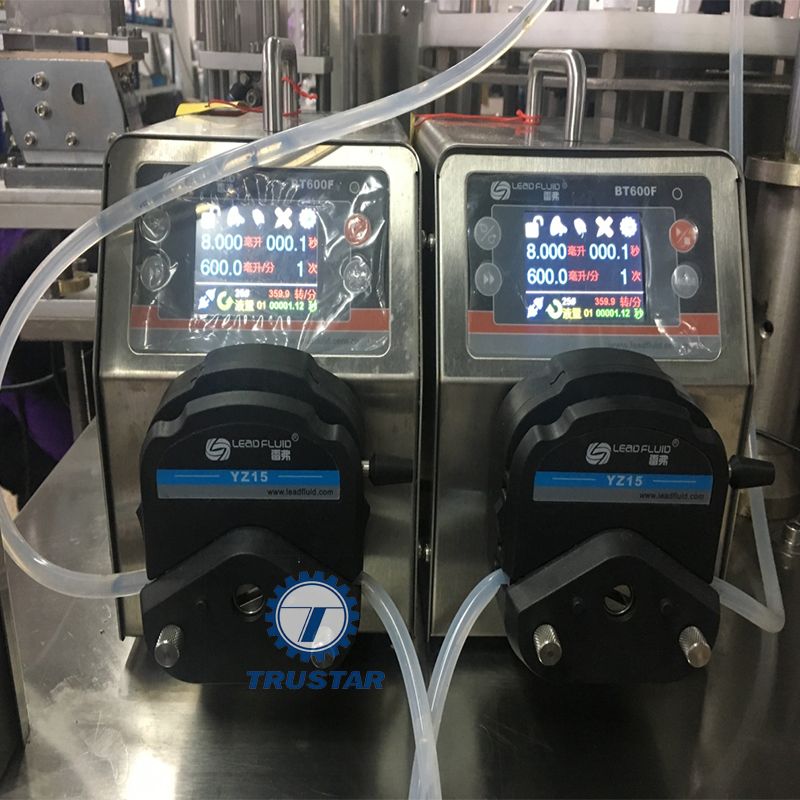

Filling Pump

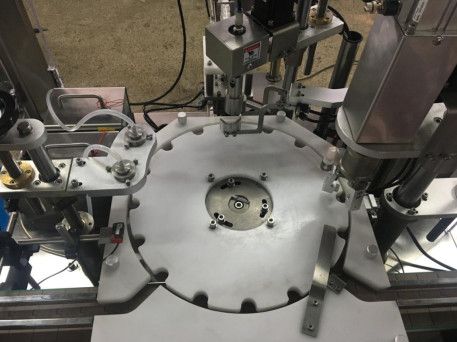

working plate

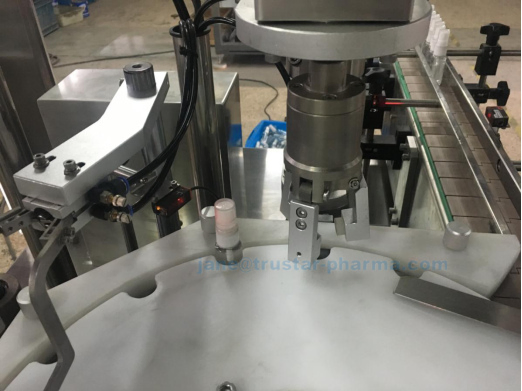

Capping

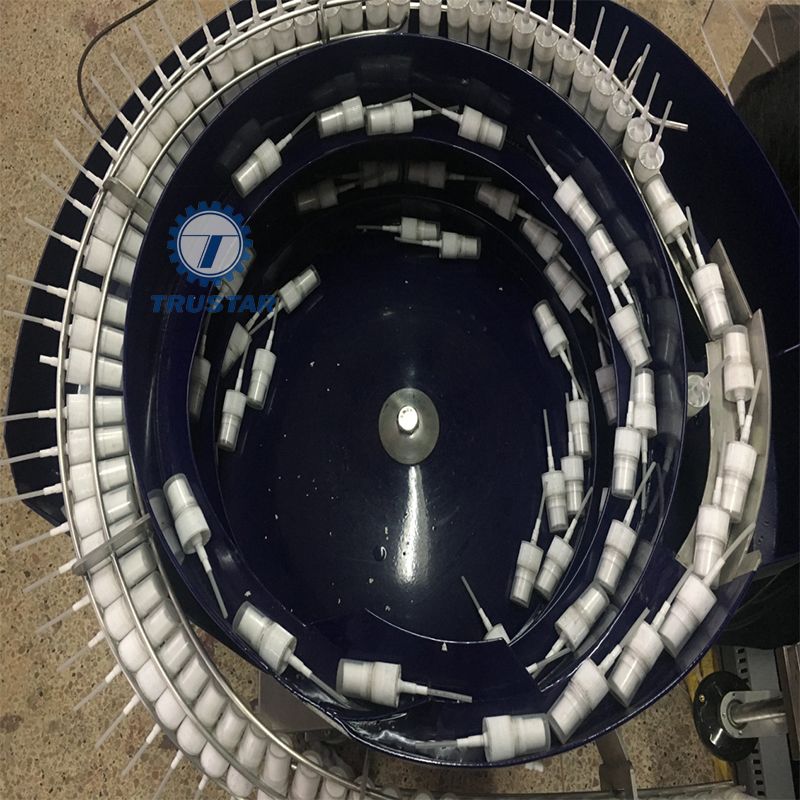

Spray cap supply hopper
About us
1.Our company
Trustar Pharma & Packing Equipment Co., Ltd Culture
Work style:Solid credibility, authority and reliable;
Enterprises purpose:Integrity services to customers, a service win customers;
Teamwork:Win-win team the importance of care and mutual benefit, work with
Progressive;
Market concept:The interests of users is always what Trustar pursuit;
Dealers coexistence with the principles:Mutual benefit and common development;

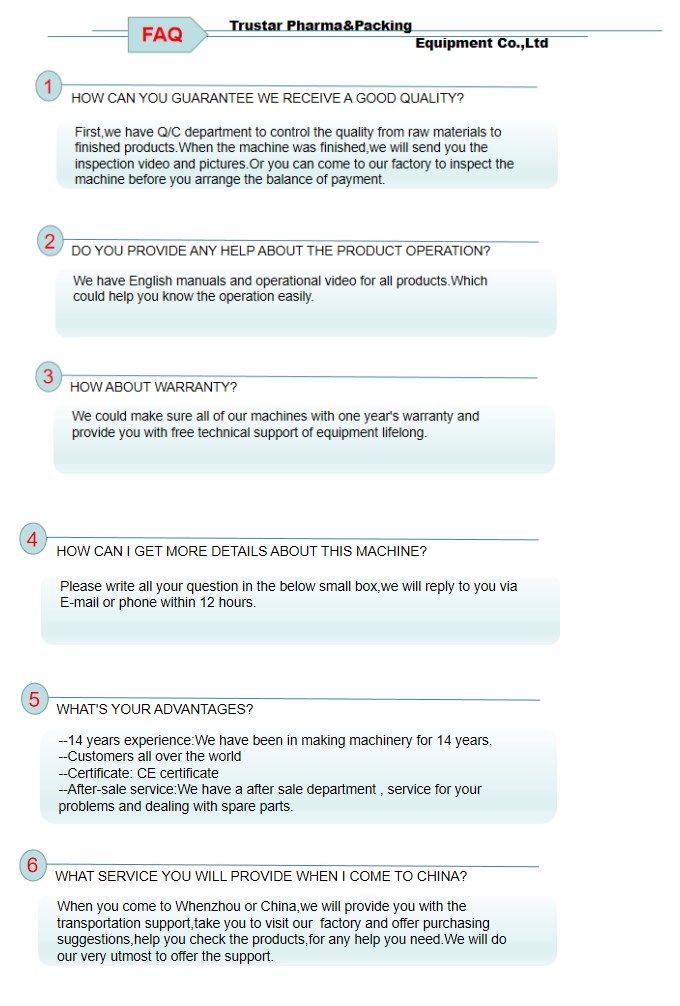

2.Frequently Asked Questions (FAQS)
