Product Description

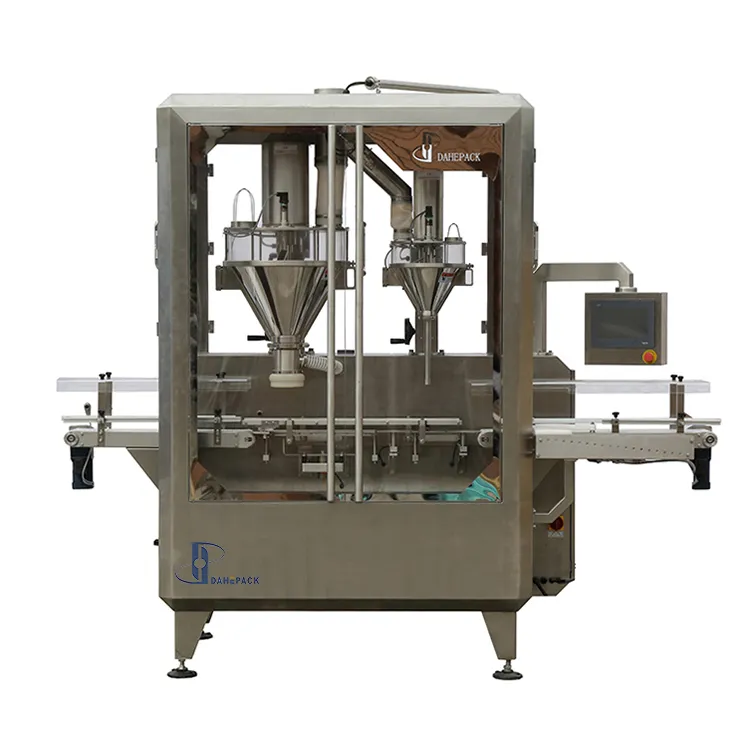

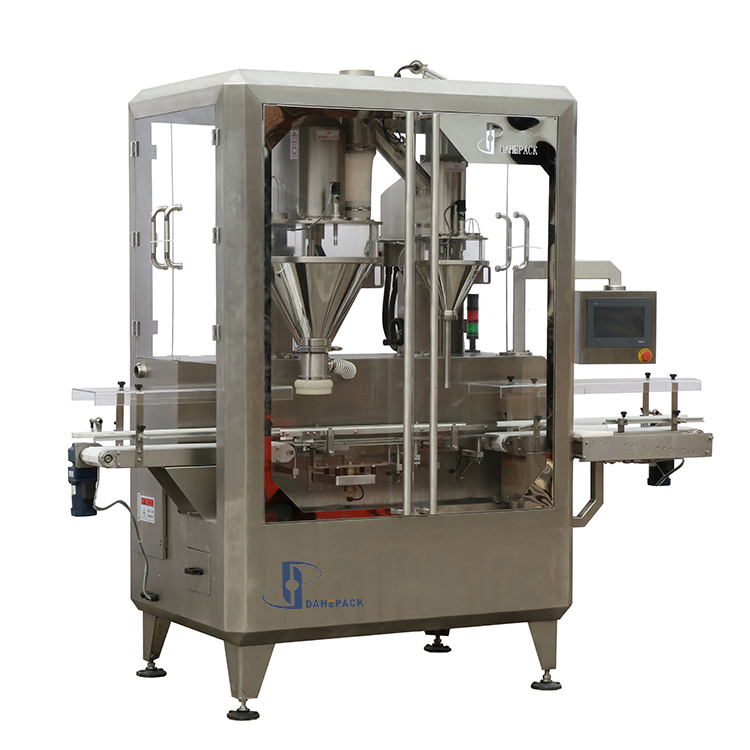

502# Can Milk Powder Automatic Powder Filling Machine

502# Can Milk Powder Automatic Powder Filling Machine

Introduction
The 502# Can Milk Powder Automatic Powder Filling Machine is capable of dispensing powder into round-shaped rigid container at line speeds up to 500 bpm, Multi-stages filling integrated with check weighing and reject system which provides precise weight control to save expensive product give-away and featured with high output and high accuracy. It is widely used in milk powder production line with good outcome and stable performance.

Specification

Model	DCS-2B-520
Dosing mode	Double lines dual filler filling with online weighing
Filling Weight	100 - 2000g
Container Size	Φ60-135mm; H60-260mm
Filling Accuracy	100-500g, ≤±1g; ≥500g,≤±2g
Filling Speed	Above 100 cans/min(#502),Above 120 cans/min(#300 ~ #401)
Power Supply	3P AC208-415V 50/60Hz
Total Power	5.1kw
Total Weight	650kg
Hopper Volume	85L(Main) 45L(Assist)

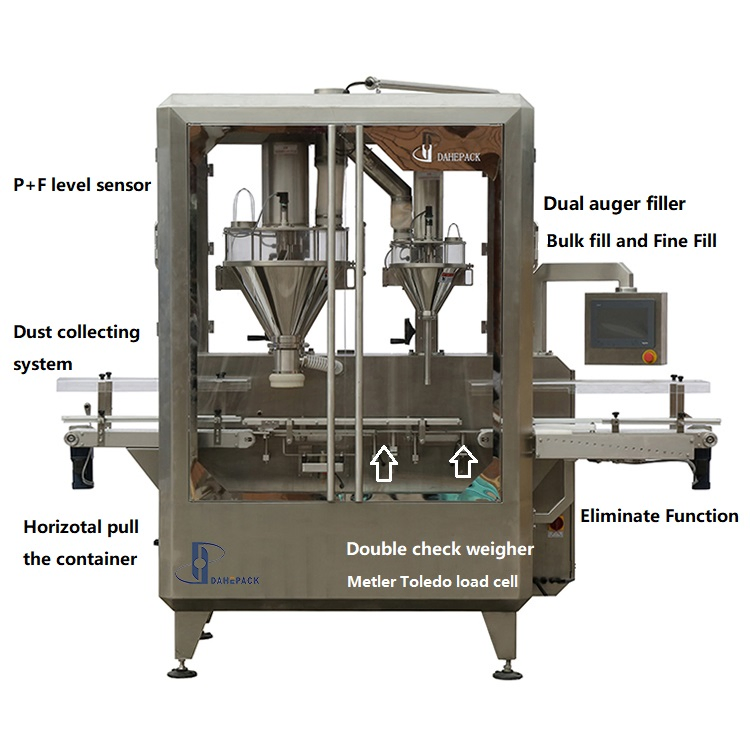

Main Features

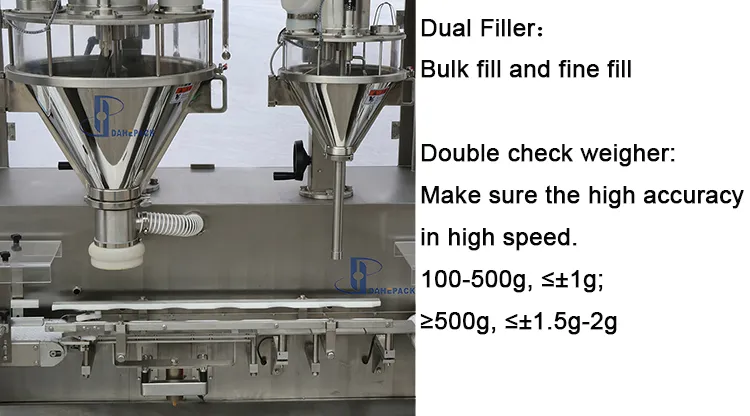

    1. Four-stages filling integrated with inline check weigher and reject system: High output, high accuracy.

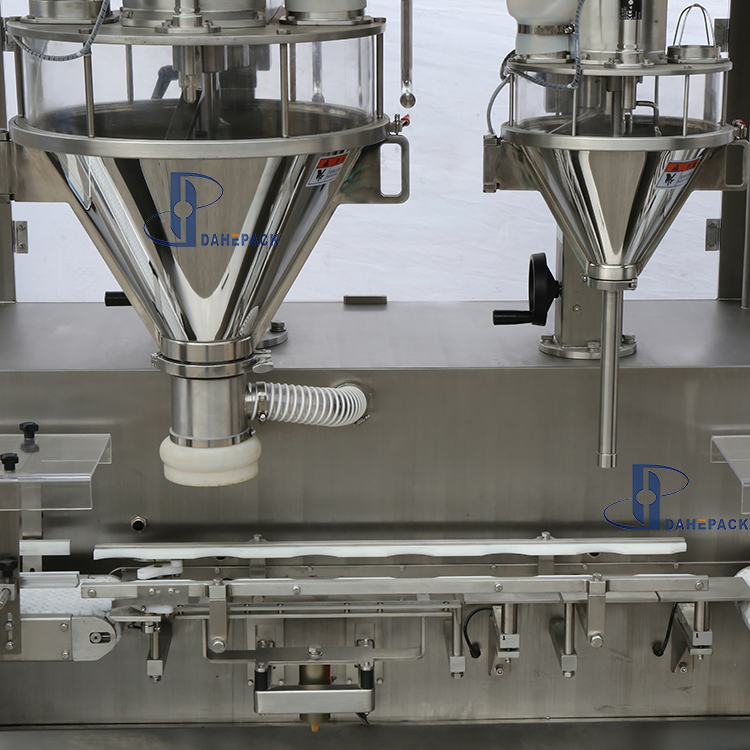

    2. All parts and assemblies coming in contact with powder are made of S.S.304 and easily removable for maintenance changeover.
    3. NO BOTTLE, NO FILL" System eliminates wastage of costly powder.
    4. Conveyor driving is through High quality Gear motor with stable performance.

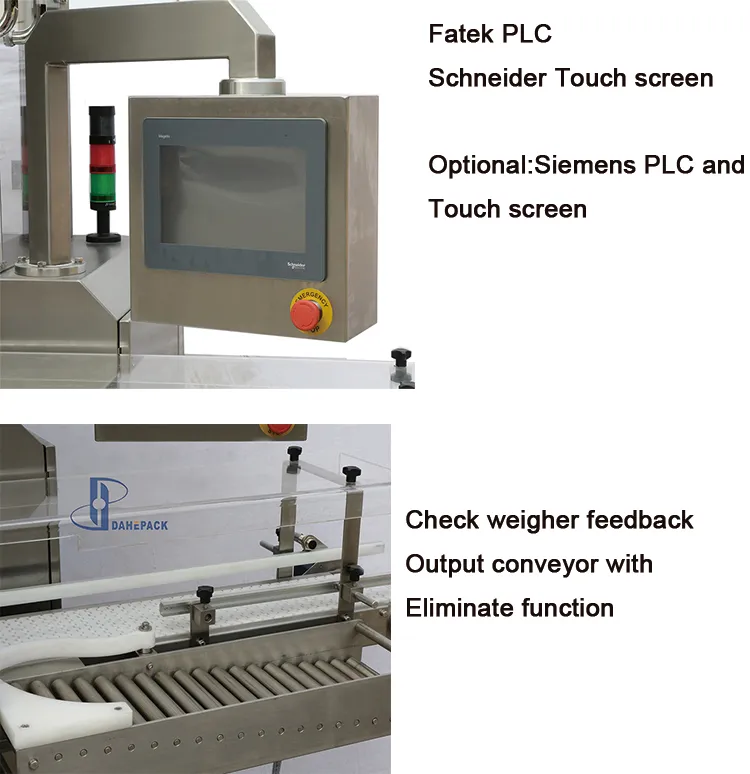

    5.Filling controlled by servo system with adjustable speed and high accuracy outcome.
    6. Pneumatic bottle indexing system is connected with auger rotation, which eliminates chances of bottle transfer before completion of filling operation.
    7. No change parts are required for any change in bottle diameter in certain set range.

Sample

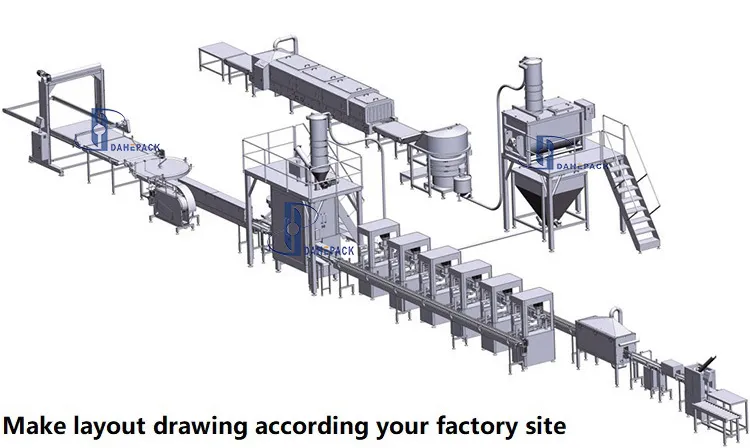

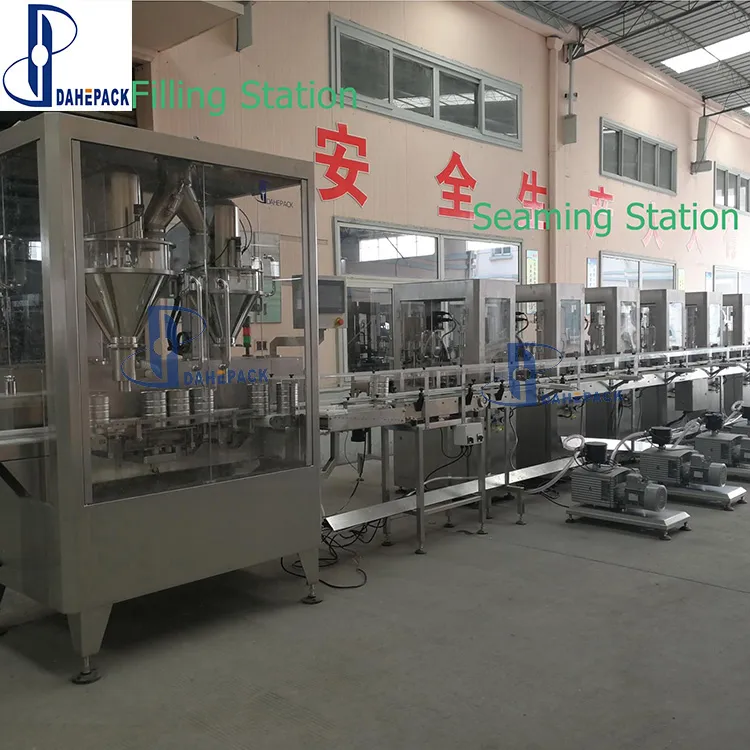

Packing line
502# Can Milk Powder Automatic Powder Filling Machine
