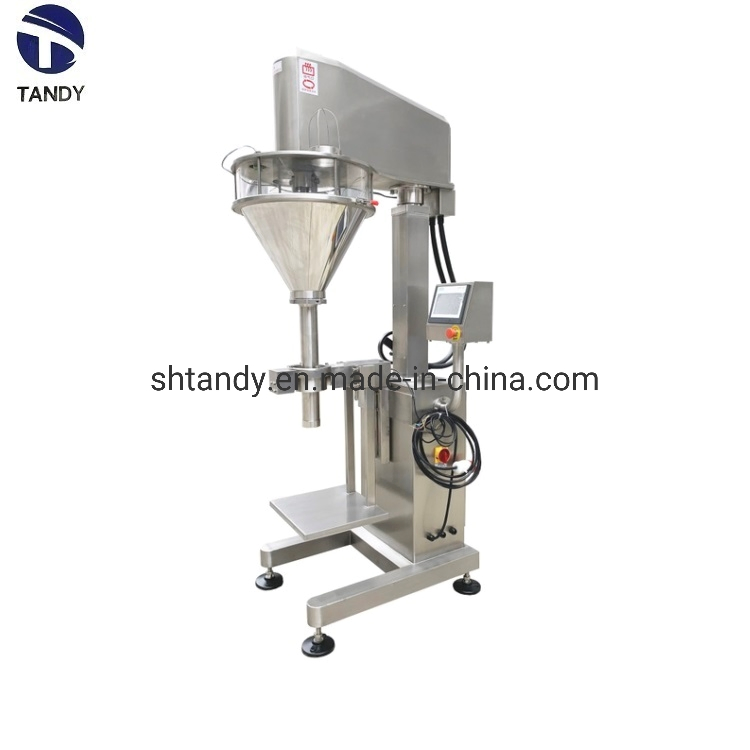

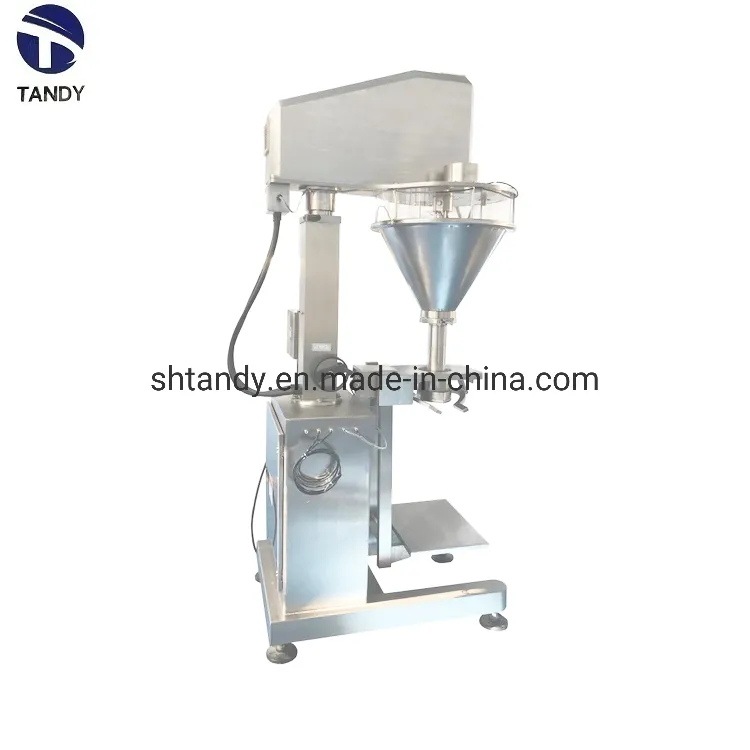

5000g Weighing and Powder Filling Machine for Granule
5000g Weighing and Powder Filling Machine for Granule Main Technical Data: ModelTDCS-1A-331TDCS-1B-331TDCS-1B-535Control systemPLC & Touch ScreenPLC & Touch ScreenPLC & Touch ScreenHopperQuick disconnecting hopper 25LQuick disconnecting hopper 50LSplit hopper 50LPacking Weight1 - 900g10 ......
Send Inquiry
Product Description
Model | TDCS-1A-331 | TDCS-1B-331 | TDCS-1B-535 |
Control system | PLC & Touch Screen | PLC & Touch Screen | PLC & Touch Screen |
Hopper | Quick disconnecting hopper 25L | Quick disconnecting hopper 50L | Split hopper 50L |
Packing Weight | 1 - 900g | 10 - 5000g | 10 - 5000g |
Packing Weight | ≤ 100g, ≤±1-2%; 100 - 900g, ≤±1-2g | ≤ 100g,≤±1-2%; 100 -1000g,≤±1-2g; ≥1000g,≤±0.1-0.2% | ≤ 100g, ≤±1-2%;100-1000g, ≤±1-2g; ≥1000g, ≤±0.1-0.2% |
Filling speed | 8-15 times per min | 5-12 times per min | 5-12 times per min |
Power supply | 3P AC208-415V 50/60Hz | 3P AC208-415V 50/60Hz | 3P AC208-415V 50/60Hz |
Total Power | 0.93 Kw | 1.4Kw | 1.4Kw |
Total Weight | 130kg | 260kg | 280kg |
Overall Dimensions | 800×790×1900mm | 1140×970×2200mm | 1140×970×2200mm |
FAQ:
1. Manufacturer or trading company : Manufacturer
2. Location : Songjiang district , Shanghai
3. Selling markets: Europe, American, Australia, Asia, Africa
4. Customized: Available for customized designs
5. Delivery time: 15 - 30days
6. Warranty period: 1 year
Product Description:
This type can do dosing and filling work. Due to the special professional design, so it is suitable to the fluidic or low-fluidity materials, like condiment, cosmetic, coffee powder , solid drink, veterinary drugs, dextrose, pharmaceuticals, powder additive, talcum powder, agriculture pesticide, dyestuff, and so on.
Main Features:
1. Stainless steel structure; Quick disconnecting hopper could be washed easily without tools.
2. Servo motor drive screw.
3. PLC & touch screen make it be easy of operation.
4. Weight feedback and proportion track get rid of the shortage of variable packaged weight for various proportion of different material.
5. Save the parameter of different filling weight for different materials. To save 10 sets at most.
6. Replacing the auger parts, it is suitable for material from super thin powder to granule.

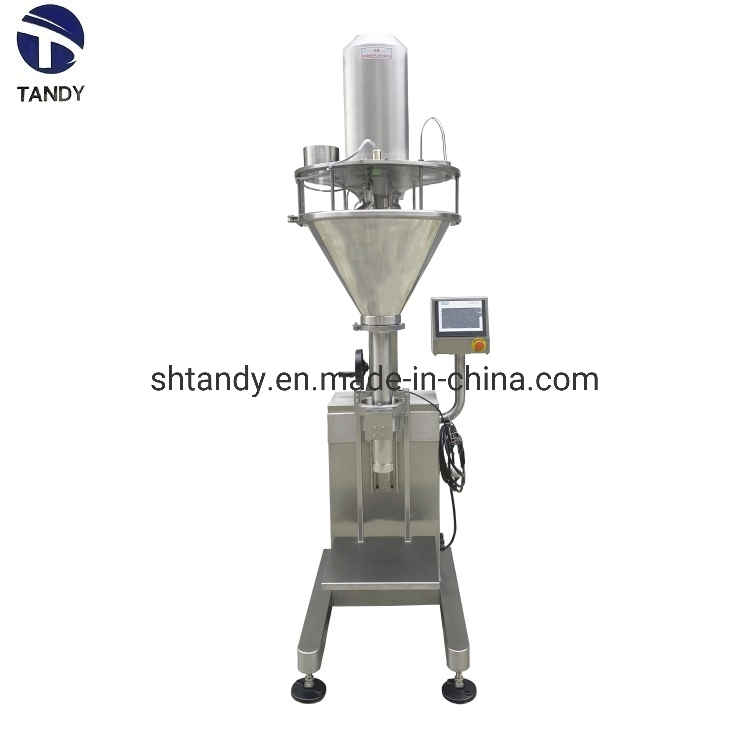

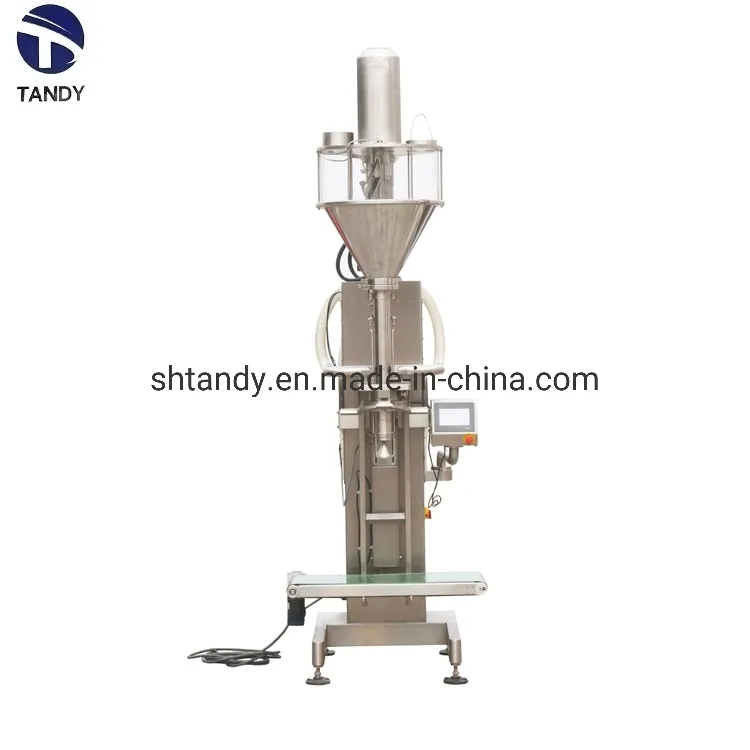

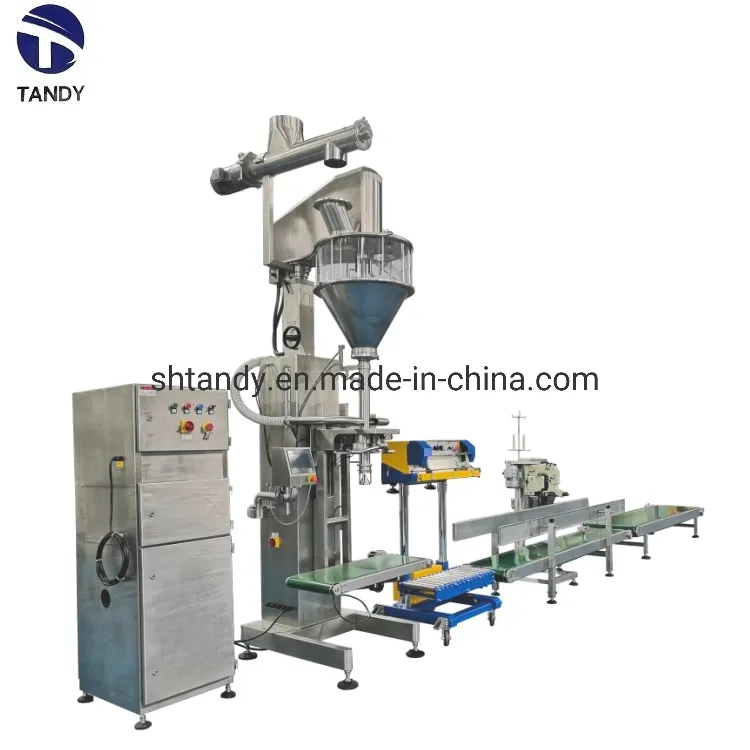

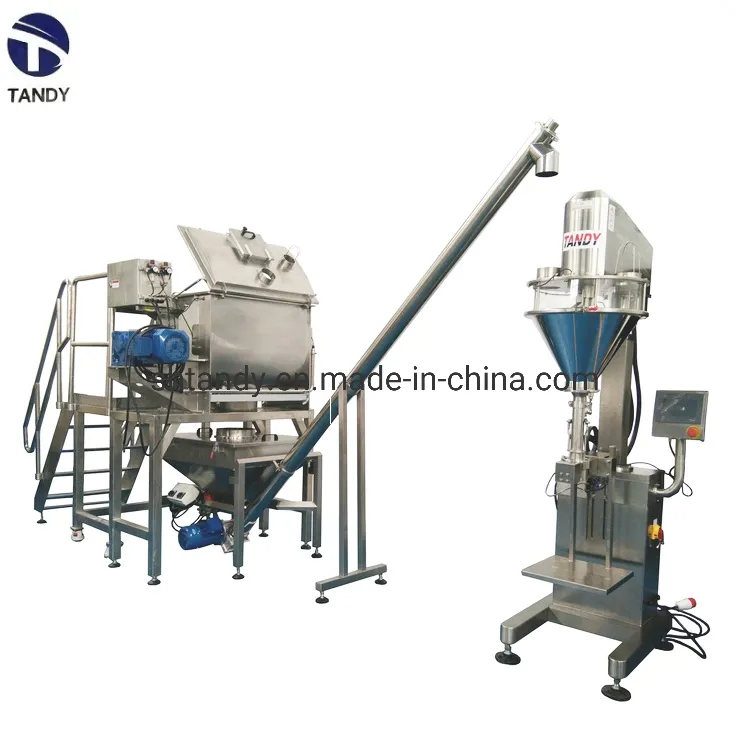

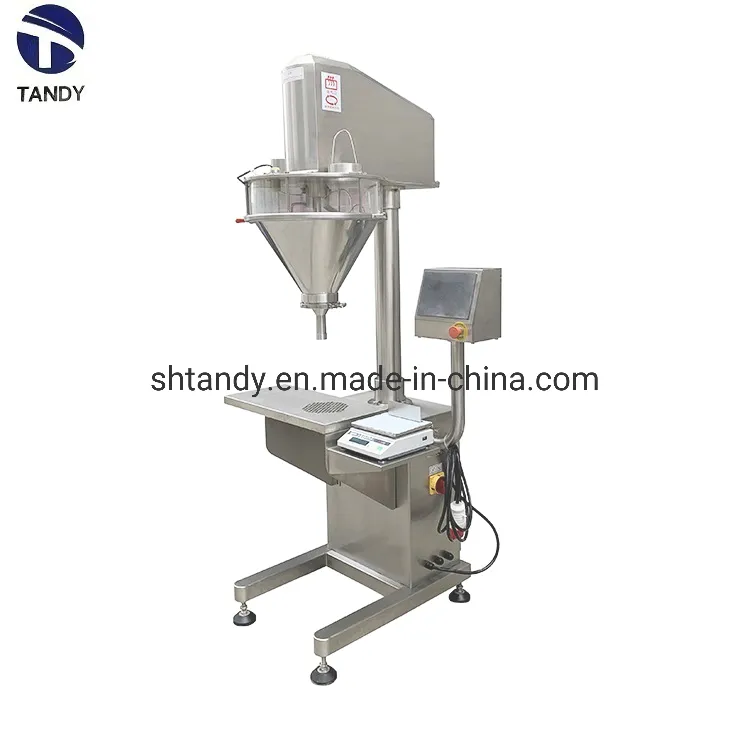

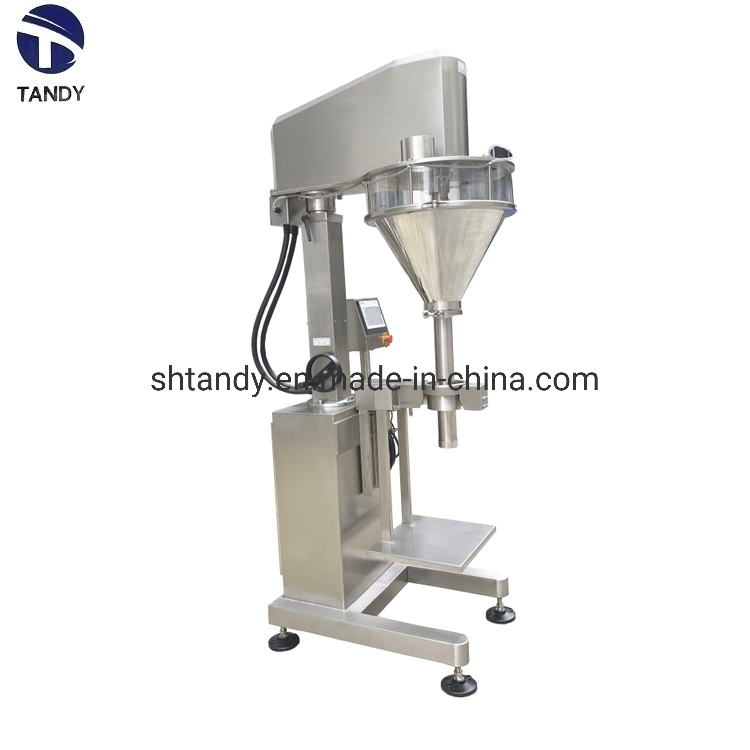

More Pictures Show:
