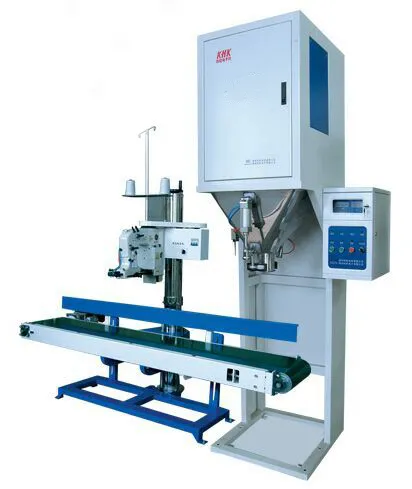

5-50kg Granule Weighting Packing Machine/Wheat Flour Packing and Sealing Machine
1.Model: LBL-50AWeighing capacity: 2 to 5 packs / minWeighing range: 10-50 kg/bagWeighing error: ±0.3%Control method: instrument controlPower supply: AC380VHost power: 1.5kwGas supply: oil-free, dust-free instrument gasPressure: 0.4---0.5MPaGas consumption: 0.4Nm3/min 2.Conveyor:Conveyor ......
Send Inquiry
Product Description
1.Model: LBL-50A
Weighing range: 10-50 kg/bag
Weighing error: ±0.3%
Control method: instrument control
Power supply: AC380V
Host power: 1.5kw
Gas supply: oil-free, dust-free instrument gas
Pressure: 0.4---0.5MPa
Gas consumption: 0.4Nm3/min
2.Conveyor:
Conveyor length: 3m
Conveying speed: 5-20m/min (adjustable)
Conveyor belt width: 400mm
Maximum conveying capacity: 15 bags / min
Power supply: AC380V
Power: 0.75kw
Conveyor length: 3m
Conveying speed: 5-20m/min (adjustable)
Conveyor belt width: 400mm
Maximum conveying capacity: 15 bags / min
Power supply: AC380V
Power: 0.75kw
3.sewing machine:
Sealing sewing machine model: YHGK3-18
Maximum sewing speed: 1700 stitches / min
Pitch length: 6.5-11mm
Maximum sewing thickness: 8 mm
Stitch form: double-line chain seam
Suture specification: 21S/5, 20S/3 polyester thread, 30S/cotton thread
Power source: AC380V
Power: 0.55kw
Model | LBL-1 | LBL-5 | LBL-25 | LBL-50 | LBL-100 |
Range | 0.2-1kg | 1-5kg | 2.5-25kg | 5-50kg | 10-100kg |
Packet error | 0.2%f.s | 0.2%f.s | 0.1%f.s | 0.1%f.s | 0.1%f.s |
Packing speed | 300-500Bag/h | 300-500Bag/h | 300-420Bag/h | >=300Bag/h | >=300Bag/h |
Dimension | 1725*620 | 1890*620 | 2500*620 | 2500*620 | 2834*700 |
Accuracy class | (III) (0.2) | ||||
