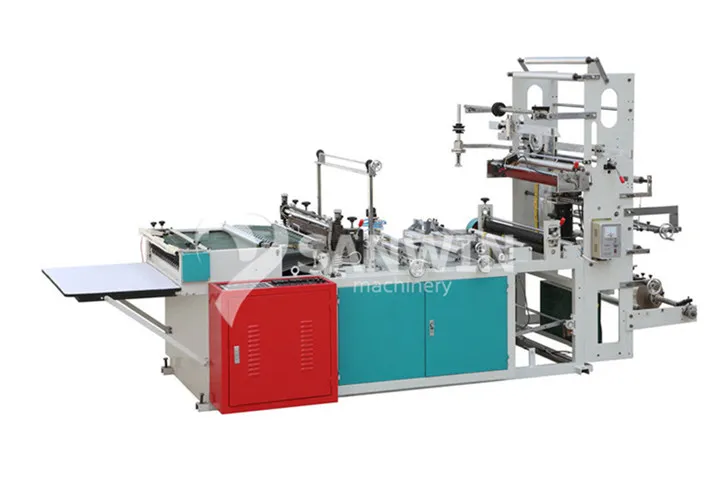

Ultrasonic Side Sealing OPP/ BOPP Bag Making Machine
Multi-function Heat-cutting Side Sealing Machine With Ultrasonic Application:This machine is suitable for heat cutting and side sealing printed or without printed plastic film (OPP, PP, PE), it is a kind of ideal equpent for making garment bag, towel bag, bread bag and comestic bag, etcMain Features......
Send Inquiry
Product Description
Application:

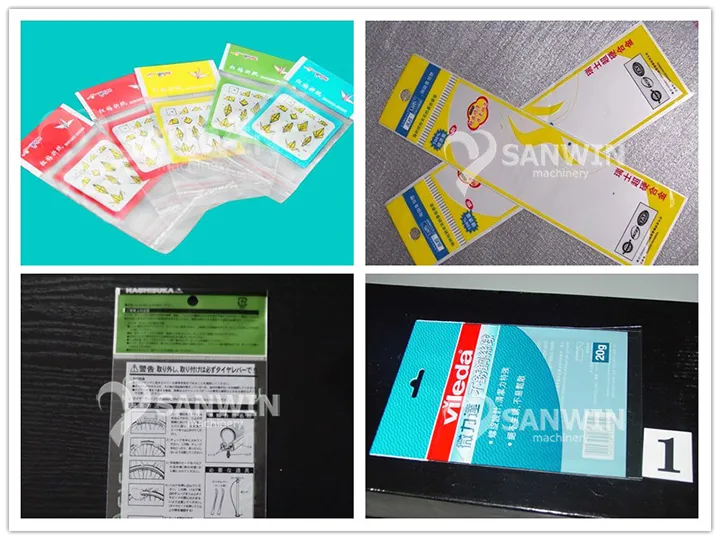

This machine is suitable for heat cutting and side sealing printed or without printed plastic film (OPP, PP, PE), it is a kind of ideal equpent for making garment bag, towel bag, bread bag and comestic bag, etc
Main Features :

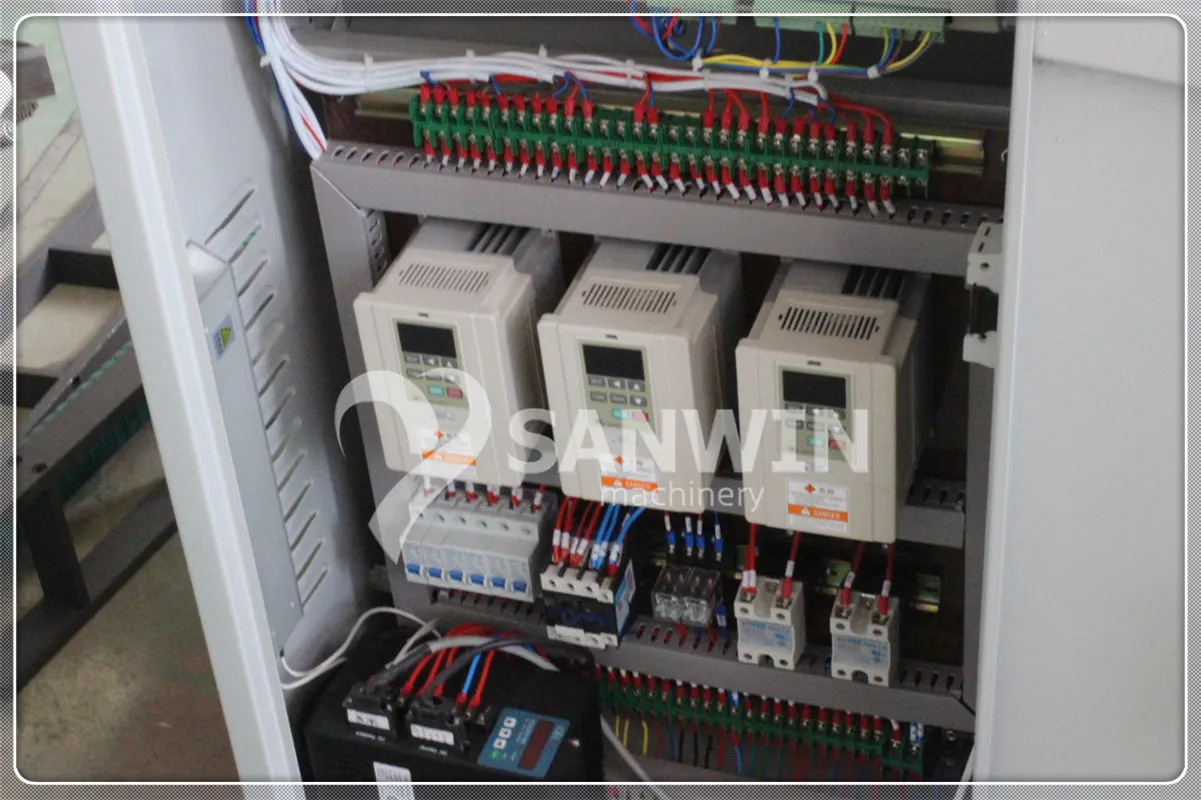

1) The whole machine adopts microcomputer control and material pulling by step motor (option: Servo motor control system)
2) With the functions: length positioning, photocell tracking, automatic stop when lose tracking mark.
3) Add double side adhesive tape in same process, automatic punching.
4) Heat dot sealing, automatic constant control temperature, with firm and smooth sealing.
5) Tube film edge cutting, bag top flap folding, botton insert, heat pressing.
6) Ultrasonic embossing and pearlized film inserting function
Model | DRQ500 | DRQ600 | DRQ700 | DRQ800 | DRQ1000 |
Bag length | 50~700mm | 50~700mm | 50~700mm | 50~700mm | 50~700mm |
Max width | 500mm | 600mm | 700mm | 800mm | 1000mm |
Speed | 60~200pcs/min depend on bag making size and material | ||||
Total power | 3.5kw | 4kw | 5kw | 5.5kw | 6kw |
Dimension | 3.7x1.2x1.5m | 3.7x1.3x1.5m | 3.7x1.4x1.5m | 3.7x1.5x1.8m | 3.7x1.7x1.8m |
Weight | 800kg | 850kg | 900kg | 950kg | 1000kg |

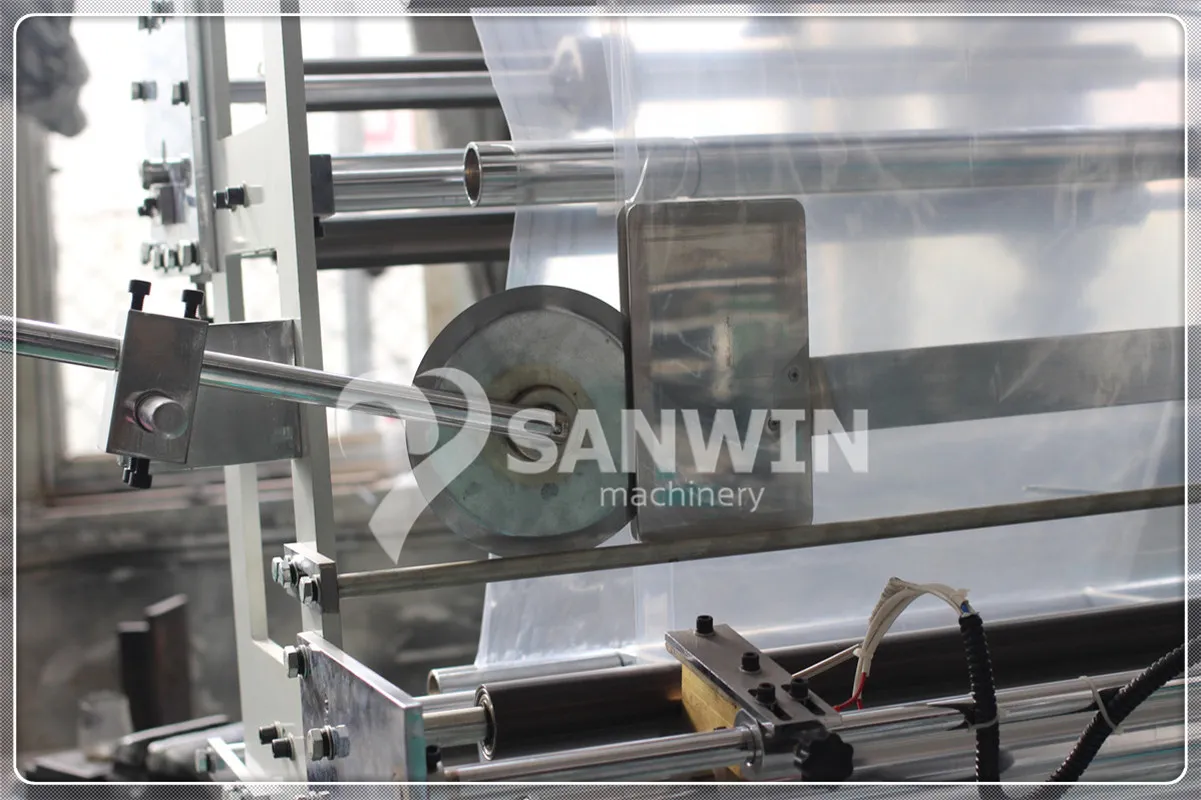

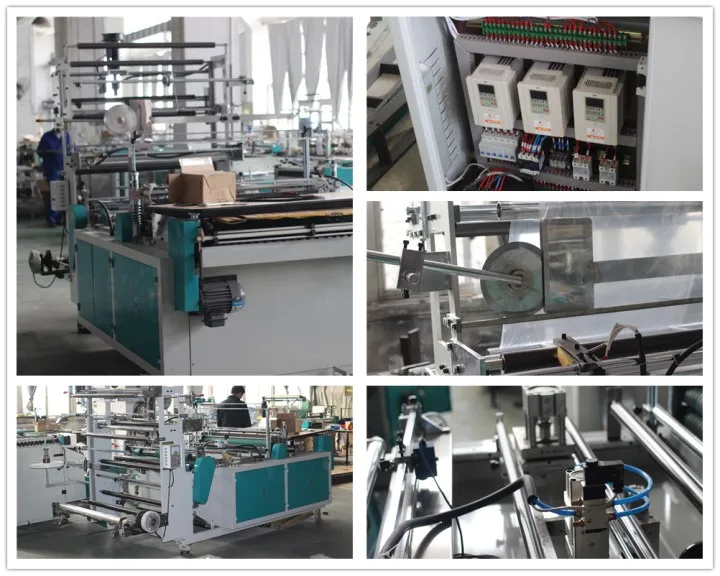

Machine Details:
Packaging and Shipping:

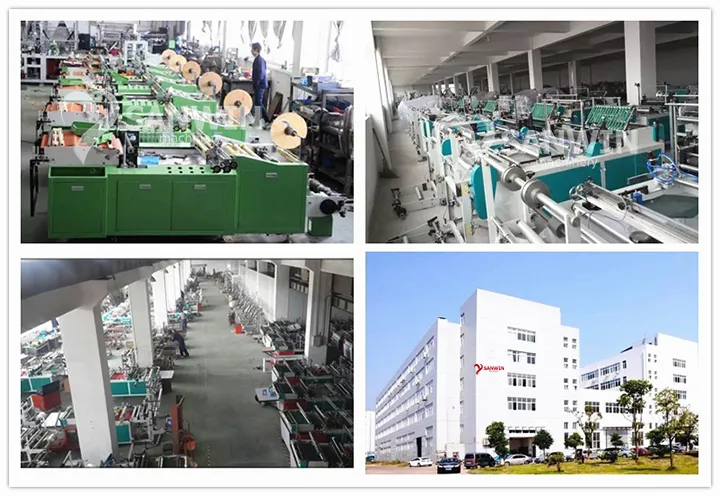

Our Workshop:
Our Customer:
FAQ:
1.Q:Are you machinery factory or trading company?
A:Yes,We are machinery factory,and we are professional manufacturer for 25 years
and focus on bag making machine,printing machine,film blowing machine,etc.
and we also have one trading company
A:Our factory is located in Ruian City,Zhejiang Province,China
From SHANGHAI City by flight is 40minutes,by train is 4hours.
From GUANGZHOU City by flight is 2hours.
3.Q:How many years guarantee?
A:In usually,we have given customer for one years guarantee.
4.Q:What is your delivery time?
A:About 30-40 days
5.Q:What`s the payment method?
A:We can accept T/T,L/C,Western Union,Moneygram, Etc.
6.What is your after-sale service ?
A:We will send our professional technician to install and test the machine.
1 Year Guarantee !
100% Good Quality !
24 Hours online Service!
if you have any query, pls tell me freely. We will try our best to satisfy with you !Contact us:
