Zxl-C700 Non Woven Box Bag Making Machine with High Speed
ZXL-C700 2016 Hot Sell Non woven Box Bag Making MachineProduct Introduction:This machine adopts mechanical,electrical,optical and pneumatic integration technology, suitable for non-woven fabric, different specs of flat bag,D-cut bag,bottom/side gusset bag, vest bag and drawstring bags etc(used for s......
Send Inquiry
Product Description

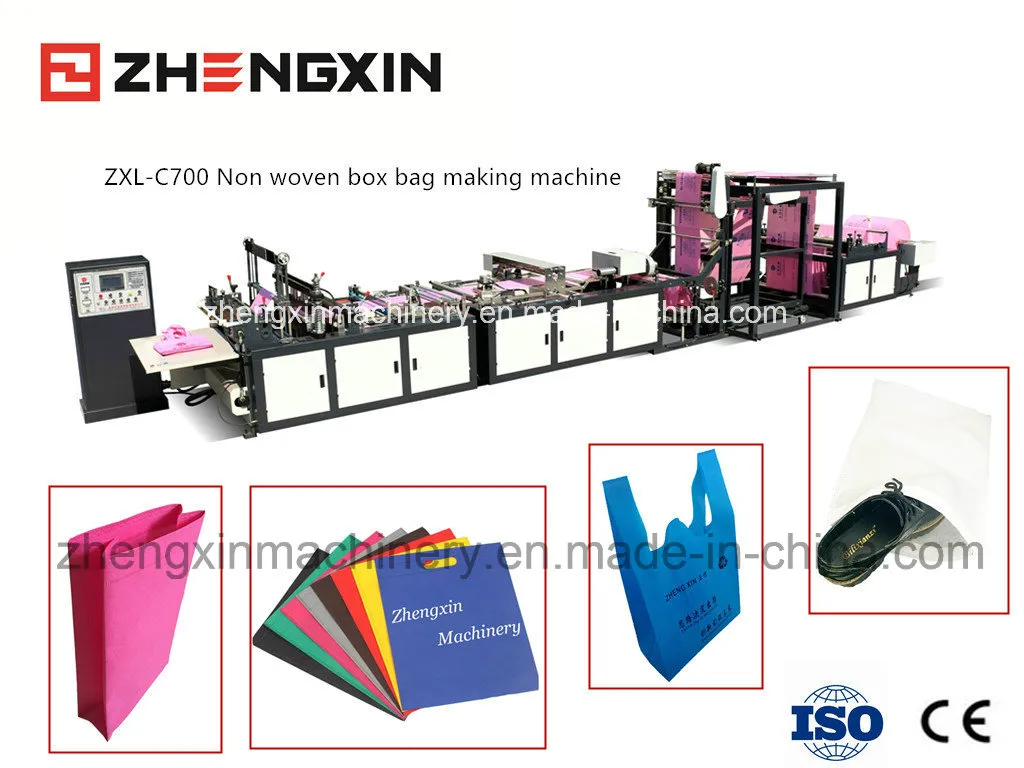

ZXL-C700 2016 Hot Sell Non woven Box Bag Making Machine
Product Introduction:
This machine adopts mechanical,electrical,optical and pneumatic integration technology, suitable for non-woven fabric, different specs of flat bag,D-cut bag,bottom/side gusset bag, vest bag and drawstring bags etc(used for shopping bag, gift bag,cloths bag ,shoes bag)can be made by this machine.
Process:
Roll Material--Cross Folding--Drawstring--Thermal Bonding--Doubling--Side Gusseting--Positioning--Punching--Thermal Bonding--Cutting--Collection
Features:
Main Technical Variables:
Details of Machine:
Bag Samples:
Packing&Delivery:
About us:
Wen zhou Zhengxin Machinery Co.,Ltd located in the seashore city of Wenzhou Pingyang.The company is a technology-based enterprise with technical strength and economic power.The main production is automatic non woven bag making machine,non woven fabric printing machine,non woven cross cutting machine,non woven slitting machine and non woven bag handle hot sealing machine etc. Equipment of non woven bag machinery completed.We have a group of middle and senior technical personnel and strong technical force,with design,development,production,installation,service integrity of operating system and passed the ISO9001 quality system certification and CE international safety certification,.
Our company always adhere to the "integrity,quality,innovation,enterprising"management idea,strives for the survival by quality,seek development by science in manufacturing of printing plastic packing machinery and absorb the foreign advanced technology and process at the same time,Which is ensure the stability and durability of the equipment and very convenient maintenance.Our equipment have been exported to more than 20 countries and regions,including Middle East,Southeast Asia,South Asia,Australia,Africa and so on.Besides,We well received by the masses of users.
Zhengxin Machinery Mechanical tenet:to superior products,cheap price,good service and first-class molding machine enterprise.Our factory strictly follow the enterprise tenet,take honestly as this,warmly welcome friends from all walks of life both at domestic and abroad for our mutual benefits and assistance and seek common development cause.
Our Team:
FAQ:
1. How long will your engineer reach our factory?
Within one week after machine arrival your factory.
2. How many days will you finish installing ?
We will finish installation and training within 15days.
3. What should we charge for your engineer?
You should charge for the cost of our engineer's visa , air tickets, hotel, food ,and also their salary 80USD one day per person.
4. How long is your machine's warranty period?
All our machine have one year guarantee, starting from finished installation.
5. How could we do after one year warranty period?
We also can do service for you, but you need pay salary for my technician 80USD/day.
6. How could we do if the parts broken within warranty?
We would express the free replacement parts during the warranty date.
7. Does your engineer understand English?
Our engineer understand a little English. All our engineer have more than five years machine installation experience. In addition, they can use body language to communicate with customer.
8. Can you help us find any engineer in our location?
Of course, we will check and inform you as soon as possible.
9. How do we solve the machine problem after your engineer leaving?
Generally speaking, there will be no problem after finish installing. In case you have any problem. You can contact our sales at any time. Our engineer will take a solution video according your description.
10. How many worker do we need running those machines?
Except Two for bag making machine, flexo printing, slitting, ultrasonic sewing, hydraulic punching machine only need one person for each.
More Details , Kindly contact with me.
Name: Ms Doreen
Mob 0086-13736786969
Product Introduction:
This machine adopts mechanical,electrical,optical and pneumatic integration technology, suitable for non-woven fabric, different specs of flat bag,D-cut bag,bottom/side gusset bag, vest bag and drawstring bags etc(used for shopping bag, gift bag,cloths bag ,shoes bag)can be made by this machine.
Process:
Roll Material--Cross Folding--Drawstring--Thermal Bonding--Doubling--Side Gusseting--Positioning--Punching--Thermal Bonding--Cutting--Collection
Features:
- This machine adopts Taiwan PLC touch screen,which can be edited.
- Auto counting and stopping when setting numbers freely;
- High voltage static processor and auto constant temperature heating controller;
- Equipped with stepping motor(computer fixed length),manual unwinding magnetic powder tension controller and auto rectifying deviation, photoelectric tracking,printing color mark track orientation,auto counting and alarming,auto punching etc.,which make it accurate and stable.
- All aspect of the bags adopts thermal bonding by ultrasonic welding,such as bag edge folding, side sealing etc, which makes the machine fast and easy to operate , the products firm sealing,beautiful and decent.
Main Technical Variables:
| Type | ZXL-C700 | ZXL-C800 |
| Production Speed | 20-120pcs/min | 20-120pcs/min |
| Bag Width | 100-800mm | 100-800mm |
| Bag Height | 200-600mm | 200-700mm |
| Material Basis Weight | 30-120g/m2 | 30-120g/m2 |
| Power Supply | 380V/220V | 380V/220V |
| Total Power | 15KW | 18KW |
| Overall Dimension | 9600×1900×2100mm | 9800×2100×2300mm |
| Weight | 2500KG | 3000KG |

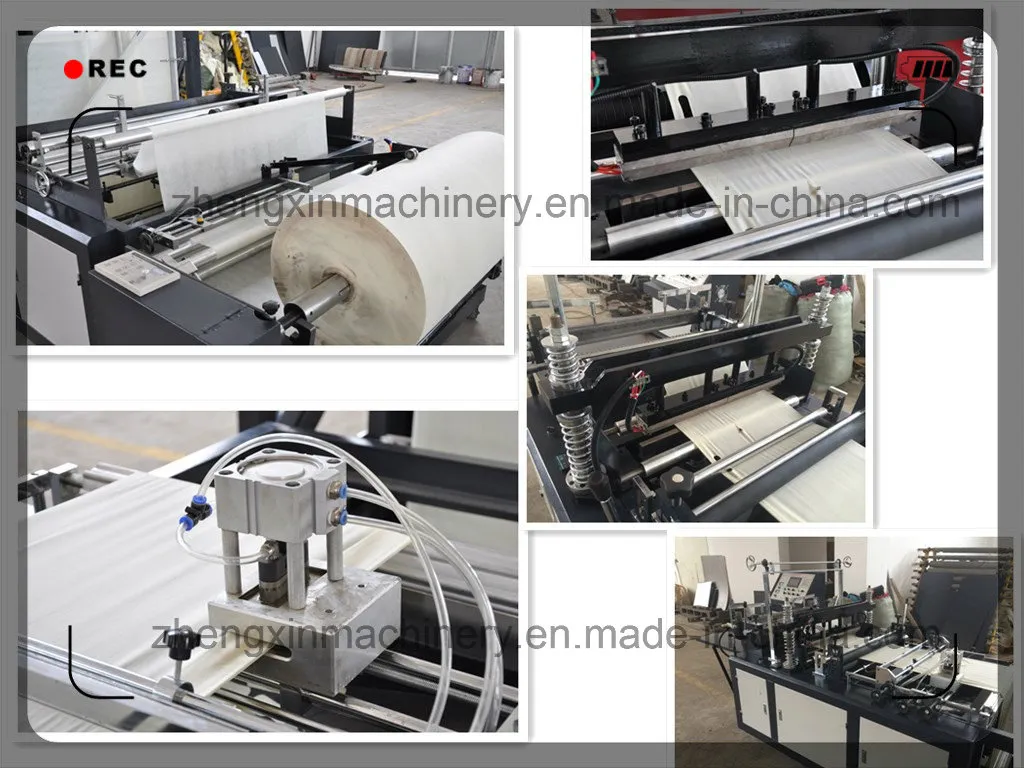

Details of Machine:

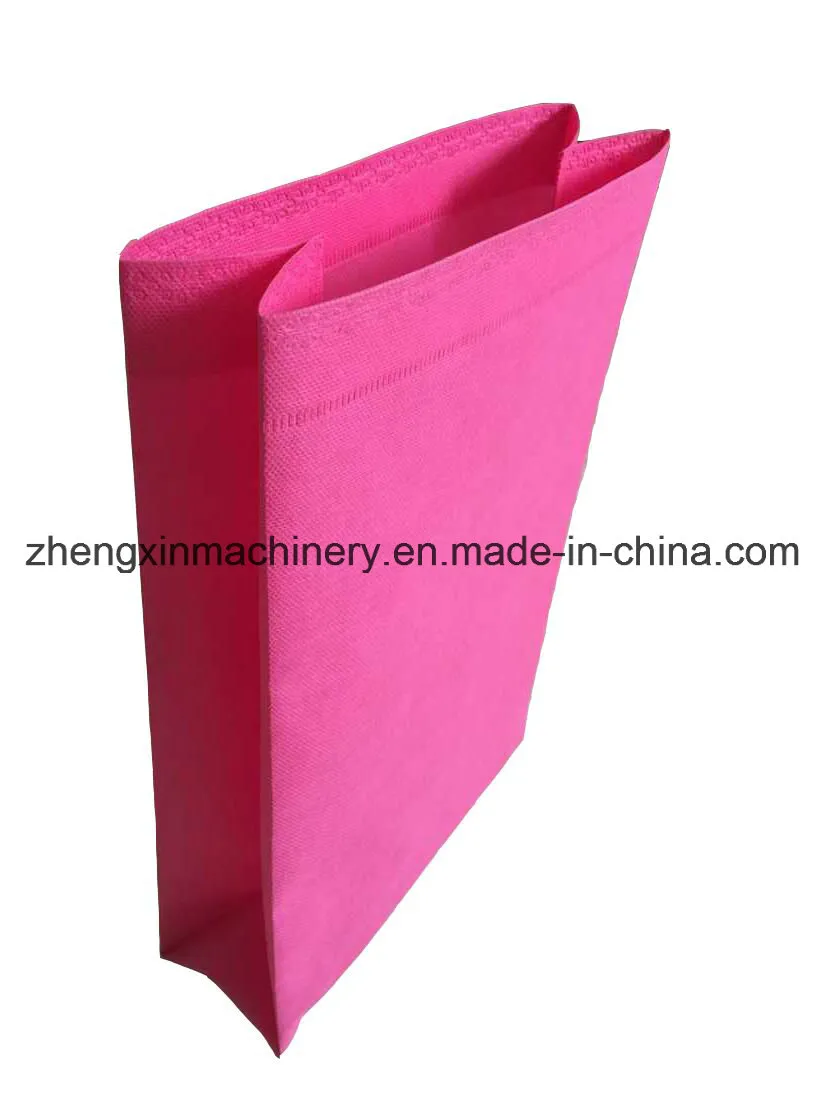

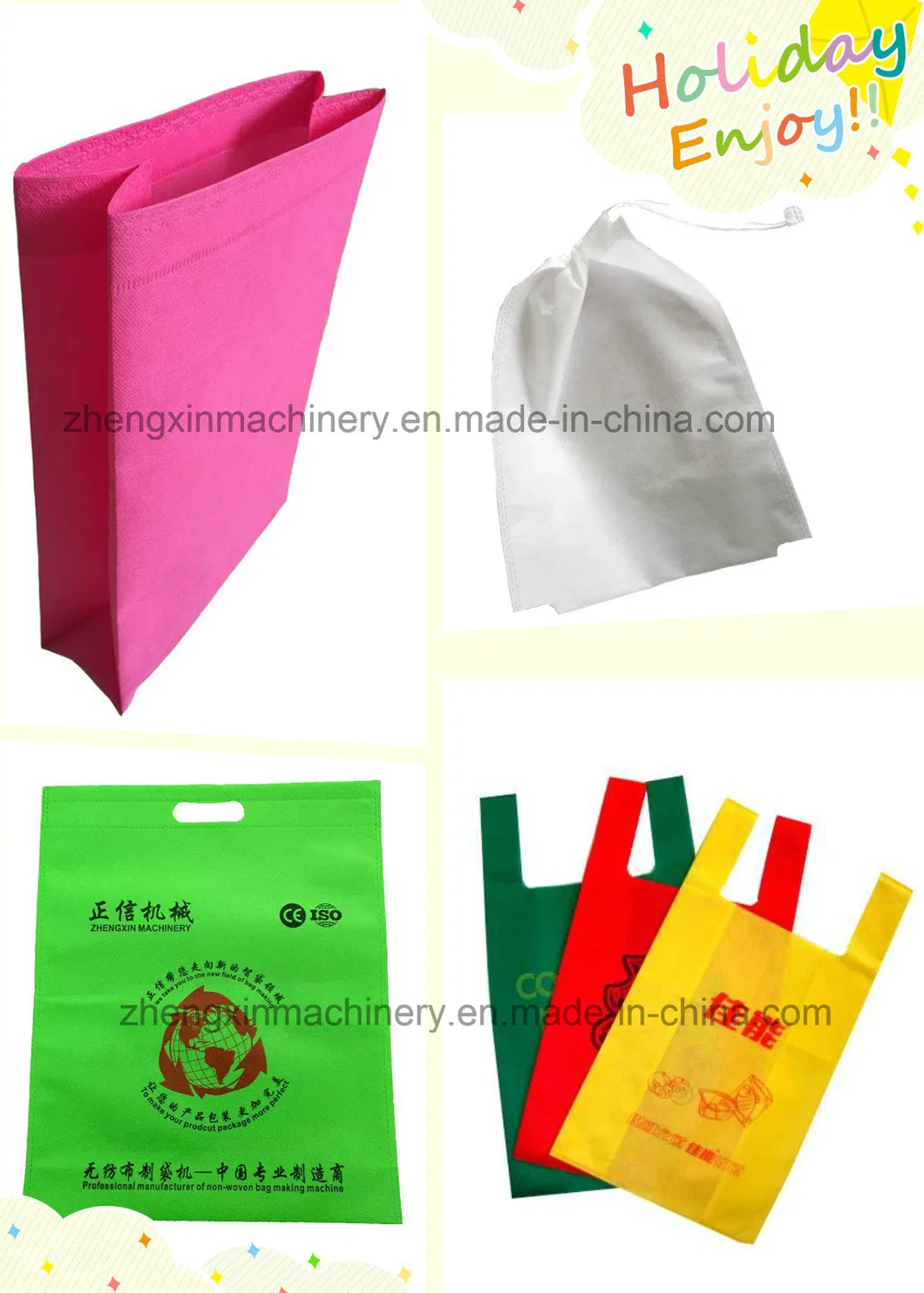

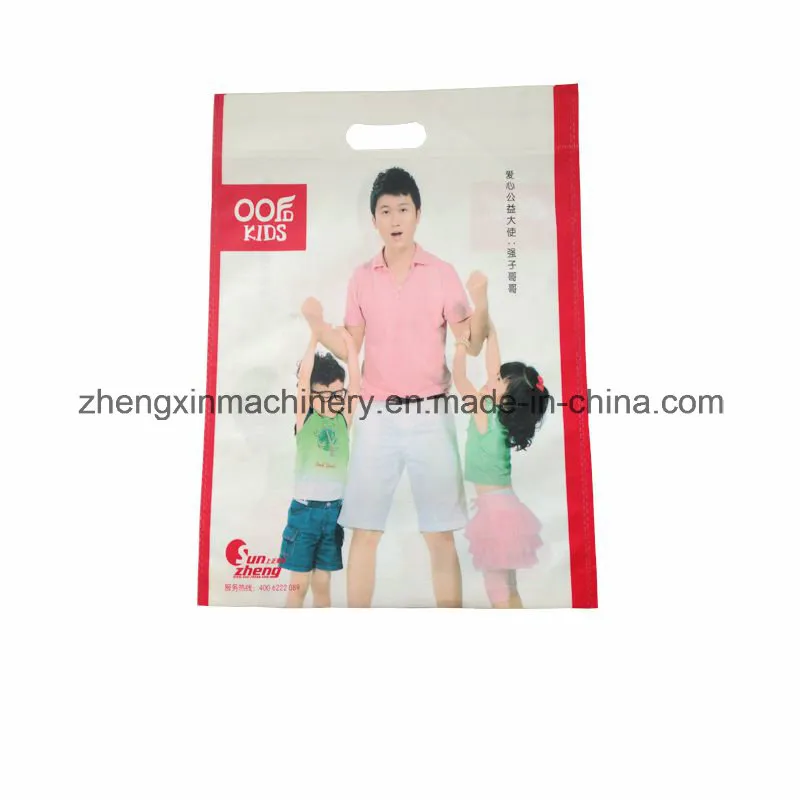

Bag Samples:
Packing&Delivery:
About us:
Wen zhou Zhengxin Machinery Co.,Ltd located in the seashore city of Wenzhou Pingyang.The company is a technology-based enterprise with technical strength and economic power.The main production is automatic non woven bag making machine,non woven fabric printing machine,non woven cross cutting machine,non woven slitting machine and non woven bag handle hot sealing machine etc. Equipment of non woven bag machinery completed.We have a group of middle and senior technical personnel and strong technical force,with design,development,production,installation,service integrity of operating system and passed the ISO9001 quality system certification and CE international safety certification,.
Our company always adhere to the "integrity,quality,innovation,enterprising"management idea,strives for the survival by quality,seek development by science in manufacturing of printing plastic packing machinery and absorb the foreign advanced technology and process at the same time,Which is ensure the stability and durability of the equipment and very convenient maintenance.Our equipment have been exported to more than 20 countries and regions,including Middle East,Southeast Asia,South Asia,Australia,Africa and so on.Besides,We well received by the masses of users.
Zhengxin Machinery Mechanical tenet:to superior products,cheap price,good service and first-class molding machine enterprise.Our factory strictly follow the enterprise tenet,take honestly as this,warmly welcome friends from all walks of life both at domestic and abroad for our mutual benefits and assistance and seek common development cause.
Our Team:
FAQ:
1. How long will your engineer reach our factory?
Within one week after machine arrival your factory.
2. How many days will you finish installing ?
We will finish installation and training within 15days.
3. What should we charge for your engineer?
You should charge for the cost of our engineer's visa , air tickets, hotel, food ,and also their salary 80USD one day per person.
4. How long is your machine's warranty period?
All our machine have one year guarantee, starting from finished installation.
5. How could we do after one year warranty period?
We also can do service for you, but you need pay salary for my technician 80USD/day.
6. How could we do if the parts broken within warranty?
We would express the free replacement parts during the warranty date.
7. Does your engineer understand English?
Our engineer understand a little English. All our engineer have more than five years machine installation experience. In addition, they can use body language to communicate with customer.
8. Can you help us find any engineer in our location?
Of course, we will check and inform you as soon as possible.
9. How do we solve the machine problem after your engineer leaving?
Generally speaking, there will be no problem after finish installing. In case you have any problem. You can contact our sales at any time. Our engineer will take a solution video according your description.
10. How many worker do we need running those machines?
Except Two for bag making machine, flexo printing, slitting, ultrasonic sewing, hydraulic punching machine only need one person for each.
More Details , Kindly contact with me.
Name: Ms Doreen
Mob 0086-13736786969
