Product Description
WHY US?
The Quality We Provide - Outstanding Quality Assurance
Control from production process:
•We don't send mechanical parts out for pretreatment, all process would be supervised under inspection
department, we have 4sets CNC processing machine.
•7 stages pretreatment meet international standard
•Baking at high temperature after power coating to ensure the paint finish
The Service We Provide - We Take Care Of Your Order
Punctual delivery time:
•We put your order into our tight production schedule, ensure your punctual delivery time.
•Production / inspection report before your order packed.
•Shipping notice/ insurance to you as soon as your order is shipped.
After sales service:
•We respect your feed back after receive the goods.
•We provide 12-24 months warranty after goods arrive.
•We promise all spare parts available in lifetime use.
•We respond your complain within 48hours.
Professional sales:
•We value every inquiry sent to us, ensure quick competitive offer.
•We cooperate with customer to bid tenders. Provide all necessary document.
•We are a sales team, with all technical support from engineer team
PRODUCT DESCRIPTION

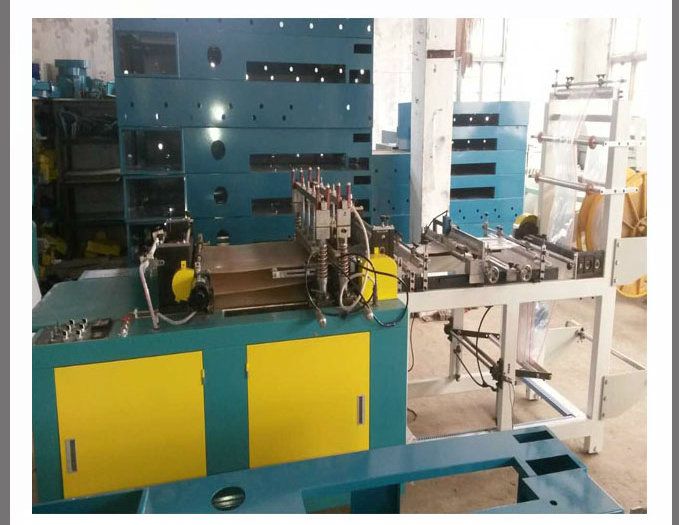

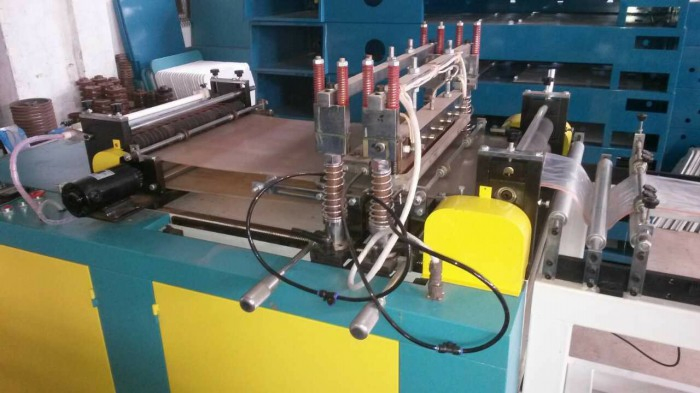

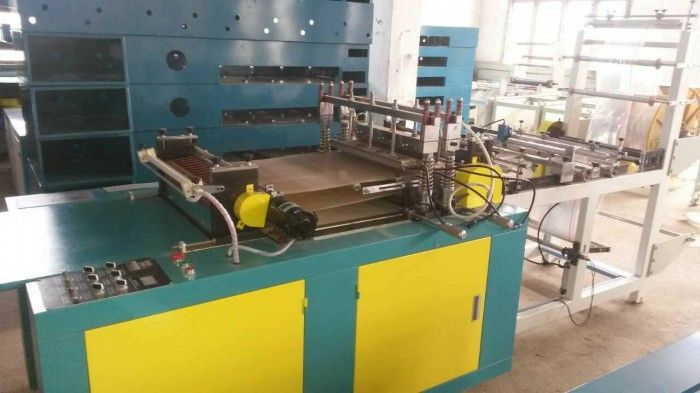

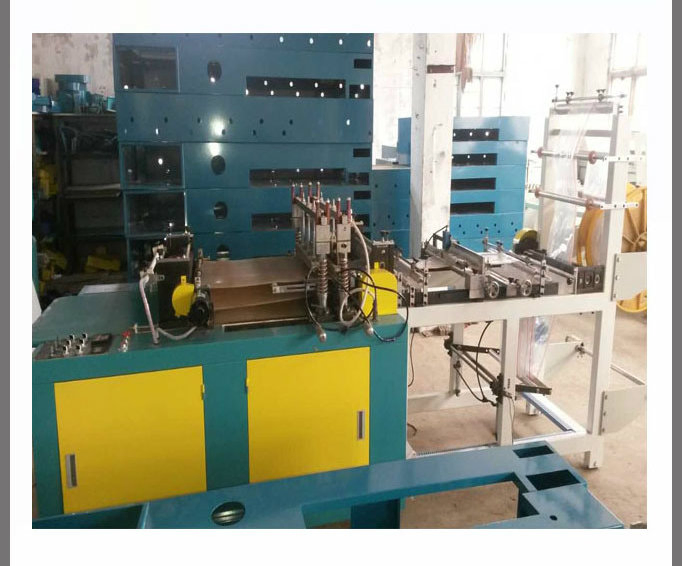

PE Zipper Heat Sealing Bag Making Machine for Repeat Usage(DC-BC500/600)
Characteristics&Functions:
This machine uses photoelectric track, computer control, frequency conversion velocity modulation and automatic temperature control, with the advantages of operating easily and sealing firmly. It is only used to seal and cut high pressure PE self-seal bags. It is an advanced bag making machine.

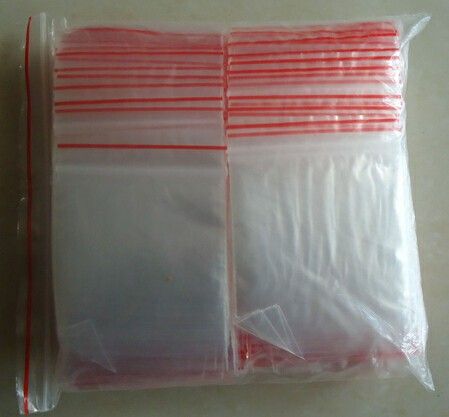

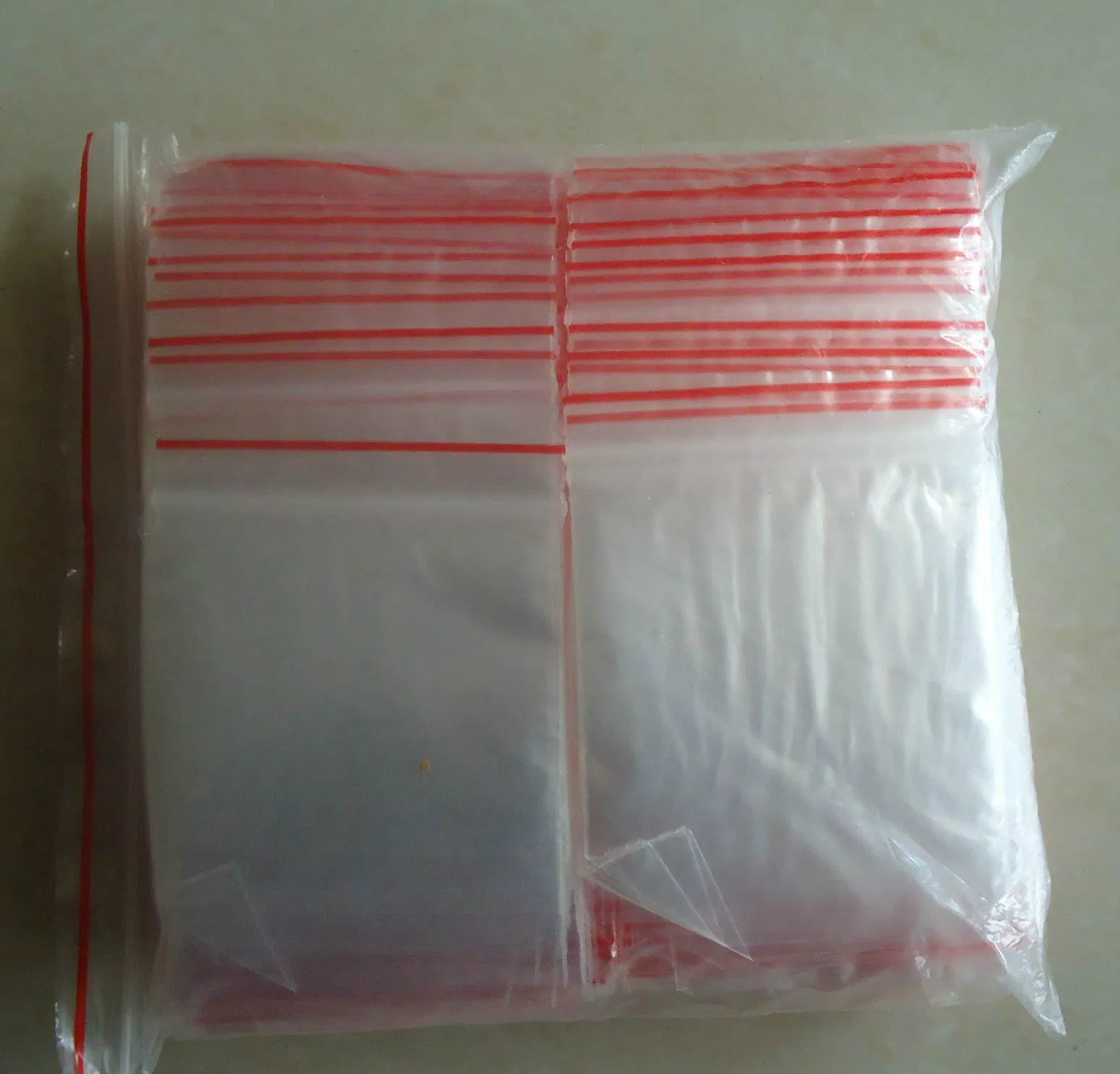

This machine can be widely used in the heat cutting plastic packaging products, such as self-seal bags, vest bags, gum sealing bags, woven bags, and so on.
Main Parameters:
| Model | BC-500 |
| Material | LDPE |
| Output | 60-180 pcs/min |
| Bag Making Width | 60-450mm |
| Bag Making Length | 60-330mm |
| Thickness of Film | 0.03-0.15mm |
| Film Annulus Diameter | Φ550×500mm |
| Heater | 2kw |
| Cooling | 0.37kw |
| Power | 3.5kw |
| Dimension(L×W×H) | 3500×1300×1600mm |
| 1 | Frequency Converter | Panasonic1.5kw |
| 2 | Water Pump | 1pcs (china) |
| 3 | Motor | Step Motor (jiangsu) |
| 4 | Main motor | 1.5kw(shanghai dedong) |
| 5 | Staticeliminator | 15KV 16KV 1 (zhejiang) |
| 6 | Discharging motor | 150w (guangda) |
| 7 | Photoelectric eye | 1pc (china) |
| 8 | Hall switch,Solenoid valve | Made in china |
| 9 | PLC control | Taiwan |
