Non Woven Bag Making Machine
Name: The newest Manufacturer HBL-B 600/700/800 Non Woven Bag Making MachineHBL-B 600/700/800 Fully automatic non woven flat bag making machineThis newest nonwoven bag making machine is improved.Advantages:1. The speed is 120pcs/min, faster than old type machine. 2. The machine is higher reliability......
Send Inquiry
Product Description
Name: The newest Manufacturer HBL-B 600/700/800 Non Woven Bag Making Machine
HBL-B 600/700/800
Fully automatic non woven flat bag making machine
This newest nonwoven bag making machine is improved.
Advantages:
1. The speed is 120pcs/min, faster than old type machine.
2. The machine is higher reliability, reduced a lot of time for installing.
3. Machine was shortened by 1 m to save space.
4. The appearance of machine is become more artistic.
5.Our engineer can speak English.
Product introduction:
This machine is suitable for non woven fabric material, can fully automatic make non woven bag products with different bag type and size, as flat bag, shopping bag, gift bag, clothes bag, handle loop bag, vest bag, shoes bag, drawstring bag and so on.
Features:
1. This machine adopts Taiwan touch screen computer display, PLC computer program which can be edited.
2. Auto meter counting &stopping, could freely setting number.
3. Computer Fixed-length, printing color mark track orientation, Auto-stop when complete.
4. High voltage static processor, Auto constant temperature heating controller.
5. This machine has the function of automatic punching.
6. Unwinding magnetic powder tension control with manual, Auto side-correction control.
7. This machine adopt ultrasonic welding of all aspects, bag mouth folding welding, side sealing, once full completed, fast speed, easy to operate, firm sealing, beautiful and decent.

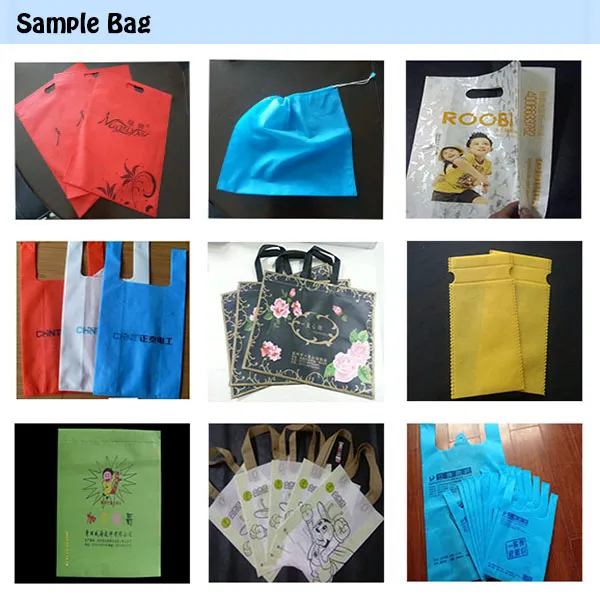

This machine is suitable for non-woven fabric material. It can make following bags:
1. Flat Bag (D-cut Bag)
2. T-shirt Bag, Vest Bag (U-cut, W-cut)
3. Handle loop bag
4. Flat Bag with Bottom Folding (stand up bag)
HBL-B 600/700/800
Fully automatic non woven flat bag making machine
This newest nonwoven bag making machine is improved.
Advantages:
1. The speed is 120pcs/min, faster than old type machine.
2. The machine is higher reliability, reduced a lot of time for installing.
3. Machine was shortened by 1 m to save space.
4. The appearance of machine is become more artistic.
5.Our engineer can speak English.
Product introduction:
This machine is suitable for non woven fabric material, can fully automatic make non woven bag products with different bag type and size, as flat bag, shopping bag, gift bag, clothes bag, handle loop bag, vest bag, shoes bag, drawstring bag and so on.
Features:
1. This machine adopts Taiwan touch screen computer display, PLC computer program which can be edited.
2. Auto meter counting &stopping, could freely setting number.
3. Computer Fixed-length, printing color mark track orientation, Auto-stop when complete.
4. High voltage static processor, Auto constant temperature heating controller.
5. This machine has the function of automatic punching.
6. Unwinding magnetic powder tension control with manual, Auto side-correction control.
7. This machine adopt ultrasonic welding of all aspects, bag mouth folding welding, side sealing, once full completed, fast speed, easy to operate, firm sealing, beautiful and decent.
This machine is suitable for non-woven fabric material. It can make following bags:
1. Flat Bag (D-cut Bag)
2. T-shirt Bag, Vest Bag (U-cut, W-cut)
3. Handle loop bag
4. Flat Bag with Bottom Folding (stand up bag)
| Type | HBL-B600 | HBL-B700 | HBL-B800 |
| Production Speed | 20-120pcs/min | 20-120pcs/min | 20-120pcs/min |
| Bag Width | 100-800mm | 100-800mm | 100-800mm |
| Bag Length | 200-480mm | 200-580mm | 200-680mm |
| Bag-Making Thickness | 20-120g | 20-120g | 20-120g |
| Power Supply | 380V/220V | 380V/220V | 380V/220V |
| Total Power | 12-18KW | 12-18KW | 12-18KW |
| Overall Dimension (L*W*H) | 7.8m*2m*2.1m | 7.8m*2m*2.1m | 7.8m*2.2m*2.3m |
