Product Description

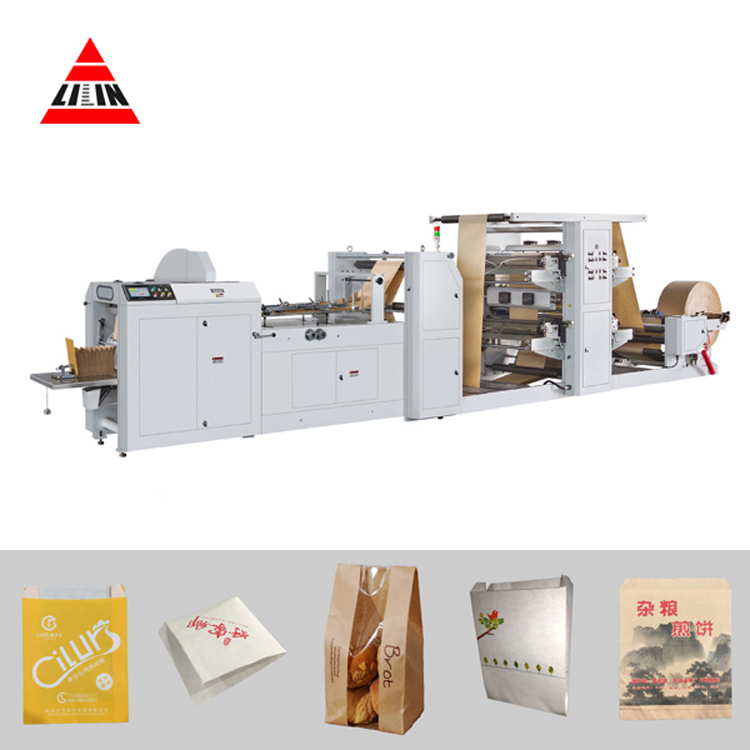

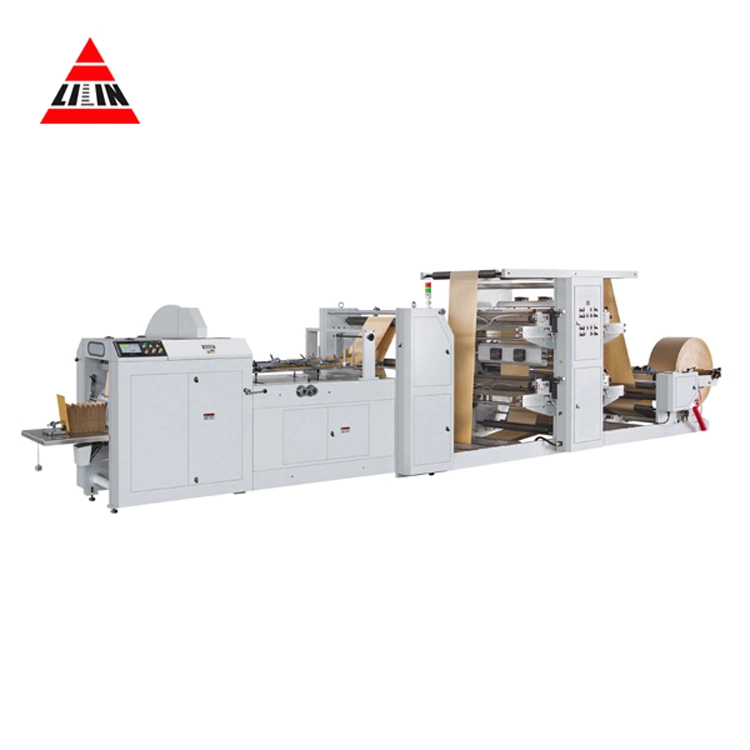

LMD-400B+LST-4700 Automatic High Speed Flexo Printing Paper Bag Making Machine

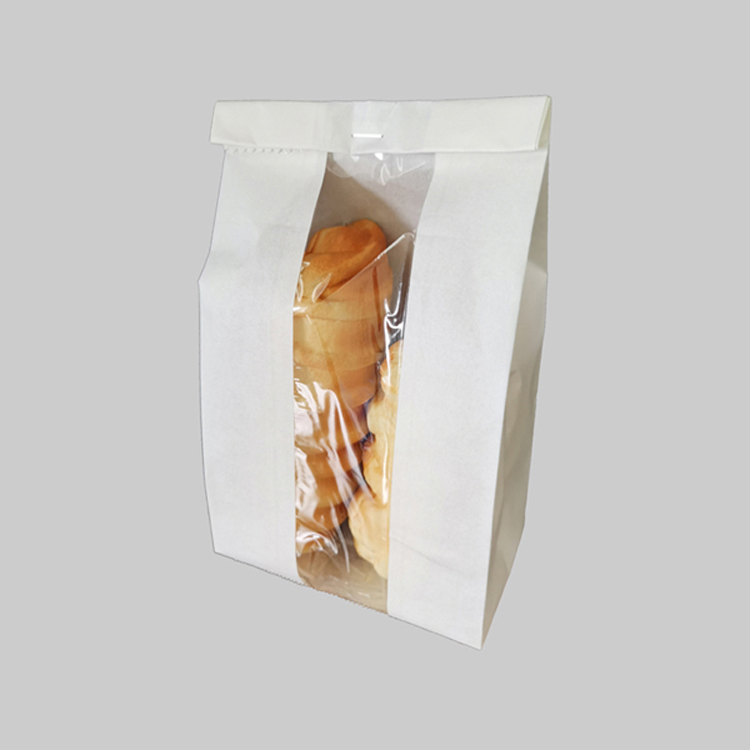

This machine forming the paper bag in one process from roll paper, printing, edge folding, tube forming, cutting, gluing, bottom folding,bottom gluing and finishing bag Easy operation, low power consumption, high efficiency. It is an ideal machine for producing food bags like bread bags, KFC bags and Mcdonald's bags.

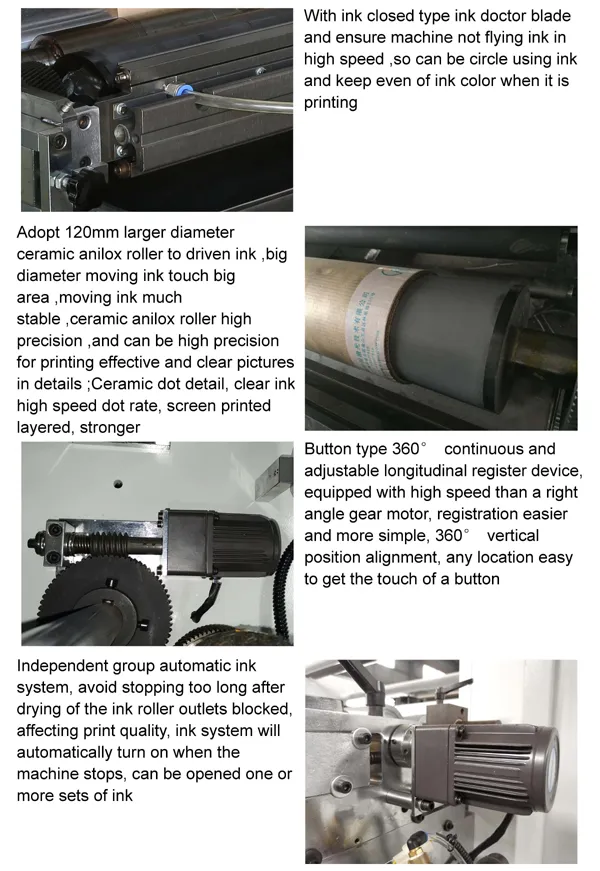

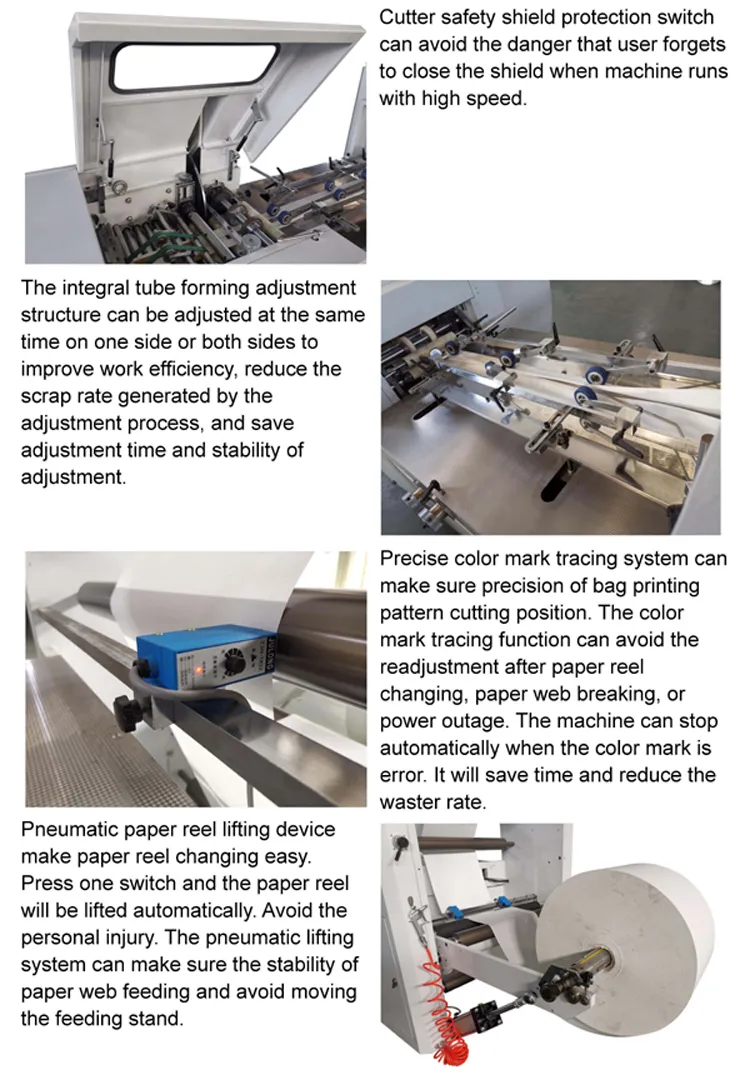

1.The human-machine touch screen interface, the work condition can be shown in real- time. 2.Equipped with accurate servo motor drive, it makes the machine run steadily and efficiently. 3.Material lifting adopt pneumatic lift structure. 4.Automatic constant tension control system. The tension will be just right from beginning to end. 5.Double photoelectric sensor limit automatic correction control system and deviation rectification stability, energy saving, long life. 6.The machine has automatic counting system. The user can set a number to count. 7.Accurate color tracking system, automatic alarm prompt when color is wrong. 8.ink-ring sealed scraping knife scraping.Except R and J type 9.ink Ceramic Anilox roller, high speed dot rate, screen printed layered, stronger.Except R and J type 10.Using 99mm large diameter rubber roller to uniform ink and anilox roller to transfer ink.Only R and J type 11.button-360 ° continuous and adjustable longitudinal register device.

Type	LMD-400B+LST-4700
Cutting Length (C)	150-460 mm
Bag Length (L)	140-450mm
Bag Width (W)	70-280 mm
Gusset Highly (H)	0-120 mm
Standard Flap (P)	12-20 mm
Max.Speed	500 pcs/min
Max. reel weight	400KG
Paper Roll Width	220-700 mm
Max.Roll Diameter	1100 mm
Reel Inner Diameter	76 mm
Paper specification	30-80 gsm
paste window unit	Yes

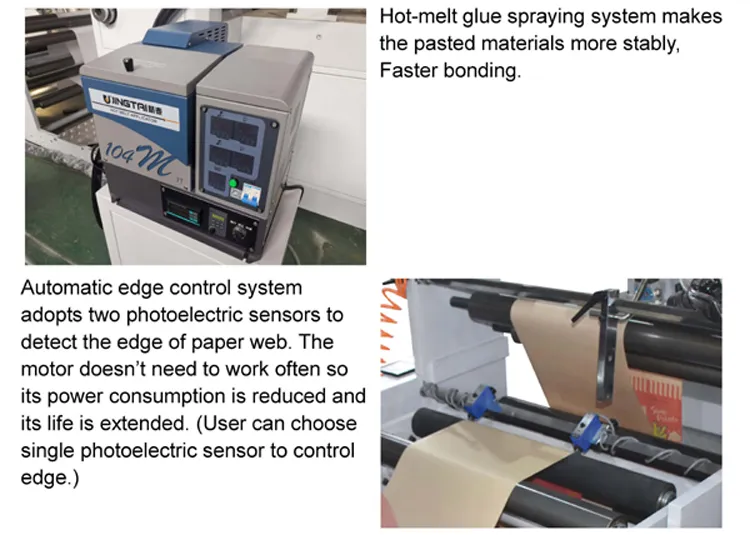

coating way	Hot-melt glue spraying system,coated with cold gule
Film Thickness	0.02-0.04 mm
Film Width	50-180 mm
The Max Film Diameter	450 mm
Film Inner Diameter	76 mm
Printing Color	4 Color
Printing Width	700 mm
Printing Length	180-800 mm
Max.Printing Speed	120m/min
Overprint Precision	±0.15 mm
Thickness of Plate	1.7 mm
Web edge control system	Double photoelectric automatic correction control system
Web tension control system	automatic constant tension control system
Air pressure	≥ 0.12cmm, 0.4~1Mpa
Driven motor	Double servo motors
Electric	380V, 50Hz, 3 phase
Power	13.5 kw
Weight of Machine	5700 kg
Overall Dimension	8520×1550×1850 mm

Lmd-400b+Lst-4700 Fully Automatic Kraft Printing Paper Bag Making Machine

1.Are you trading company or manufacturer?
We are manufacturer, we have our own worker and factory.
2.How long has your factory been in this field?
In China, As one of the earliest manufacturers in paper bag machine, we have more than 10 years professional experience.
3.What types of machine do you have?
Commonly are paper bag machine V shape bottom or square bottom ,flexo printing machine,slitting machines according to clients'needs.
4.Where is your factory located? how can l visit there?
Our factory is located in ruian city.zhejiang province china.our local airport is Wenzhou Longwan Airport the nearest international airport is shanghai Pudong Airport about 40 minutes by plane from shanghai (4 hours by train
5.Can i get some samples? how can l get it?
Yes,we can send you some free samples, but you need to bear the courier cost by DHL, TNT etc.
sincerely welcome all clients to visit us!

Ruian Lilin machinery Co., LTD., is a professional paper bag machine manufacturer.It was founded in 2006, since its inception,the company has been committed to the r&d and production of paper bag making machine, constantly introducing new and high technology,combined with market demands and constantly develop new products, higher quality, higher efficiency to meet the market demands.Main products: LSB series roll paper square bottom paper bag machine,LSD series automatic high-speed paper bag machine,
LMD series automatic high-speed paper bag machine, LST series flexo printing machine, and other paper bag related supporting products.The products have been sold to Southeast Asia and Europe. , Middle East, Africa, South America and more than 60 countries and regions. Since its inception, the enterprise always adhere to the "technology first, quality first" business philosophy, with honest and trustworthy operating style,excellent product quality and excellent service to win for the principle, for the user to achieve maximum value to reflect my value. Wholeheartedly welcome the domestic and foreign merchants to come to visit or inquire.
