Product Description

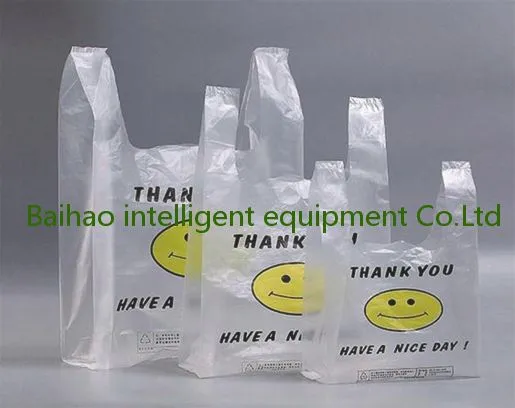

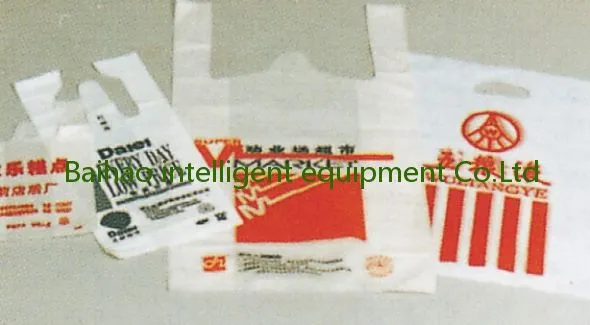

This machine can produce a variety of T-shirt sizes. It's a efficient, high-output bag making machine.It can customized from 2 lines to 12 lines depends on customers requires. Frequency speed converter for the major motor. Hot sealing with constant temperature, enhancer for hot sealing the spare optional side and corner.
Technical Paremeters:

Model	BS620		BS820		BS1020-AT			BS1220-AP
	2line	4line	4line	6line	4line	6line	8line	4line	6line	8line	12line
Voltage	220V		220V		220V			220V
Total Power	7.0KW		9.0KW		11KW			14KW
Average Power	3.0KW		4.0KW		5.0KW			6.0KW
Film Width	580mm	280mm	380mm	250mm	480mm	300mm	220mm	580mm	380mm	280mm	180mm
Bag Length	100-800mm		100-800mm		100-800mm			100-700mm
Max Speed	150cut/min		150cut/min		150cut/min			150cut/min
Weight	900KG		1000KG		1200KG			2200KG
Length	3800mm		3800mm		5200mm			6600mm
Width	1200mm		1400mm		1600mm			1800mm
Height	1800mm		1800mm		1800mm			1800mm

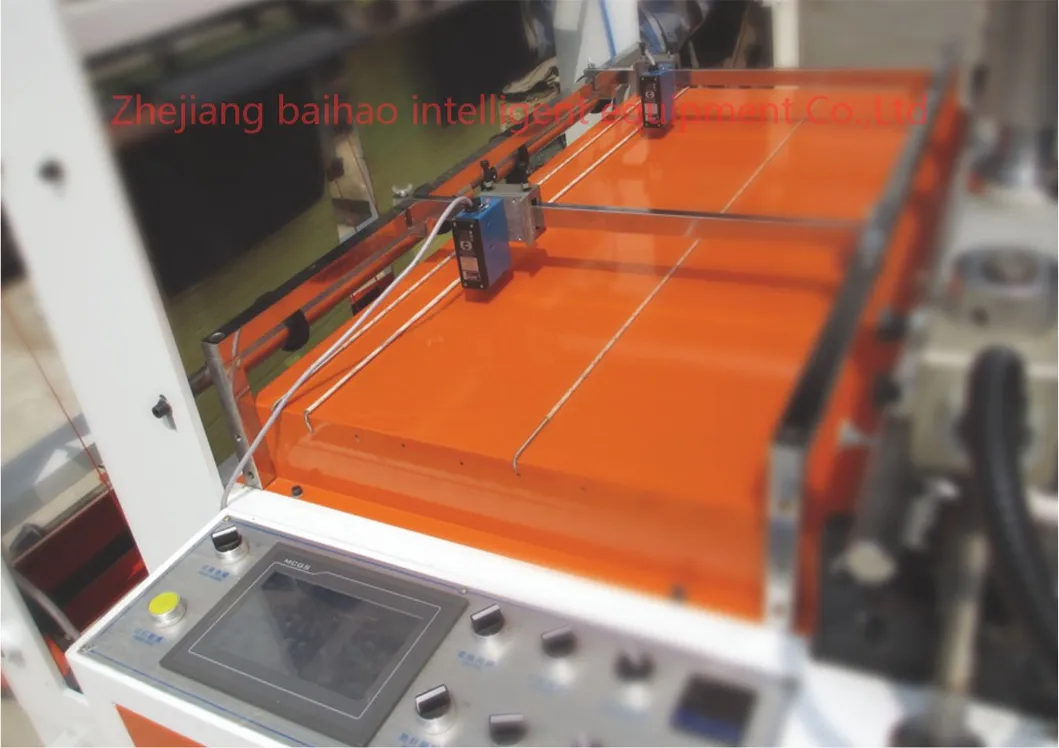

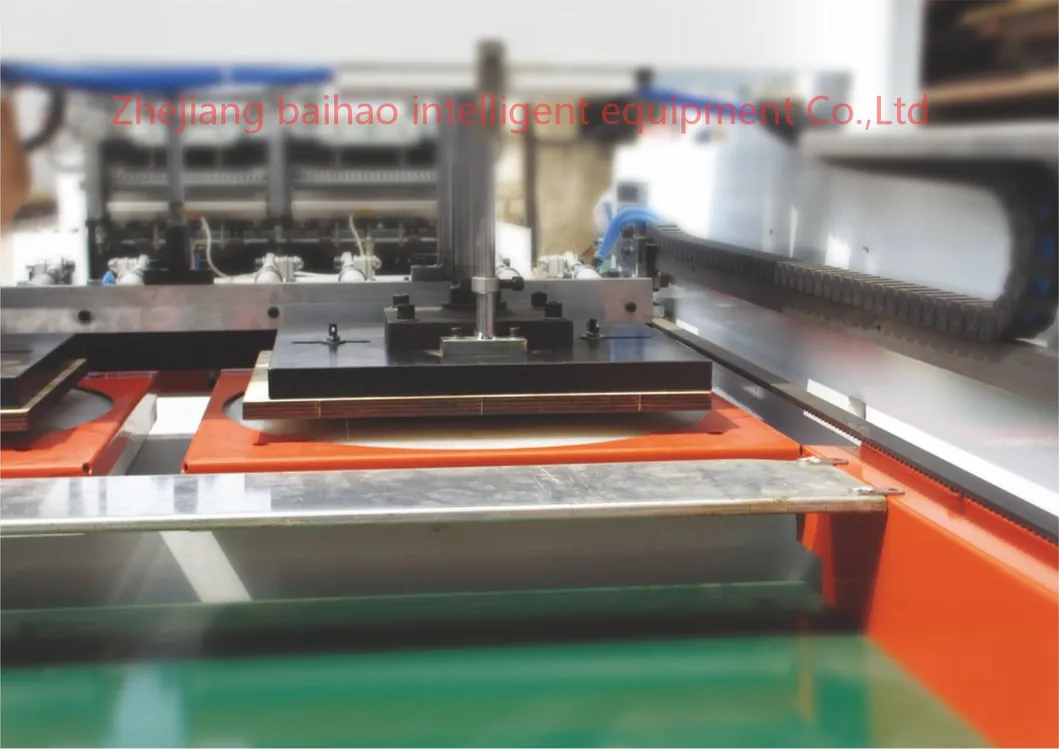

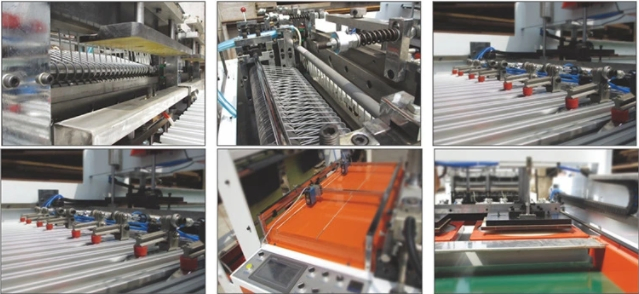

Details for the machine:

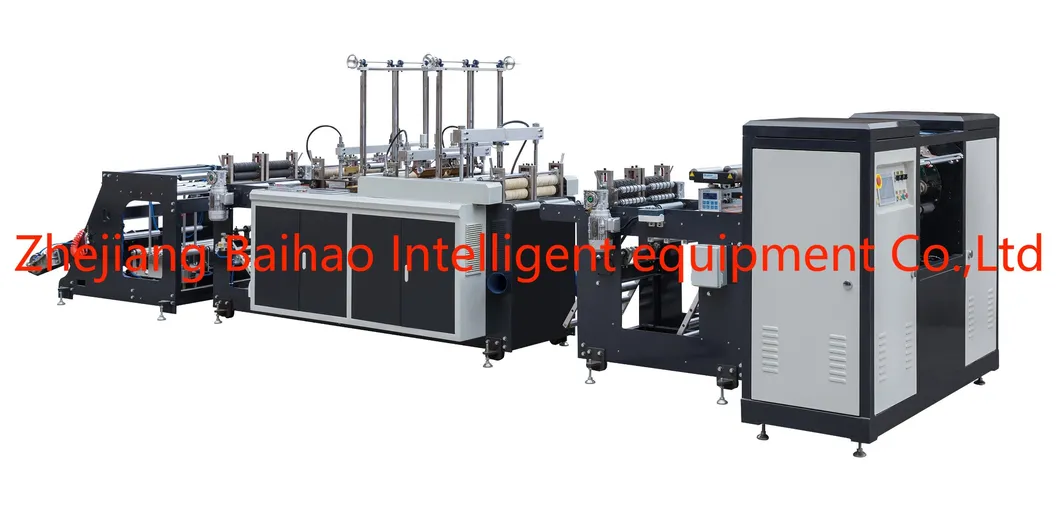

Solution for T-shirt bag on roll making machine : BL720TS2-AR (Double lines)

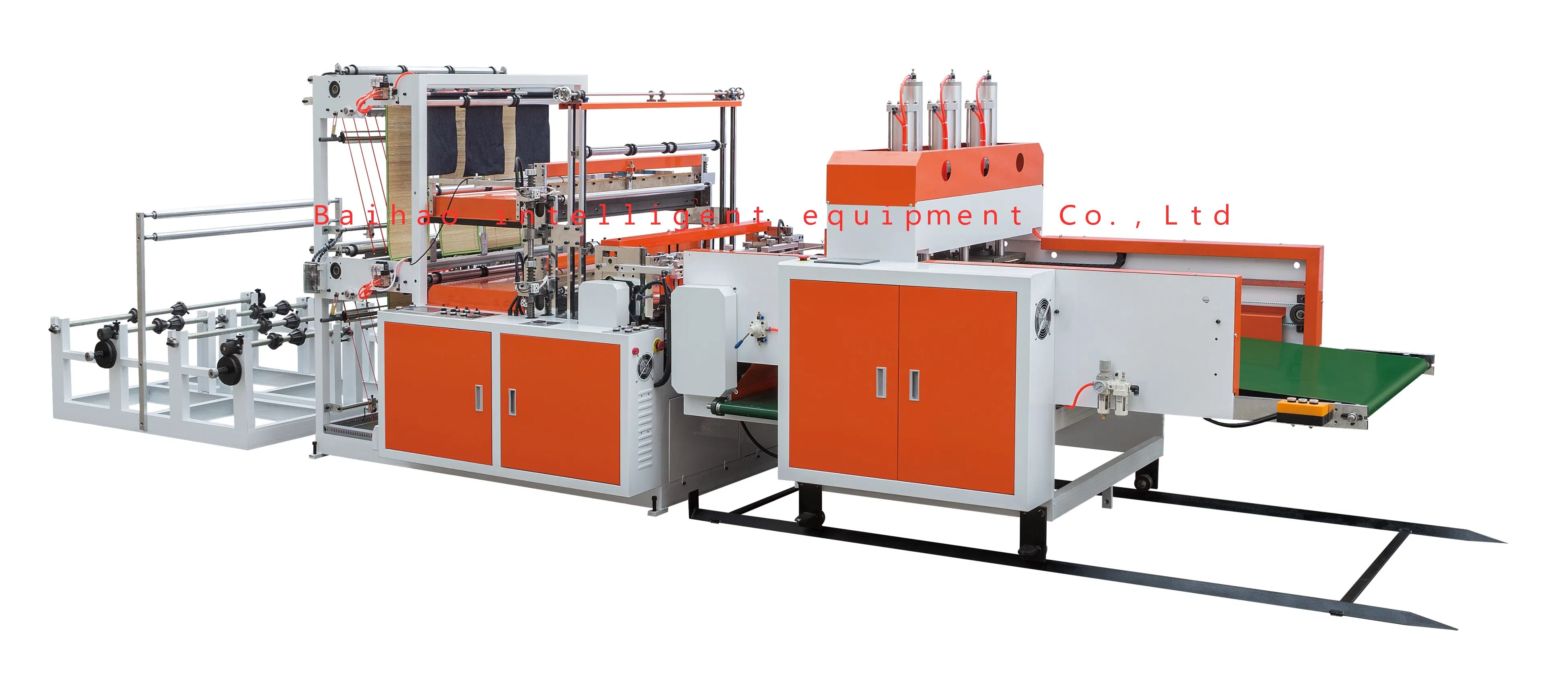

High Speed Bottom Sealing Cold Cutting Supermarket Shopping T-Shirt Bag Making Machine
