Efficient Non Woven Handle Cubic Bag, Food Processor Bag, Nonwoven Fabric Bag/Customized Bag, Square Bottom Paper Shopping Bag Making Machine with High Quality
Product DescriptionUseage: Multi-functional Non-woven Box Bag Making Machine (ZXL-C700)ZXL-C700 fully automatic multi-function non-woven bag making machine is our company according to the latest international environmental protection concept, depth design, independent research and development. Shoul......
Send Inquiry
Product Description

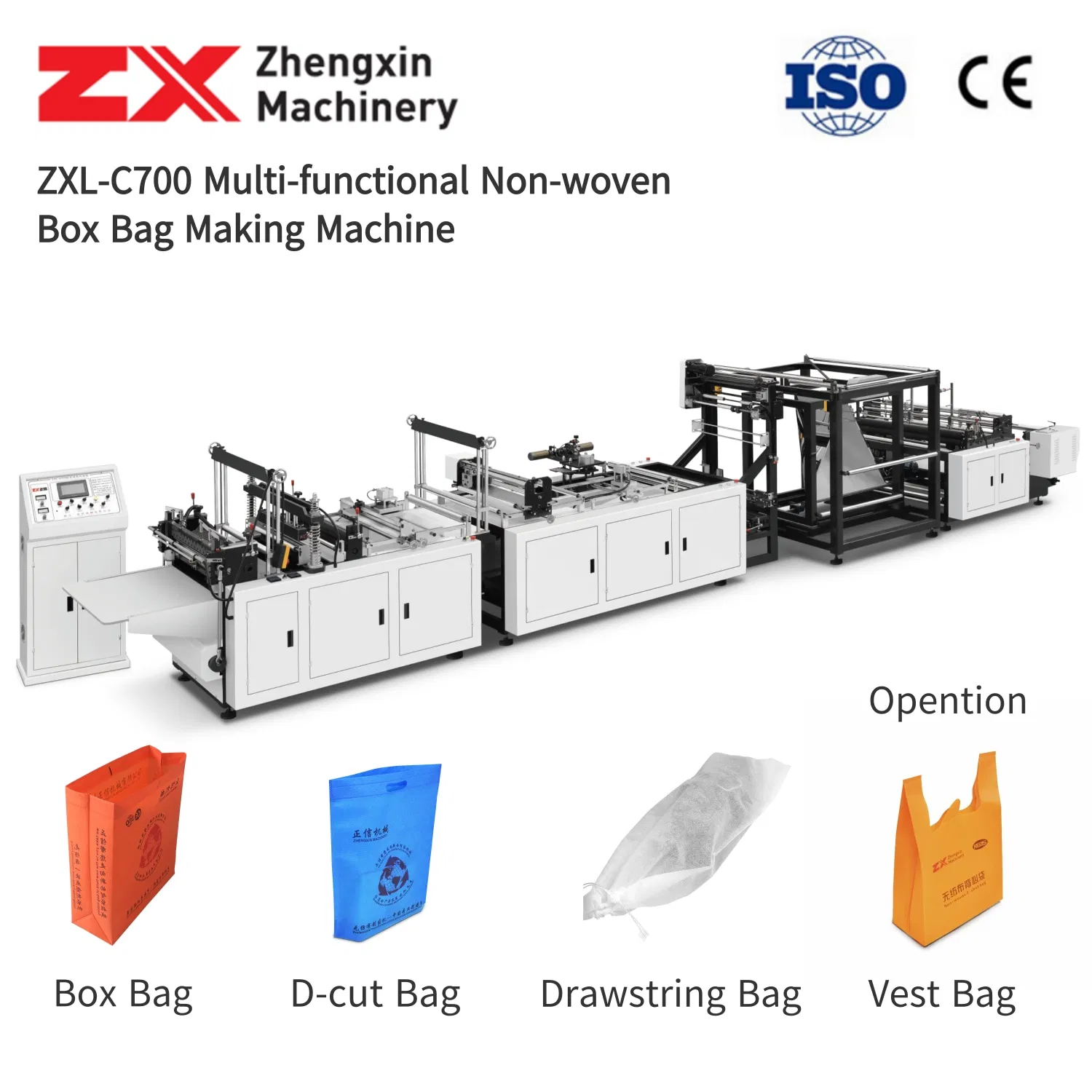

Useage: Multi-functional Non-woven Box Bag Making Machine (ZXL-C700)
ZXL-C700 fully automatic multi-function non-woven bag making machine is our company according to the latest international environmental protection concept, depth design, independent research and development. Should the valuable requirements of customers at home and abroad, to improve the new generation, the successful listing of the latest generation of full automatic multifunctional non-woven bag machine, machine with light, electricity, gas, composed of three and integrated design of structure, the equipment adopts high performance PLC touch type high performance machine control system, the system of the the company developed non-woven bag machine professional industrial despotism. This equipment is advanced in technology, stable in operation performance and fast in bag making. It is one of the most advanced non-woven bag making machines in the world.
1.This machine adopts Taiwan PLC touch screen,which can be edited.
2.Auto counting and stopping when setting numbers freely;
3.High voltage static processor and auto constant temperature heating controller;
4.Equipped with stepping motor(computer fixed length),manual unwinding magnetic powder tension controller and auto rectifying deviation, photoelectric tracking,printing color mark track orientation,auto counting and alarming,auto punching etc.,which make it accurate and stable.
5.All aspect of the bags adopts thermal bonding by ultrasonic welding,such as bag edge folding, side sealing etc, which makes the machine fast and easy to operate , the products firm sealing,beautiful and decent.

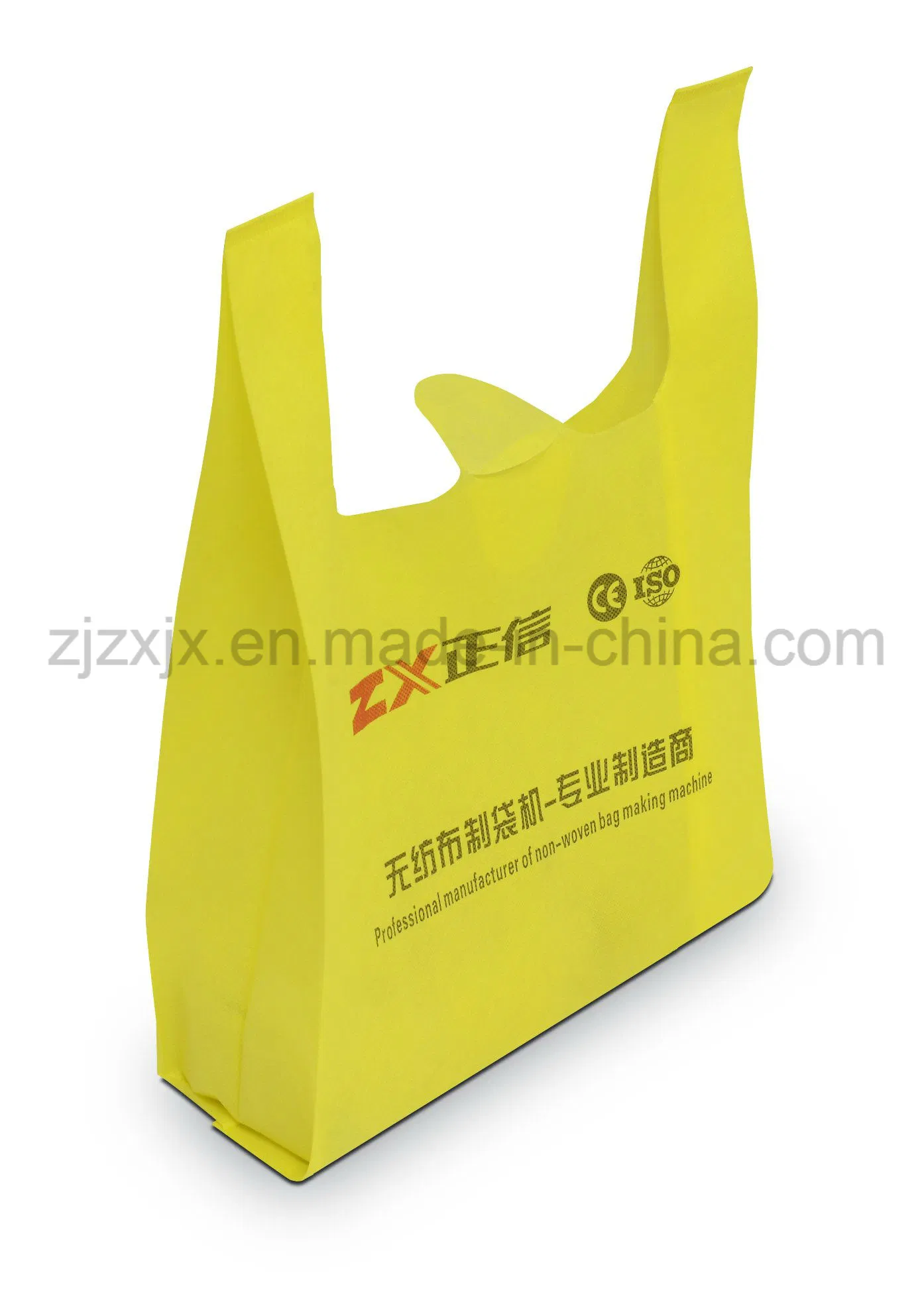

6.The vest bag automatic punching machine is optional when do the vest bags
With CE certification and ISO9001 certification.
Main Technical VARIABLES| Type | ZXL-C700 | ZXL-C800 |
| Production Speed | 20-120Pcs/Min | 20-120Pcs/Min |
| Bag Width | 100-800mm | 100-800mm |
| Bag Height | 200-600mm | 200-700mm |
| Material Basis Weight | 30-120g/m2 | 30-120g/m2 |
| Power Supply | 220V/380V | 220V/380V |
| Total Power | 15Kw | 18Kw |
| Overall Dimension | 9600*1900*2100mm | 9800*2100*2300mm |
| Weight | 3000Kg | 3500Kg |

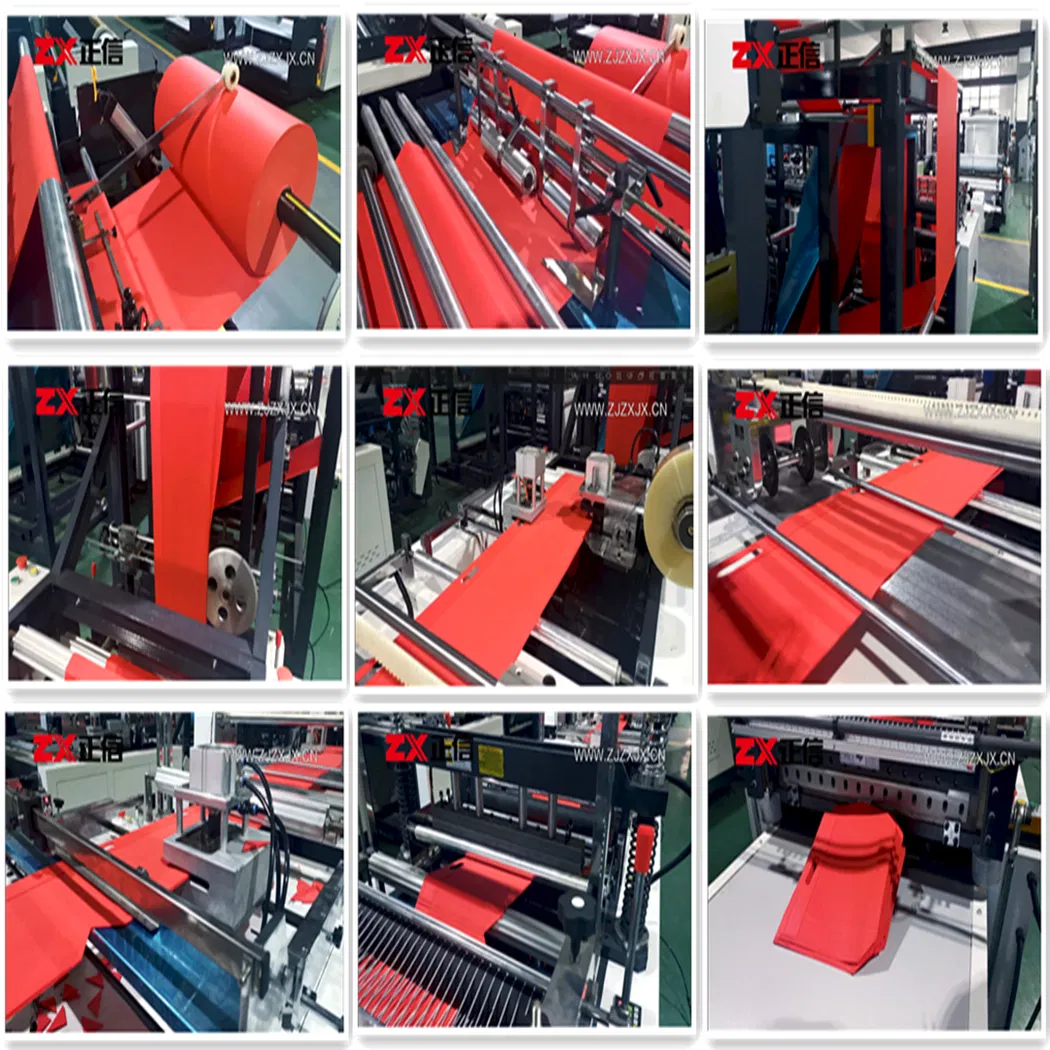

Roller Material→Bag Mouth Folding and Sealing→Folding→Bottom Gusset→Triangle Sealing→Indentation→Triangle Punching →Position→Edge Sealing→Cutting→Turn Out Bag→Finished Product
About US:
Zhejiang Zhengxin Machinery Co.,Ltd located in the seashore city of Wenzhou Pingyang.The company is a technology-based enterprise with technical strength and economic power.The main production is automatic non woven bag making machine,non woven fabric printing machine,non woven cross cutting machine,non woven slitting machine and non woven bag handle hot sealing machine etc. Equipment of non woven bag machinery completed.We have a group of middle and senior technical personnel and strong technical force,with design,development,production,installation,service integrity of operating system and passed the ISO9001 quality system certification and CE international safety certification,.
Our Team:
TECHNICIAN IN CUSTOMER FACTORY:
OUTDOOR EXTENDING:
Our Exhibitions:
Q:How long will your engineer reach our factory?
A:Within one week after machine arrival your factory.
Q: How many days will you finish installing ?
A:We will finish installation and training within 15days.
Q: What should we charge for your engineer?
A:You should charge for the cost of our engineer's visa , air tickets, hotel, food ,and also their salary 80USD one day per person.
Q: How long is your machine's warranty period?
A:All our machine have one year guarantee, starting from finished installation.
Q: How could we do after one year warranty period?
A:We also can do service for you, but you need pay salary for my technician 80USD/day.
Q:How could we do if the parts broken within warranty?
A:We would express the free replacement parts during the warranty date.
Q: Does your engineer understand English?
A:Our engineer understand a little English. All our engineer have more than five years machine installation experience. In addition, they can use body language to communicate with customer.
Q:Can you help us find any engineer in our location?
A:Of course, we will check and inform you as soon as possible.
Q:How do we solve the machine problem after your engineer leaving?
A:Generally speaking, there will be no problem after finish installing. In case you have any problem. You can contact our sales at any time. Our engineer will take a solution video according your description.
Q: How many worker do we need running those machines?
A:Except Two for bag making machine, flexo printing, slitting, ultrasonic sewing, hydraulic punching machine only need one person for each.
More Details , Kindly contact with me.
