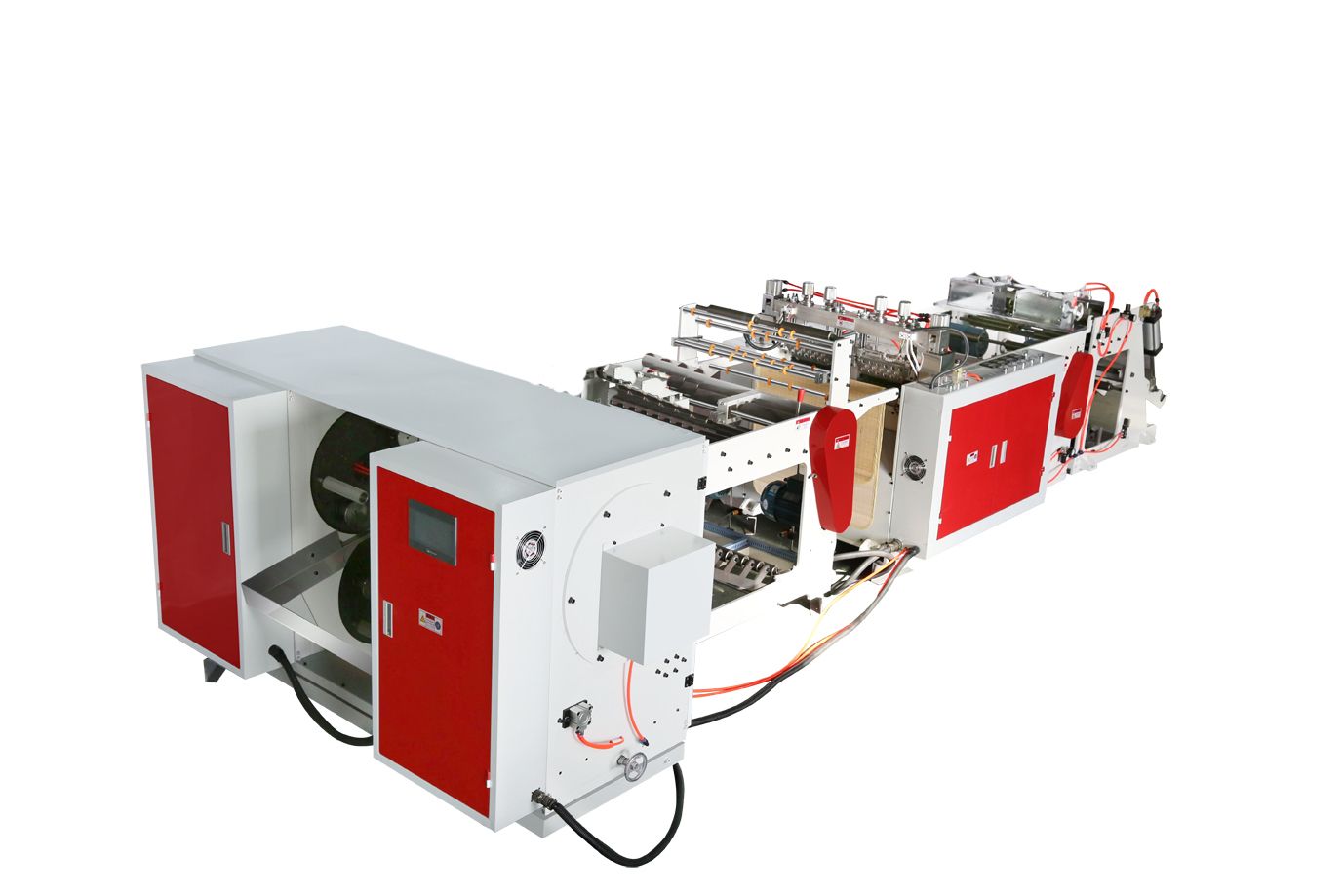

Double Line Coreless in Roll Plastic Garbage Bag Making Machine

Product Description

Double Line Coreless In Roll Plastic Garbage Bag Making Machine

Application:
This machine can make coreless garbage bag in rolls

Feature:

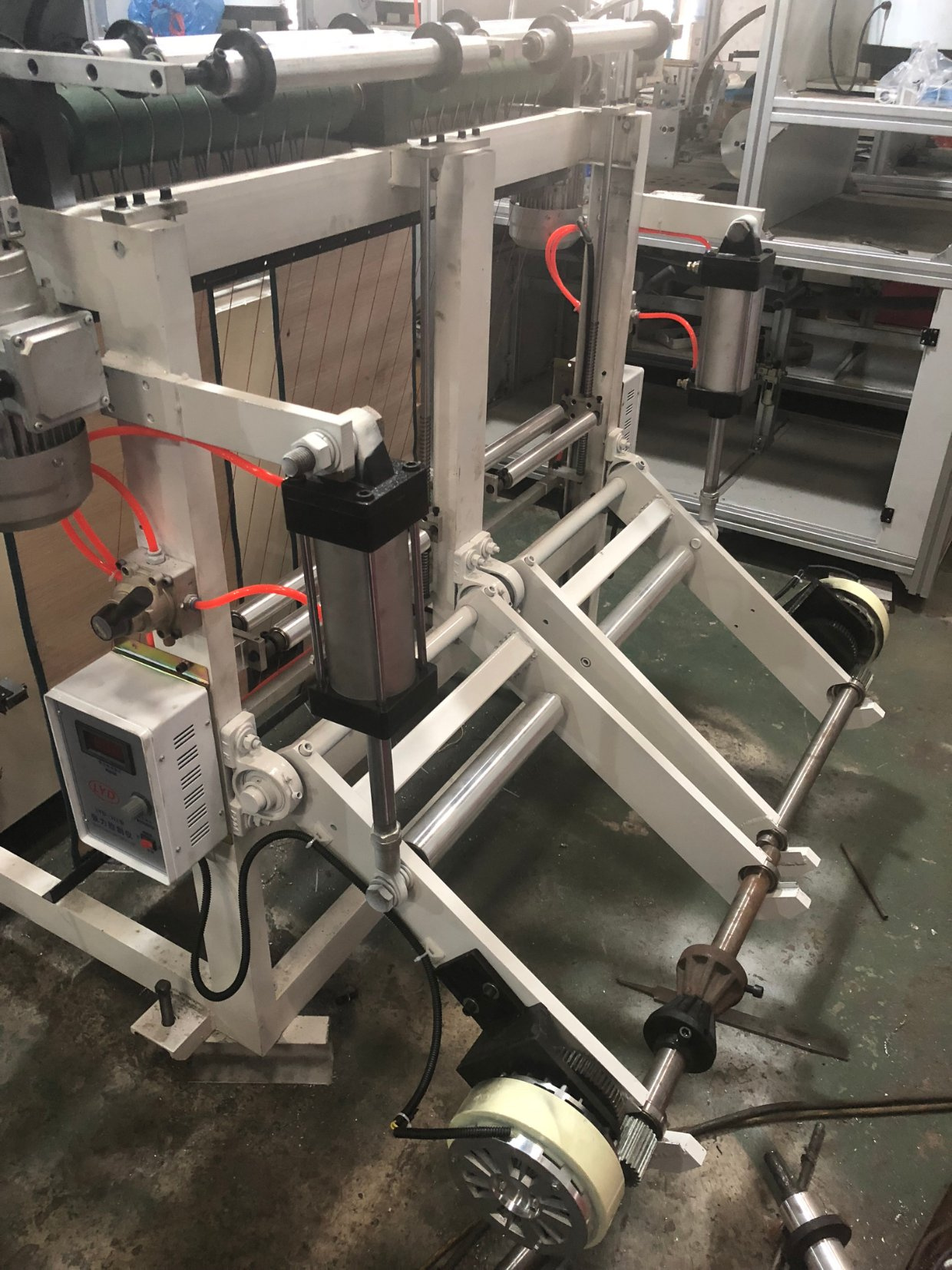

1. Double unwind, each unwind mechanical shaft controlled by magnetic powder brake ,automatic loading

2. Each material feeding controlled by inverter motor

3. Material outfeed controlled by inverter motor

4. Material length controlled by servo motor

5. Heat sealing and perforation is controlled by inverter motor

6. Equipped with air cooling device

7. Double shaft rotation type rewinding device, automatic roll change

8. Two rewinding shaft driven by two inverter motor

9. PLC+touch screen with convenient operation, we can set machine speed, meter count and bag length

10. Whole machine has 2 sets servo motor, 9 sets inverter motor, 2 sets step motor and 2 sets PLC

Specification:

Model	LJ500
Max bag width	120mm
Bag length	200-1000mm
Suitable material	LDPE, HDPE and recycle material
Material thickness	10-50 um per layer
Max unwind width	240mm
Max unwind diameter	800mm
Max rewind diameter	150mm
Bag making speed	150*2 pcs/min
Rewind roll change type	Automatic
Rewind roll bag quantity	Max 30 pcs
Machine power	20kw
Air consumption	5HP
Weight	3000kg
Dimension	6200mm×2240mm×1200mm

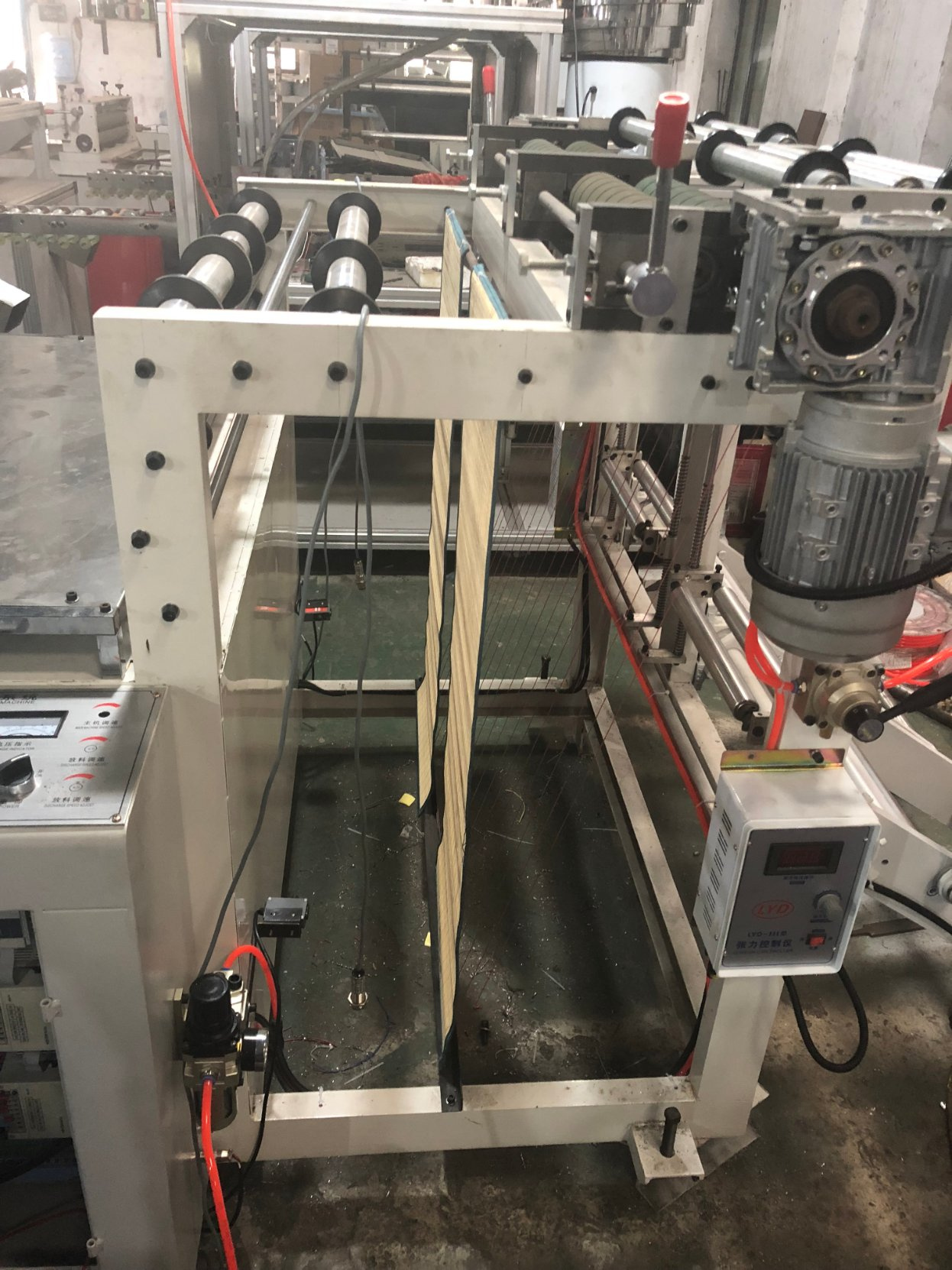

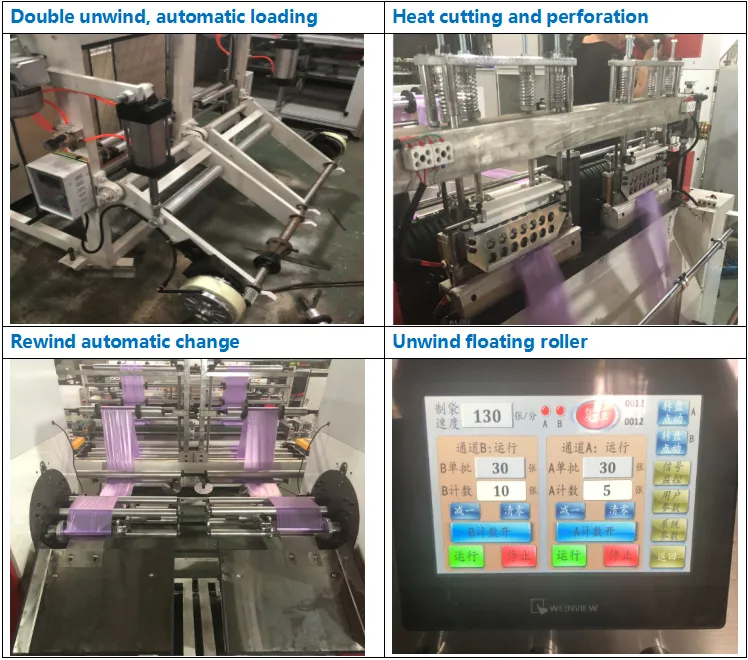

Machine details:

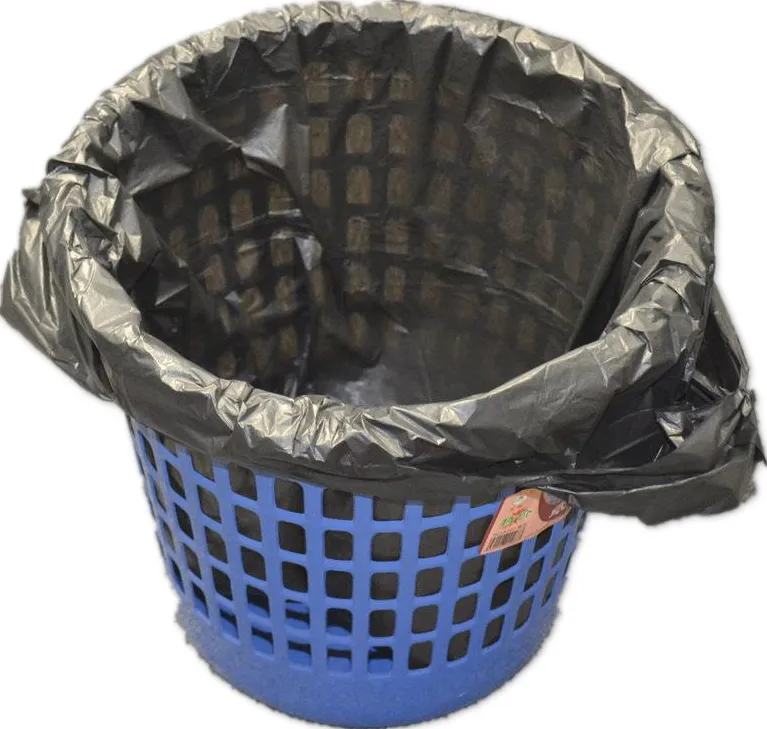

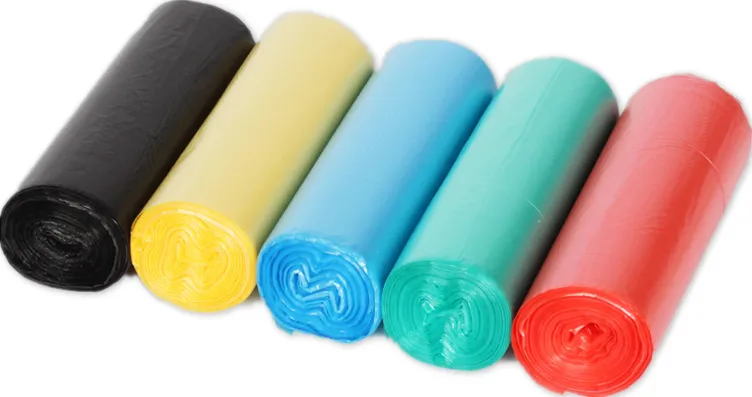

Bag sample:

Packing and shipping:

Certification:

Our company:

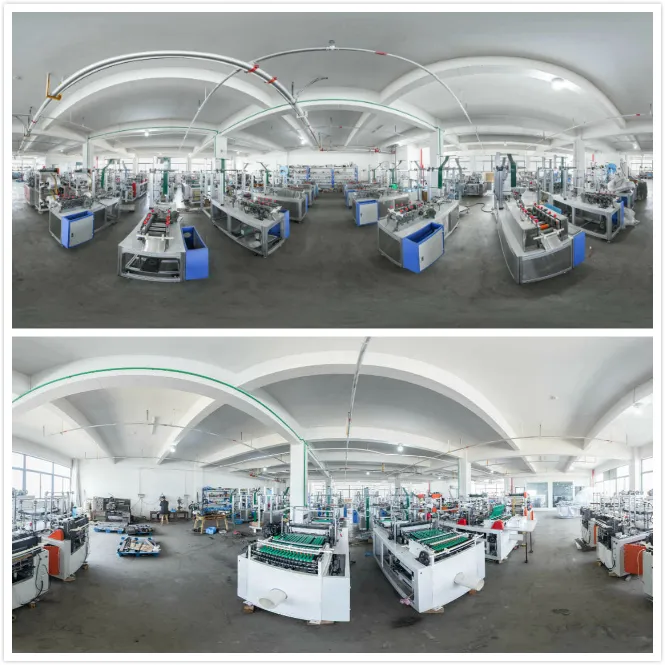

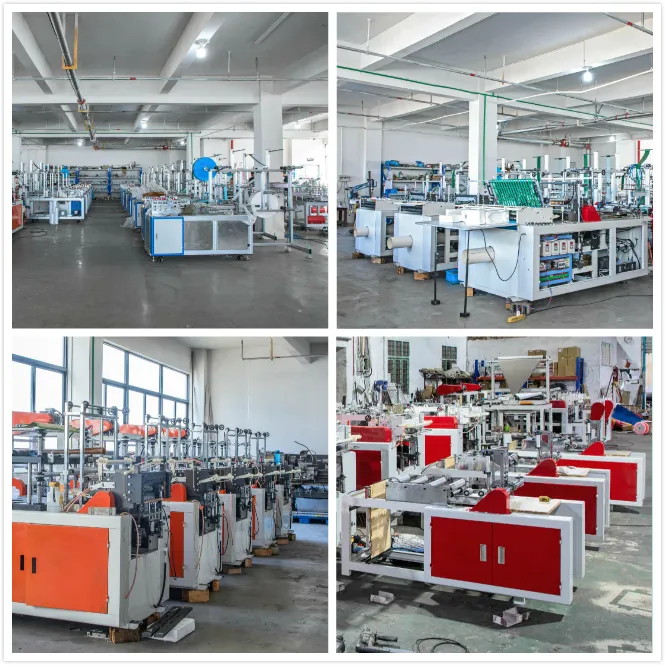

Workshop:

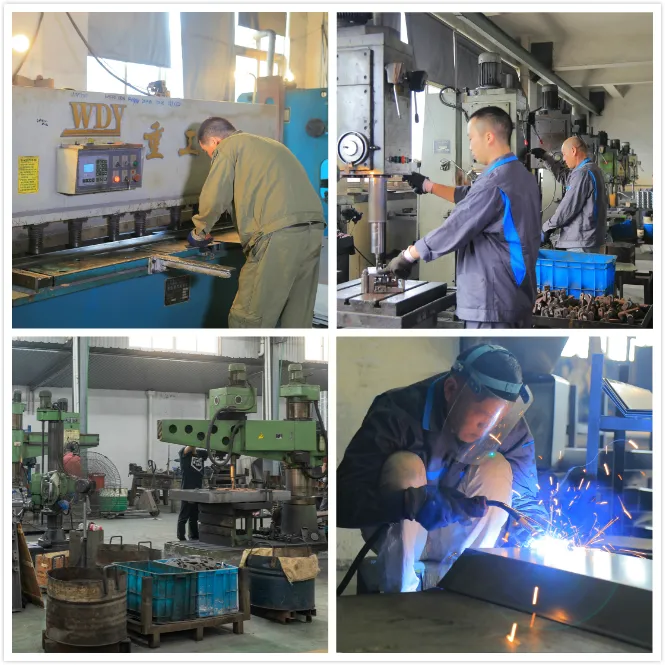

Processing equipment:

Exhibitions:
