All in One Polythene Courier Bag Making Machine Price with Double Servo Motor
All in one polythene courier bag making machine price with double servo motorPerformance and Features: This courier bag making machine has been shown 6 times in Chinaplas. We keep breakthrough intechnology and performance and had developed it. It's recognized among the domestic and foreign buyer......
Send Inquiry
Product Description

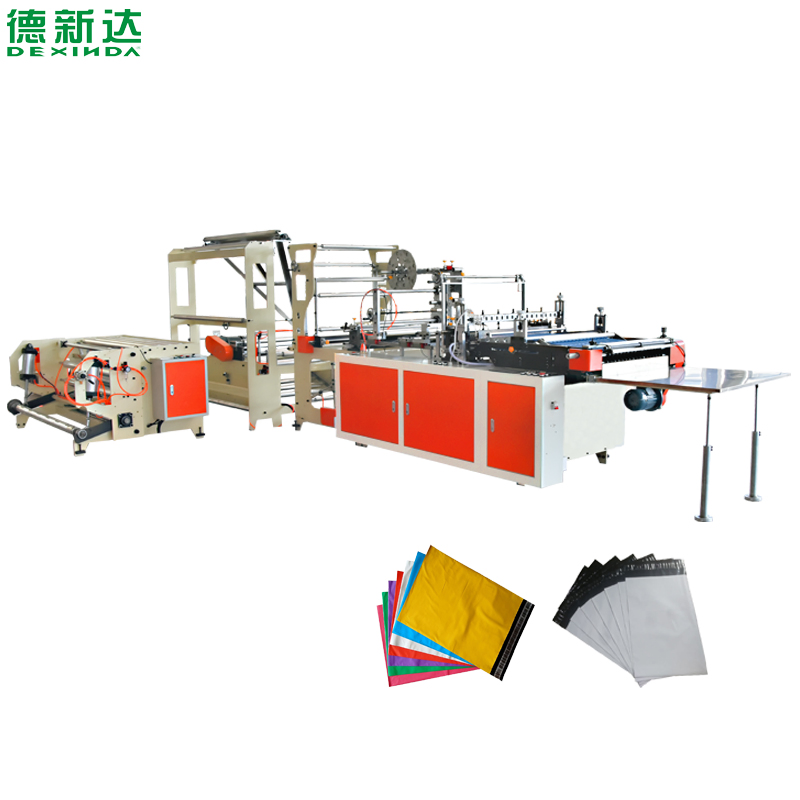

All in one polythene courier bag making machine price with double servo motor
Performance and Features: This courier bag making machine has been shown 6 times in Chinaplas. We keep breakthrough in
technology and performance and had developed it. It's recognized among the domestic and foreign buyer in the professional courier
bag making industry. Now we had updated to All-in-one machine, with the function of auto-loading, film folding,bill pocket sealing,
hot melt glue spraying, sealing &cutting,etc, all process will be finished in one machine to production efficiency rapidly. In terms of
hardware, the machine adopts Taiwan computer servo control system, programmable custom PLC. Using sensitive electric eye from
Europe, with automatic alarming when colors code disappears, effectively reduce operating loss. With function such as up-down rolls
changing deice to adhere the service concept of customer demands.
Specifications:
| Product name | All in One Courier Bag Making Machine |
| Model number | KDYT-30 |
| Brand | Dexinda |
| Power supply | 3Phase 380V 50Hz |
| Touch screen operation interface(Taiwan Weinview) | 1 set; 7 inch |
| 1.5 KW servo drive- DELTA | Yes |
| 1.5 KW Servo motor- DELTA | Yes |
| Main motor | 2.2 KW |
| Main inverter- DELTA | 2.2 KW |
| Front feeding motor | 0.37 KW inverter |
| Back feeding motor | 0.75 KW inverter |
| Bag width | 100-700mm |
| Bag length | 100-700mm |
| Bag forming speed | 30-150 pcs/min |
| Bag thickness | 0.03-0.15 mm |
| PLC -YONGHONG-Taiwan | FATEK brand |
| Reducer & inverter for folding device | 0.75 KW |
| Heat sealing copper knife | 30 Inch (1 side) |
| Film folding device | 1 set |
| Wlue auto-pause funtion (with print) | Yes |
| With glue auto-pause funtion (without print) | Yes |
| With full automatic tension control | Yes |
| Shenshi color tracking electric senser-Yatai | 2 pieces |
| 1400mm width heavy duty Auto Edge-bias correcting device | With pneumatic-material-loading, air shaft feeding device |
| Auto loading | Yes |
| One rack 2 positions punching device,excluding punch die | Yes |
| With 4-pole mechanical transmission back pocket sealing device | Yes |
| 2 lateral copper knifes | Yes |
| 10KG Hot melt glue applicator | 1 set |
| Vertical roller back pocket sealing device | Can be choosed |
| Complete machine with steel plate structure | Yes |
| Total power | 5 KW |
| Machine size | L5800* W1300* H1400mm |
| Machine weight | 3,000KGS (40HQ*1) |
