2021 China Famous Brand Non Woven Bag Machine
2020 China famous brand Non Woven Bag Machine Specifications:1. Bag with handle in directly2. Full automatic machine3. Ultrasonics Sealing machine4. High speed5. Patent productsCharacteristics:1. Ultrasonics sealing machine2. Full automatic bag machine3. Enviorment friendly bag machine4. Could make ......
Send Inquiry
Product Description
Specifications:
1. Bag with handle in directly
2. Full automatic machine
3. Ultrasonics Sealing machine
4. High speed
5. Patent products
Characteristics:
1. Ultrasonics sealing machine
2. Full automatic bag machine
3. Enviorment friendly bag machine
4. Could make bag with handle in directly
5. PP and CPP bag

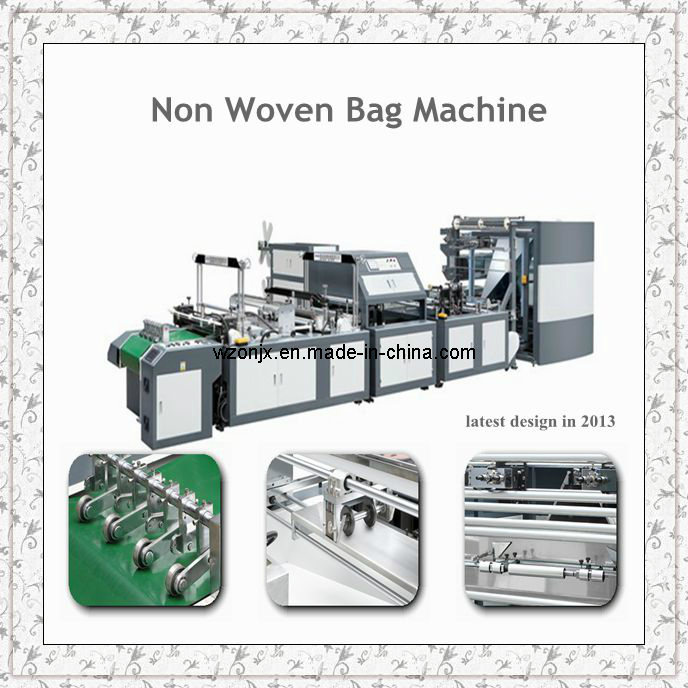

6. Latest design in 2013
7. Patent products
8. High speed
9. CE and ISO9001 Standard

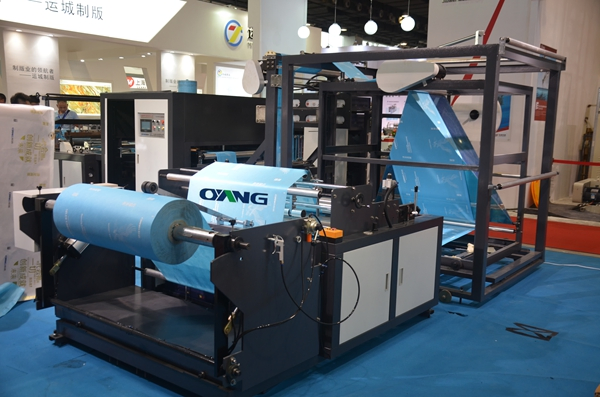

Properties:
1. This machine takes nonwoven fabric as raw material, it also can make different shaper of non-woven bag, non woven flat bag, handle bag, vest bag, shoes bag, zipper bag and box bag, etc.
2. This machine is a collection with mechanical and electrical, using LCD touch screen operation. Match with stepping type length setting, photoelectric tracking, computer automatic positioning, computer automatic struggle edge, accurate and stable.
Bag Making Procedure:
Raw material - Bag mouth fold - thermal bonding - side fold - bottom sealing - loop handle fix - thermal bonding - edge cut - bag cut - colection

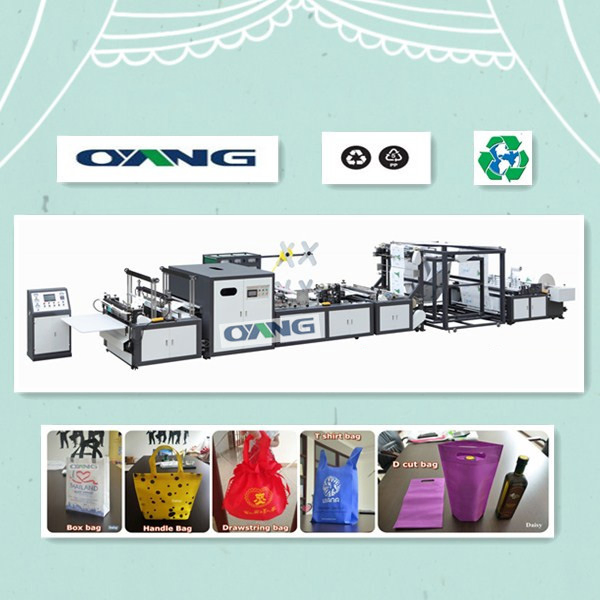

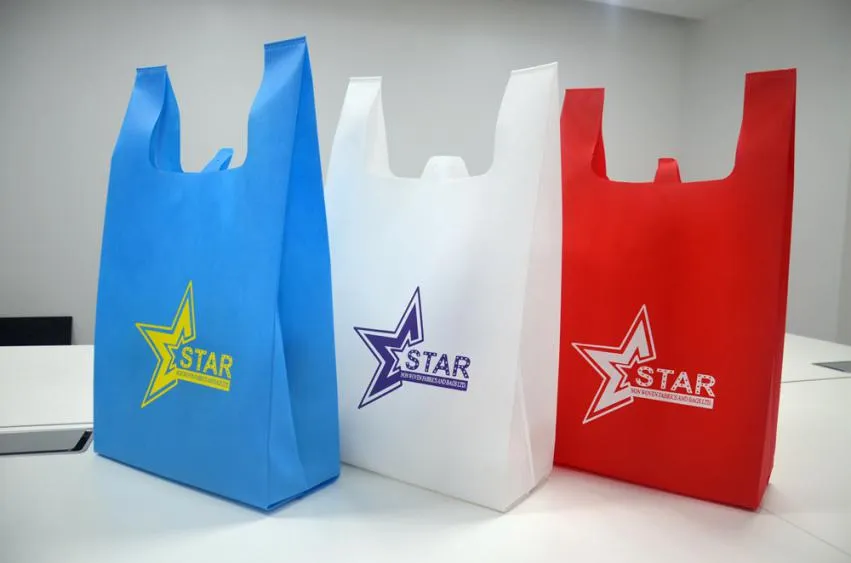

Type of bag:
1. Box bag
2. Zipper bag
3. Handle bag
4. T-shirt bag
5. D-cut bag
6. Shoes bag
7. Banana bag
8. Shopping bag

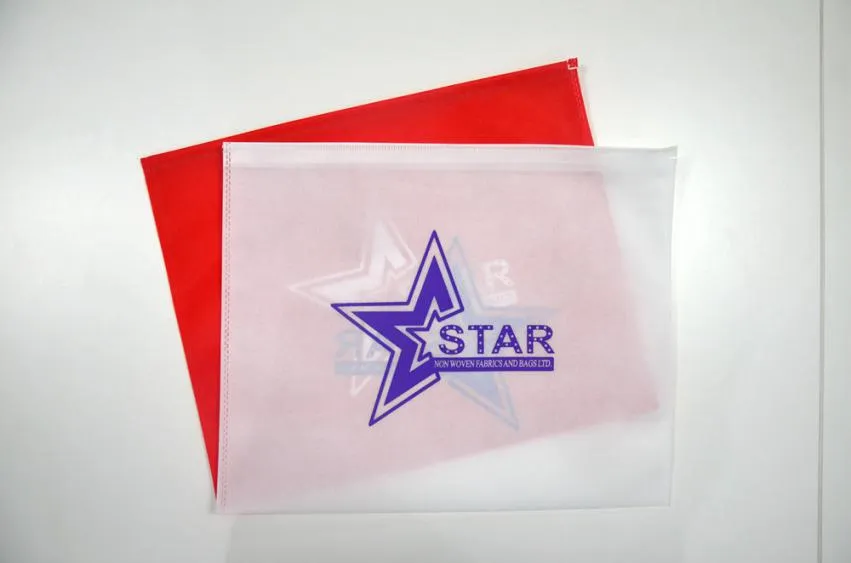

9. Flat bag
10. Rice bag
| Type | ONL-XA700 | ONL-XA800 |
| Production speed | 40-100pcs/min | 40-100pcs/min |
| Bag width | 200-580mm | 200-680mm |
| Bag length | 100-800mm | 100-800mm |
| Loop handle length | 400-600mm | 400-600mm |
| Loop handle thickness | 60-120g.s.m | 60-120g.s.m |
| Bag making thickness | 35-10g.s.m | 35-100g.s.m |
| Power supply | 380V / 220V 50Hz | 380V / 220V 50Hz |
| Total power | 22Kw | 25Kw |
| Overall size (L*W*H) | 13500*2300*2000mm | 13500*2400*2000mm |
Bag Type - Leader can make:
Non Woven Handle Bag (making online) | |

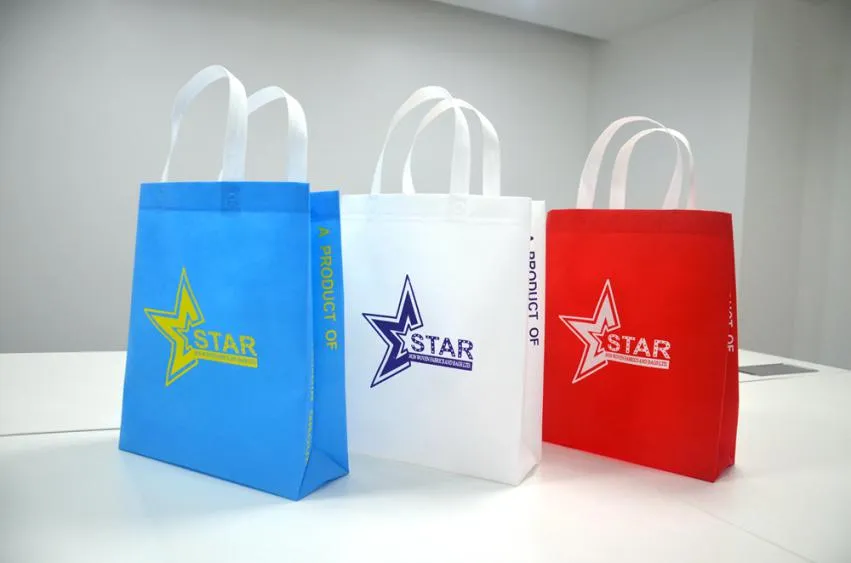

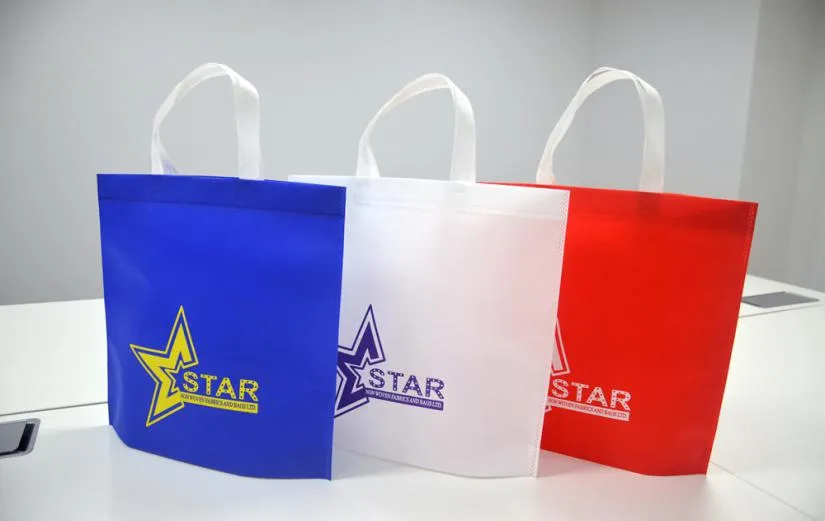

Non Woven Handle Bag (making online) Handle bag with or without bottom Bag Length: 300-800 mm Bag High: 200-580 mm Bottom Gusset: 0-80 mm Handle Length: 390-600 mm Handle Width: 50-60 mm
| |

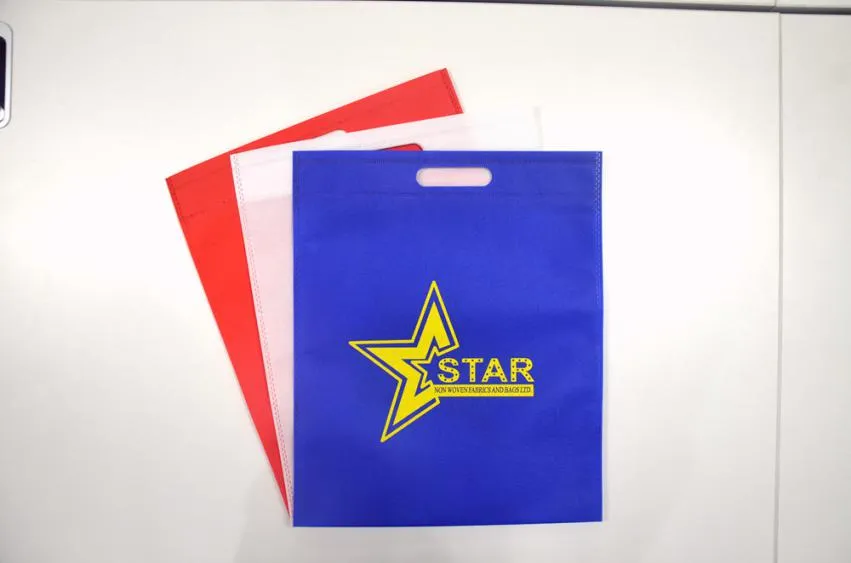

Non Woven D-cut Bag (making online) D-cut bag with or without bottom | |
Non Woven Shoes Bag (making online)Shoes bag also named drawstring bag | |
T-shirt Bag (need make separately)Need extra mouth punching machine |

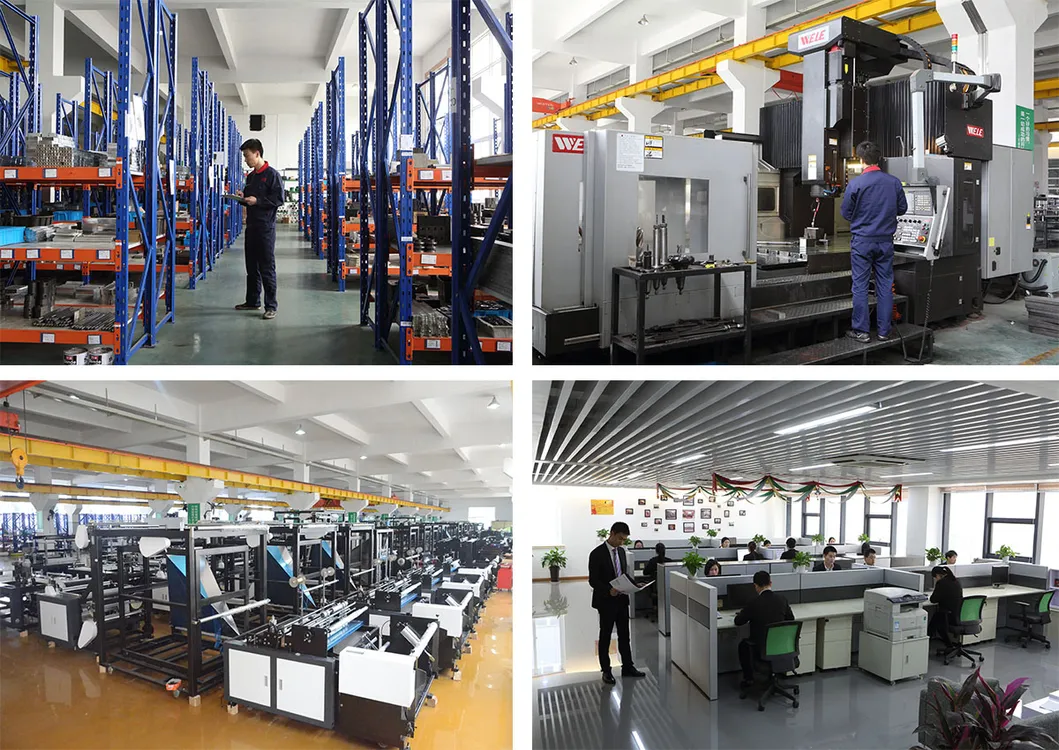

Our Workshop
Our Services:
Our Certifications:

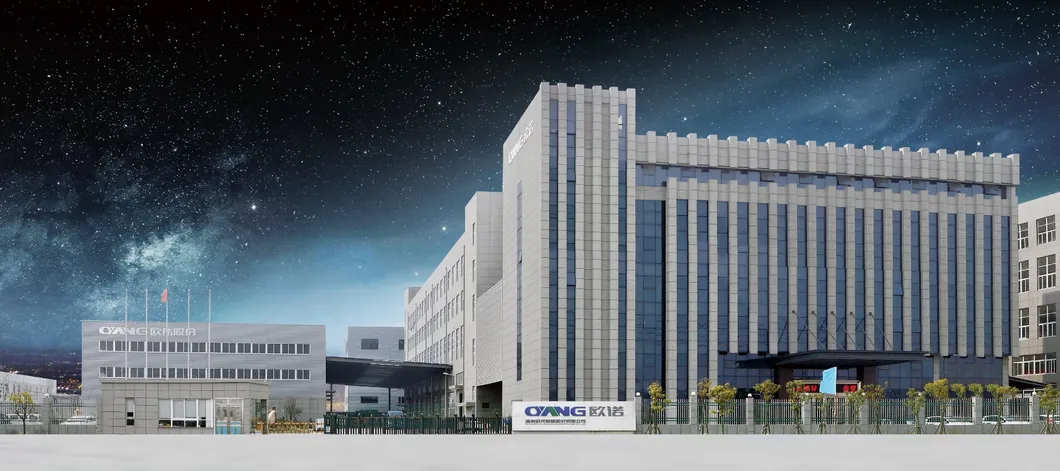

Our Company
Wenzhou Allwell Machinery was founded on the year of 2006. we are a comprehensive company and professional nonwoven bag making machine manufacturer. In order to create more economic and offer the one-step service, we collect all the knowledge and resource to service our customers with a complete solution in nonwoven industry in our field, including the nonwoven production line, nonwoven bag making machine and nonwoven printing machine, and we had exported them to all over the world in the past years.
We have passed ISO9001:2008 quality certificated system and CE safety certificated system. With rich technology and capital resource, we pay high attention to the new product innovation. Every year we have at least one new design machine.
Creating value for customers first is the only way to achieve self-worth. We look forward to cooperating with you!
