Super Heat Tunnel Fabric Packaging Wrapping Machine
FLB-80125AC Fully automatic L tyle hot shrinkable film packing machine (Vertical sealing and cutting)Product Feature*The holder of sealing blade is driven vertically by a four-column system, which can overcome the breakage, wrinkle, material waste and off-center sealing line the traditional L-shape ......
Send Inquiry
Product Description

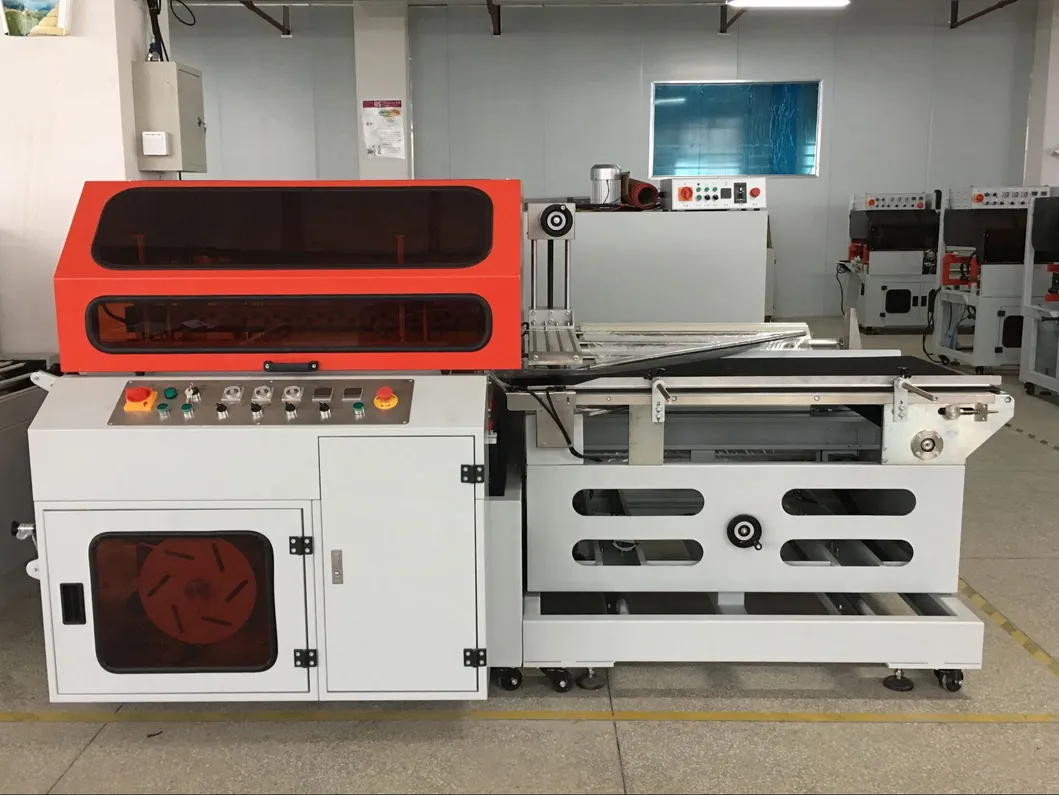

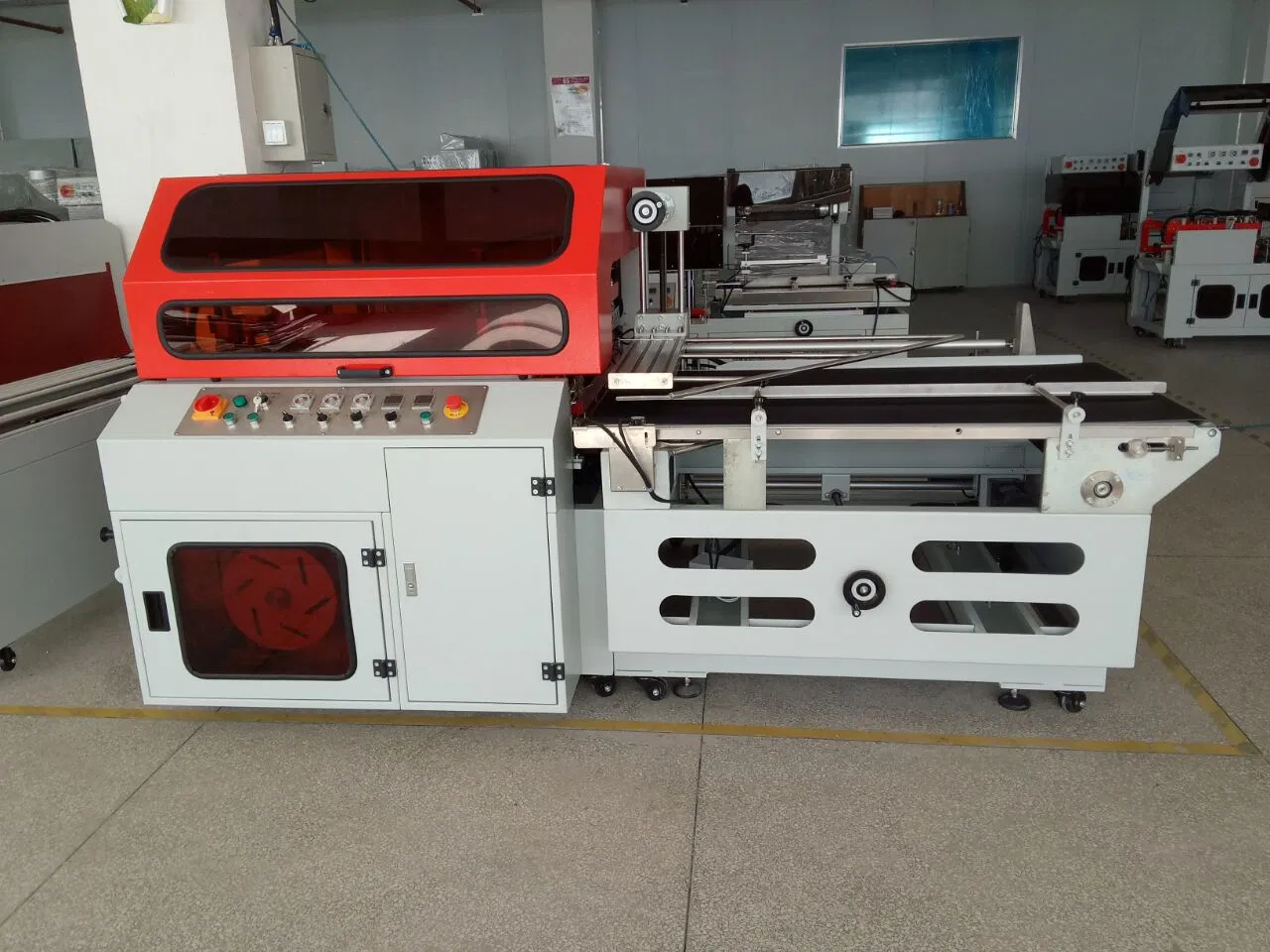

FLB-80125AC Fully automatic L tyle hot shrinkable film packing machine (Vertical sealing and cutting)
Product Feature

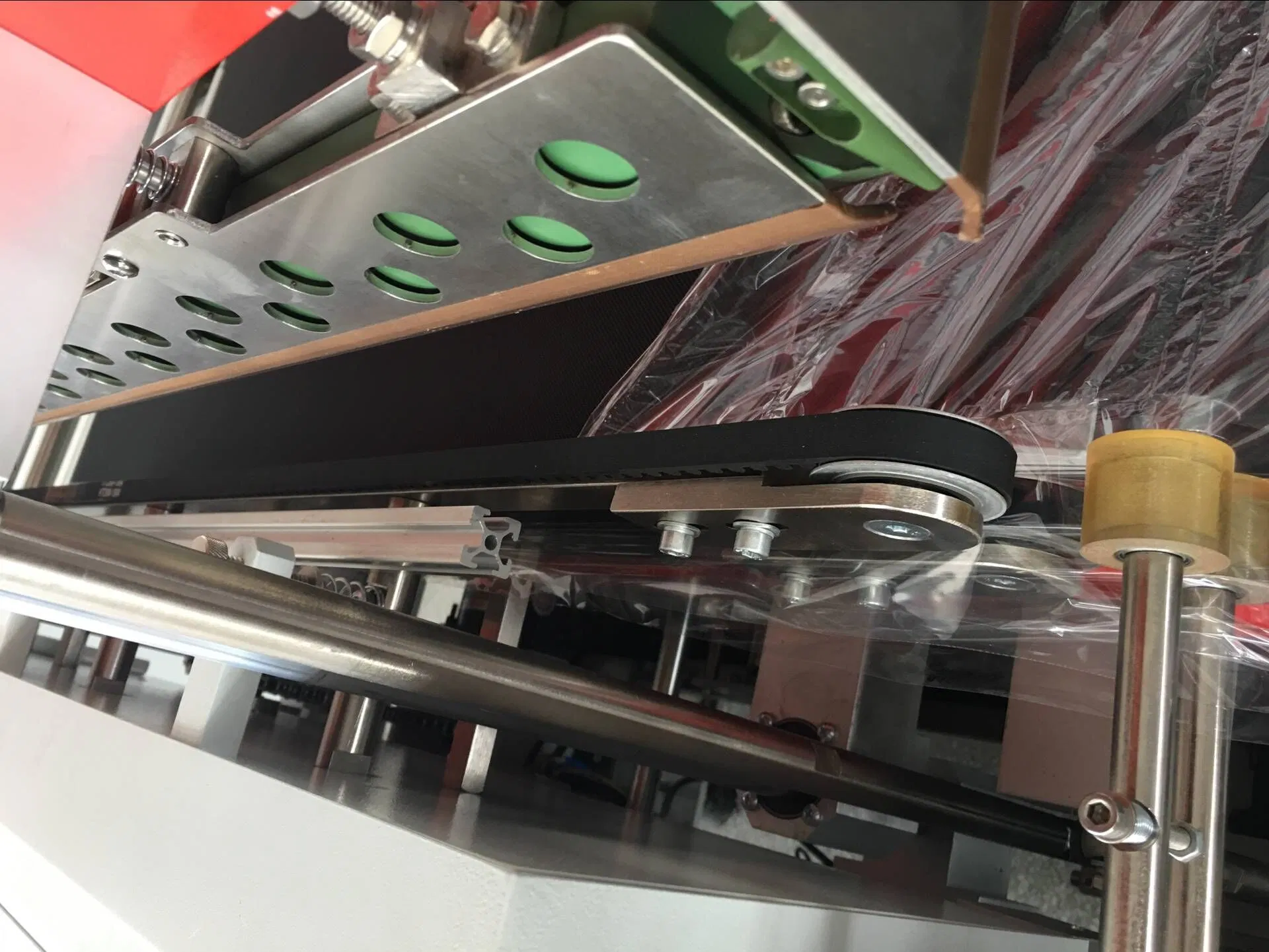

*The holder of sealing blade is driven vertically by a four-column system, which can overcome the breakage, wrinkle, material waste and off-center sealing line the traditional L-shape shrink wrapper had, and make it available for more packing films in different quality.
*When there is big height distinction of products,can adjust suitable sealing opening height.This can make sure the sealing line in the middle and reduce sealing cutter time.So increase production speed and reduce cost. *Adopt level and vertical photoelectric eye,can switch easyly.It is fast to do packing for thin and samll products. Very easy to finish packing.
*Adopt most advanced PLC programming,easy operating ,which have safety protection and alarm function. *It is particularly suitable for large size products in single or combined packaging.
Usable range
Applied to bulk production in industy like tea leaf, food, cosmetics,printings, health care products, beverages, rubber products, adhesive tape, bathing, chemical products,photo albums, photo frames and other handicrafts.
Technical data
| Style No | FLB-80125AC |
| Voltage | 1ø220V/240V |
| Power Unit | 3KW |
| Air pressure | 5kg/cm2 |
| Net weight | 800kg |
| Machine overall size LxWxH(mm) | 2470×1500×1445(mm) |
| Sealing cutter size LxWxH(mm) | 800*1250(mm) |
| Packing size | (100~950)×(60~700)×(5~200)mm |
| Packing speed | 10-30 |
Service
Payment
1. The TT, Western Union, LC,Money Gram,Cash payment is available.
2. We have the machine in stock. Due to the voltage and mold difference, we need around 30 days to send out the machine. We will notice you if there is the special circumstance.
Delivery Time
1. We can send out the machine within 30 days after received the first payment.
2. The machine will be ship to you by sea shipping or plane. Please tell us your sea port or air port name so that we could quote you the freight.
3. You can also buy the insurance for the transportation.
4. We can also provide you door to door service, including custom clearance and tracking transportation in your country.
Warranty
1. All our machine have 1 year free warranty, during the warranty time, all the broken parts(not caused by man factor) can be changed free.
2. We can send our engineer go over sea for adjusting the machine and training your worker in your plant.
3. We have 24 hours hot line and email to help you to resolve the problem within 3 hours.
