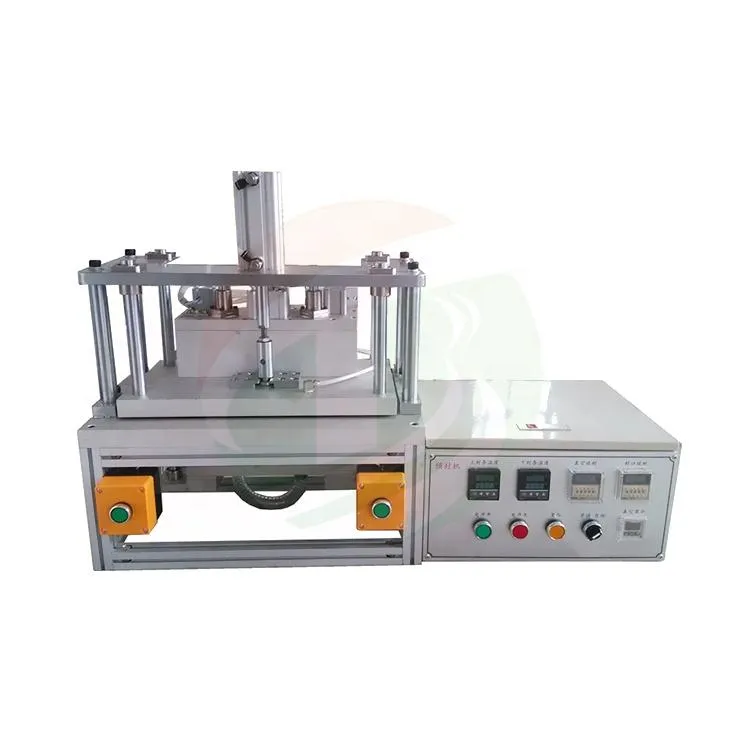

Pouch Cell Final Sealing Machine
Pouch Cell Final Sealing Machine1.TOB-JD400 compact vacuum sealer is mainly used for sealing aluminum-laminated case in glove box after injection of electrolyte into pouch Li-ion cell. 2.The flat sealing head can also suitable for final vacuum sealing after battery formation. Model Compact Vacuum S......
Send Inquiry
Product Description
1.TOB-JD400 compact vacuum sealer is mainly used for sealing aluminum-laminated case in
glove box after injection of electrolyte into pouch Li-ion cell.
2.The flat sealing head can also suitable for final vacuum sealing after battery formation.
Model | Compact Vacuum Sealer TOB-JD400 |
Source voltage | AC 220V/110V, 50/60HZ |
Power | 1500W |
Warranty | One year limited warranty with lifetime support |
Vacuum degree | -95Kpa - 0 |
Sealing head TEM | RT-250ºC, adjustable |
TEM accuracy | ±1.5ºC |
Sealing pressure | 0-7Kg/cm2, adjustable |
Sealing time | 0-99s, adjustable |
Sealing width | 5mm, customized |
Sealing head length | 400mm |
Air source | 0.5-0.7MPa (72.5-102psi) |
