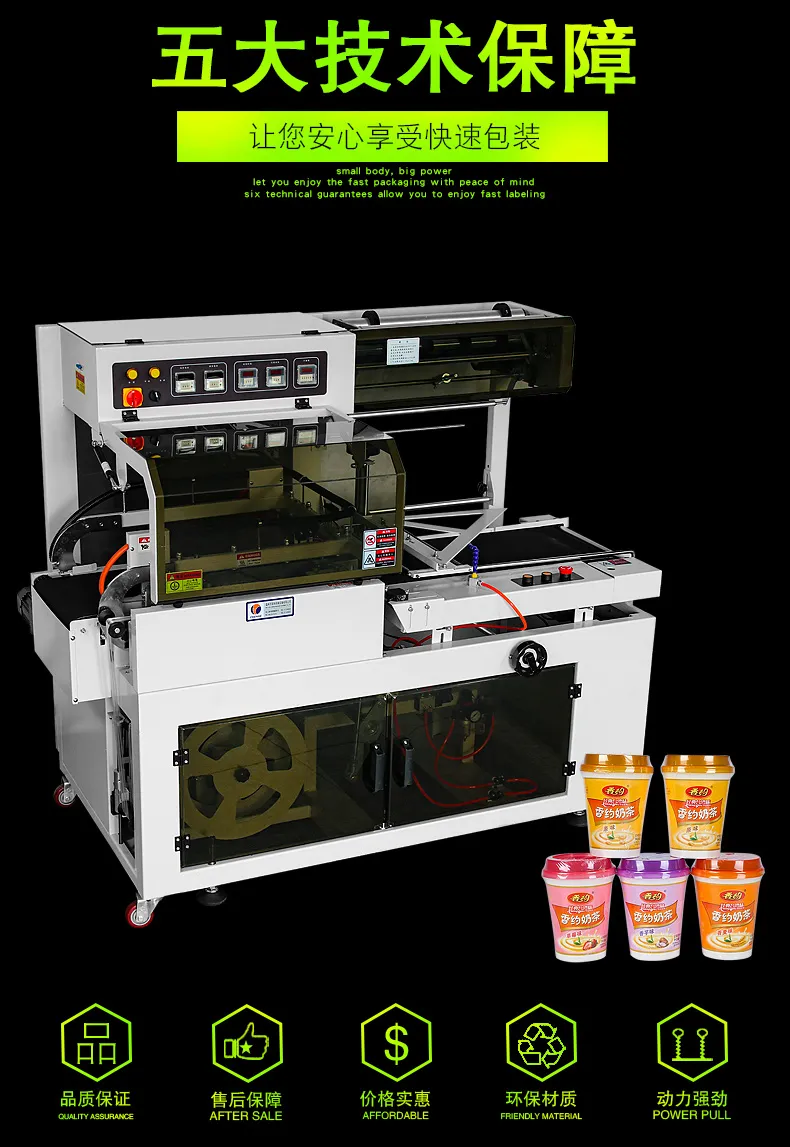

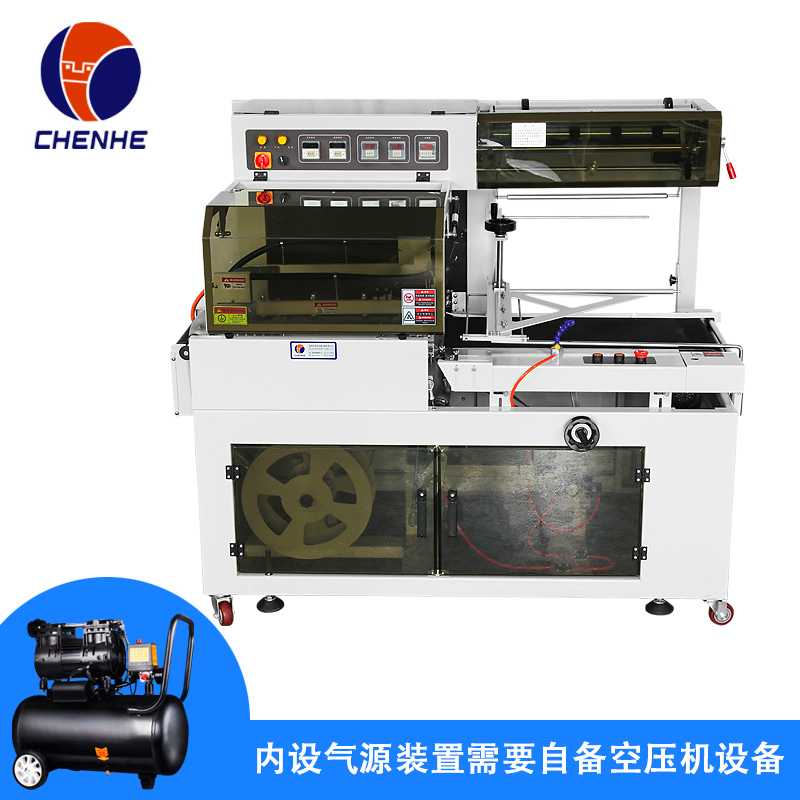

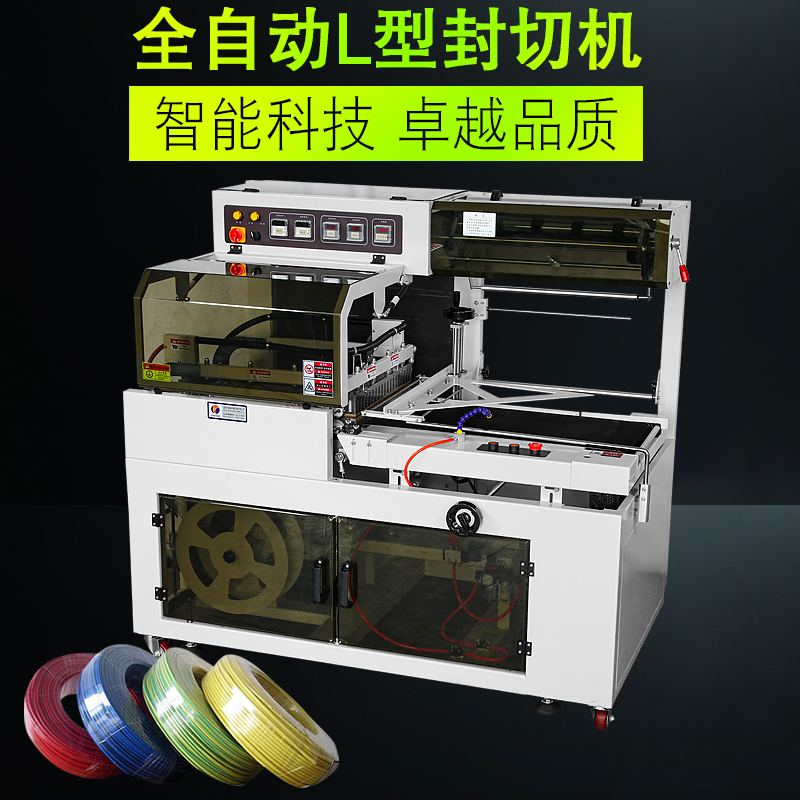

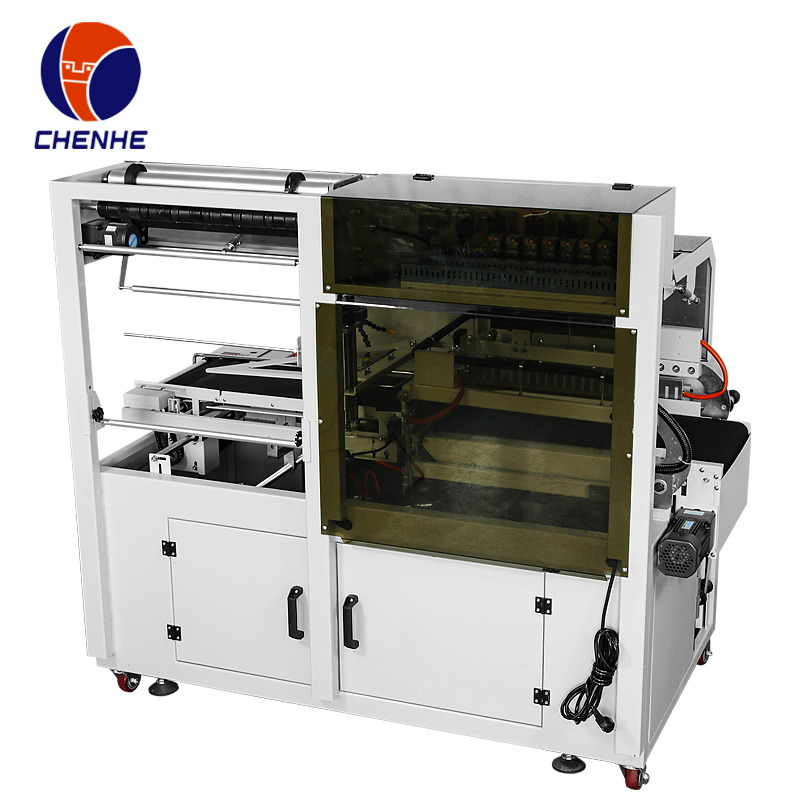

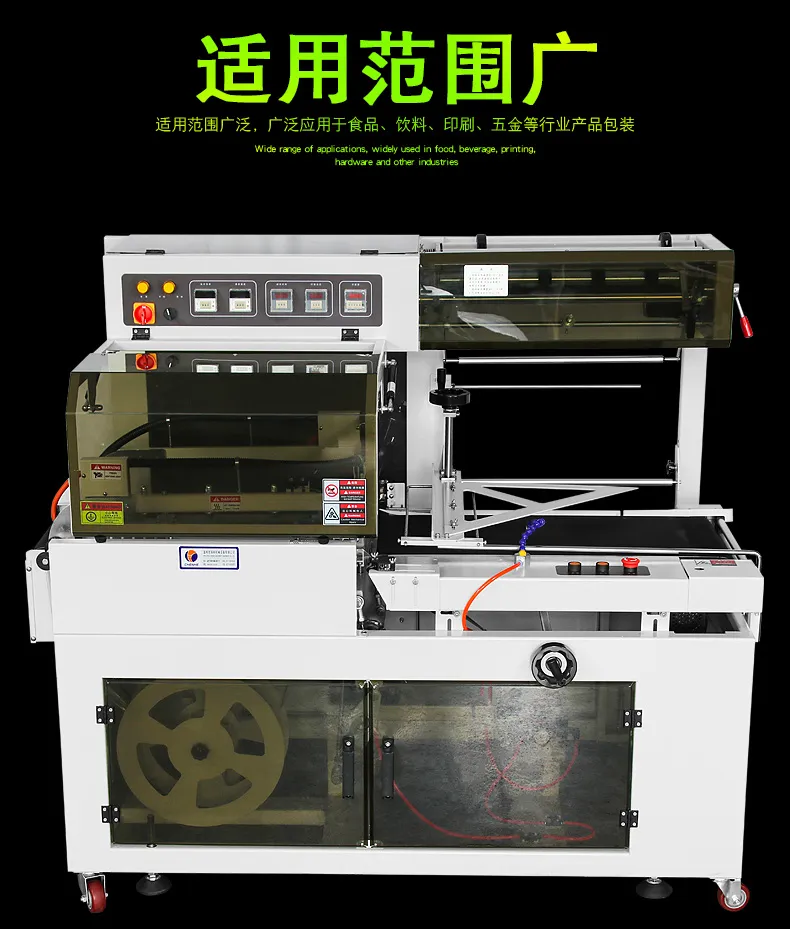

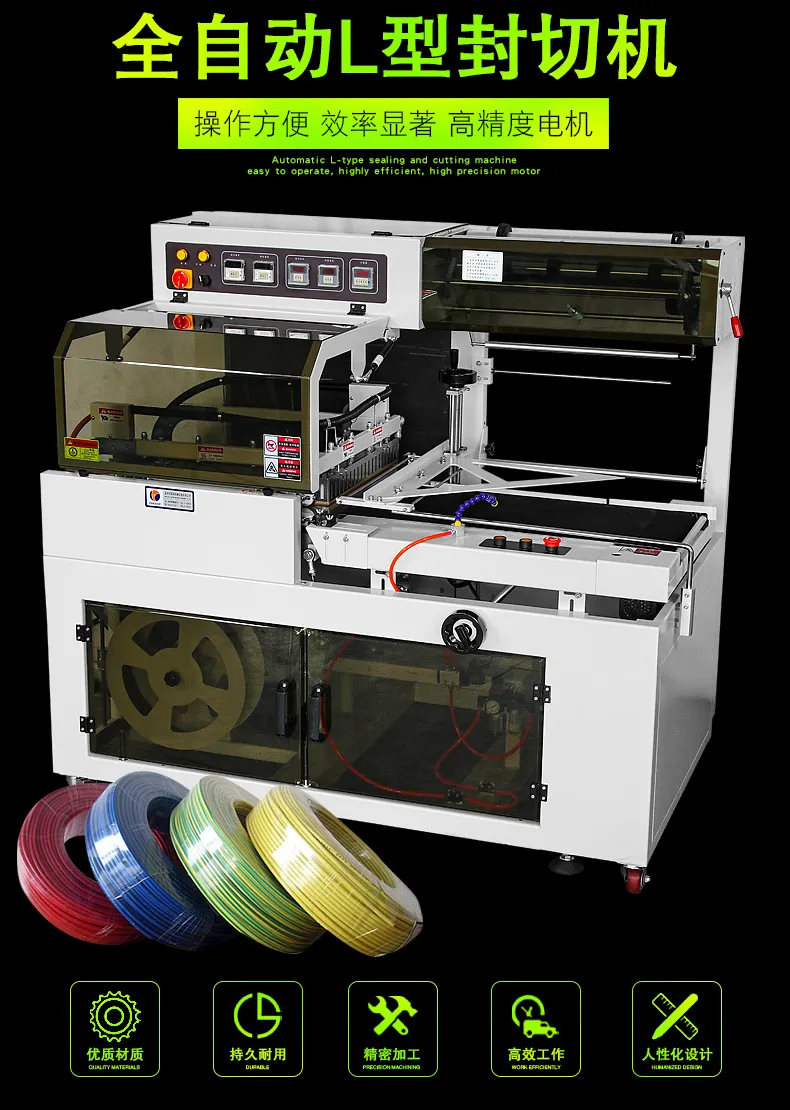

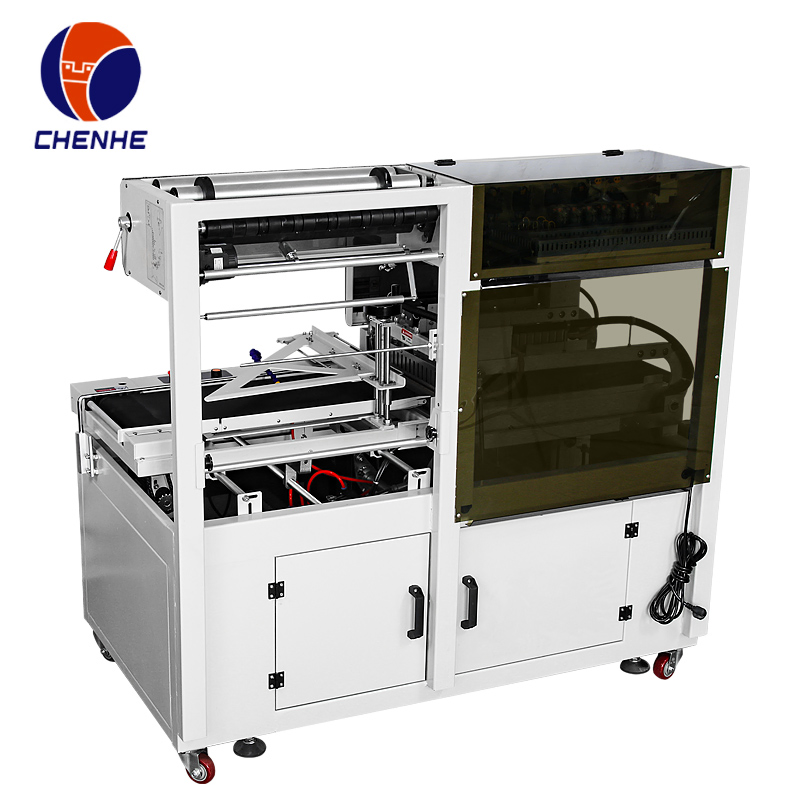

Dql5545 Automatic L Bar Type Sealing Packaging Machine for PE Film
SummarizeThe DQL-5545 can be added to an existing conveyor line or used by manually feeding the box/package onto the conveyor.Center fold POF/PVC film is used to automatically dispense,wrap and seal over your desired products.The operator manually sets the sealing length for the product to be wrappe......
Send Inquiry
Product Description
Summarize

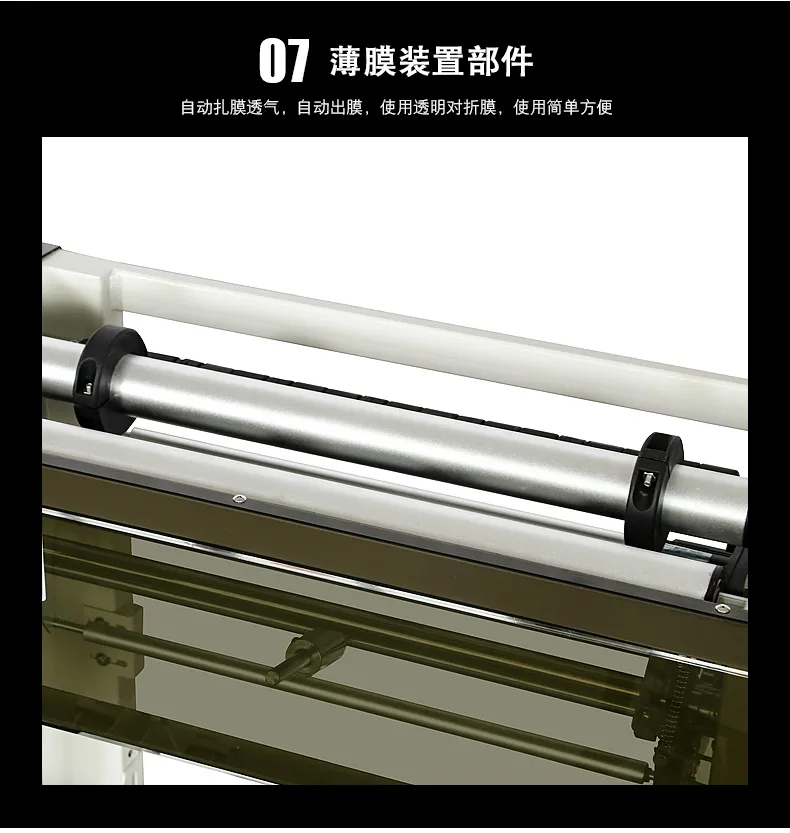

Center fold POF/PVC film is used to automatically dispense,wrap and seal over your desired products.

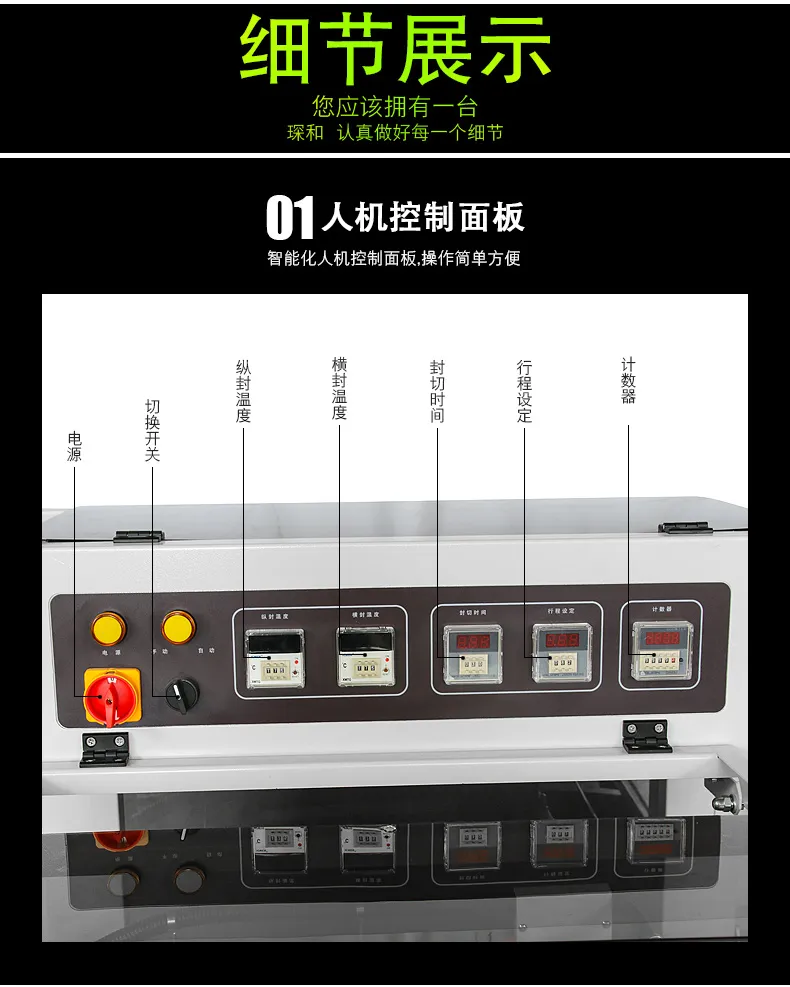

The operator manually sets the sealing length for the product to be wrapped.

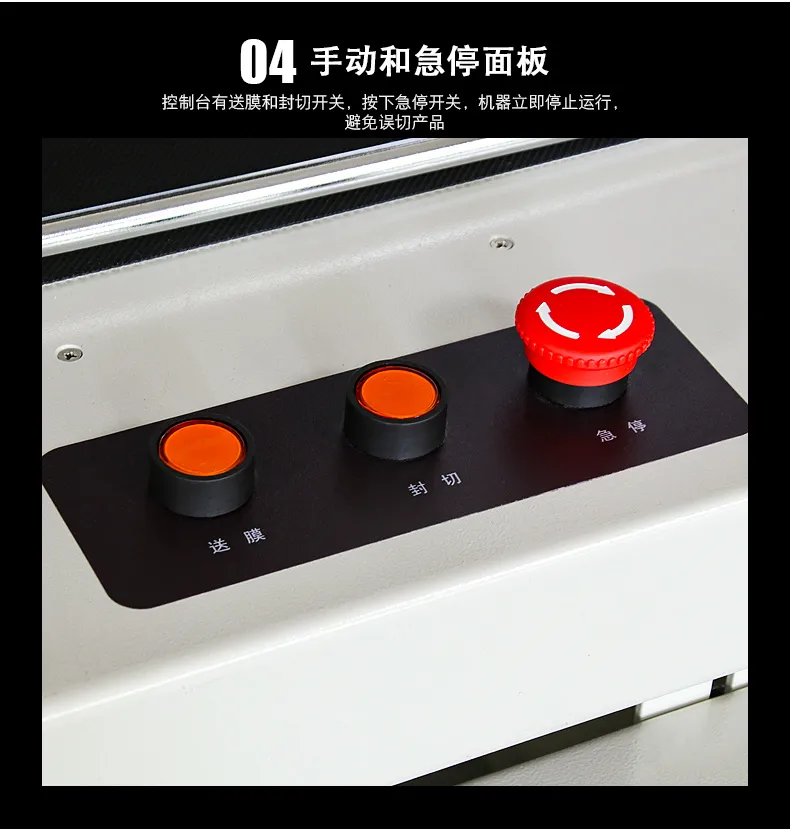

The sealer has a safety system which immediately stops the sealing mechanism in the event the operators hand or object interfered with the sealing operation.

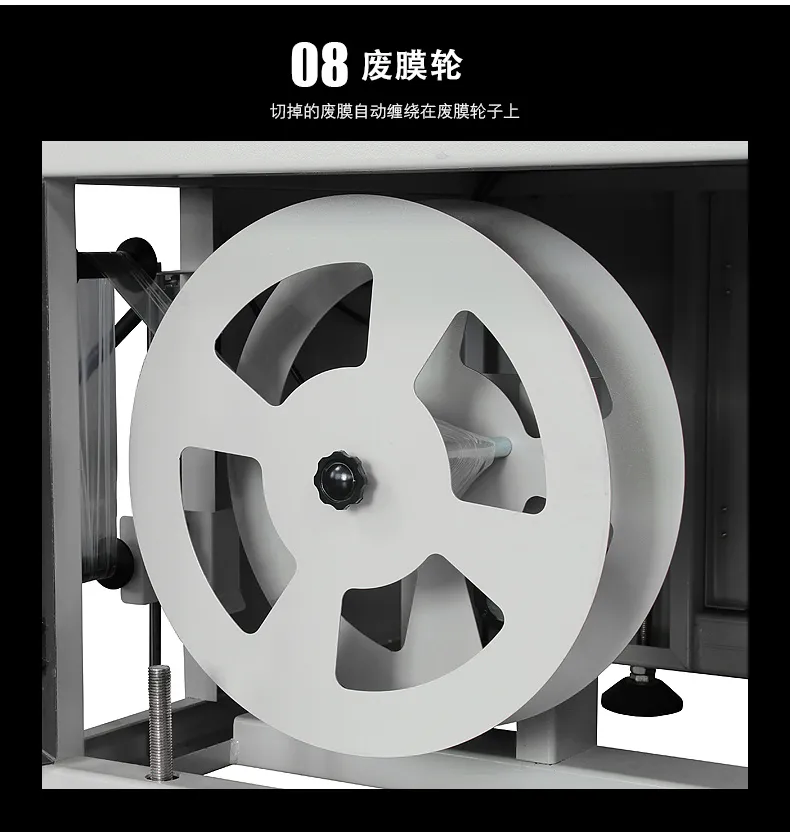

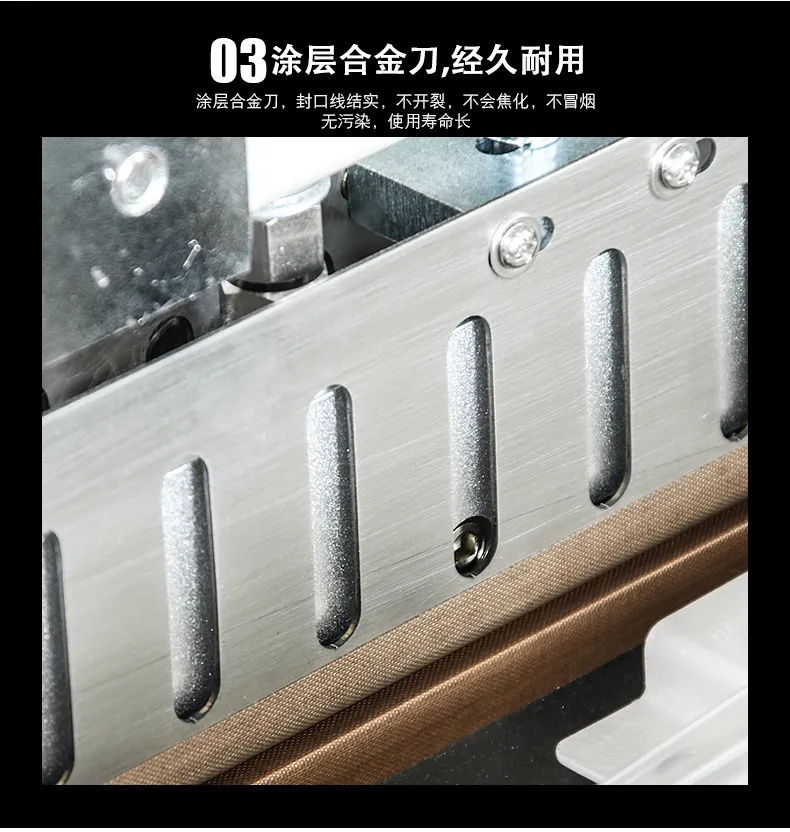

The sealing mechanism has a non stick coating which results in a smoke free operation/All excess plastic is wound onto a dispenser below the machine which can easily be dispensed of.
Once the product is sealed it then automatically runs through the thermal shrink tunnel where the shrink film is heat shrunk tightly around products.
| Model | DQL5545 |
| Power | 2.1KW |
| Voltage | 220V 50/60HZ |
| Sealing time | 0.2-1.0s |
| Thickness of film | 0.012-0.06mm |
| Compressor of work | 5-6mpa |
| Max packing size | L+2H≤550mm;W+2H≤450mm;H ≤140mm |
| Max sealing size | L550×W450 |
| Capacity | 0-25 pcs/min |
| Sealing temperature | 180ºC-250ºC depends on thickness of film and environment temperature |
| Packing material | POF PVC |
| Machine weight(kg) | 320 |
| Machine size(mm) | 1760*940*1580 |
