Tij Portable Low Cost Digital Data-Coding Desktop Mini Inkjet Label Printer on Sale
Mini Printer touch screen editing for regular concave and convex arcs surfaceSmall figure/Intelligent touch-screen/High definition printingSmall size but Super functionEasy to print on curved/irregular/small space Can be used in cartons, plastic bags, steel tubes, cylinders, bottle caps, Bottle bod......
Send Inquiry
Product Description

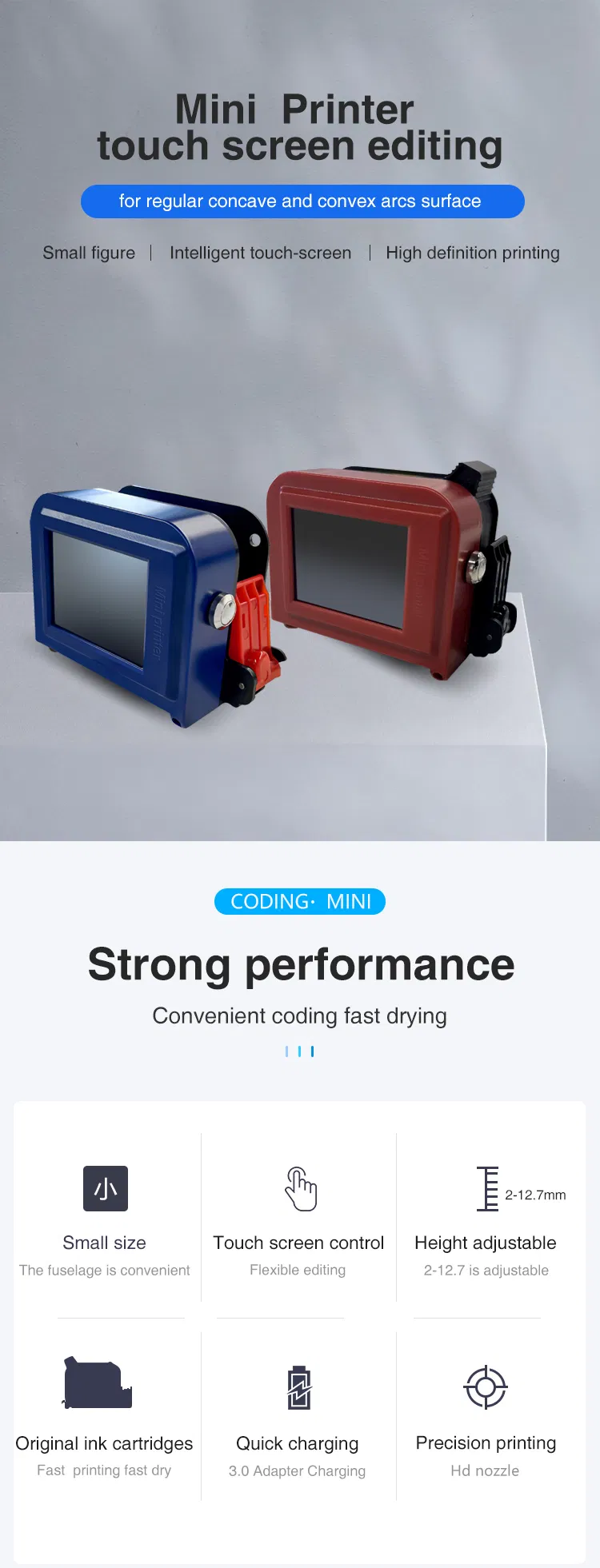

Mini Printer touch screen editing for regular concave and convex arcs surface
Small figure/Intelligent touch-screen/High definition printing

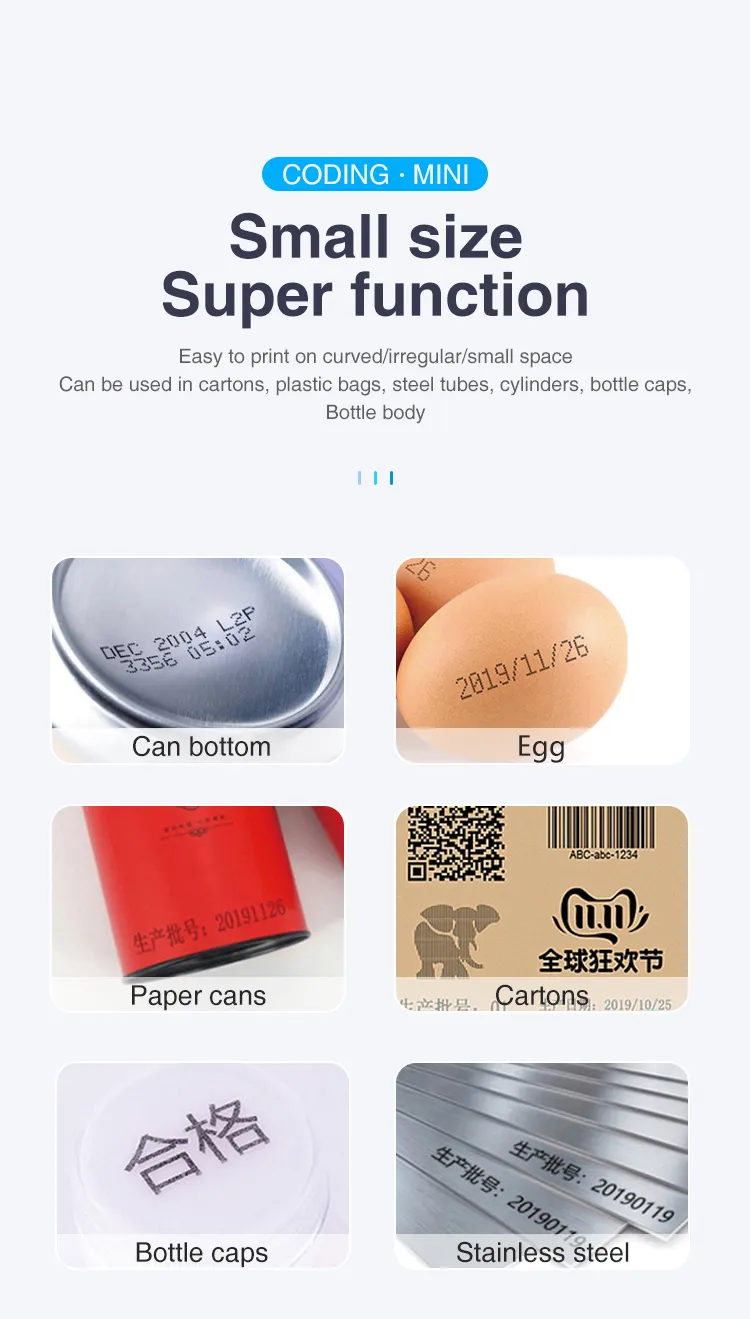

Small size but Super function
Easy to print on curved/irregular/small space Can be used in cartons, plastic bags, steel tubes, cylinders, bottle caps, Bottle body
Applicable to a wide range of materials
for various industries:Suitable for industrial, commercial and other fields clear printing , fast drying

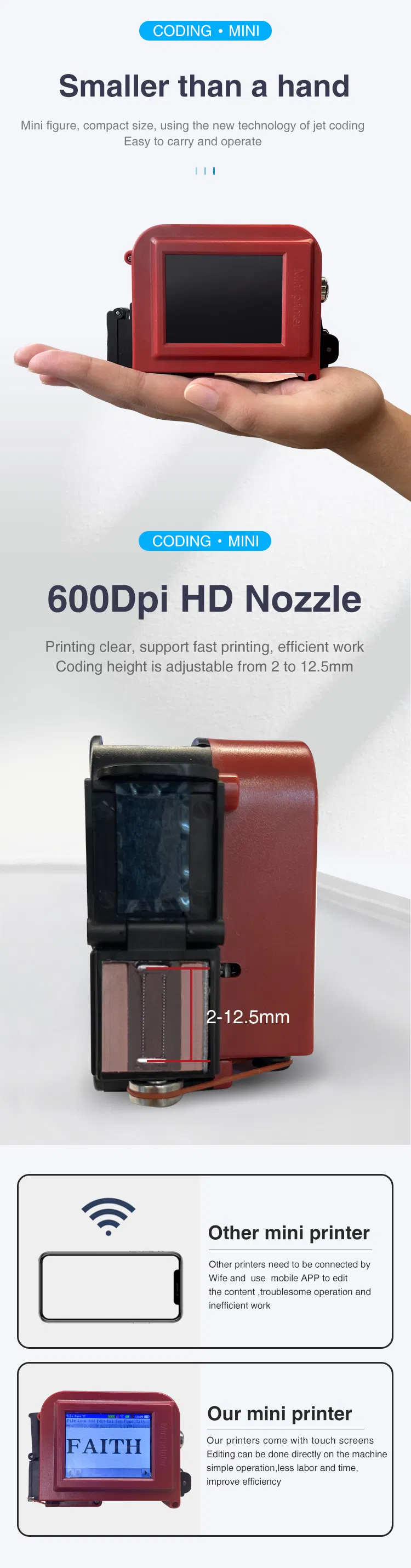

smaller than a hand:
Mini figure, compact size, using the new technology of jet coding Easy to carry and operate
600Dpi HD Nozzle:
Printing clear, support fast printing, efficient work Coding height is adjustable from 2 to 12.7mm
Other mini printer:
Other printers need to be connected by Wife and use mobile APP to edit the content ,troublesome operation and inefficient work
Our mini printer:
Our printers come with touch screens Editing can be done directly on the machine simple operation,less labor and time, improve efficiency
If you have any questions, please !!

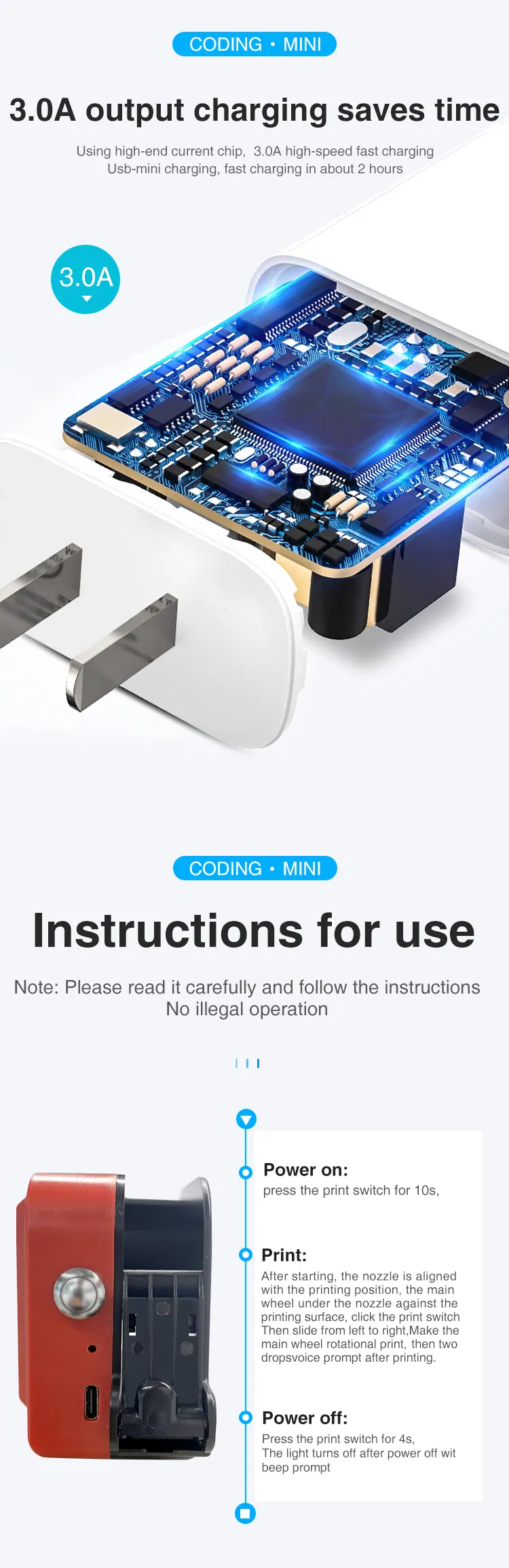

3.0A output charging saves time:
Using high-end current chip, 3.0A high-speed fast charging Usb-mini charging, fast charging in about 2 hours
Instructions for use:
Note: Please read it carefully and follow the instructions No illegal operation
power on: press the print switch for 10s,
Print: After starting, the nozzle is aligned with the printing position, the main wheel under the nozzle against the printing surface, click the print switch Then slide from left to right,Make the main wheel rotational print, then two dropsvoice prompt after printing.
Power off: press the print switch for 4s, The light turns off after power off wit beep prompt

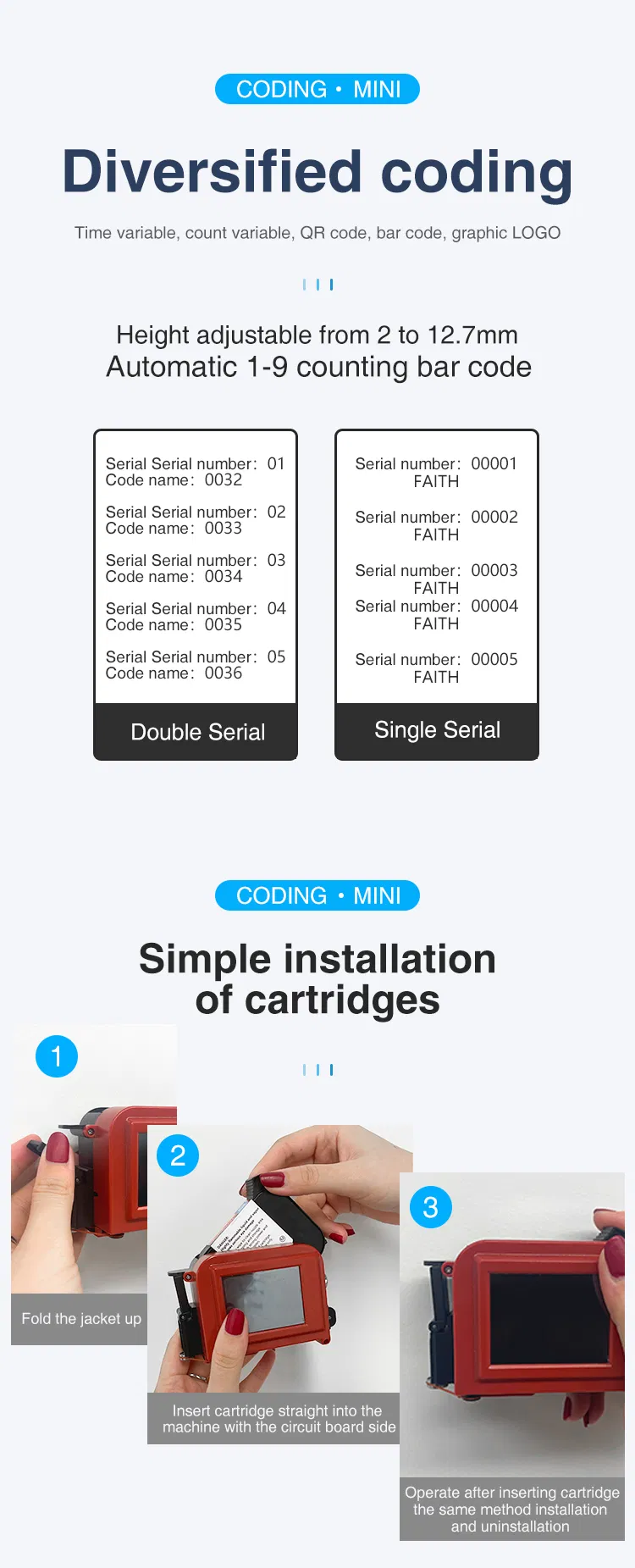

Diversified coding:Time variable, count variable, QR code, bar code, graphic LOGO
Automatic 1-9 counting bar code
Simple installation of cartridges:
1-Fold the jacket up
2-Insert cartridge straight into the machine with the circuit board side
3-operate after inserting cartridge the same method installation and uninstallation

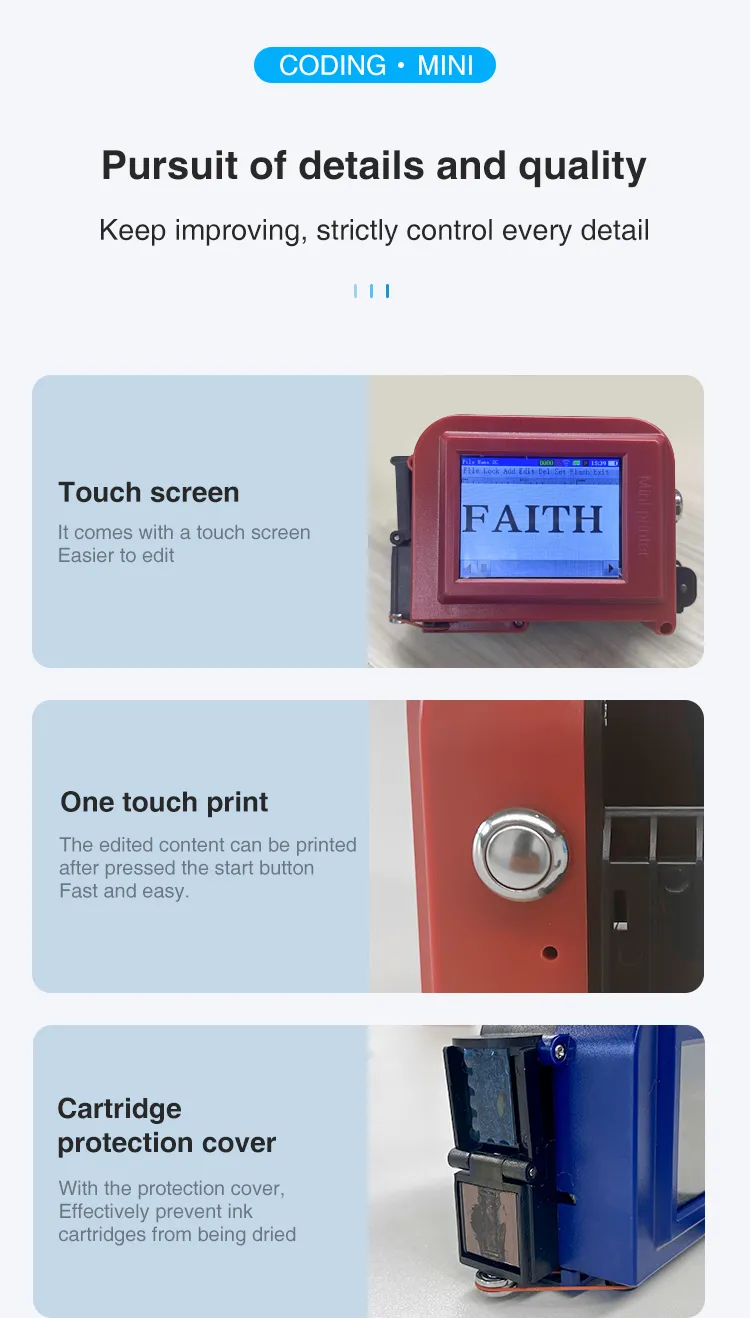

Pursuit of details and quality:Keep improving, strictly control every detail
Touch screen:It comes with a touch screen Easier to edit
one touch print:the edited content can be printed after pressed the start button Fast and easy.
Cartridge protection cover:With the protection cover, Effectively prevent ink cartridges from being dried

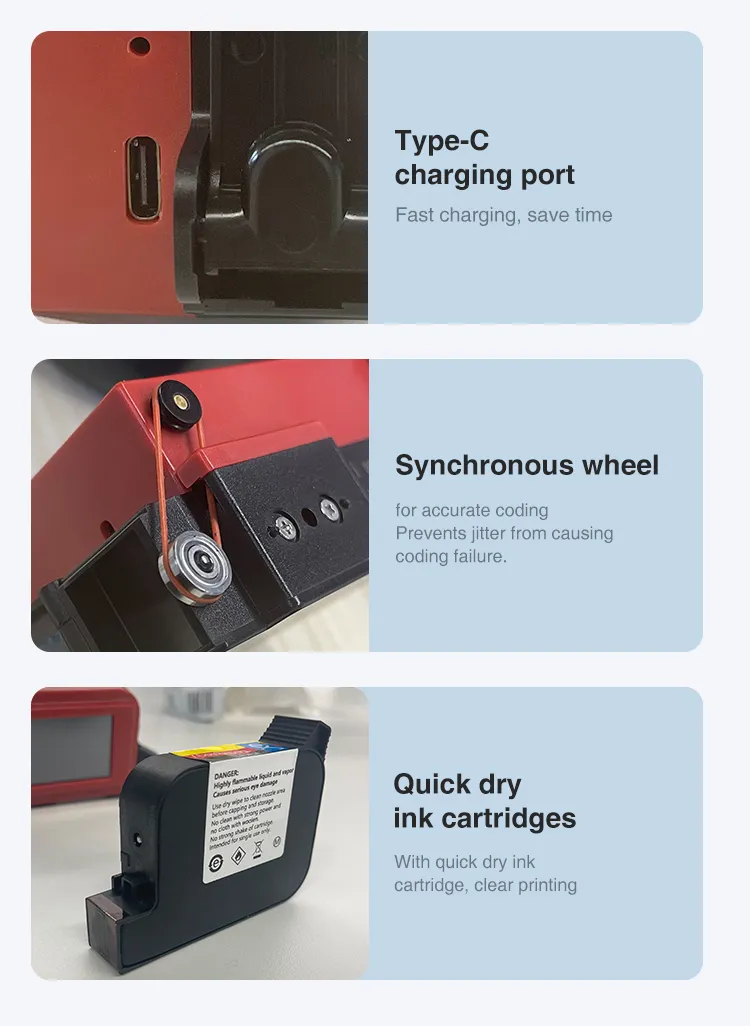

Type-C charging port:Fast charging, save time
synchronous wheel:for accurate coding Prevents jitter from causing coding failure.
Quick dry ink cartridges:With quick dry ink cartridge, clear printing

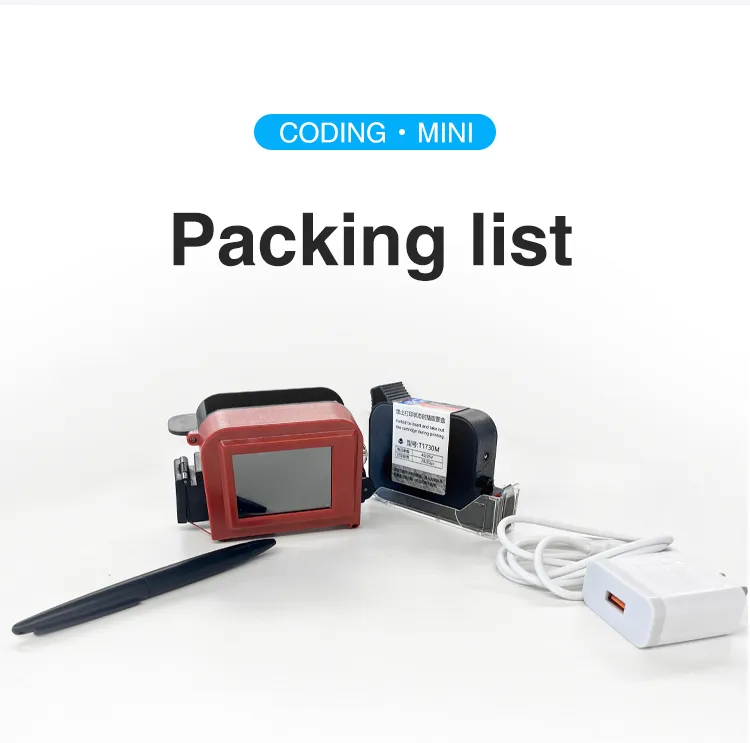

Packing list:machine,Ink cartridge, data cable, charger, touch screen pen
FAQ
Q: I don't know your website well, how can I trust you?
A:Faith Technology Co.,Ltd.is founded in 2010. We have 11 years of experience and have exported to 126 countries and regions.Our company is strictly compliant with ISO9001-2008 quality system standards as well as approved by SGS certification.
Q: How to pay? Can I use credit card?
A: You may use the following methods of payment:
Telegraphic Transfer (T/T) and Western Union
Q: How do you pack the products?
A: The machine is disassembled before shipping .Firstly we pack the main parts and spare parts by foam , then put them together to the carton and sealed with tape . So it is very safe in shipping ! We have many pictures and videos about packing , if you want to know more , please contact us.
Q: How long can I receive the items?
A: Normally speaking, we will spend 4~6 days to prepare the order and if it requires longer time, we will inform you as soon as possible. However, it still depends on what country you are, some may faster and some may slower.
Q: How to receive my order? Is it safe during shipping?
A: For the items you purchased, we will arrange shipping by sea or international express delivery to ship and usually the carriers are DHL, FedEx, TNT, and UPS. It shall be quite safe during shipping by sea or air. Additionally, we will purchase insurance as a guarantee for your order.
Q: How to obtain the tracking number of shipment? And how to contact the carrier (express delivery company)?
A: We will send you the Bill of Lading or tracking number after shipping your items, hereby please keep on checking your email.
Q: What is Warranty Policy
A: We provide 1 year warranty. During the 1 year warranty if any part is faulty, our company will give you replacing parts for free and help you to change the faulty parts. When the warranty expired, our company will still give you technician support for free. The only difference is the replacing part no longer free. So, we provide lifelong after sale service to you as long as you use our printer.
.
Q: If I still have questions to this product, what shall I do?
A: Please click "Inquire Now" below the page and submit your inquire or questions, we will reply you as soon as possible, or email to us.
Company Profile
We have accumulated rich experience in design and production. In addition to the imported automatic printing equipment in domestic car production line, our company has an absolute advantage, and has installed more than 35,000 sets of systems worldwide.The sales volume of mechanical marking system ranks the first in the world, and the sales volume of laser marking system ranks the first in Asia.Some domestic customers such as Toyota, faw Volkswagen, faw assembly geely, tianjin xiali, ningbo, Shanghai maple, Shanghai gm, jiangsu yueda KIA, foton, guangzhou Honda, Beijing hyundai, Beijing Benz, jinbei automobile, brilliance and other manufacturers, both chose my company with the line of printing equipment, the equipment on the production line of continuous and reliable work, low failure rate, create value for customers, the company won the honor for me.
Feedback
For more than 11 years, Faith products have been exported to 126 countries, occupying 7% of the industry's market share, and customers all over the world
If you have any questions, please feel free to contact me, I will do my best to give you a satisfactory answer.
Small figure/Intelligent touch-screen/High definition printing
Small size but Super functionEasy to print on curved/irregular/small space Can be used in cartons, plastic bags, steel tubes, cylinders, bottle caps, Bottle body
Applicable to a wide range of materialsfor various industries:Suitable for industrial, commercial and other fields clear printing , fast drying
smaller than a hand:Mini figure, compact size, using the new technology of jet coding Easy to carry and operate
600Dpi HD Nozzle:
Printing clear, support fast printing, efficient work Coding height is adjustable from 2 to 12.7mm
Other mini printer:
Other printers need to be connected by Wife and use mobile APP to edit the content ,troublesome operation and inefficient work
Our mini printer:
Our printers come with touch screens Editing can be done directly on the machine simple operation,less labor and time, improve efficiency
If you have any questions, please !!3.0A output charging saves time:
Using high-end current chip, 3.0A high-speed fast charging Usb-mini charging, fast charging in about 2 hours
Instructions for use:
Note: Please read it carefully and follow the instructions No illegal operation
power on: press the print switch for 10s,
Print: After starting, the nozzle is aligned with the printing position, the main wheel under the nozzle against the printing surface, click the print switch Then slide from left to right,Make the main wheel rotational print, then two dropsvoice prompt after printing.
Power off: press the print switch for 4s, The light turns off after power off wit beep prompt
SPECIFICATIONS OF mini printer | |
Brand Name | Faith (OEM) |
Language | Chinese,English (other languages can be customized) |
Dimension | 27 (L)*25(W)*10 (H) cm |
Screen size | 2.8 inch |
Data Editing | Bluetooth ,USB |
Machine weight | 0.28kg |
Effective print width | 60mm |
Effective printing height | 12.7mm |
Speed of printing | 120pieces/min |
Resolution | 600 DPI |
Minimum characters | 0.8mm (English numerals, Chinese 2 mm or more) |
Sprinkler expansion | +3mm |
The number of files stored | 1.Ordinary documents: 100+ 2.Number of segments: 1-15
|
Free standard accessories | Black cartridge,USB data line,charger,touchscreen pen |
Basic function
| Text, graphics, production date, valid date, two-dimensional code, bar code, serial number |
Font | default song style, dot matrix, and dot matrix font generation function, self-adjustable point radius, pitch, slope, etc. |
Automatic Spray Printing | Production Date, Valid Date, Sequence Number, Count, Batch Number |
Ink color | Black, White, Red, Blue ,green and Yellow |
Ink capacity | 45ml |
Diversified coding:Time variable, count variable, QR code, bar code, graphic LOGO
Automatic 1-9 counting bar code
