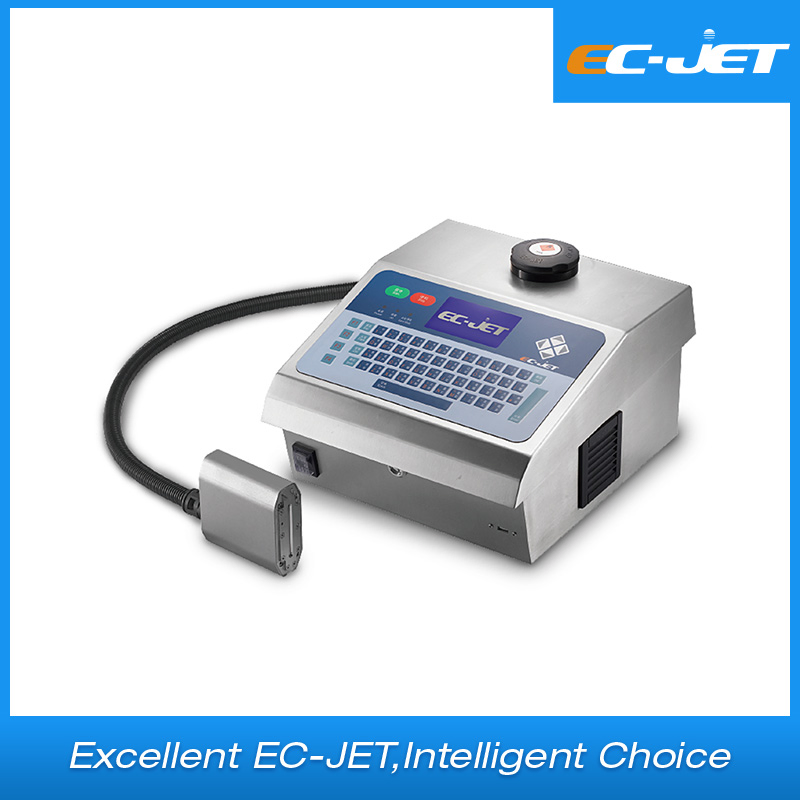

Portable Industrial Printing Machine Dod Inkjet Printer for Plastic Pipe (EC-DOD)
Portable industrial printing machine DOD inkjet printer for plastic pipe(EC-DOD) Application Fields for continuous inkjet printingThe Industrial inkjet printer EC-JET DOD printers provide a means of application of printed information onto a wide range of products. This information would typically......
Send Inquiry
Product Description
Portable industrial printing machine DOD inkjet printer for plastic pipe(EC-DOD)
Application Fields for continuous inkjet printing

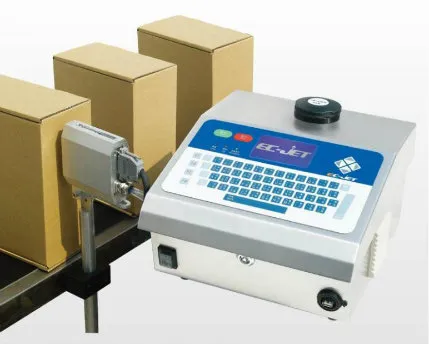

The Industrial inkjet printer EC-JET DOD printers provide a means of application of printed information onto a wide range of products. This information would typically be the date, production codes, consumer information, product or corporate identification,product traceability, and many others.
The Industrial inkjet printer EC-JET DOD printers provide a means of application of printed information onto a wide range of products. This information would typically be the date, production codes, consumer information, product or corporate identification,product traceability, and many others.
Technical Parameter
How does DOD works ?
The Print head of EC-JET large character inkjet printer (EC-DOD) consists of a group of miniature high-precision solenoid valve, once the solenoid valve opens, ink located in the nozzle spray out a droplet by constant pressure
EC-JET large character inkjet printer is different from small character inkjet printer .the ink droplet ejected without deflection but control the discharge of ink droplets by the solenoid valve. Each point corresponds to a head of miniature solenoid valves, 7 dots print head have seven solenoid valves, and 16 dots print head had 16 solenoid valves. Through Electronic control module, a set of coordinated action solenoid valve can print a raster column in the product .when the product move, it will form the necessary information and patterns, providing a non-contact method of printing. The process is controlled by the electronics module which also stores the messages to be printed. The message is programmed using the touch screen.
Advantages :
1.The machine is compact design ,up to 4 lines
2.Proprietary design of continuous ink,free of external air source,no need stop printer to re-fill ink,improve production efficiency to the greatest extent
3.Remote control,can easily be operated in the office
4.Standard USB interface,quick data recovery and data backup available ,graphic available
5.Double trigger design ,multiple printing tasks processing simultaneously

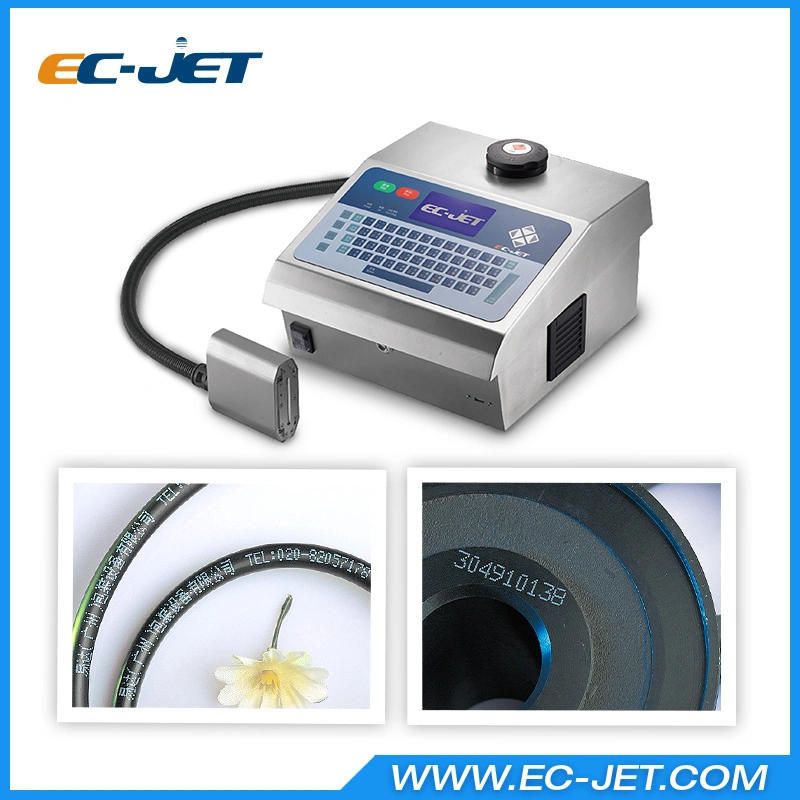

Printing samples:
ECJET DOD Continuous inkjet printer is high speed ,high price ratio,large character printer which is designed for variety of industrial applications.

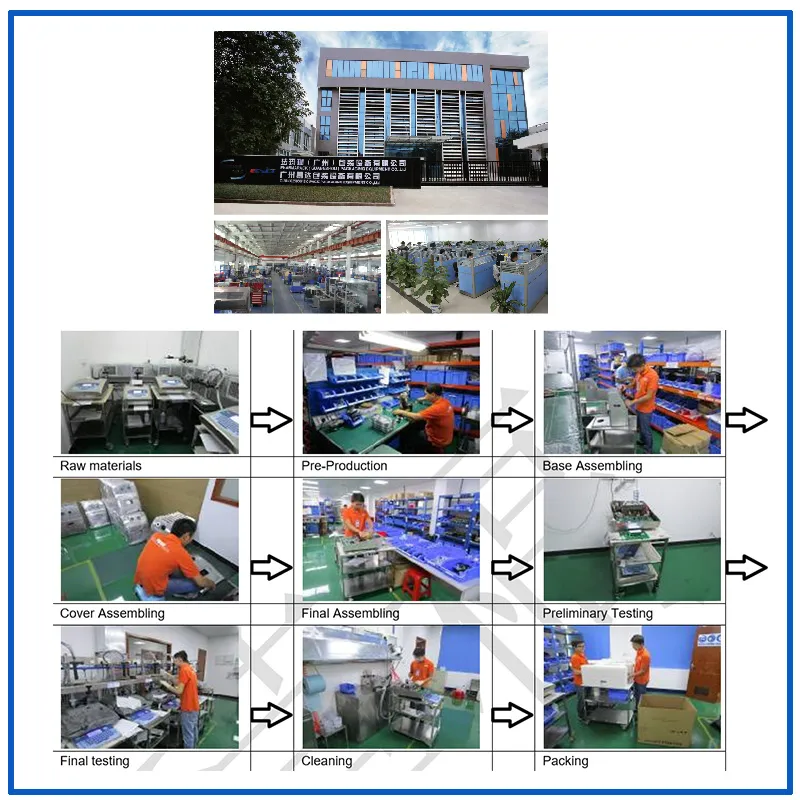

Factory Of ECJET
ECJET company has more than 80 peoples including Sales,R&D and Professor after-sale engineers and so on.
EC-PACK Product liness are certified and approved for used by many regulatory organization:CE,UL,CSA,ROSH And FDA.
Avaiblable ink and Ink systerm
1.Basic MEK /Aquarous suitable for normal usage
2.Custom made ink for special requirtments

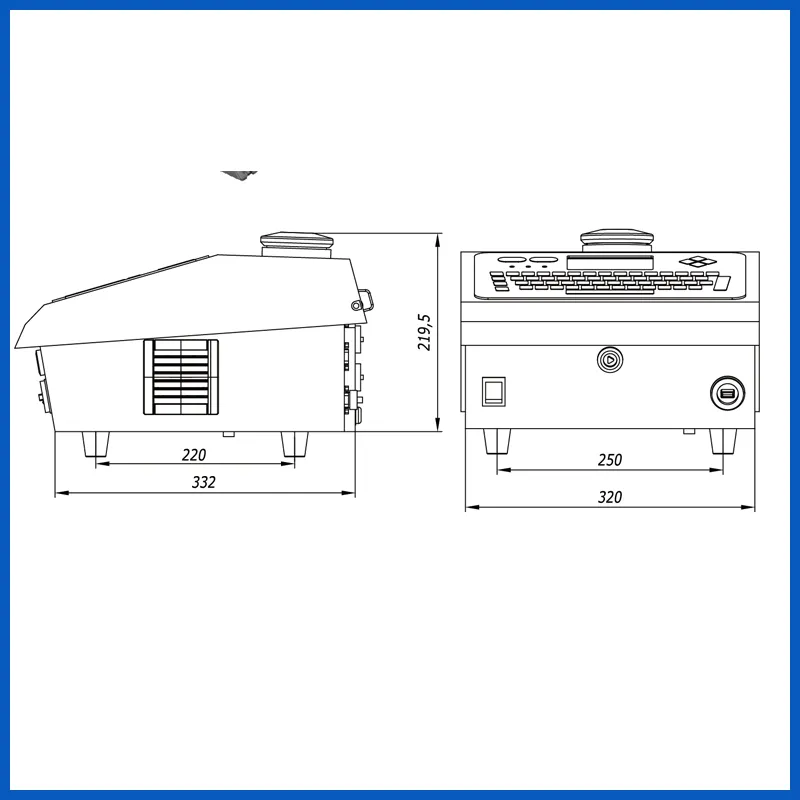

Size of Printer
Stainless steel 304 cabinet with IP55 OR IP65 to make sure the quality and operation.
If any enquiry,welcome to contact with us asap .
| Printing lines | Up to 4 lines(7*5 matrix characters) |
| Printhead quantity | up to two printheads (16 dots) |
| Printing height | 28mm --64mm(16 dots printhead) |
| Printing distance | 5mm |
| Max Speed | 80m/min |
| Printing direction | horizontal and vertical |
| Photocell or shaft encoder | USB interface |
| Interface to external alarm | RS-232 Communication interface |
How does DOD works ?
The Print head of EC-JET large character inkjet printer (EC-DOD) consists of a group of miniature high-precision solenoid valve, once the solenoid valve opens, ink located in the nozzle spray out a droplet by constant pressure
EC-JET large character inkjet printer is different from small character inkjet printer .the ink droplet ejected without deflection but control the discharge of ink droplets by the solenoid valve. Each point corresponds to a head of miniature solenoid valves, 7 dots print head have seven solenoid valves, and 16 dots print head had 16 solenoid valves. Through Electronic control module, a set of coordinated action solenoid valve can print a raster column in the product .when the product move, it will form the necessary information and patterns, providing a non-contact method of printing. The process is controlled by the electronics module which also stores the messages to be printed. The message is programmed using the touch screen.
Advantages :
1.The machine is compact design ,up to 4 lines
2.Proprietary design of continuous ink,free of external air source,no need stop printer to re-fill ink,improve production efficiency to the greatest extent
3.Remote control,can easily be operated in the office
4.Standard USB interface,quick data recovery and data backup available ,graphic available
5.Double trigger design ,multiple printing tasks processing simultaneously

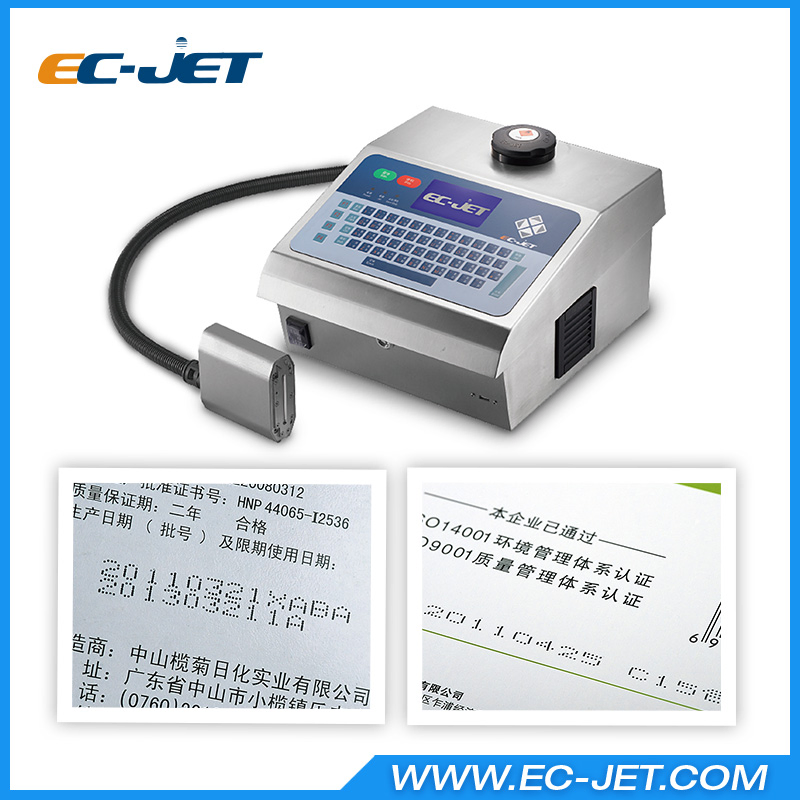

Printing samples:
ECJET DOD Continuous inkjet printer is high speed ,high price ratio,large character printer which is designed for variety of industrial applications.
ECJET company has more than 80 peoples including Sales,R&D and Professor after-sale engineers and so on.
EC-PACK Product liness are certified and approved for used by many regulatory organization:CE,UL,CSA,ROSH And FDA.
Avaiblable ink and Ink systerm
1.Basic MEK /Aquarous suitable for normal usage
2.Custom made ink for special requirtments
Size of Printer
Stainless steel 304 cabinet with IP55 OR IP65 to make sure the quality and operation.
If any enquiry,welcome to contact with us asap .
