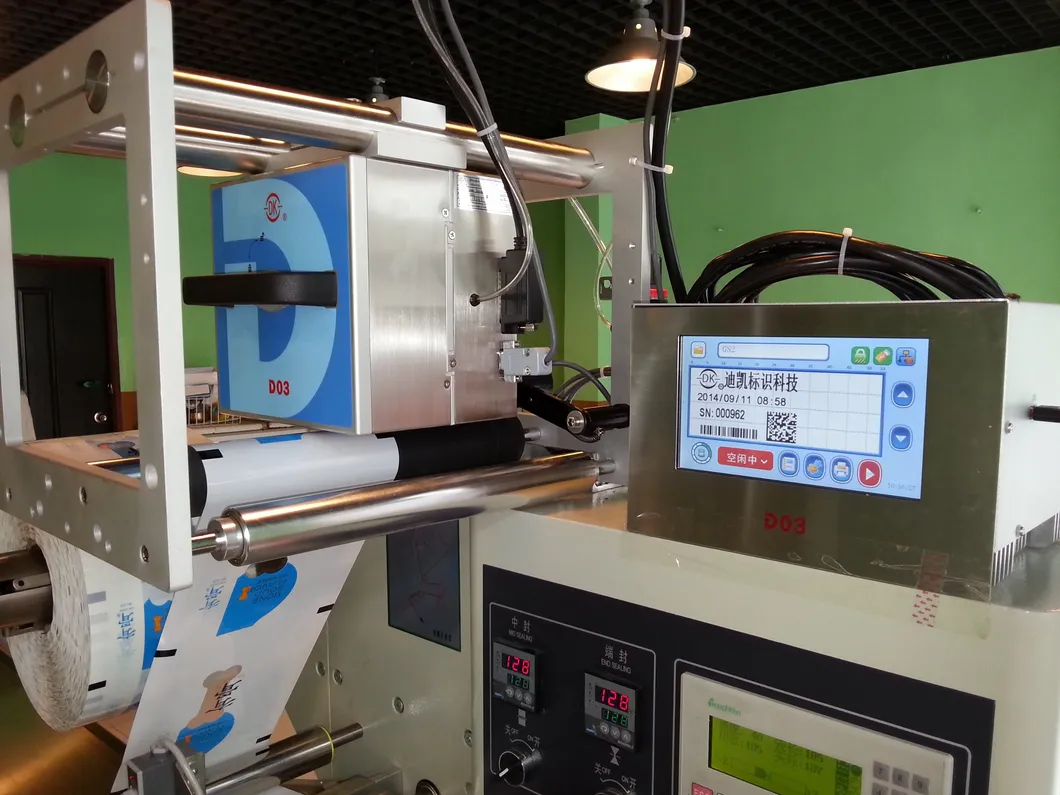

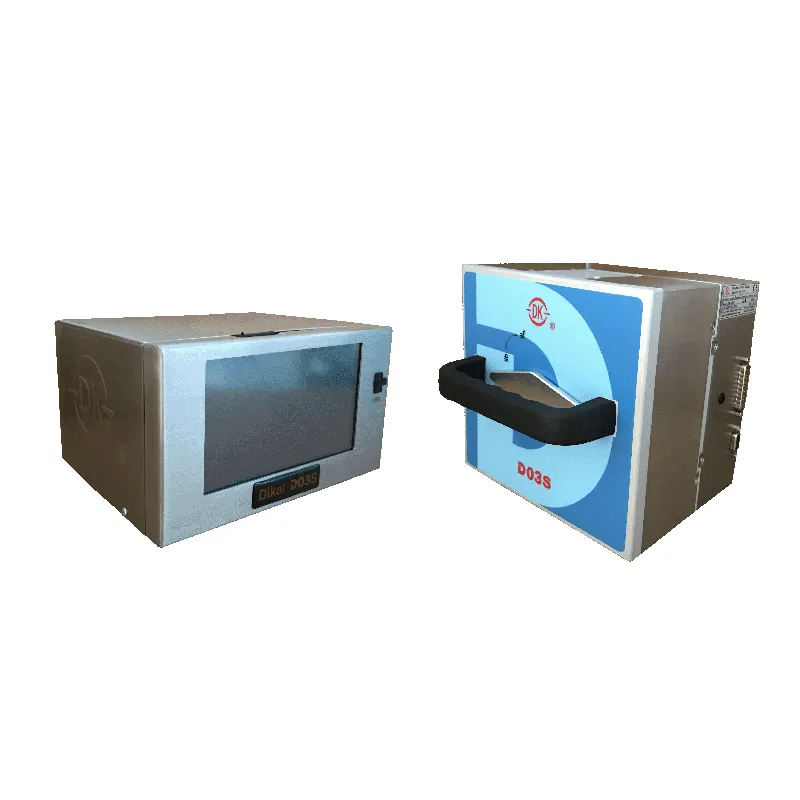

Laser Coding Machine 32mm Tto Printer Thermal Transfer Overprinter
Product IntroductionS series TTO is world class cost effective smart coding machine, mainly used in flexible package area like food, pharmaceutical, daily chemical, seed, daily tissue, etc.S Series Advantages: Bi-moto control, up to o.1mm precise print gap, wider print speed range, 20mm/s to max 670......
Send Inquiry
Product Description
Product Introduction

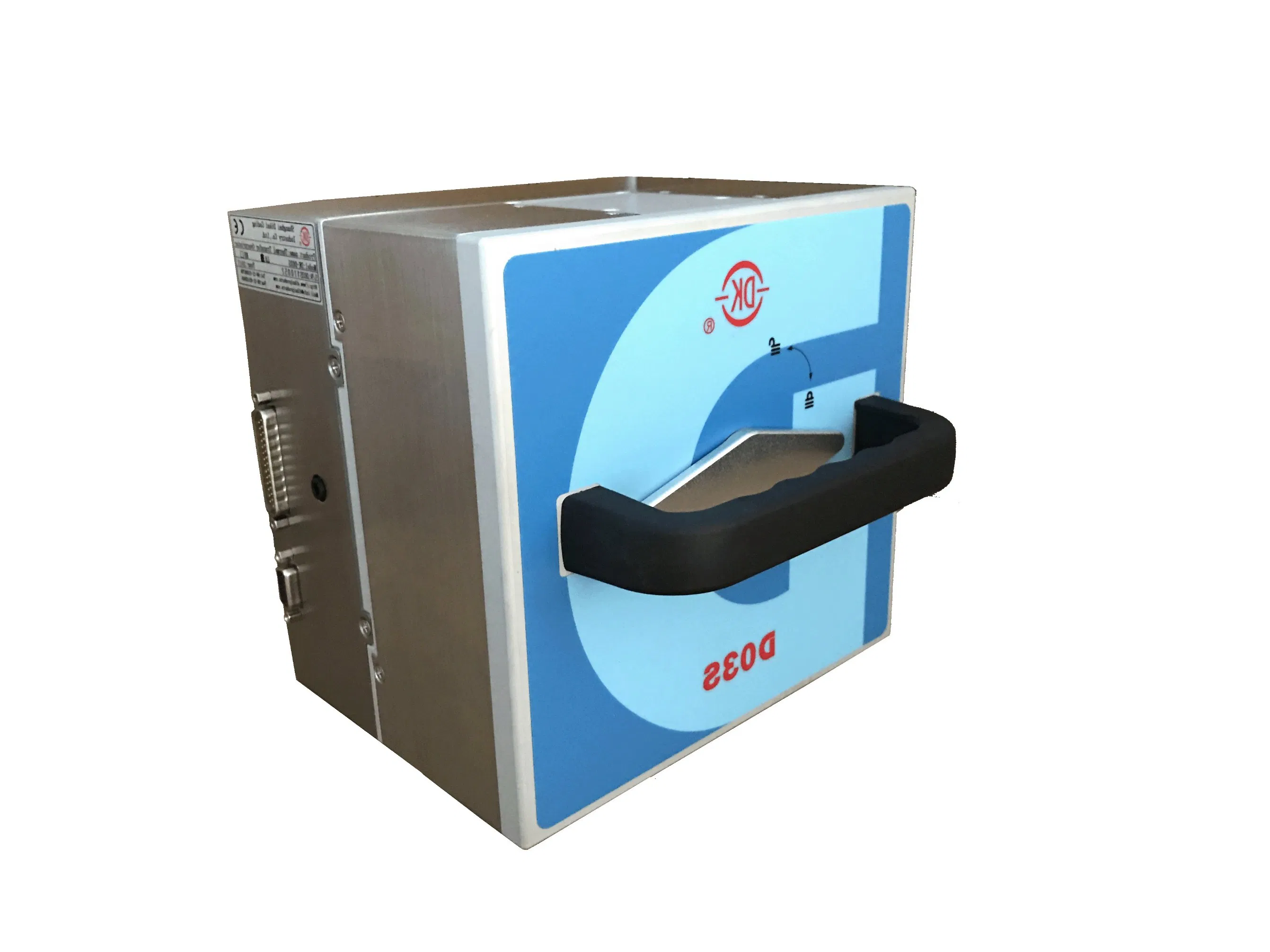

S series TTO is world class cost effective smart coding machine, mainly used in flexible package area like food, pharmaceutical, daily chemical, seed, daily tissue, etc.
S Series Advantages: Bi-moto control, up to o.1mm precise print gap, wider print speed range, 20mm/s to max 670mm/s, add ribbon save modes, improve the usage rate, suitable for automatic material handing line, avoid miss prints and print position deviation, add network interface can communicate to related system.
Features
Specification
Print Sample
Company Introduction
Exhibition
FAQ
1. Why choose Dikai?
-- Our company has dedicated to development, manufacturing and sales of qualified coding machines and consumables for 25 years. Meanwhile, we commit ourselves to satisfy every customer's different needs in coding and marking area.
2. What's the regular lead time for Dikai Products?
-- Lead time for all Dikai good is 1-2 weeks after order confirmation. For the stocked goods, delivery can be made in 2 working days.
3. What's the warranty of Dikai goods?
-- Regularly 12 months after leaving Dikai Warehouse.
4. How about your after-sales service?
-- For the countries where we have distributors, we depend on our distributor to do after sales services. Dikai also provide online technical services besides of continuously upgraded video supports.

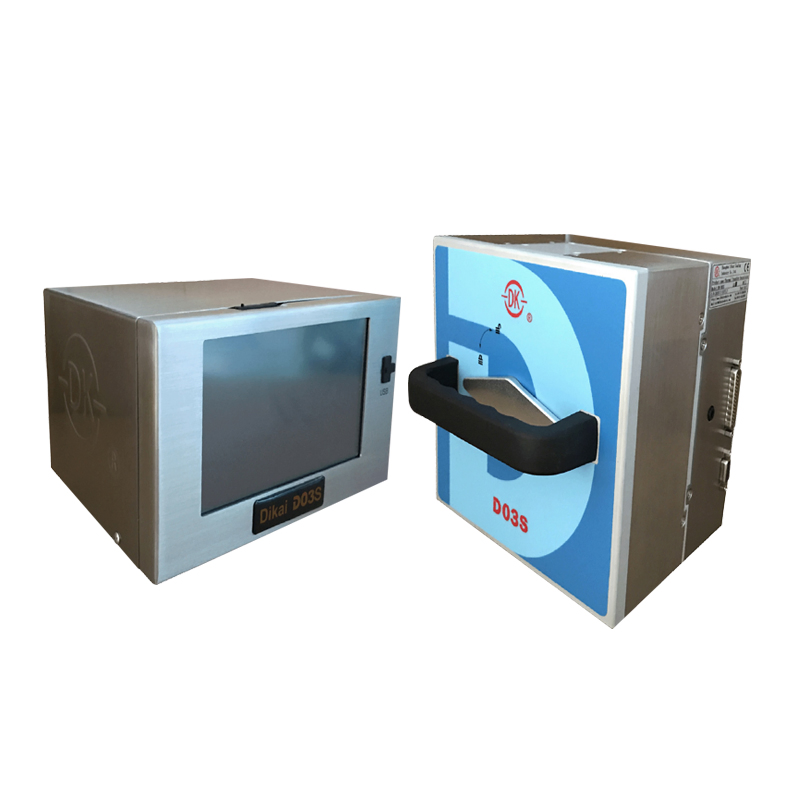

S series TTO is world class cost effective smart coding machine, mainly used in flexible package area like food, pharmaceutical, daily chemical, seed, daily tissue, etc.
S Series Advantages: Bi-moto control, up to o.1mm precise print gap, wider print speed range, 20mm/s to max 670mm/s, add ribbon save modes, improve the usage rate, suitable for automatic material handing line, avoid miss prints and print position deviation, add network interface can communicate to related system.
Features
▪ 300 DPI resolutuon, ensure superior print apperance
▪ Print real time, date and lot number
▪ Max 600 ribbon length reduce machine downtime
▪ Frendly UI and operation
▪ Print variable QR Code, barcode, shift code
▪ Easy to learn designer program
▪ Work file can be changed easily
▪ Print real time, date and lot number
▪ Max 600 ribbon length reduce machine downtime
▪ Frendly UI and operation
▪ Print variable QR Code, barcode, shift code
▪ Easy to learn designer program
▪ Work file can be changed easily
Specification
| D03S Intermittent | D03S Continuous | |
| Print Head | 32mm width, 300dpi (12 dots/mm) | |
| Print Area | 32mmx60mm | 32mmx100m |
| Print Speed | 6-20m/min | up to 40m/min |
| Frequency | max 300 PPM | max 300 PPM |
| Ribbon Length | 500m | |
| Ribbon Width | 22mm-33mm | |
| Interface Voltage | USB, RS232, Ethernet AC 100-240V 50/60Hz | |
| Power | 200W | |
| Work Temperature | 0-40ºC | |
| Relative Humidity | 10%-95% (non condensity) | |
| Air Supply | 6 bar/90psi (max), dry, non-polluted air | |
| Weight | Printer Unit: 8.5KG, Controller: 2.0KG | |
| Dimension | Printer Unit: 188x190x180 Controller: 175x235x110 | |

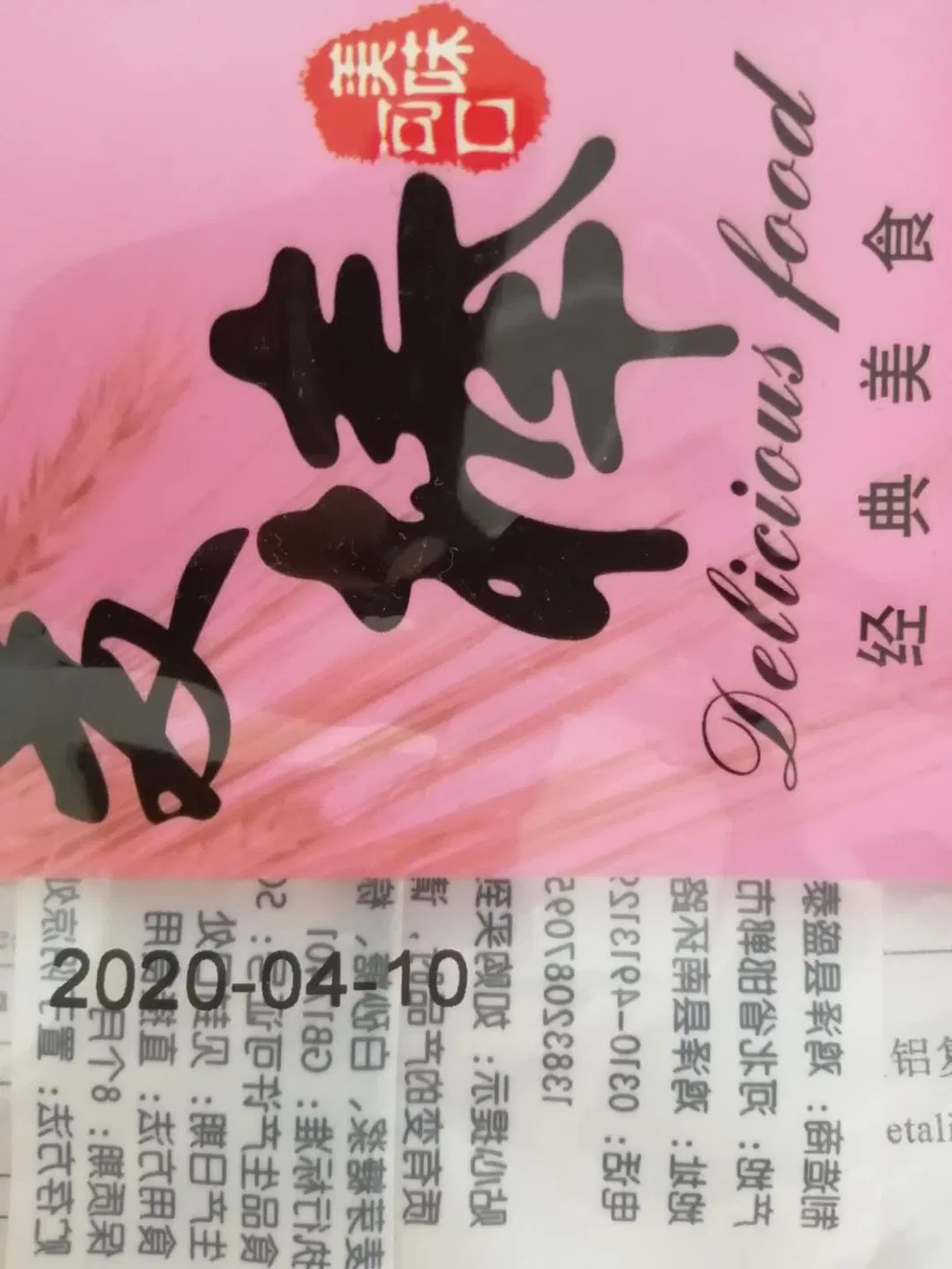

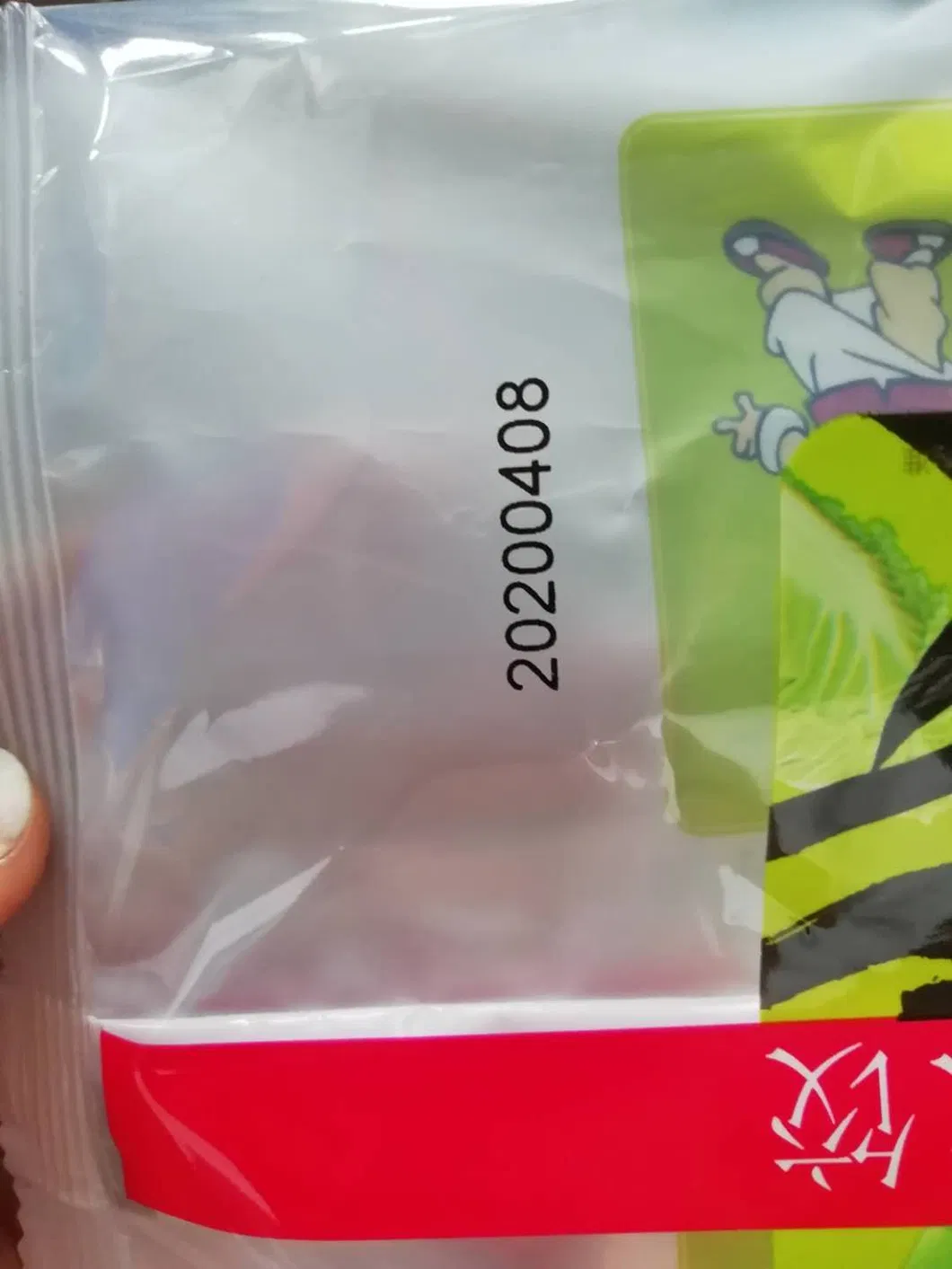

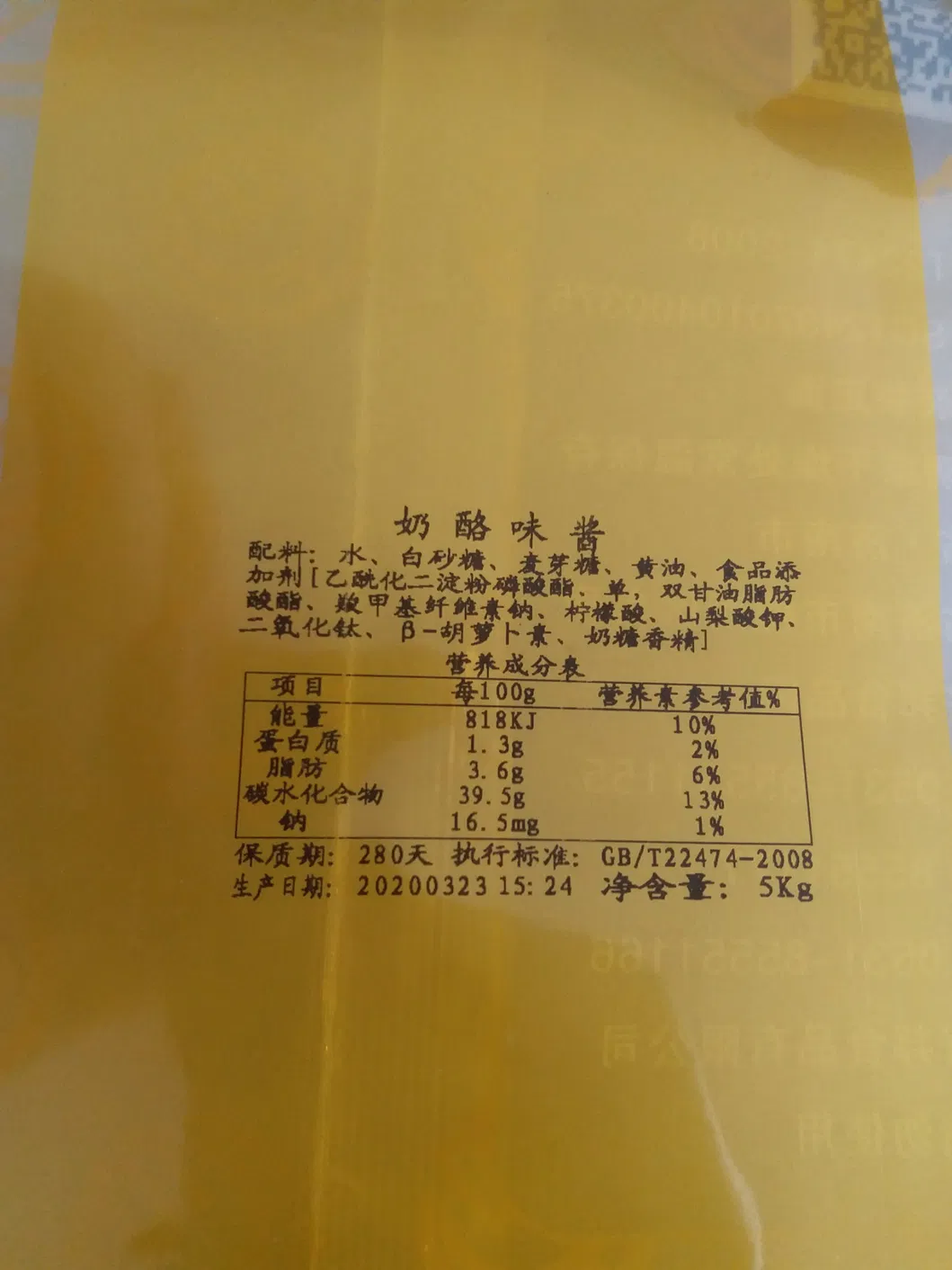

Print Sample
Company Introduction
Shanghai DIKAI Coding Industry Co., Ltd was founded in 1995, and DIKAI has dedicated itself to comprehensive coding solutions provider with R&D, innovation, manufacturing, sales & service of quality coding machines & consumables. Our headquarters is located in Shanghai, China, we have 16 branches offices and many authorized distributors in domestic. Our products have been exported to more than 100 countries and regions since 2006. Adhering to the company philosophy of "Core Technology, Prominent Service", DIKAI has been committed to flexible packaging coding solutions in long term. DIKAI has accumulated more than 40 authorized patent and owns one US invention patent. Besides, we are aiming at constructing a worldwide distribution network. With intelligent solutions, we hope can become your reliable partner and bring add value to you in near future.
Exhibition
FAQ
1. Why choose Dikai?
-- Our company has dedicated to development, manufacturing and sales of qualified coding machines and consumables for 25 years. Meanwhile, we commit ourselves to satisfy every customer's different needs in coding and marking area.
2. What's the regular lead time for Dikai Products?
-- Lead time for all Dikai good is 1-2 weeks after order confirmation. For the stocked goods, delivery can be made in 2 working days.
3. What's the warranty of Dikai goods?
-- Regularly 12 months after leaving Dikai Warehouse.
4. How about your after-sales service?
-- For the countries where we have distributors, we depend on our distributor to do after sales services. Dikai also provide online technical services besides of continuously upgraded video supports.
