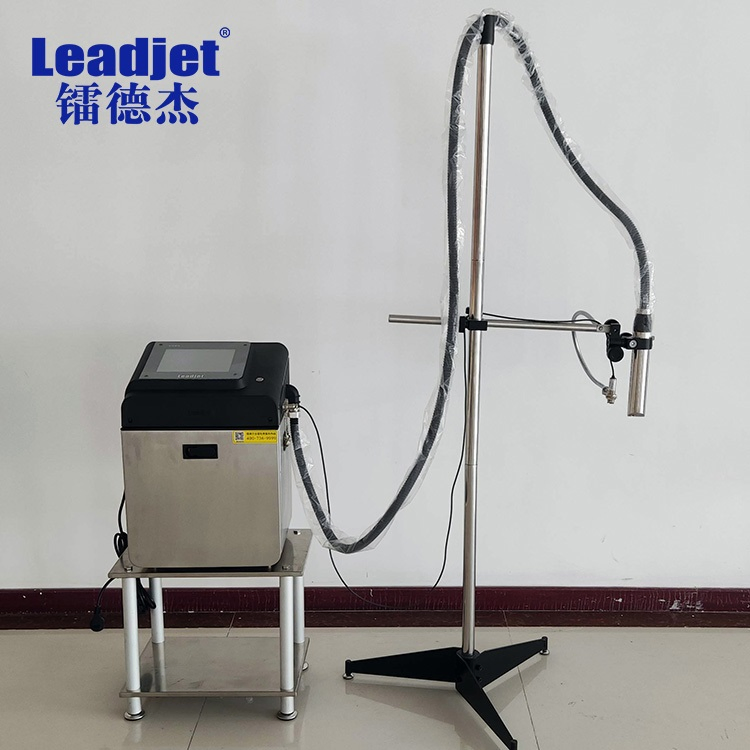

Cij Inkjet Printer Date Batch Number Coding Machine for Food Packaging
Product DescriptionContinuous Ink jet Printer / Expiry Date Coding Machine /Batch Number Inkjet Printer / Production Date Printing Machine Maufacturer.1.Modular Design ,Simple Operation 2.Superior Print Quality, Less Maintenace, Reduce Total Cost3.Consumables Saver 4.Engineered to keep your line u......
Send Inquiry
Product Description

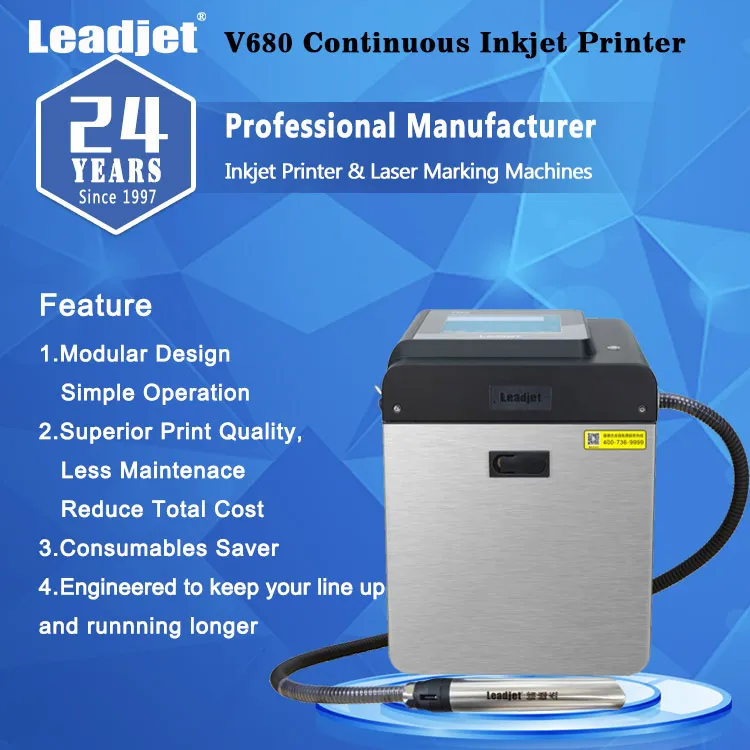

Continuous Ink jet Printer / Expiry Date Coding Machine /Batch Number Inkjet Printer / Production Date Printing Machine Maufacturer.
1.Modular Design ,Simple Operation
2.Superior Print Quality, Less Maintenace, Reduce Total Cost
3.Consumables Saver
4.Engineered to keep your line up and runnning longer
5.25*25 dot. 3-4 lines
6.Application: Food and Beverage, Medicine,Spare Parts Industry
Used for: Metal, PET bottle. Glass, Plastic, HDPE/PVC Pipe Cabel Tube, Wire,, Rubber.
Speicfication

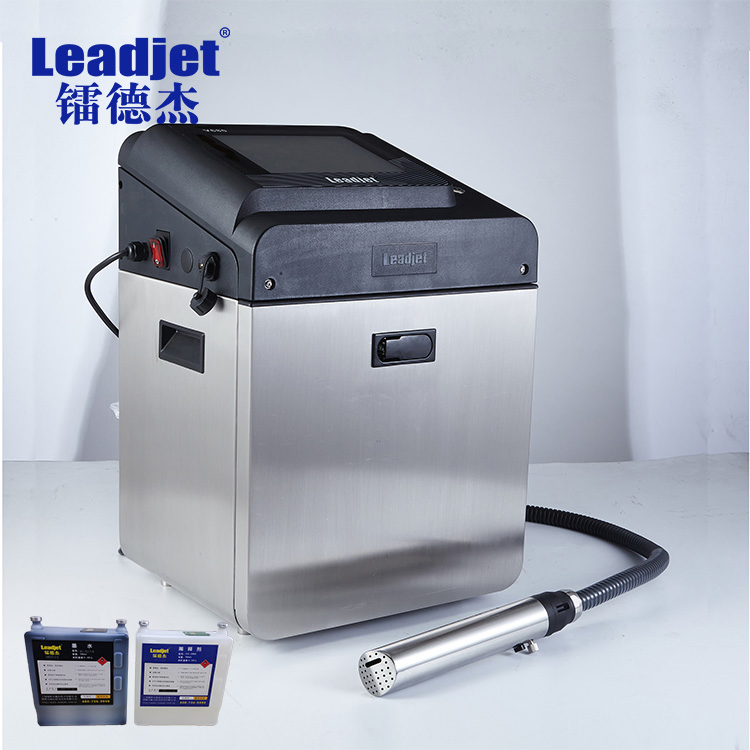

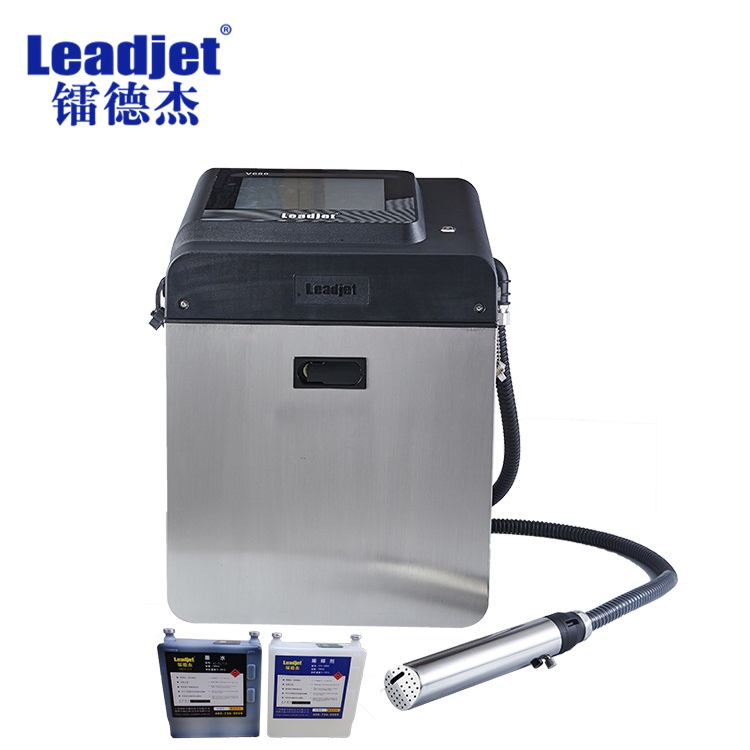

| Continuous Ink jet Printer | V680 | |||||||
| Max Print Speed | 280m/min | |||||||
| Printable Font Height | 1.5 mm~20mm. Maximum can be widened 9 times | |||||||
| Dot Matrix | 25 * 25 dot matrix | |||||||
| Memory Capacity | Up to 1000 messages | |||||||
| Printing Line | Within 4 Lines | |||||||
| Printer Content | Time, Date, Lot No, Serial No. etc. | |||||||
| Operate Interface | English,Chinese | |||||||
| Print Material | Metal, plastic, glass, wood, tube, electrical wire, cable etc. | |||||||
| Print Distance | Max: 30mm,from printhead bottom to substrate surface | |||||||
| Ink Color | Black, blue, red etc | |||||||
| Ink Consumption | 70 millions character per litre | |||||||
| Power | AC220V /380V 50HZ 100W | |||||||
| Printhead Umbilical Length | 2.7m (Customizable) | |||||||

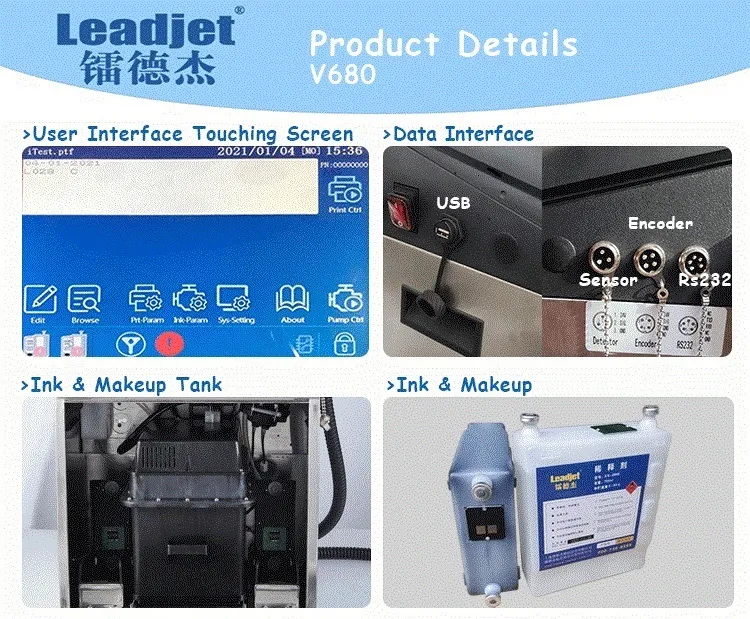

| USB and RS232 Port | With USB port and RS232 port | |||||||
| Environment Temperature | 5ºC-45ºC | |||||||
| Humidity | Below 90% | |||||||
| Machine Dimension | 387 * 270 * 507mm | |||||||
| Package in wooden dimension | 625 * 455 * 730mm | |||||||
| NW,/GW. | 30kgs / 40kgs | |||||||
| Display and Keyboard | 8-inch full-color high-definition touch screen,and full-touch virtual keyboard | |||||||
Feature
1. Quick-dry ink used industrial non-contact small character inkjet printers
2. Improved stability, easier maintenance
3. Intelligent ink system
3. Print features include TEXT, DATE, TIME, BATCH NUMBER, LOGO AND TRADEMARK
4. Easy to be integrated at any position of the production line
5. User friendly interface and most reliable ink system
6. Easy operate and can trouble free run long time
7. USB Port for logo and other complicated printing contents
8. Modular Disgn, Simple Operation,Good Perfermance can satisfy most printing requirements
Hydraulic system
1.Full automatic viscosity and pressure control
2.Error proofing design to differentiate the ink and solvent
3.Electronic control system completely separated design from hydraulic system

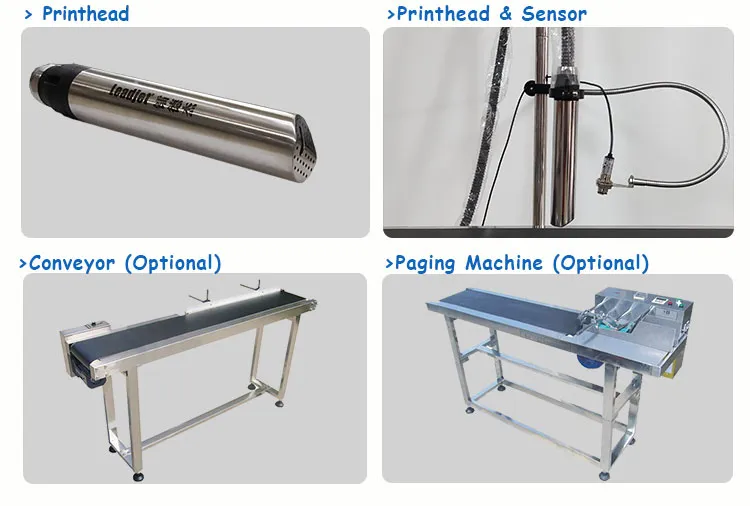

Print Head
1.Compatible design, maintenance friendly
2.Ruby nozzle and difficult to be blocked
3.Nozzle Size: 62 μm standard, 52 to 70 μm optional
4.Can be installed in any position
5.Integrated design and Easily accessible

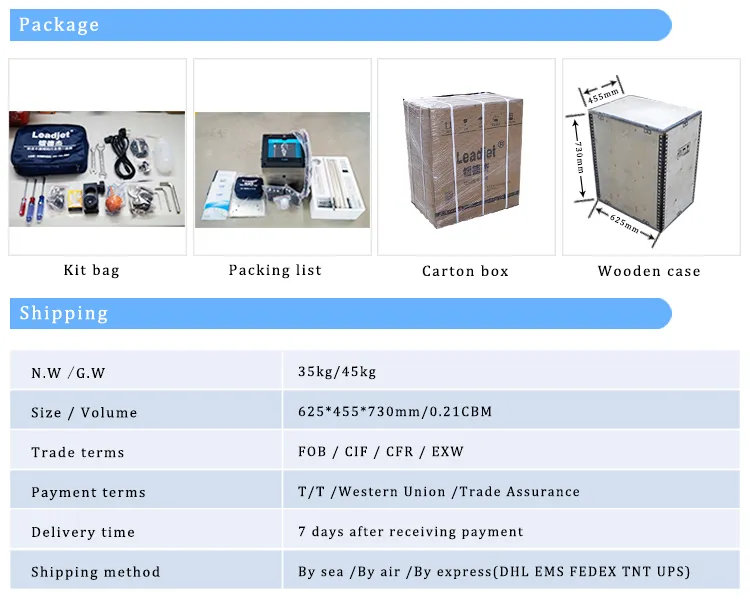

Packaging & Shipping
Application
Q:Are you factory or trading company?
A:Founded in 1997,located in Wuhan,Leadjet is an integrated industrial and trade enterprise which has 31 branches and offices all over China.We sincerely invite you to visit our enterprise!
Q:Is your machine avaliable to my product?
A:Show us your product and the content you want to print on, we can print on the sample and send the video to you. And you can also deliver your sample to us, we print on the sample and deliver it back to you.The freight shall be borne by the buyer.
Q:I have never operated inkjet printer before, is it easy to operate on?
A:We will provide English Service Manual and you can also view our Youtube about the operating video, there is no problem for you even if you didn't know it before.
Q:What if the machine is broken?
A:We will solve your problem by three steps:
1,Please take a video of the problem to us.
2,Our professional after-sales engineer will test on the problem and provide you a solution.
3,It's avaliable to free-replace spare parts within guarantee period, and we can also provide you related videos of replacement.The freight of spare parts shall be borne by buyer.
Q:What about your service?
A:We offer 7*24 hours online service,please contact us
