China Automatic Plastic Bag Expiry Date Batch Number Cij Inkjet Continue Printer Machine for Carton Boxes

Product Description

5 Lines Automatic Industrial Cij Inkjet Printer for Daily Chemical Products with CE Certificate

Suppport costomized logo, keyboard and starting screen.

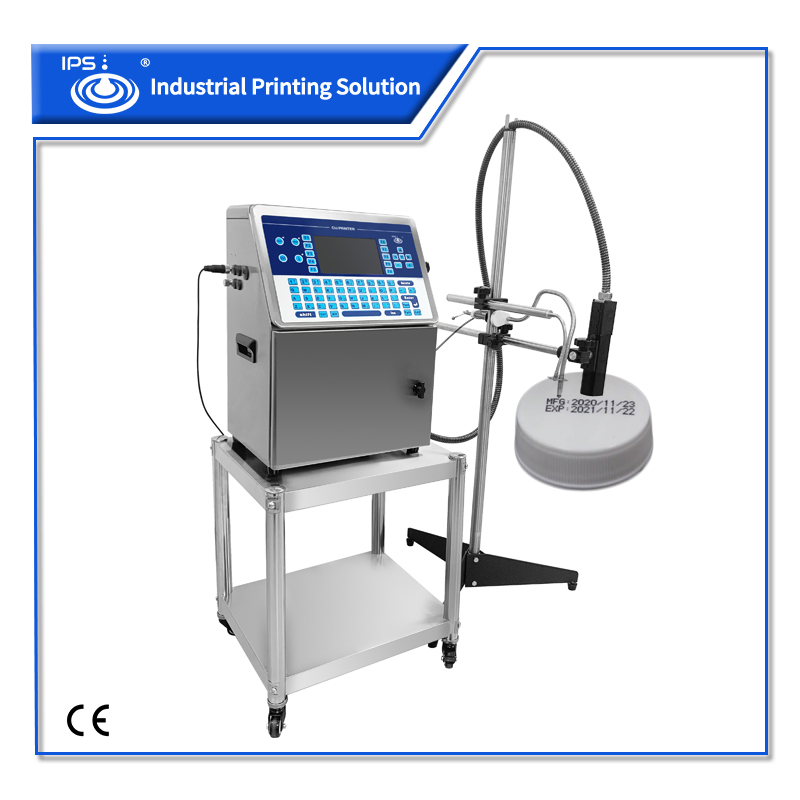

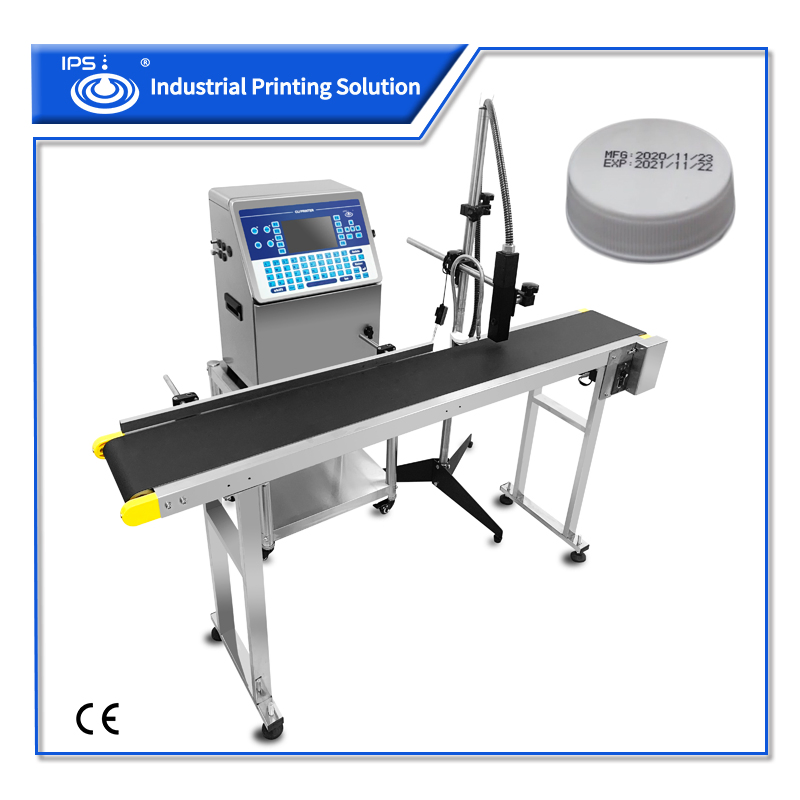

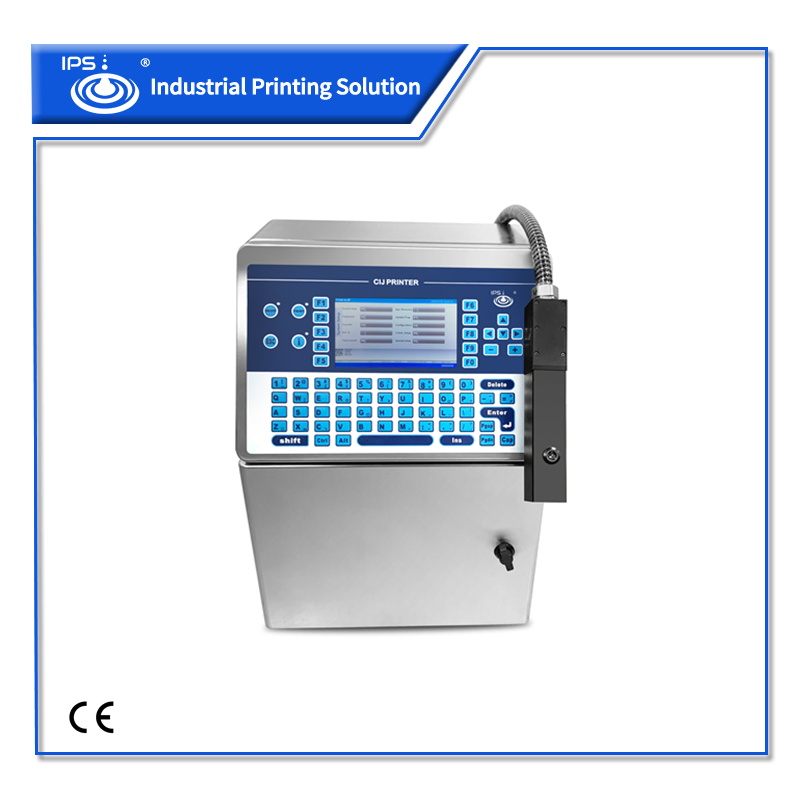

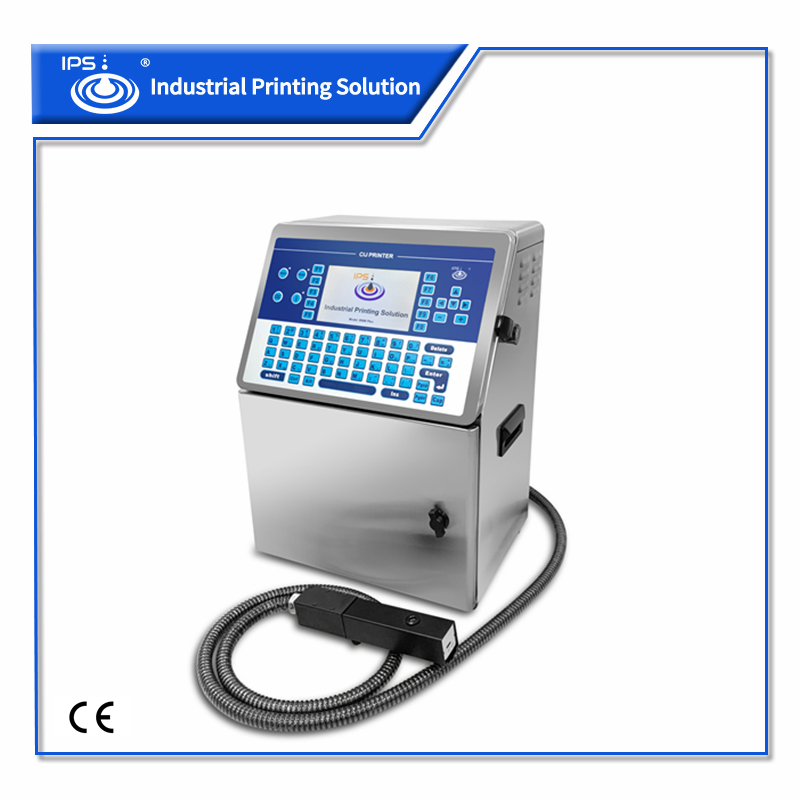

The PRIMA-B600 Plus Continuous Ink Jet Printer is specifically designed to meet high coding and printing requirements across a wide of substrates. There is almost no limit to the material and shape of the substrates. It is ideal for single to multiple shift applications, 24-hour uptime. The speed can reach 345 meter per minutes with 5*5 dot. The max print line is 5 for this PRIMA-B600 plus. 5X5, 5X7, 7X9, 9X12, 12X16, 16X24 etc
Specifications of Prima-B600 Plus

MODEL	PRIMA-B600 PLUS STANDARD
Printing Direction	360 degree. upwards, downwards, side printing.
Printing Distance	5-20 MM
Pringting Lines	1-5 lines
Charecter Height	0.8-15mm ( length can be 833 letter with 6*8 font)
Font Size	5X5, 5X7, 7X9, 9X12, 12X16, 16X24, accept customized font.
Printing Speed	Single line 55 font --345 Meter/min 2 Line 57 font-- 85 meter/min 3 Line 57 font--50 meter/min 4 Line 57 font -- 40 meter/min If need higher speed, can choose high speed model, can increase over 50%
Communication	RS232/485
Umbilical	2.5 meter umbilical standard, ( we can provider longer size)
Language	English, Thailand, Spanish
Printing message	Number, Letter, Graphics, Datebase,QR Code, Barcode etc
Nozzle Size	60 micron /50 micron/40 micron ( price not same)
Ink colour	Black, white, blue ,yellow, blue, red (resort ink, anti-migration,high adhesion etc)
Electrical Specifications	100-240V, 50/60HZ, 120W
Weight	38KG, printhead stand included
Packing Size	Printer: L56W47H63CM,Printhead stand: 521814CM
Working Temperature	5 - 45 degree centigrade
Ink Consumtion	950*10⁶ drops per liter
External Port	Sensor, encoder, alarm beacon, etc
Flush System	Automatic flush
Consumables	Open, no need chip
Certificate	CE Certificate

Advanced Features:

1. Precise Gear Pump assures the stability of the fluid system and high print quality.

2. Top quality of printhead with stainless steel nozzle. We have two kind of type, one is standard and the other is domino quality and
design head.

3. Automatic Calibration adjusts jetting parameters automatically to help ensure high quality print.

4. Advanced fluid delivery systemresists ink buildup and maximizes uptime, eliminating spills and helping to ensure the correct fluids
are recycled so that there is no fluid waste.

5. Automatic cleaning of printhead and fluid delivery systemduring start up and shutdown process.

6. Automatic Alarm system when the ink and solvent is below the warning line.

7. SUS304 stainless steel cabinet with IP 54 protection grade.

8. Open ink system without chip, can find comsumables from local market and save delivery cost.

9. Customized font software, help customer to make any kinds of font and any shap of logo easily.

Applications:

PRIMA-B600 Plus is widely used in food, beverage, daily chemical, pharmaceutical, hardware, electronics, construction materials,

lamps, toys, packaging, printing and almost all industries.

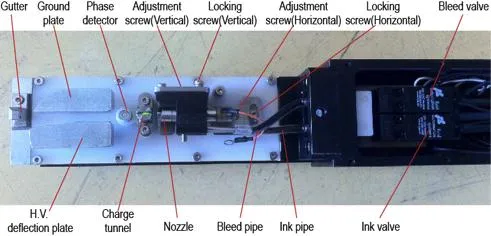

Perfect Printhead Design

1. Constant temperature system, can work under hot and cold environment.

2. Printhead feed and gutter solenoid valve, avoid drop leakage.

3. Fine ruby nozzle coin, ink flow go through smoothly.

5 Lines Automatic Industrial Cij Inkjet Printer for Daily Chemical Products with CE Certificate

Part No	Standard Ink	Pigment Ink Pump	High Speed	Remarks
PRIMA-B600 PLUS	√	χ	χ	Standard model
PRIMA-B600 PLUS W	√	√	χ	Perfect durable pigment pump
PRIMA-B600 PLUS HS	√	χ	√	High speed model, speed increase over 50% for 3 -4 line printing
PRIMA-B600 PLUS W HS	√	√	√	High speed pigment pump model
PRIMA-B600 DM	√	χ	χ	Use Domino quality head
PRIMA-B600 DM HS	√	χ	√	High speed with domino head
